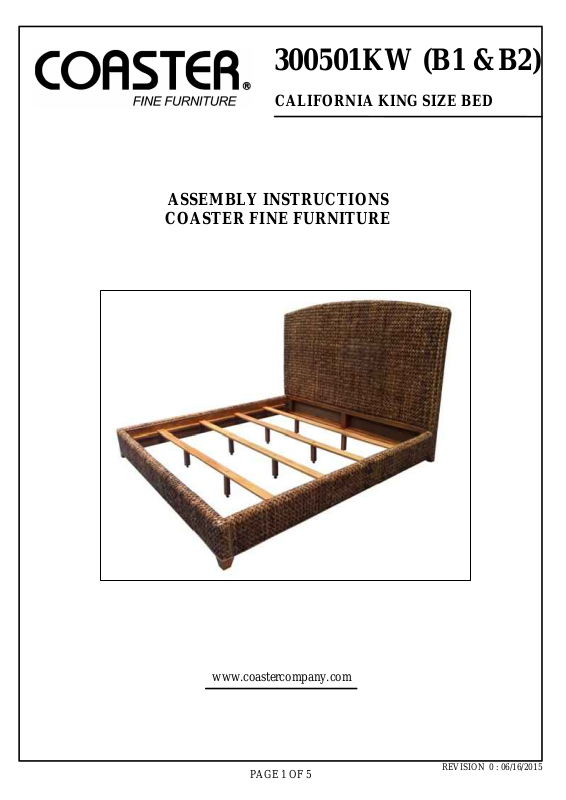

Page 1
PAGE 1 OF 5
300501KW (B1 &B2)
CALIFORNIA KING SIZE BED
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
www.coastercompany.com
REVISION 0 : 06/16/2015
Page 2
ITEM : 300501KW (B1 & B2)
ASSEMBLY TIPS :
1. Remove hardware from box and sort by size
2. Please check to see that all hardware and parts are present prior to start of assembly
3. Please follow attached instructions in the same sequences as numbered to assure fast & easy assembly.
WARNING !
1. Don't attempt to repair or modify parts that are broken or defective. Please contact the
store immediately
2. This product is for home use only and not intended for commercial establishment.
PAGE 2 OF 5
www.coastercompany.com
ASSEMBLY INSTRUCTIONS
1.
4.
ALLEN WRENCH 1 PC
PARTS IDENTIFICATION
2.
3.
LOCK WASHER 8 PCS
FLAT WASHER 8 PCS
HARDWARE IDENTIFICATION
A.
1 PC
5.
SCREW
8 PCS
ASSEMBLY TIME 15 MINUTES
B1 (BOX 1) B2 (BOX 2)
HEADBOARD
Z - B2 (BOX 2) - Hardware pack is located in 300501KW (B2)
A.
300501KW (B1)
FROM BOX 1
HEADBOARD
1 PC
NOTE : PHILLIPS HEAD SCREW DRIVER IS REQUIRED IN THE ASSEMBLY PROCESS.
HOWEVER, MANUFACTURER DOES NOT PROVIDE THIS ITEM.
B.
E.
1 PC
C.
FOOTBOARD
BED RAIL
BED SLAT
BED SLAT SUPPORT
WITH LEVELER
2 PCS
4 PCS
8 PCS
D.
Page 3
STEP 1
PAGE 3 OF 5
www.coastercompany.com
300501KW (B1 & B2) -
BOX 1 & BOX 2
STEP 2
ASSEMBLY INSTRUCTIONS
STEP 3
ITEM : 300501KW (B1 & B2)
A
C
A
C
B
C
3
2
1
4
C
3
2
1
4
B
D
E
D
C
5
D
C
D
B
C
A
E
Page 4
6.
9.
BOLT
ALLEN WRENCH
6 PCS
1 PC
PARTS IDENTIFICATION
7.
8.
LOCK WASHER 6 PCS
FLAT WASHER 12 PCS
ASSEMBLY TIPS :
1. Remove hardware from box and sort by size
2. Please check to see that all hardware and parts are present prior to start of assembly
3. Please follow attached instructions in the same sequences as numbered to assure fast & easy assembly.
WARNING !
1. Don't attempt to repair or modify parts that are broken or defective. Please contact the
store immediately
2. This product is for home use only and not intended for commercial establishment.
HARDWARE IDENTIFICATION
PAGE 4 OF 5
www.coastercompany.com
ASSEMBLE HEADBOARD TO METAL FRAME
A.
1 PC
B1 (BOX 1)
HEADBOARD
Z - B1 (BOX 1) - Hardware pack is located in 300501KW (B1)
10.
HEX NUT 6 PCS
11.
WRENCH 1 PC
Page 5
PAGE 5 OF 5
www.coastercompany.com
ASSEMBLE HEADBOARD TO METAL FRAME
8
10
11
8
7
6
9
A
METAL FRAME
