Coaster 300345Q Assembly Guide

REVISION 0 : 08/13/2014

REVISION 1 : 04/06/2015

REVISION 2 : 05/14/2015

300345Q (B1-B3)

QUEEN SIZE PU BED

ASSEMBLY INSTRUCTIONS

COASTER FINE FURNITURE

www.coastercompany.com

PAGE 1 OF 4

ITEM :

SUPPORT WITH

LEVELER

SUPPORT WITH

LEVELER

SMALL ALLEN

WRENCH

BIG ALLEN

WRENCH

PAGE 2 OF 4

SHORT FLAT HEAD

SCREW

LONG FLAT HEAD

SCREW

300345Q (B1-B3)

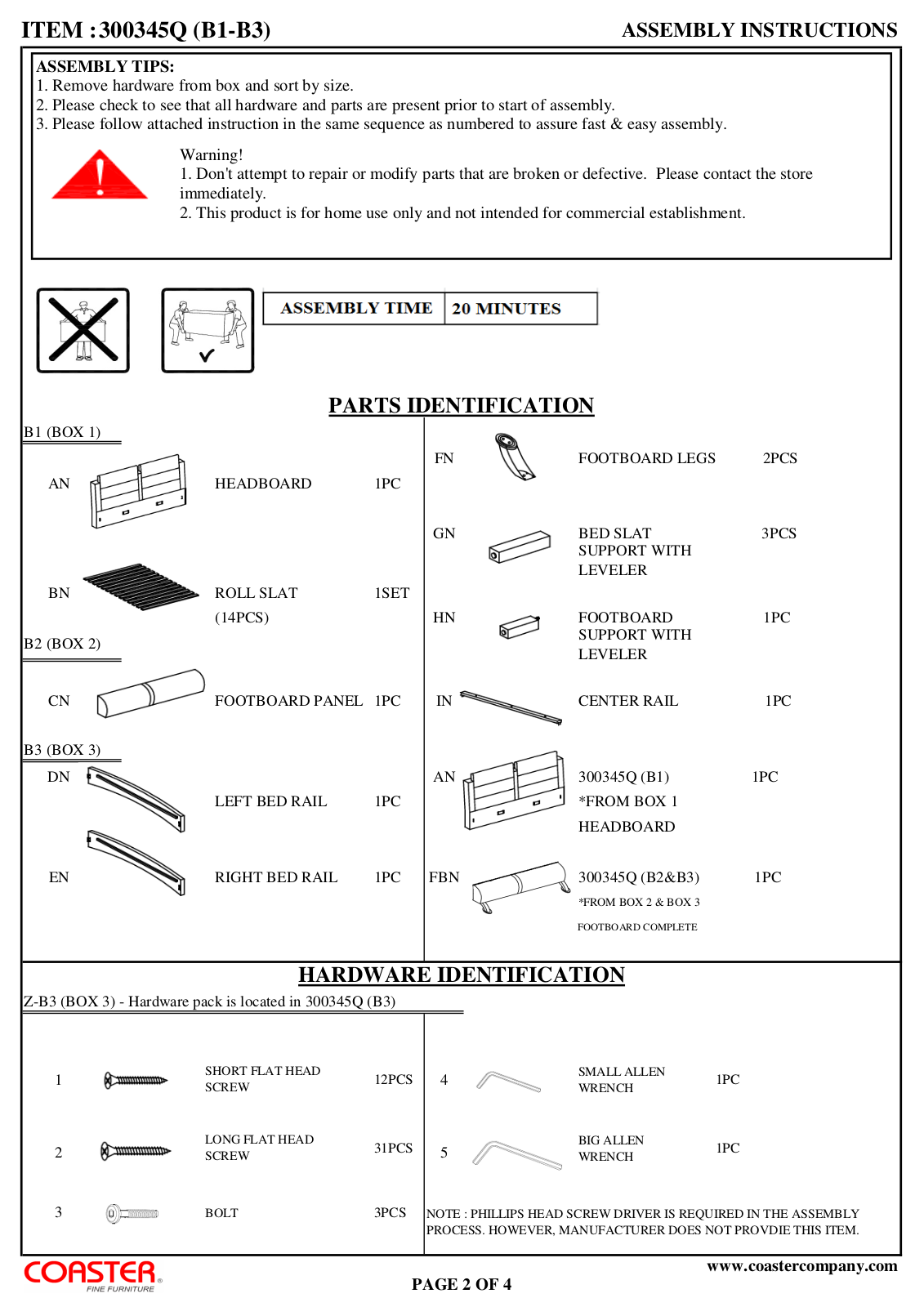

HARDWARE IDENTIFICATION

PARTS IDENTIFICATION

ASSEMBLY INSTRUCTIONS

ASSEMBLY TIPS:

1. Remove hardware from box and sort by size.

2. Please check to see that all hardware and parts are present prior to start of assembly.

3. Please follow attached instruction in the same sequence as numbered to assure fast & easy assembly.

Warning!

1. Don't attempt to repair or modify parts that are broken or defective. Please contact the store
immediately.

2. This product is for home use only and not intended for commercial establishment.

B1 (BOX 1)

FN FOOTBOARD LEGS 2PCS

AN HEADBOARD 1PC

GN BED SLAT 3PCS

BN ROLL SLAT 1SET

(14PCS) HN FOOTBOARD 1PC

B2 (BOX 2)

CN FOOTBOARD PANEL 1PC IN CENTER RAIL 1PC

B3 (BOX 3)

DN AN 300345Q (B1) 1PC

LEFT BED RAIL 1PC

EN RIGHT BED RAIL 1PC FBN 300345Q (B2&B3) 1PC

*FROM BOX 1

HEADBOARD

*FROM BOX 2 & BOX 3

FOOTBOARD COMPLETE

Z-B3 (BOX 3) - Hardware pack is located in 300345Q (B3)

1

2

3

BOLT

12PCS

31PCS

3PCS

4

5

NOTE : PHILLIPS HEAD SCREW DRIVER IS REQUIRED IN THE ASSEMBLY
PROCESS. HOWEVER, MANUFACTURER DOES NOT PROVDIE THIS ITEM.

1PC

1PC
