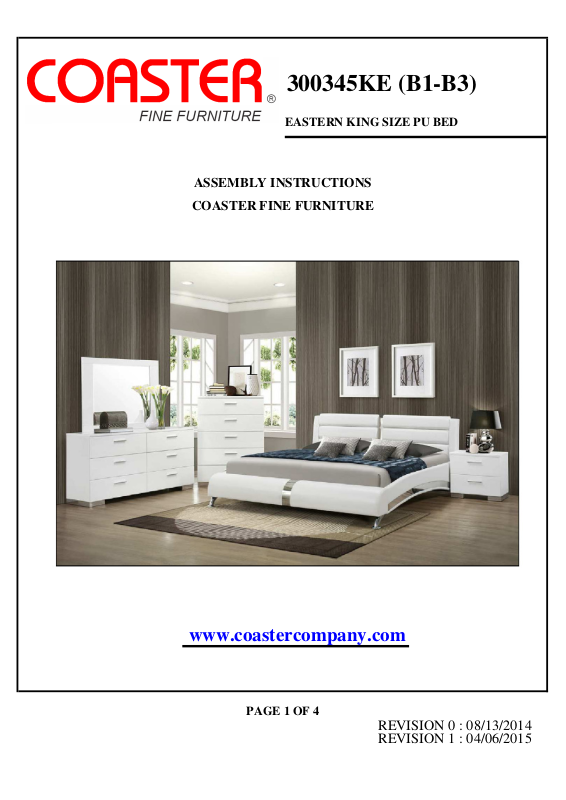

Page 1
300345KE (B1-B3)
EASTERN KING SIZE PU BED
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
www.coastercompany.com
PAGE 1 OF 4
REVISION 0 : 08/13/2014
REVISION 1 : 04/06/2015
Page 2
ITEM :
300345KE (B1-B3)
SCREW
SCREW
ASSEMBLY INSTRUCTIONS
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instruction in the same sequence as numbered to assure fast & easy assembly.
Warning!
1. Don't attempt to repair or modify parts that are broken or defective. Please contact the store
immediately.
2. This product is for home use only and not intended for commercial establishment.
PARTS IDENTIFICATION
B1 (BOX 1)
FN FOOTBOARD LEGS 2PCS
AN HEADBOARD 1PC
GN BED SLAT 6PCS
SUPPORT WITH
LEVELER
BN ROLL SLAT 1SET
(14PCS) HN FOOTBOARD 1PC
B2 (BOX 2)
SUPPORT WITH
LEVELER
CN FOOTBOARD PANEL 1PC IN CENTER RAIL 2PCS
B3 (BOX 3)
DN AN 300345KE (B1) 1PC
LEFT BED RAIL 1PC
EN RIGHT BED RAIL 1PC FBN 300345KE (B2&B3) 1PC
*FROM BOX 1
HEADBOARD
*FROM BOX 2 & BOX 3
FOOTBOARD COMPLETE
HARDWARE IDENTIFICATION
Z-B3 (BOX 3) - Hardware pack is located in 300345KE (B3)
1
2
SHORT FLAT HEAD
LONG FLAT HEAD
14PCS
34PCS
4
5
SMALL ALLEN
WRENCH
BIG ALLEN
WRENCH
1PC
1PC
3
BOLT
6PCS
PAGE 2 OF 4
NOTE : PHILLIPS HEAD SCREW DRIVER IS REQUIRED IN THE ASSEMBLY
PROCESS. HOWEVER, MANUFACTURER DOES NOT PROVDIE THIS ITEM.
www.coastercompany.com
Page 3
1.1) Place footboard panel (CN) upside down on soft surface.
Loosen the bolts from metal plate to leave a gap of about
Align and fasten footboard leg (FN) to the pre-marking on the
5mm. Hook the left and right bed rail (DN & EN) onto the
bottom of footboard panel (CN) using short flat head
bolts.
screw (1) (as per diagram shown) and tighten with Phillips
head screw driver (NOT INCLUDED).
1.2) Align and fasten footboard support with leveler (HN) to
www.coastercompany.com
ITEM : 300345KE (B1-B3)
PAGE 3 OF 4
footboard panel (CN) by turning clockwise until tight. Then
adjust leveler to touch the floor.
300345KE (B2 & B3) - BOX 2 & BOX 3 300345KE (B1 - B3) - BOX 1 TO BOX 3
STEP 1 STEP 2
ASSEMBLY INSTRUCTIONS
STEP 3 STEP 4
Align and fasten bed slat support with leveler (GN) to Align and fasten the plat at the end of center rail (IN)
center rail (IN) using bolt (3) and tighten with small to the bracket at headboard (AN) and footboard (FBN)
Allen wrench (4). using short flat head screw (1) and tighten with Phillips
head screw driver (NOT INCLUDED). Then adjust
leveler on bed slat support to touch the floor.
Page 4
5.1) Fully tighten all the bolts with big Allen wrench (5).
5.2) Align and fasten roll slat (BN) to center rail (IN) and left & right bed rail (DN & EN) using long flat head screw (2)
and tighten with Phillips head screw driver (NOT INCLUDED).
www.coastercompany.com
PAGE 4 OF 4
ITEM : 300345KE (B1-B3)
STEP 5
ASSEMBLY INSTRUCTIONS
STEP 6
Tear off the protector sticker of acrylic on headboard, footboard and bed rail.
