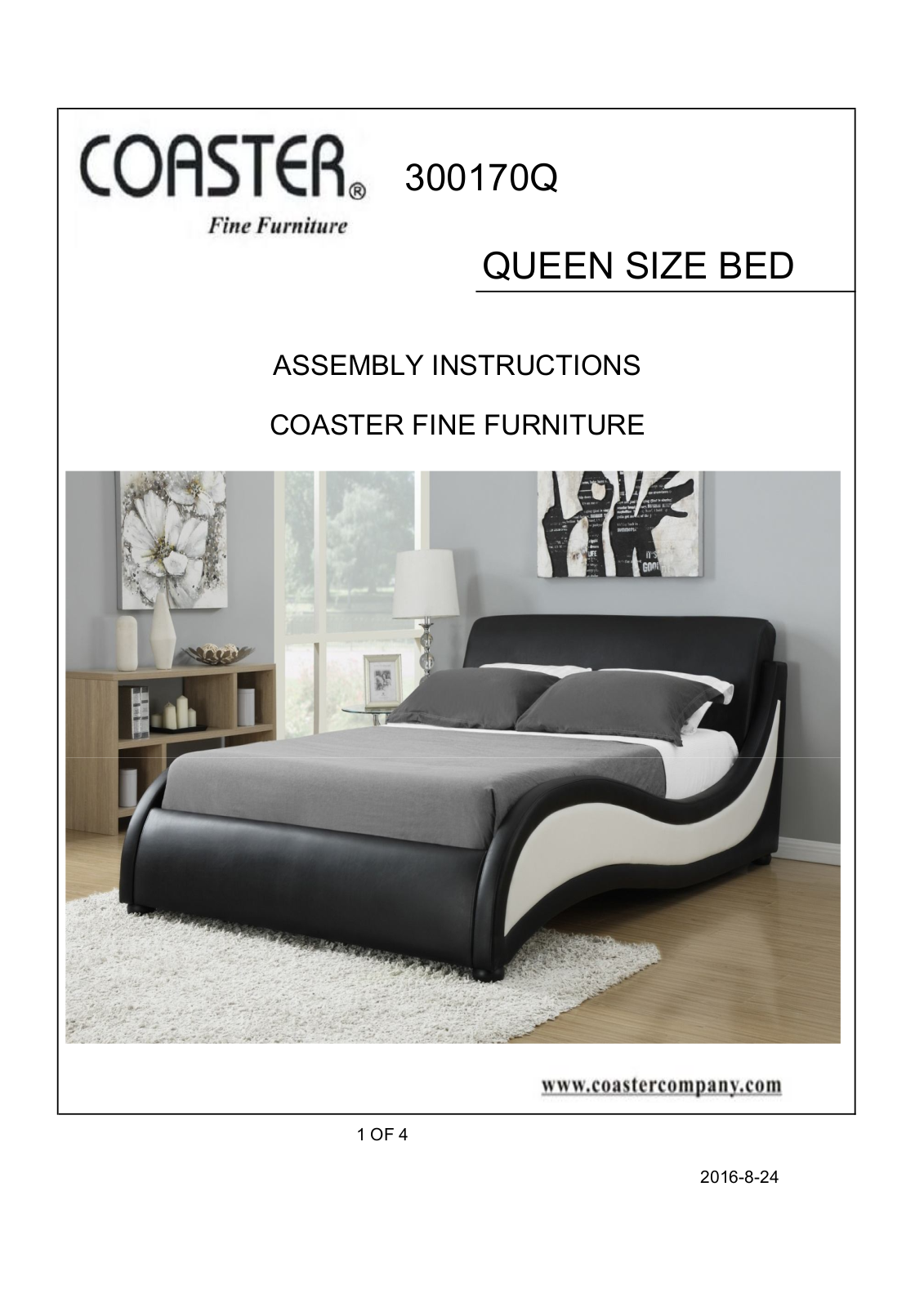

Page 1
300170Q
QUEEN SIZE BED
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
1 OF 4
2016-8-24

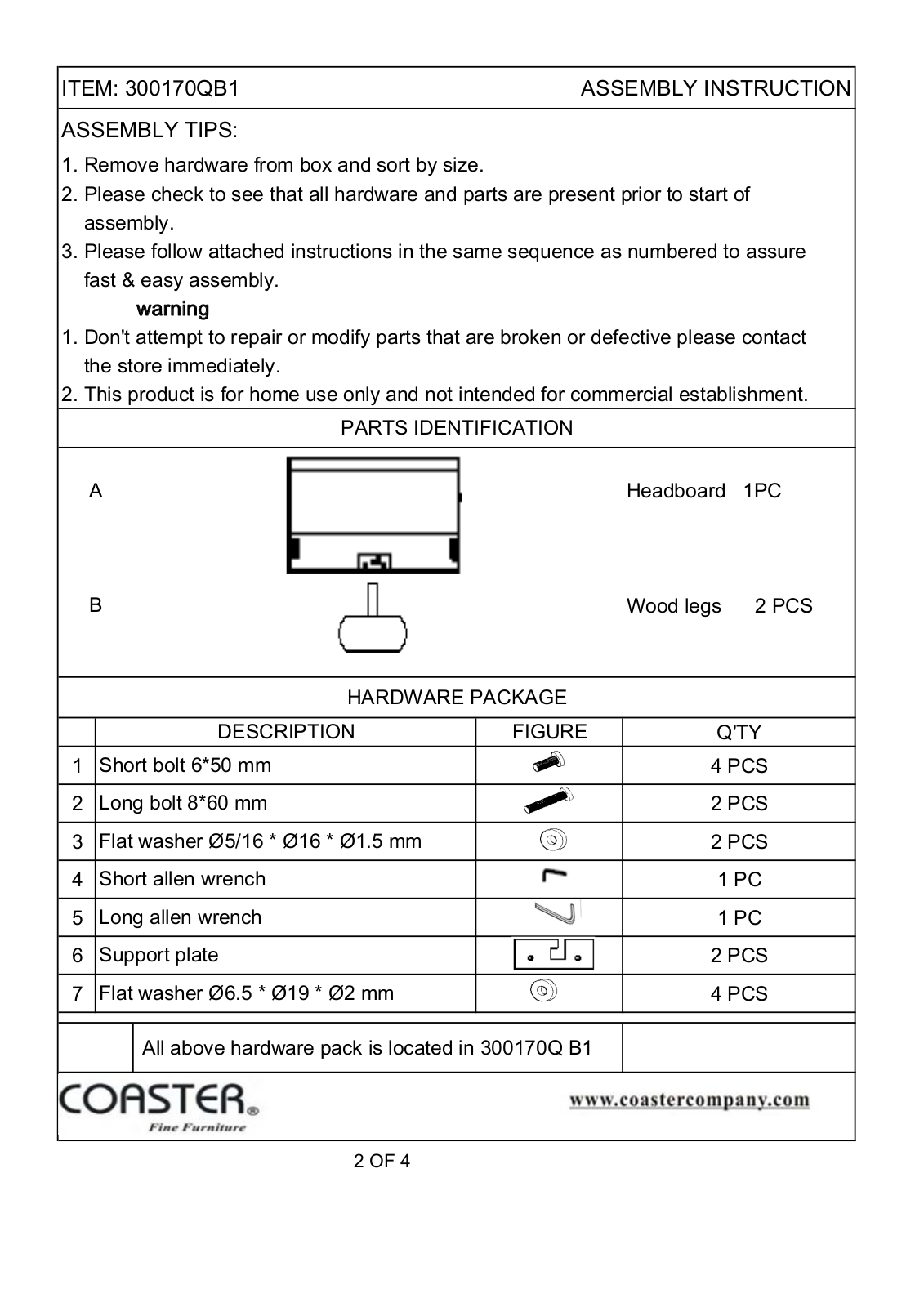

Page 2
ITEM: 300170QB1 ASSEMBLY INSTRUCTION
B
DESCRIPTION
FIGURE
A
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of
assembly.
3. Please follow attached instructions in the same sequence as numbered to assure
fast & easy assembly.
warning
1. Don't attempt to repair or modify parts that are broken or defective please contact
the store immediately.
2. This product is for home use only and not intended for commercial establishment.
PARTS IDENTIFICATION
Headboard 1PC
Wood legs 2 PCS
HARDWARE PACKAGE
Q'TY
Short bolt 6*50 mm
1 4 PCS
Long bolt 8*60 mm
2 2 PCS
Flat washer Ø5/16 * Ø16 * Ø1.5 mm
3 2 PCS
Short allen wrench
4 1 PC
Long allen wrench
5 1 PC
Support plate
6 2 PCS
Flat washer Ø6.5 * Ø19 * Ø2 mm
7 4 PCS
All above hardware pack is located in 300170Q B1
2 OF 4

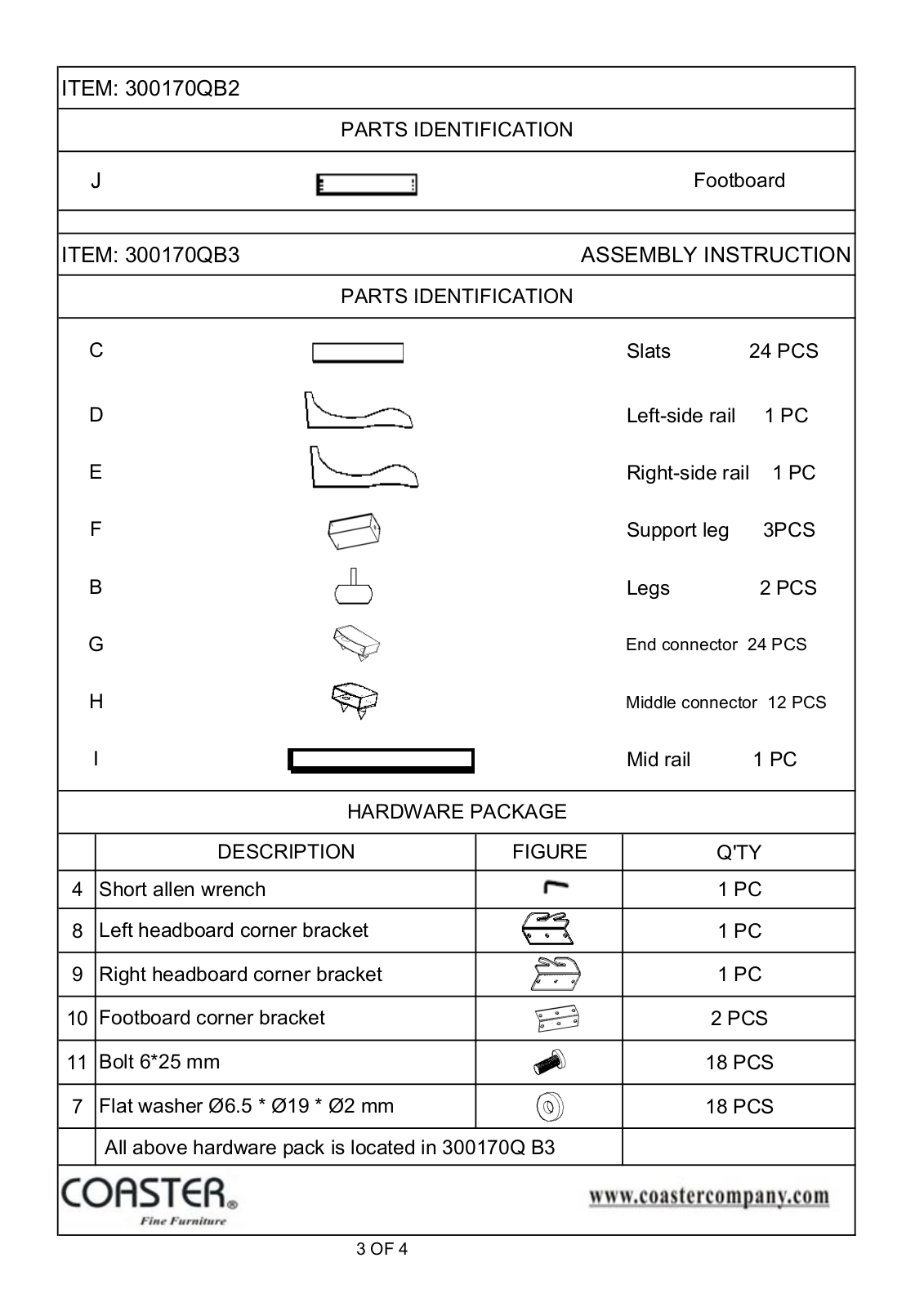

Page 3
ITEM: 300170QB2
F
B
GHI
CDE
PARTS IDENTIFICATION
J
Footboard
ITEM: 300170QB3 ASSEMBLY INSTRUCTION
PARTS IDENTIFICATION
Slats 24 PCS
Left-side rail 1 PC
Right-side rail 1 PC
Support leg 3PCS
Legs 2 PCS
End connector 24 PCS
Middle connector 12 PCS
Mid rail 1 PC
HARDWARE PACKAGE
DESCRIPTION FIGURE
Short allen wrench
4 1 PC
Left headboard corner bracket
8 1 PC
Q'TY
9 Right headboard corner bracket 1 PC
Footboard corner bracket
10 2 PCS
Bolt 6*25 mm
11 18 PCS
Flat washer Ø6.5 * Ø19 * Ø2 mm
7 18 PCS
All above hardware pack is located in 300170Q B3
3 OF 4

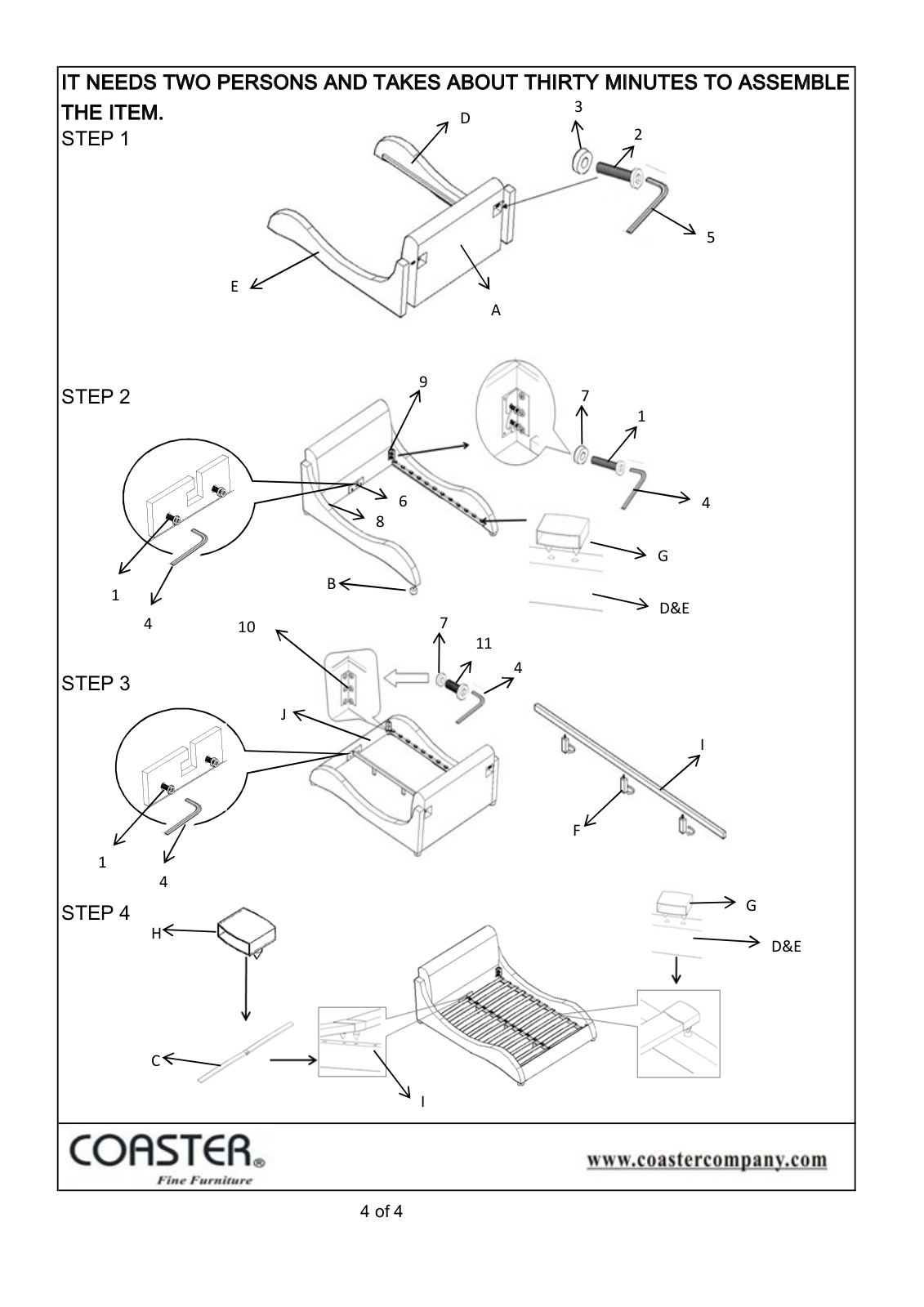

Page 4
STEP 3
STEP 4
IT NEEDS TWO PERSONS AND TAKES ABOUT THIRTY MINUTES TO ASSEMBLE
THE ITEM.
D
STEP 1
E
A
3
2
5
STEP 2
1
9
6
8
B
4
10
J
7
11
4
7
1
4
G
D&E
I
F
1
4
G
H
D&E
C
I
4 of 4
