Coaster 300170KW Assembly Guide

300170KW

CALIFORNIA KING SIZE BED

ASSEMBLY INSTRUCTIONS

COASTER FINE FURNITURE

1 OF 4

2016-8-24

ITEM: 300170KWB1 ASSEMBLY INSTRUCTION

B

DESCRIPTION

FIGURE

A

ASSEMBLY TIPS:

1. Remove hardware from box and sort by size.

2. Please check to see that all hardware and parts are present prior to start of
assembly.

3. Please follow attached instructions in the same sequence as numbered to assure
fast & easy assembly.

warning

1. Don't attempt to repair or modify parts that are broken or defective please contact
the store immediately.

2. This product is for home use only and not intended for commercial establishment.

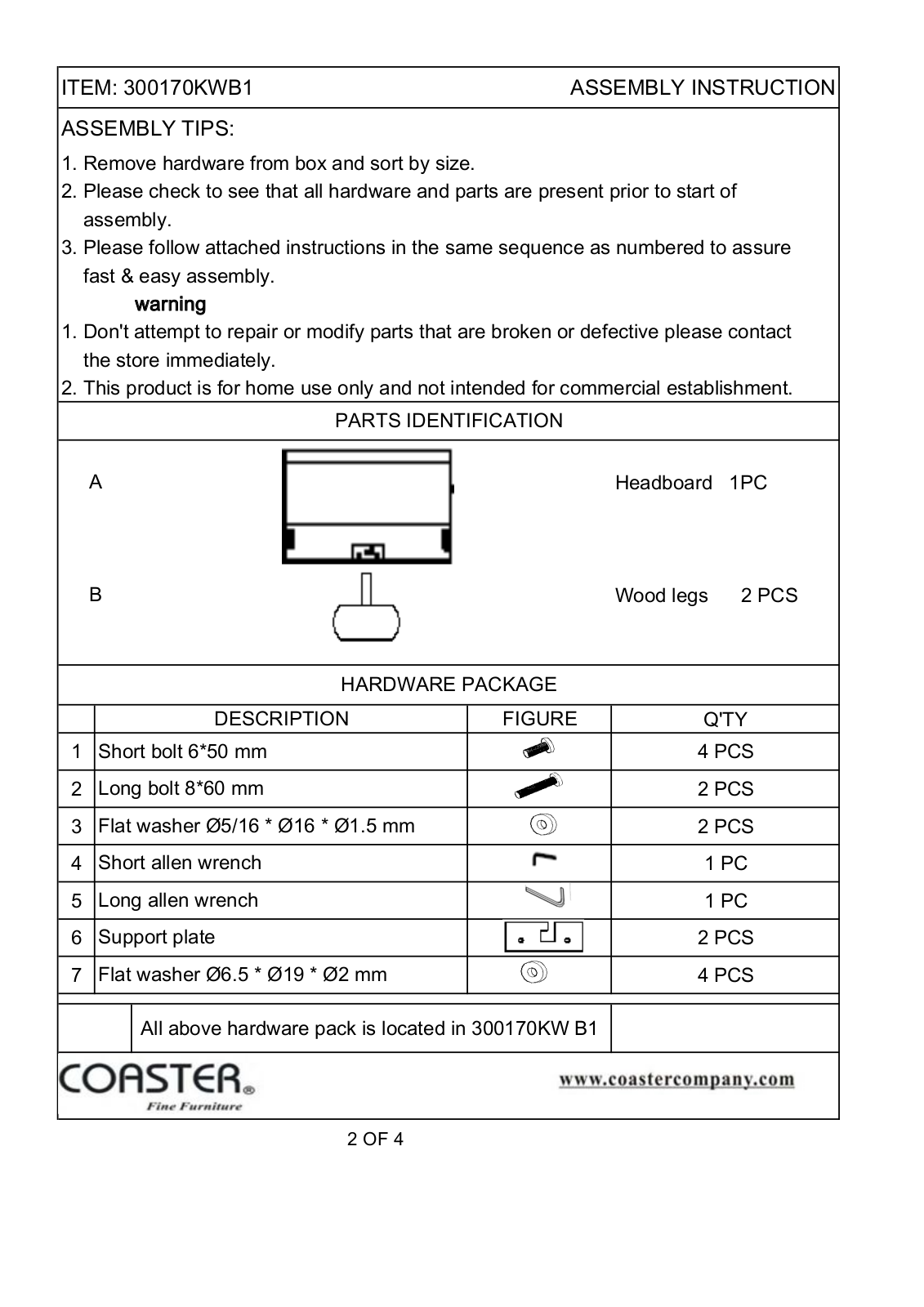

PARTS IDENTIFICATION

Headboard 1PC

Wood legs 2 PCS

HARDWARE PACKAGE

Q'TY

Short bolt 6*50 mm

1 4 PCS

Long bolt 8*60 mm

2 2 PCS

Flat washer Ø5/16 * Ø16 * Ø1.5 mm

3 2 PCS

Short allen wrench

4 1 PC

Long allen wrench

5 1 PC

Support plate

6 2 PCS

Flat washer Ø6.5 * Ø19 * Ø2 mm

7 4 PCS

All above hardware pack is located in 300170KW B1

2 OF 4
