206471Q(B1-B3)
QUEEN SIZE BED
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
www.coastercompany.com
PAGE 1 OF 5
REVISION 0: 12/14/2017
Page 2
ITEM:206471Q(B1-B3)
ASSEMBLY INSTRUCTIONS
ASSEMBLY TIPS:
1.Remove hardware from box and sort by size.
2.Please check to see that all hardware and parts are present prior to start of assembly.
3.Please follow attached instruction in the same sequence as numbered to assure fast & easy assembly.
Warning !
1.Don't attempt to repair or modify parts that are broken or defective .Please contact the store immediately.
2.This product is for home use only and not intended for commercial establishment.
ASSEMBLY TIME 15 MINUTES
PARTS IDENTIFICATION
B1(BOX1)
A.
B.
C.
B2(BOX2)
D.
B3(BOX3)
E.
HEADBOARD PANEL
LEFT HEADBOARD LEG
RIGHT HEADBOARD LEG
FOOTBOARD
BED RAIL
1PC
1PC
1PC
1PC
2PCS
F.
G.
BED SLAT SUPPORT
PAGE 2 OF 5
BED SLAT
WITH LEVELER
4PCS
4PCS
www.coastercompany.com
Page 3
ITEM:206471Q(B1-B3)
ASSEMBLY INSTRUCTIONS
ASSEMBLY TIPS:
1.Remove hardware from box and sort by size.
2.Please check to see that all hardware and parts are present prior to start of assembly.
3.Please follow attached instruction in the same sequence as numbered to assure fast & easy assembly.
Warning !
1.Don't attempt to repair or modify parts that are broken or defective .Please contact the store immediately.
2.This product is for home use only and not intended for commercial establishment.
206471Q(B1)
FROM BOX1
*
HB
D
HEADBOARD COMPLETE
206471Q(B2)
FROM BOX2
*
FOOTBOARD
1PC
1PC
HARDWARE IDENTIFICATION
Z-B1(BOX1)-HARDWARE PACK IS LOCATED IN 206471Q(B1)
1
2
3
4
Z-B3(BOX3)-HARDWARE PACK IS LOCATED IN 206471Q(B3)
5
6
7
8
THREADED BOLT 8PCS
HALF ROUND NUT
BOLT 6PCS
LOCK WASHER
FLAT WASHER
ALLEN WRENCH 1PC
HEX NUT
FLAT WASHER
6PCS
6PCS
8PCS
8PCS
8PCS
9
10
WRENCH
WOOD SCREW
1PC
8PCS
NOTE:PHILLIPS HEAD SCREW DRIVER IS REQUIRED IN THE ASSEMBLY PROCESS; HOWEVER,
MANUFACTURER DOES NOT PROVIDE THIS ITEM.
PAGE 3 OF 5
www.coastercompany.com
Page 4
ITEM:206471Q(B1-B3)

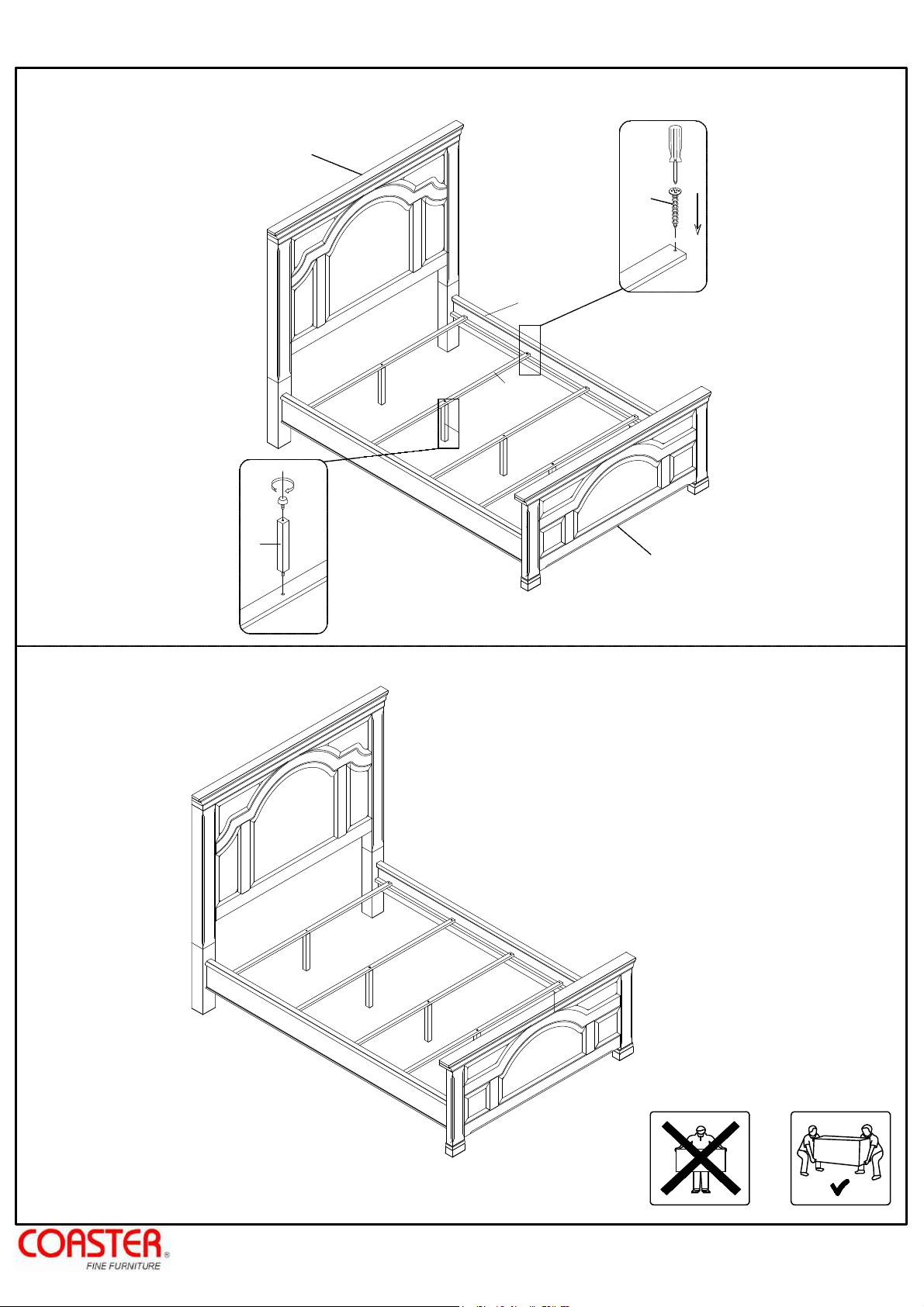

206471Q(B1)-BOX1
STEP 1
A
C
ASSEMBLY INSTRUCTIONS
B
4
1
2
3
*BACK VIEW
206471Q(B1-B3)-BOX1 TO BOX3
STEP 2
E
5
6
8
7
9
STEP2.1
PAGE 4 OF 5
D
www.coastercompany.com
Page 5
ITEM:206471Q(B1-B3)
STEP 3
HB
ASSEMBLY INSTRUCTIONS
10
STEP3.2
E
F
G
E
STEP3.1
COMPLETE
G
D
PAGE 5 OF 5
www.coastercompany.com
