Coaster 206461Q Assembly Guide
206461Q (B1 - B3)
QUEEN BED
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
www.coastercompany.com
PAGE 1 OF 7
REVISION 0: 12/14/2017
REVISION 1: 09/14/2018
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
Warning!
1. Don't attempt to repair or modify parts that are broken or defective. Please contact the
store immediately.
2. This product is for home use only and not intended for commercial establishments.
15 MINUTES
PARTS IDENTIFICATION
B1 (BOX 1)
AV
BV
CV
B2 (BOX 2)
DV
PART NAME
HEADBOARD PANEL
LEFT HEADBOARD LEG
RIGHT HEADBOARD LEG
FOOTBOARD
FIGURE
QTY
1PC
1PC
1PC
1PC
B3 (BOX 3)
EV
FV
GV
BED RAIL
BED SLAT
BED SLAT SUPPORT
WITH LEVELER
PAGE 2 OF 7
2PCS
4PCS
4PCS
www.coastercompany.com
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size.
2. Please check to see that all hardware and parts are present prior to start of assembly.
3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
Warning!
1. Don't attempt to repair or modify parts that are broken or defective. Please contact the
store immediately.
2. This product is for home use only and not intended for commercial establishments.
PARTS IDENTIFICATION
PART NAME
FIGURE

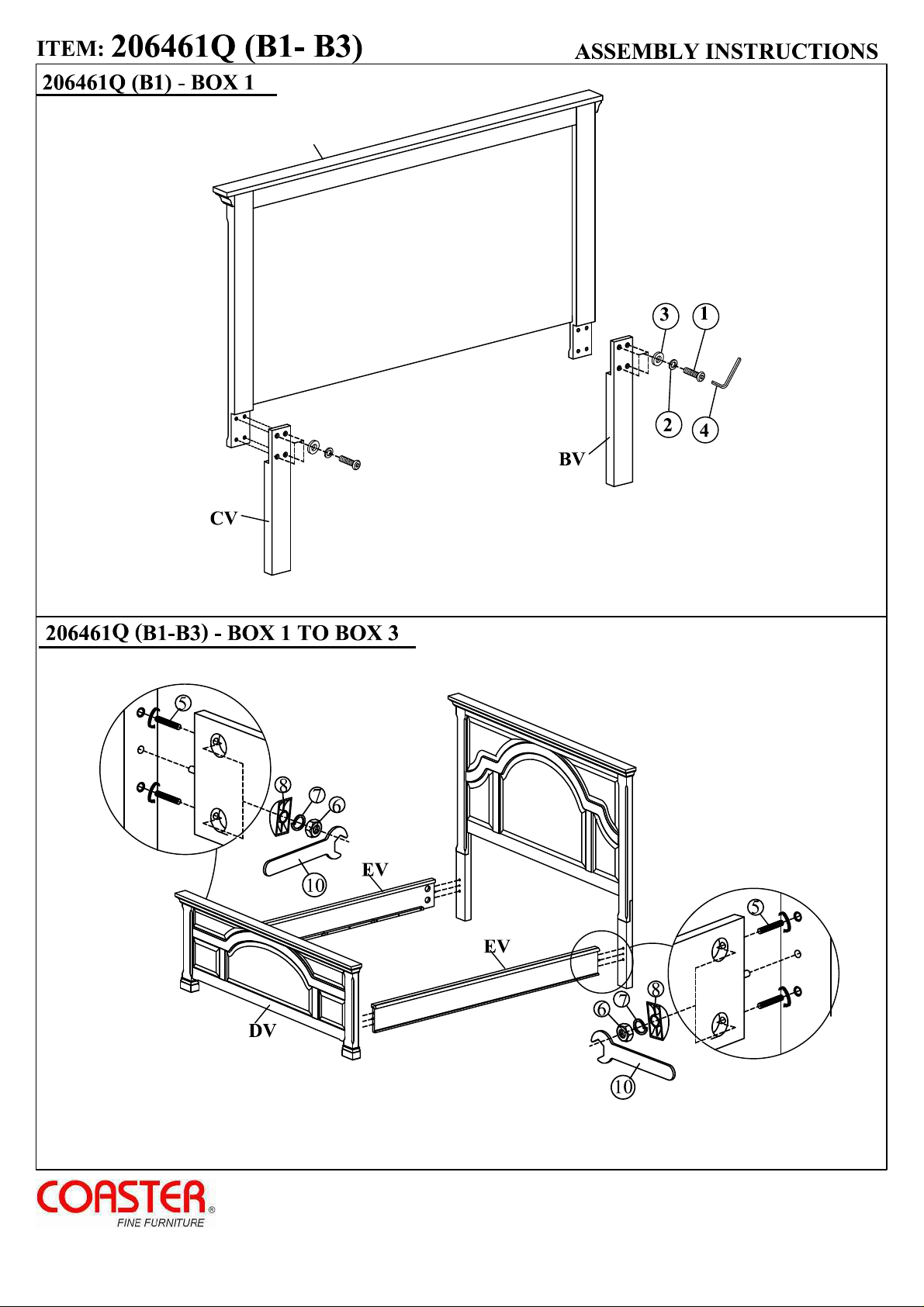

206461Q (B1)
HBV
FROM BOX 1
HEADBOARD COMPLETE
206461Q (B2)
DV
FROM BOX 2
FOOTBOARD
HARDWARE IDENTIFICATION
Z-B1 ( BOX 1) - HARDWARE PACK IS LOCATED IN 206461Q(B1)
HARDWARE NAME
FIGURE
QTY
1PC
1PC
QTY
1
(5/16" x 45mm - RBW)
2
3
(8 x 19 x 2mm - RBW)
4
(4 x 30 x 80mm - RBW)
BOLT
LOCK WASHER
(8mm - RBW)
FLAT WASHER
ALLEN WRENCH
8PCS
8PCS
8PCS
1PC
www.coastercompany.com
PAGE 3 OF 7
