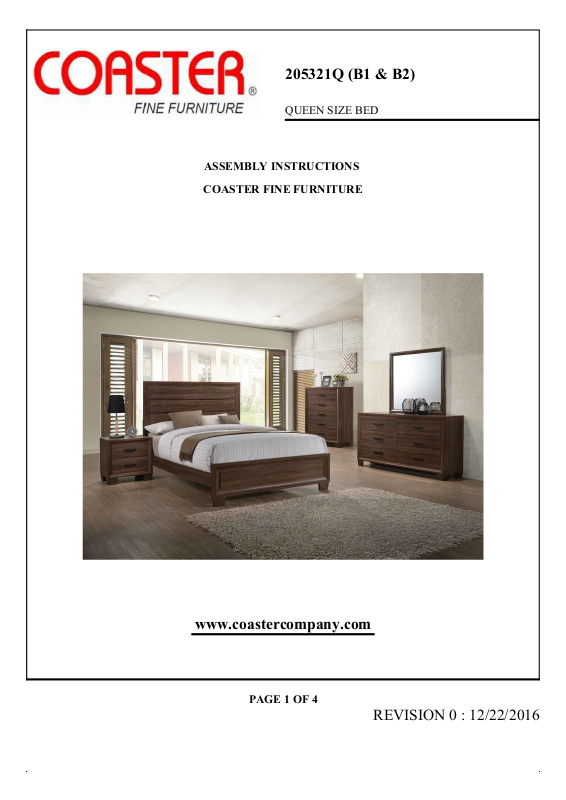

Coaster 205321Q Assembly Guide

205321Q (B1 & B2)

QUEEN SIZE BED

ASSEMBLY INSTRUCTIONS

COASTER FINE FURNITURE

www.coastercompany.com

PAGE 1 OF 4

REVISION 0 : 12/22/2016

ITEM: 205321Q (B1 & B2) ASSEMBLY INSTRUCTIONS

PAGE 2 OF 4

www.coastercompany.com

ASSEMBLY TIPS:

1. Remove hardware from box and sort by size

2. Please check to see that all hardware and parts are present prior to start of assembly.

3. Please follow attached instruction in the same sequence as numbered to assure fast & easy assembly.

Warning!

1. Donˊt attempt to repair or modify parts that are broken or defective. Please contact the

store immediately.

2. This product is for home use only and not intended for commercial establishment.

PARTS IDENTIFICATION HARDWARE IDENTIFICATION

A HEADBOARD

PANEL

1PC

1 LONG BOLT 6PCS

2 LOCK WASHER 6PCS

3 FLAT WASHER 14PCS

B1 (BOX 1)

D FOOTBOARD 1PC

B2 (BOX 2)

G

BED RAIL

2PCS

Z-B1 (BOX 1) - Hardware pack is located in 205321Q(B1)

B

C

LEFT HEADBOARD
LEG

1PC

RIGHT HEADBOARD
LEG

1PC

D

205321Q (B1)
* FROM BOX 1
FOOTBOARD

1PC

HB

205321Q (B1)
* FROM BOX 1
HEADBOARD
COMPLETE

6 MEDIUM BOLT

7 SMALL ALLEN

WRENCH

8 PAN HEAD SCREW

NOTE : PHILLIPS HEAD SCREW DRIVER IS REQUIRED IN
THE ASSEMBLY PROCESS; HOWEVER MANUFACTURER
DOES NOT PROVIDE THIS ITEM.

4

LARGE ALLEN
WRENCH

1PC

4PCS

1PC

8PCS

1PC

ASSEMBLY TIME 20 MINUTES

BED SLAT

4PCS

BED SLAT SUPPORT
WITH LEVELER

4PCS

E

F

5

SHORT BOLT 8PCS
