FINE FURNITURE
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
205261 T (B1 & B2 )
R
TWIN SIZE BED
Wwww.coastercompany.com
PAGE 1 OF 6
REVISION 0:07/27/2016
ITEM : 205261 T ( B1 & B2 )
ASSEMBLY INSTRUCTIONS
ASSEMBLY TIPS:
1 . Remove hardware from box and sort by size.
2 . Please check to see that all hardware and parts are present prior to start of assembly.
3 . Please follow attached instructions in the same sequence as numbered to ensure fast & easy assembly.
Warning !
!
1 . Don’t attempt to repair or modify parts that are broken or defective. Please contact the
store immediately.
2 . This product is for home use only and not intended for commercial establishment.
PARTS IDENTIFICATION
ASSEMBLY TIME
20 MINUTES
B1 ( BOX 1)
A
B2 ( BOX 2)
F
G
HEADBOARD
PANEL
B
RIGHT
HEADBOARD
LEG 1 PC.
D
1 PC.
BED RAIL
BED SLAT
FRONT BACK
WOOD CLEAT
C
FRONT BACK
LEFT
HEADBOARD
LEG 1 PC.
2 PCS.
2 PCS.
4 PCS.
E
FOOTBOARD
1 PC.
H
HB
FINE FURNITURE
BED SLAT SUPPORT WITH LEVELER
205261 T (B1)
* FROM BOX 1
HEADBOARD
COMPLETE
R
1 PC.
E
4 PCS.
205261 T (B1)
* FROM BOX 1
FOOTBOARD
Wwww.coastercompany.com
1 PC.
PAGE 2 OF 6
ITEM : 205261 T ( B1 & B2 )
ASSEMBLY TIPS:
1 . Remove hardware from box and sort by size.
2 . Please check to see that all hardware and parts are present prior to start of assembly.
3 . Please follow attached instructions in the same sequence as numbered to ensure fast & easy assembly.
Warning !
!
1 . Don’t attempt to repair or modify parts that are broken or defective. Please contact the
store immediately.
2 . This product is for home use only and not intended for commercial establishment.

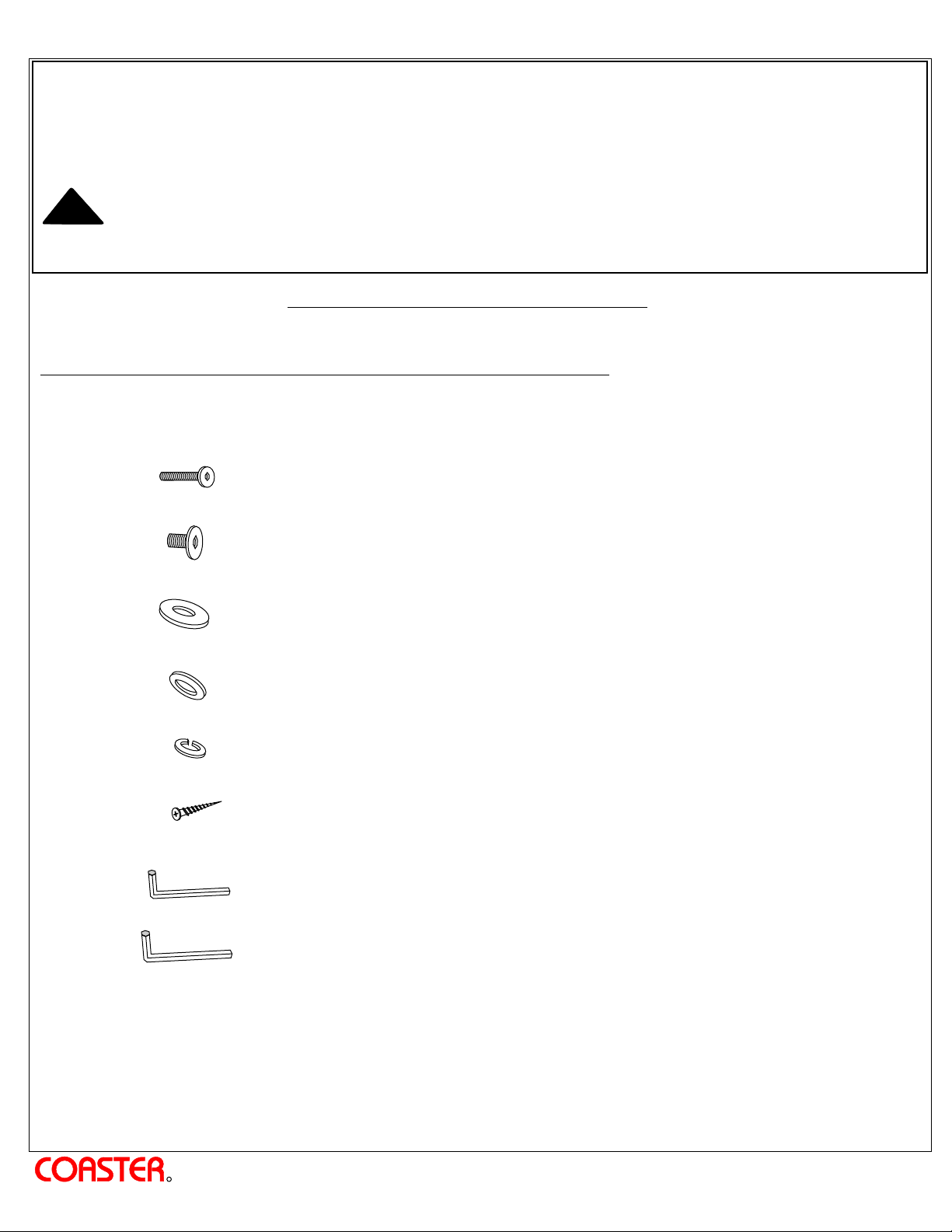

HARDWARE IDENTIFICATION
Z- B2 ( BOX 2 ) - HARDWARE PACK IS LOCATED IN 205261 T (B2)
ASSEMBLY INSTRUCTIONS
1
2
3
4
5
6
7
LONG BOLT
SHORT BOLT
LARGE FLAT WASHER
SMALL FLAT WASHER
LOCK WASHER
SCREW
SMALL ALLEN WRENCH
16 PCS.
8 PCS.
8 PCS.
12 PCS.
12 PCS.
8 PCS.
1 PC.
8
FINE FURNITURE
LARGE ALLEN WRENCH
NOTE : PHILLIPS HEAD SCREW DRIVER IS REQUIRED IN THE ASSEMBLY
PROCESS; HOWEVER MANUFACTURER DOES NOT PROVIDE THIS ITEM.
R
PAGE 3 OF 6
1 PC.
Wwww.coastercompany.com
ITEM : 205261 T ( B1 & B2 )
205261 T ( B1) - BOX 1
STEP 1
A
ASSEMBLY INSTRUCTIONS
A
STEP 2
B
A
C
B
4
5
1
7
A
D
B
FINE FURNITURE
D
B
R
Wwww.coastercompany.com
PAGE 4 OF 6
ITEM : 205261 T ( B1 & B2 )
ASSEMBLY INSTRUCTIONS
205261 T ( B1 & B2) - BOX 1 & BOX 2
STEP 3
A
3
C
2
8
STEP 3.2
E
20
F
STEP 3.1
A
20
B
2
3
8
F
STEP 4
F
5
8
1
G
A
H
F
B
G
FINE FURNITURE
E
H
R
PAGE 5 OF 6
D
Wwww.coastercompany.com
ITEM : 205261 T ( B1 & B2 )
STEP 5
G
ASSEMBLY INSTRUCTIONS
6
G
F
F
ASSEMBLY COMPLETE
FINE FURNITURE
R
PAGE 6 OF 6
Wwww.coastercompany.com
