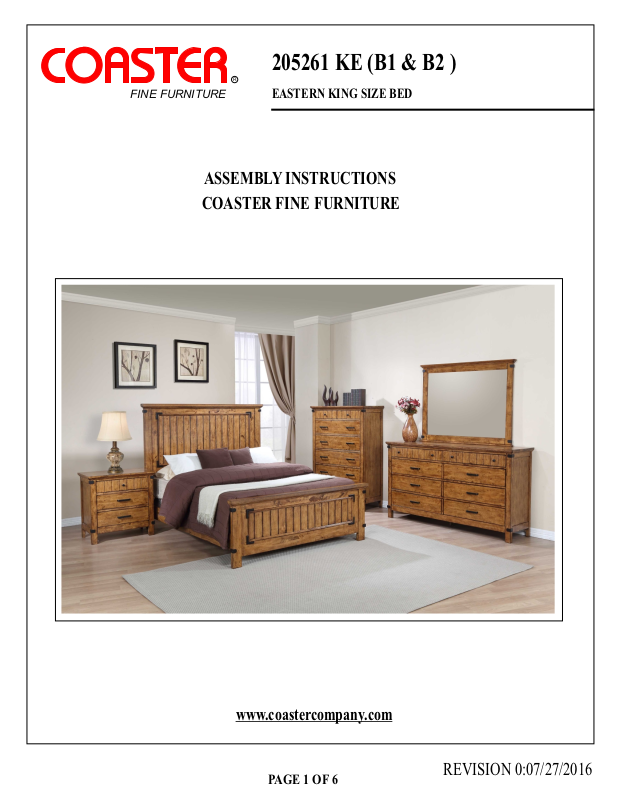

Coaster 205261KE Assembly Guide
FINE FURNITURE
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
205261 KE (B1 & B2 )
R
EASTERN KING SIZE BED
Wwww.coastercompany.com
PAGE 1 OF 6
REVISION 0:07/27/2016
ITEM : 205261 KE ( B1 & B2 )
ASSEMBLY TIPS:
1 . Remove hardware from box and sort by size.
2 . Please check to see that all hardware and parts are present prior to start of assembly.
3 . Please follow attached instructions in the same sequence as numbered to ensure fast & easy assembly.
Warning !
!
1 . Don’t attempt to repair or modify parts that are broken or defective. Please contact the
store immediately.
2 . This product is for home use only and not intended for commercial establishment.
PARTS IDENTIFICATION
ASSEMBLY TIME
20 MINUTES
ASSEMBLY INSTRUCTIONS
B1 ( BOX 1)
A
B2 ( BOX 2)
F
G
HEADBOARD
PANEL
B
RIGHT
HEADBOARD
LEG 1 PC.
D
1 PC.
BED RAIL
BED SLAT
FRONT BACK
WOOD CLEAT
C
FRONT BACK
LEFT
HEADBOARD
LEG 1 PC.
2 PCS.
2 PCS.
4 PCS.
E
FOOTBOARD
1 PC.
H
HB
FINE FURNITURE
BED SLAT SUPPORT WITH LEVELER
205261 KE (B1)
* FROM BOX 1
HEADBOARD
COMPLETE
R
1 PC.
E
8 PCS.
205261 KE (B1)
* FROM BOX 1
FOOTBOARD
Wwww.coastercompany.com
1 PC.
PAGE 2 OF 6
