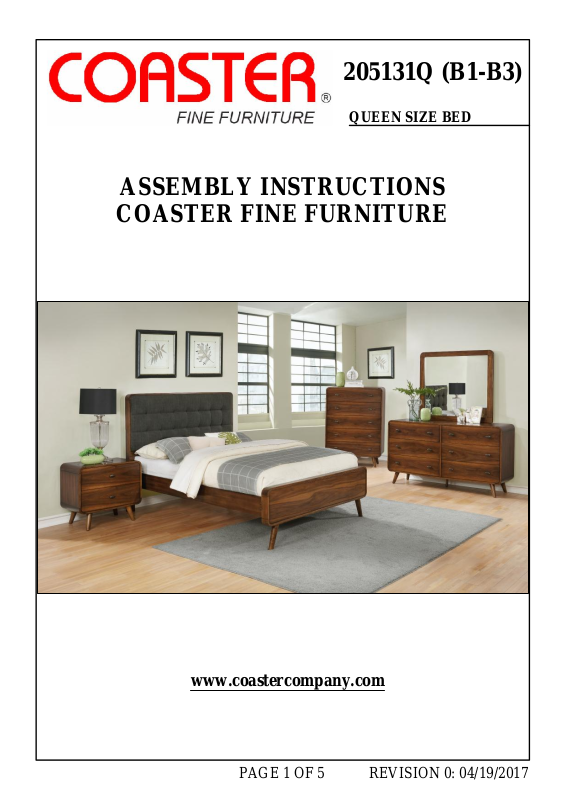

Coaster 205131Q Assembly Guide

205131Q (B1-B3)

QUEEN SIZE BED

ASSEMBLY INSTRUCTIONS

COASTER FINE FURNITURE

www.coastercompany.com

PAGE 1 OF 5

REVISION 0: 04/19/2017

ITEM:205131Q (B1-B3) ASSEMBLY INSTRUCTIONS

ASSEMBLY TIPS:

1. Remove hardware from box and sort by size.

2. Please check to see that all hardware and parts are present prior to start of assembly.

3. Please follow attached instructions in the same sequence as numbered to assure fast and easy assembly.

Warning!

1.Don't attempt to repair or modify parts that are broken or defective. Please contact the
store immediately.

2.This product is for home use only and not intended for commercial establishments.

ASSEMBLY TIME

PARTS IDENTIFICATION

B1 (BOX 1)

A

B

C

D

B2 (BOX 2)

E FOOTBOARD 1PC

HEADBOARD PANEL 1PC

LEFT HEADBOARD

L

LEG
RIGHT HEADBOARD

R

LEG
HEADBOARD BOTTOM

RAIL

1PC

1PC

1PC

15 MINUTES

HARDWARE IDENTIFICATION

Z-B1 (BOX 1)­205131Q (B1)

1 8PCSBOLT

2 8PCSLOCK WASHER

3 8PCSFLAT WASHER

4 1PCALLEN WRENCH

Z-B2 (BOX 2)-Hardware pack is located in
205131Q (B2)

5 8PCSBOLT

Hardware pack is located in

F 2PCS

B3 (BOX 3)

G BED RAIL 2PCS

H

I CENTER RAIL 1PC

J 3PCS

FB 1PC

FOOTBOARD LEG

ROLL SLAT
(13PCS)

CENTER RAIL SUPPORT
WITH LEVELER

205131Q (B1)
FROM BOX 1
HEADBOARD COMPLETE

205131Q (B2)
FROM BOX 2
FOOTBOARD COMPLETE

1SET

1PCHB

6 8PCSLOCK WASHER

7 8PCSFLAT WASHER

8 1PCALLEN WRENCH

Z-B3 (BOX 3)-Hardware pack is located in
205131Q (B3)

9 11PCSSCREW

NOTE: PHILLIPS HEAD SCREW DRIVER IS REQUIRED IN THE ASSEMBLY PROCESS;
HOWEVER, MANUFACTURER DOES NOT PROVIDE THIS ITEM

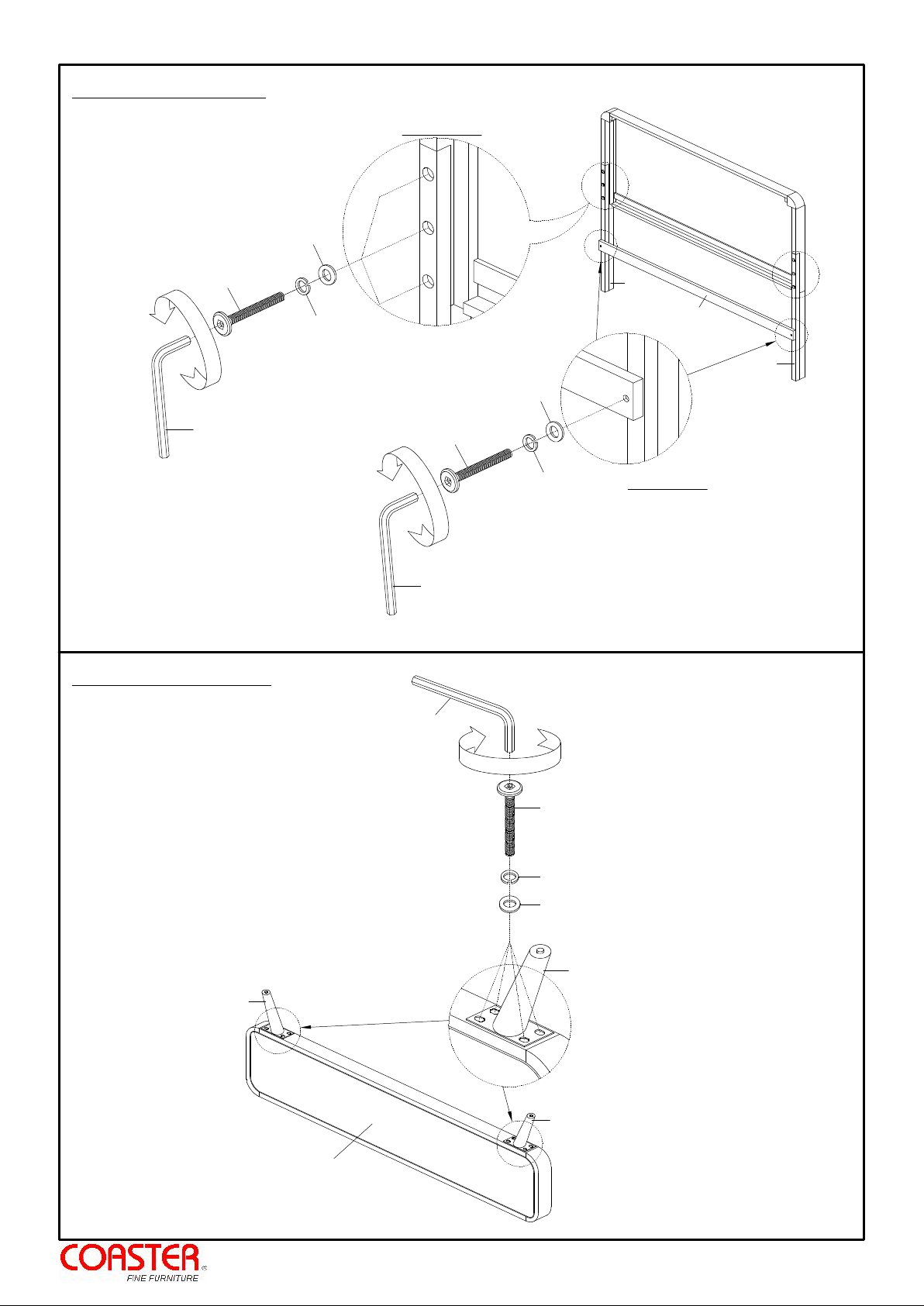

PAGE 2 OF 5

www.coastercompany.com
