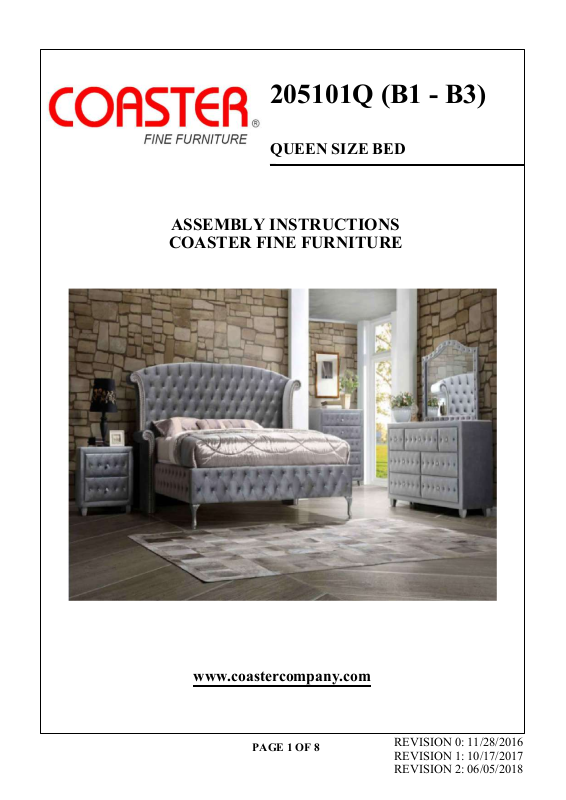

205101Q (B1 - B3)
QUEEN SIZE BED
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
www.coastercompany.com
PAGE 1 OF 8
REVISION 0: 11/28/2016
REVISION 1: 10/17/2017
REVISION 2: 06/05/2018
ITEM:
ASSEMBLY TIPS:
1.Remove hardware from box and sort by size.
2.Please check to see that all hardware and parts are present prior to start of assembly.
3.Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
205101Q (B1 - B3)
Warning!
1.Don't attempt to repair or modify parts that are broken or defective. Please contact the store
immediately.
2.This product is for home use only and not intended for commercial establishments.
ASSEMBLY TIME 40 MINUTES
ASSEMBLY INSTRUCTIONS
PARTS IDENTIFICATION
B1 (BOX 1)
FIGUREPART NAME QTY
AV HEADBOARD
BV
CV
B2 (BOX 2)
DV1
DV2
EV
B3 (BOX 3)
FV
GV1
GV2
HEADBOARD
SUPPORT LEG
HEADBOARD PANEL
RIGHT EAR PANEL
LEFT EAR PANEL 1 PC
EAR PANEL SUPPORT
FOOTBOARD
LEFT BED RAIL 1 PC
RIGHT BED RAIL 1 PC
1 PC
2 PCS
1 PC
1 PC
2 PCS
1 PC
HV
IV
JV
KV
LV
BED SLAT
BED SLAT WITH HOLES
BED SLAT SUPPORT
FOOTBOARD LEG
CENTER RAIL
PAGE 2 OF 8
10 PCS
3 PCS
6 PCS
2 PCS
2 PCS
www.coastercompany.com
ITEM:
ASSEMBLY TIPS:
1.Remove hardware from box and sort by size.
2.Please check to see that all hardware and parts are present prior to start of assembly.
3.Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
B3 (BOX 3)
205101Q (B1 - B3)
Warning!
1.Don't attempt to repair or modify parts that are broken or defective. Please contact the store
immediately.
2.This product is for home use only and not intended for commercial establishments.
ASSEMBLY INSTRUCTIONS
MV
PART NAME
CENTER RAIL SUPPORT
FIGURE
205101Q (B1)
HBV
FROM BOX 1
HEADBOARD COMPLETE
205101Q (B2)
ERV
FROM BOX 2
LEFT AND RIGHT EAR
PANEL COMPLETE
HARDWARE IDENTIFICATION
Z - B3 (BOX 3) - HARDWARE PACK IS LOCATED IN 205101Q (B3)
FIGUREHARDWARE NAME
1
2
3
4
ALLEN WRENCH
(4mm - RBW)
BOLT 1
(Ø1/4" x 30mm - RBW)
BOLT 2
(Ø1/4" x 38mm - RBW)
BOLT 3
(Ø1/4" x 60mm - RBW)
QTY
2 PCS
1 PC
2 PCS
QTY
1 PC
4 PCS
10 PCS
10 PCS
10
11
12
5
6
7
8
9
BOLT 4
(Ø1/4" x 90mm - RBW)
SHORT PAN HEAD SCREW
(#4 x 20mm - RBW)
MEDIUM PAN HEAD SCREW
(#4 x 25mm - RBW)
LONG PAN HEAD SCREW
(#4 x 38mm - RBW)
BIG FLAT WASHER
(Ø1/4" x 25 x 1.5mm - RBW)
SMALL FLAT WASHER
(Ø1/4" x 19 x 1.5mm - RBW)
LOCK WASHER
(Ø1/4" - RBW)
LEVELER
(Ø1/4" x 25mm - BLK)
8 PCS
4 PCS
4 PCS
32 PCS
22 PCS
22 PCS
22 PCS
6 PCS
NOTE: PHILLIPS HEAD SCREW DRIVER IS REQUIRED IN THE ASSEMBLY
PROCESS; HOWEVER, MANUFACTURER DOES NOT PROVIDE THIS ITEM.
www.coastercompany.com
PAGE 3 OF 8
ITEM:
205101Q (B1 - B3)
205101Q (B1) - BOX 1
STEP 1
ASSEMBLY INSTRUCTIONS
STEP 2
CV
BV
AV
1
3
11
BV
205101Q (B2) - BOX 2
STEP 3
DV1
9
AV
NOTE : THE EAR PANEL SUPPORTS ARE TO
LIFT UP THE BED RAILS
10
AV
BV
Marking Line
EV
PAGE 3 OF 8
8
www.coastercompany.com
ITEM:
205101Q (B1 - B3)
205101Q (B1 & B2) - BOX 1 & BOX 2
STEP 4
9
10
11
3
1
ASSEMBLY INSTRUCTIONS
AV
DV2
DV1
AV
205101Q (B3) - BOX 3
STEP 5
7
DV1
FV
FV
KV
KV
STEP 6
FV
GV1
FV
Left
Right
GV2
GV1
9
10
11
2
1
www.coastercompany.com
PAGE 5 OF 8
ITEM:
STEP 7
205101Q (B1 - B3)
GV1
GV2
FV
205101Q (B1 - B3) - BOX 1 TO BOX 3
ASSEMBLY INSTRUCTIONS
GV2
FV
KV
7
STEP 8
9
10
STEP 9
GV1
11
AV
DV2
Left
Right
5
1
DV1
AV
6
CV
www.coastercompany.com
PAGE 6 OF 8
ITEM:
STEP 10
STEP 11
205101Q (B1 - B3)
1
4
IV
LV
JV
12
ASSEMBLY INSTRUCTIONS
MV
STEP 12
8
LV
4
1
8
GV2
HV
IV
PAGE 7 OF 8
www.coastercompany.com
ITEM:

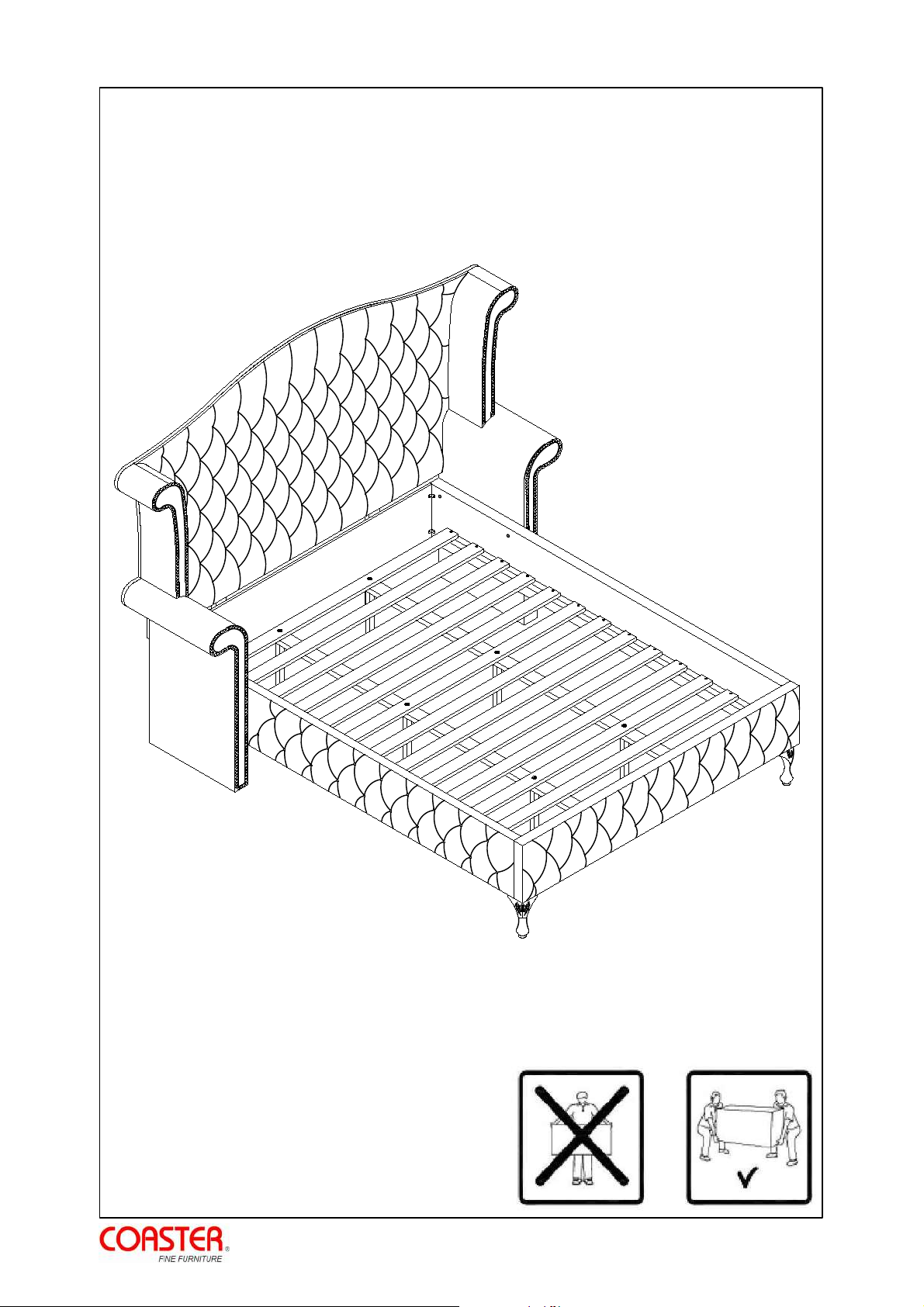

STEP 13
Complete
205101Q (B1 - B3)
ASSEMBLY INSTRUCTIONS
PAGE 8 OF 8
