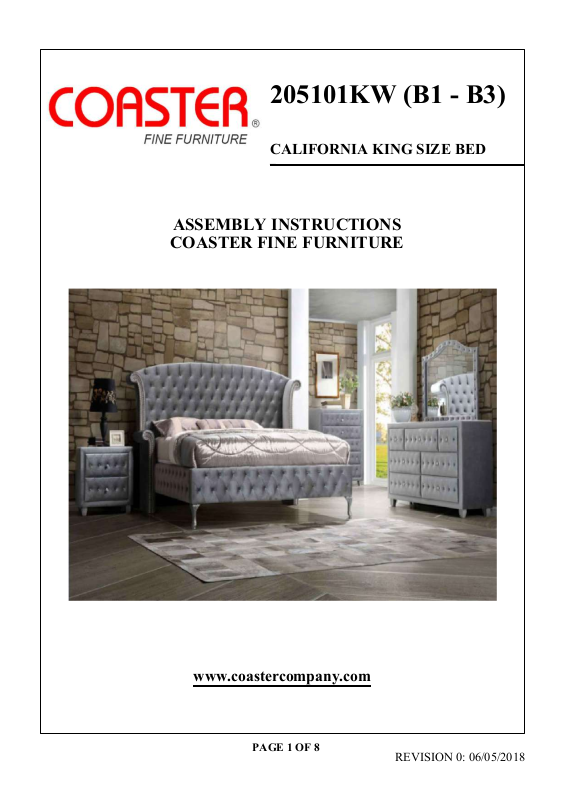

Coaster 205101KW Assembly Guide
205101KW (B1 - B3)
CALIFORNIA KING SIZE BED
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
www.coastercompany.com
PAGE 1 OF 8
REVISION 0: 06/05/2018
ITEM:
ASSEMBLY TIPS:
1.Remove hardware from box and sort by size.
2.Please check to see that all hardware and parts are present prior to start of assembly.
3.Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
205101KW (B1 - B3)
Warning!
1.Don't attempt to repair or modify parts that are broken or defective. Please contact the store
immediately.
2.This product is for home use only and not intended for commercial establishments.
ASSEMBLY TIME 40 MINUTES
ASSEMBLY INSTRUCTIONS
PARTS IDENTIFICATION
B1 (BOX 1)
FIGUREPART NAME QTY
A HEADBOARD
B
C
B2 (BOX 2)
D
E
F
B3 (BOX 3)
G
H
I
HEADBOARD
SUPPORT LEG
HEADBOARD PANEL
RIGHT EAR PANEL
LEFT EAR PANEL 1 PC
EAR PANEL SUPPORT
FOOTBOARD
LEFT BED RAIL 1 PC
RIGHT BED RAIL 1 PC
1 PC
2 PCS
1 PC
1 PC
2 PCS
1 PC
K
L
M
N
J
BED SLAT
BED SLAT WITH HOLES
BED SLAT SUPPORT
FOOTBOARD LEG
CENTER RAIL
10 PCS
3 PCS
6 PCS
2 PCS
2 PCS
www.coastercompany.com
PAGE 2 OF 8
ITEM:
ASSEMBLY TIPS:
1.Remove hardware from box and sort by size.
2.Please check to see that all hardware and parts are present prior to start of assembly.
3.Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
205101KW (B1 - B3)
Warning!
1.Don't attempt to repair or modify parts that are broken or defective. Please contact the store
immediately.
2.This product is for home use only and not intended for commercial establishments.
ASSEMBLY INSTRUCTIONS
B3 (BOX 3)
O
PART NAME
CENTER RAIL SUPPORT
FIGURE
205101KW (B1)
HB
FROM BOX 1
HEADBOARD COMPLETE
205101KW (B2)
ER
FROM BOX 2
LEFT AND RIGHT EAR
PANEL COMPLETE
HARDWARE IDENTIFICATION
Z - B3 (BOX 3) - HARDWARE PACK IS LOCATED IN 205101KW (B3)
FIGUREHARDWARE NAME
1
2
3
4
ALLEN WRENCH
(4mm - RBW)
BOLT 1
(Ø1/4" x 30mm - RBW)
BOLT 2
(Ø1/4" x 38mm - RBW)
BOLT 3
(Ø1/4" x 60mm - RBW)
QTY
2 PCS
1 PC
2 PCS
QTY
1 PC
4 PCS
10 PCS
10 PCS
10
11
12
5
6
7
8
9
BOLT 4
(Ø1/4" x 90mm - RBW)
SHORT PAN HEAD SCREW
(#4 x 20mm - RBW)
MEDIUM PAN HEAD SCREW
(#4 x 25mm - RBW)
LONG PAN HEAD SCREW
(#4 x 38mm - RBW)
BIG FLAT WASHER
(Ø1/4" x 25 x 1.5mm - RBW)
SMALL FLAT WASHER
(Ø1/4" x 19 x 1.5mm - RBW)
LOCK WASHER
(Ø1/4" - RBW)
LEVELER
(Ø1/4" x 25mm - BLK)
8 PCS
4 PCS
4 PCS
32 PCS
22 PCS
22 PCS
22 PCS
6 PCS
NOTE: PHILLIPS HEAD SCREW DRIVER IS REQUIRED IN THE ASSEMBLY
PROCESS; HOWEVER, MANUFACTURER DOES NOT PROVIDE THIS ITEM.
www.coastercompany.com
PAGE 3 OF 8
