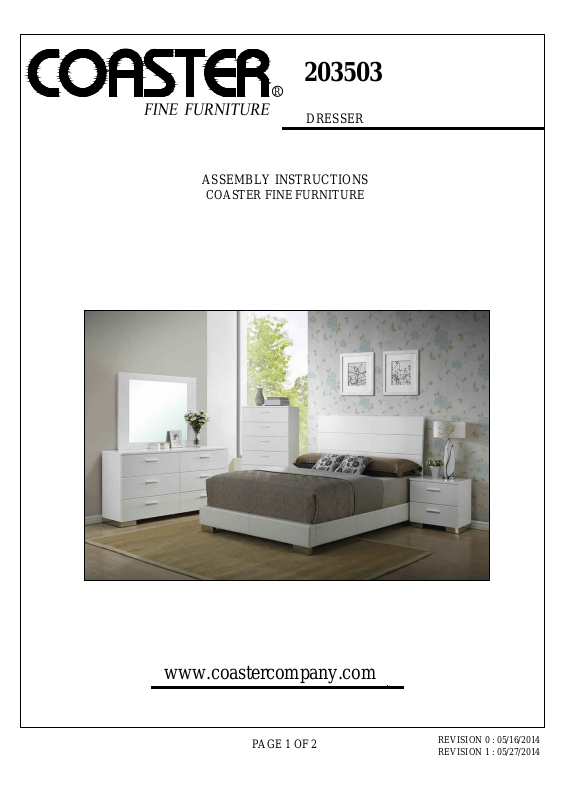

203503
R
DRESSER
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
www.coastercompany.com
PAGE 1 OF 2
REVISION 0 : 05/16/2014
REVISION 1 : 05/27/2014
PAGE 2 OF 2
PARTS IDENTIFICATION
ANTI - TIPPING KIT
HARDWARE IDENTIFICATION
A. DRESSER
1 SET
1. SHORT SCREW 1PC
2. LONG SCREW 1PC
3. CABLE TIE 1PC
4. 'L' BRACKET 2PCS
4
1
This tip restraint must be attached to a wall stud
using long screw enclosed.
STEP 1
Attach a bracket securely to the back top rail of the dresser
using short screw provided, through the smaller hole.
Locate the other bracket on the wall over a wall stud and
two inches below the mounting bracket secured to the
back of dresser. Attached to the wall stud using the long
screw provided, through the smaller hole
STEP 2
WALL
2
4
Place the dresser into position so both mounting brackets are vertically in line. Lace the end of the restraint strap through
the larger hole in each mounting bracket. Bring both ends together and slide the flat end through the locking end and
draw it through until all slack is removed. Confirm that the strap is securely laced and locked.
STEP 3
3
4
4
WALL
www.coastercompany.com
PLEASE REMOVE THE
PROTECTIVE FILM
BEFORE USE
