203501Q (B1&B2)
R
QUEEN SIZE BED
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
www.coastercompany.com
PAGE 1 OF 4
REVISION 0 : 05/16/2014
REVISION 1 : 05/27/2014
Page 2
ITEM : 203501Q (B1&B2)
ASSEMBLY INSTRUCTIONS
ASSEMBLY TIPS:
1.Remove hardware from box and sort by size.
2.Please check to see that all hardware and parts are present prior to start of assembly.
3.Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
Warning!
1.Don't attempt to repair or modify parts that are broken of defective. Please contact the store
immediately.
2.This product is for home use only and not intended for commercial establishment.
PARTS IDENTIFICATION
B1 (BOX 1)
F BED RAIL 2PCS
A
B
C
B2 (BOX 2)
D
E
HEADBOARD PANEL
RIGHT
HEADBOARD LEG
LEFT
HEADBOARD LEG
BED SLAT
BED SLAT SUPPORT
WITH LEVELER
HARDWARE IDENTIFICATION
Z - B1 (BOX 1)-Hardware is located in 203501Q(B1)
1PC
1PC
1PC
4PCS
4PCS
G
H
HB
Z - B2 (BOX 2)-Hardware is located in 203501Q(B2)
FOOTBOARD LEG
FOOTBOARD PANEL
203501Q (B1)
*FROM BOX 1
HEADBOARD COMPLETE
2PCS
1PC
1PC
1
BOLT
SMALL ALLEN WRENCH
FLAT WASHER
LOCK WASHER
6PCS
1PC2
6PCS3
6PCS4
5
6
8 1PC
9
SHORT FLAT HEAD SCREW
LONG FLAT HEAD SCREW
BOLT
SMALL ALLEN WRENCH
BIG ALLEN WRENCH
8PCS
6PCS
4PCS7
1PC
www.coastercompany.com
PAGE 2 OF 4
Page 3
ITEM : 203501Q (B1&B2)
203501Q (B1) - BOX 1
ASSEMBLY INSTRUCTIONS

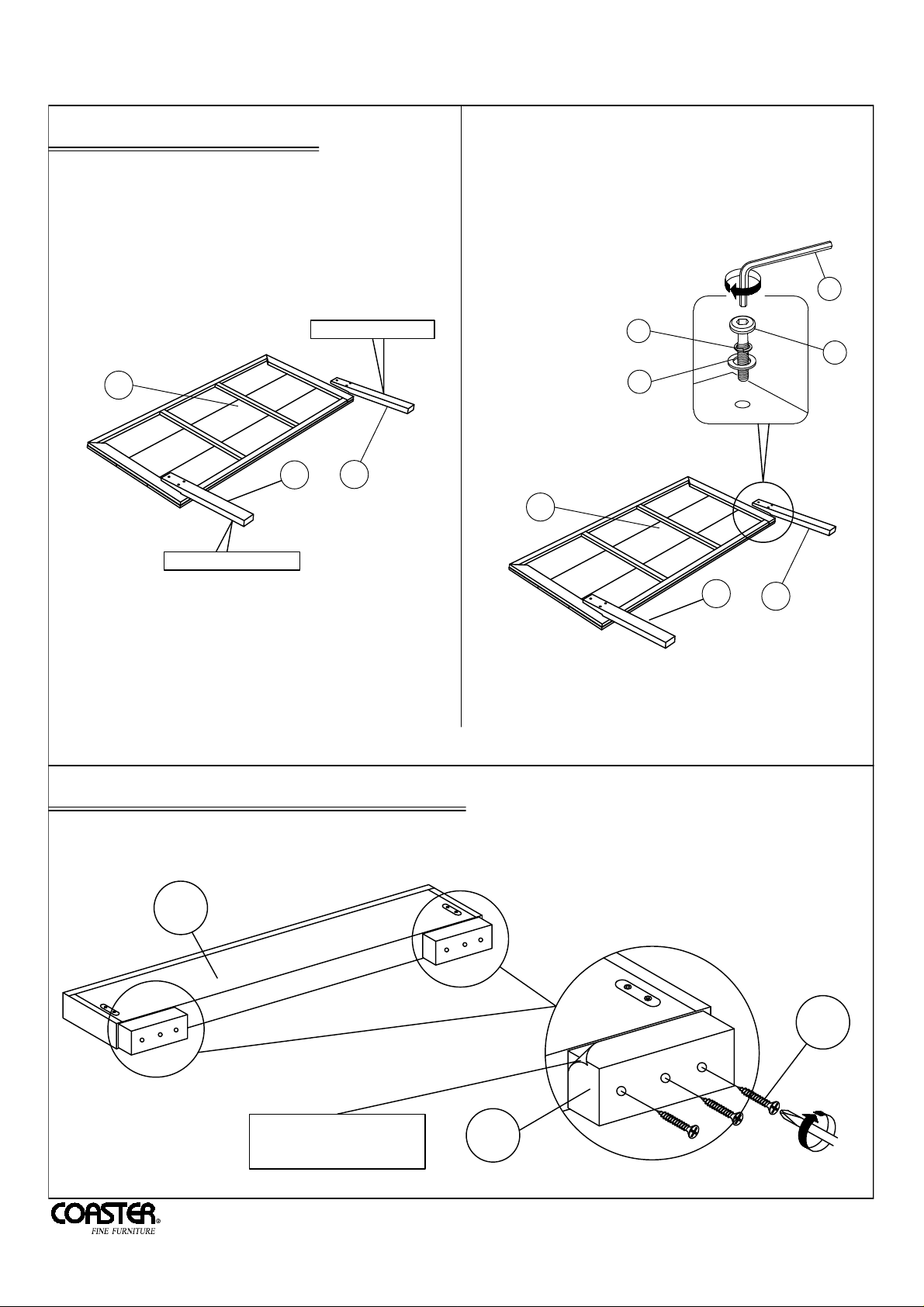

STEP 1
Place headboard panel (A) facing downward on soft
surface,and install right (B) & left (C) headboard legs to
headboard panel (A) as per diagram shown.
STICKER LEFT
A
B
STICKER RIGHT
C
STEP 2
Align and fasten right (B) & left (C) headboard legs to
headboard panel (A) using bolt(1), lock washer (4)& flat
washer (3) ,then tighten with Allen wrench(2).
2
4
1
3
A
B
C
**BACK VIEW
**Please take note the marking on the leg **
IF PURCHASE HEADBOARD ONLY, SKIP BELOW STEPS
**BACK VIEW
203501Q (B1 & B2) - BOX 1 & BOX 2
STEP 3
Align and fasten footboard leg (G) to footboard panel (H) using long flat head screw (6) and tighten with screw
driver (Not included).
H
6
PLEASE REMOVE THE
PROTECTIVE FILM
BEFORE ASSEMBLY
G
www.coastercompany.com
PAGE 3 OF 4
Page 4
PAGE 4 OF 4
ASSEMBLY INSTRUCTIONS

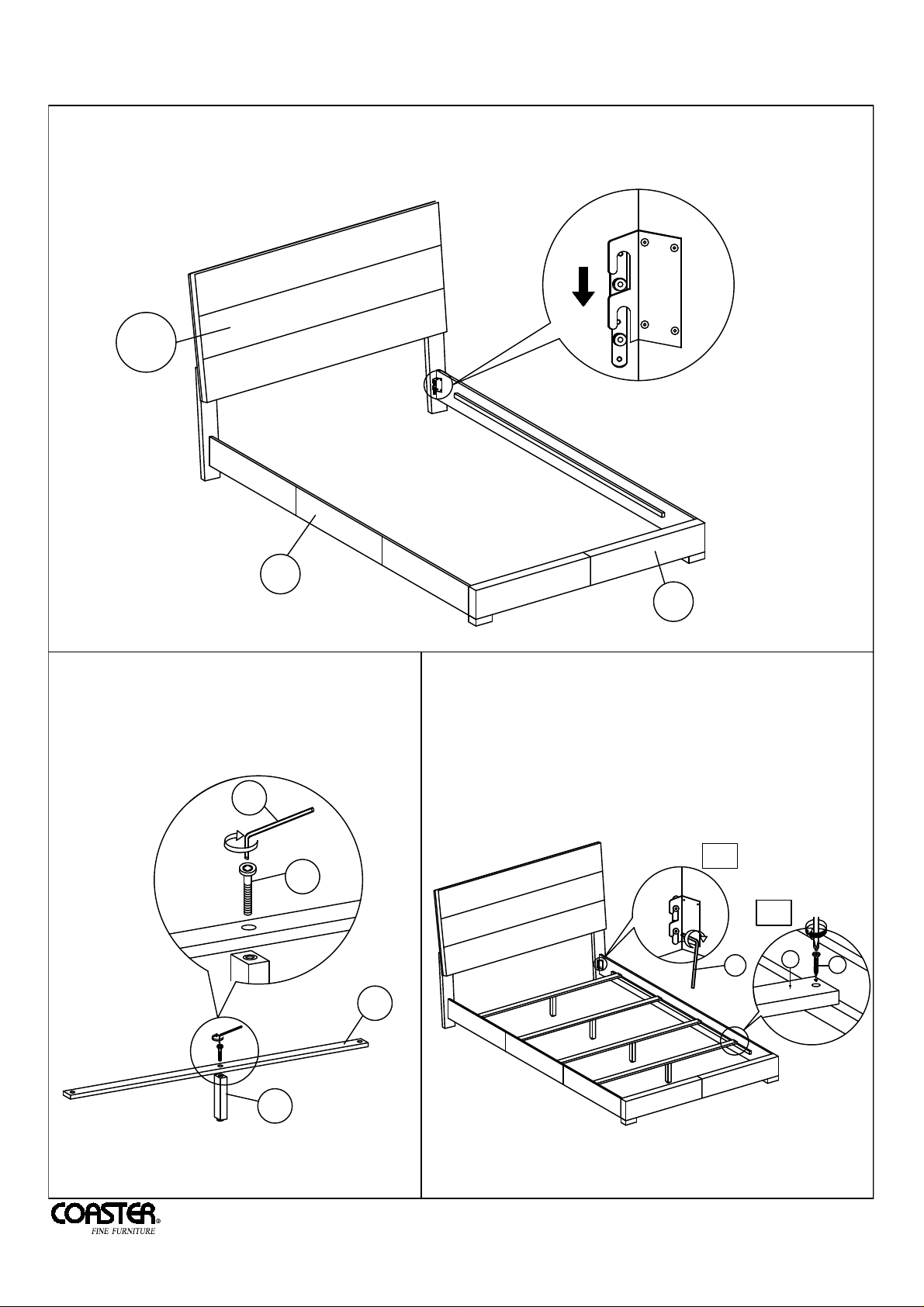

STEP 4
E
STEP 5
D
8
7
STEP 6
Loosen the bolt.
Align & hook bed rail (F) to headboard (HB) & footboard (H).
Align and fasten bed slat support with
leveler (E) to bed slat (D) using bolt (7) & tighten
with small Allen wrench (8).
6.1) Fully tighten all the bolts at step 4 with big Allen wrench (9).
6.2) Align & fasten bed slat (D) to bed rail (F) using short flat head
screw (5) & tighten with screw driver (NOT INCLUDED).
Then adjust leveler to touch the floor.
H
F
HB
9
D
5
ITEM : 203501Q (B1&B2)
www.coastercompany.com
6.1
6.2
