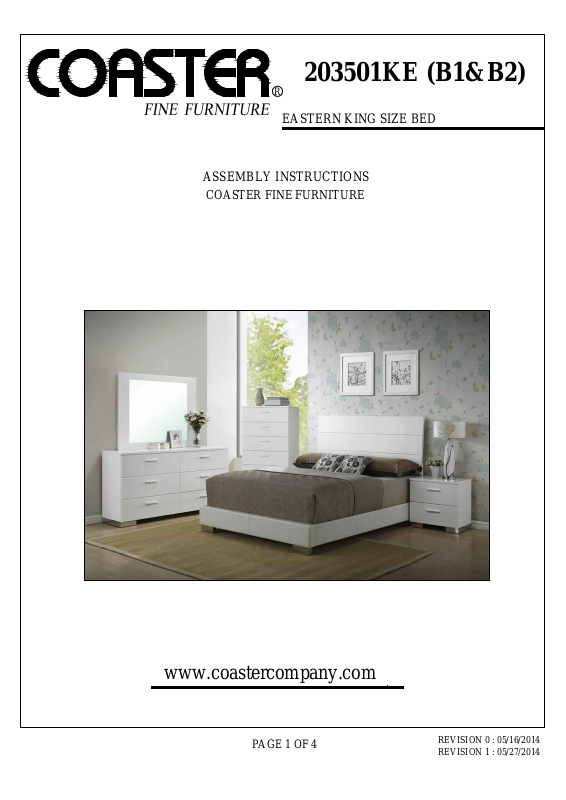

203501KE (B1&B2)
R
EASTERN KING SIZE BED
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
www.coastercompany.com
PAGE 1 OF 4
REVISION 0 : 05/16/2014
REVISION 1 : 05/27/2014
ITEM : 203501KE (B1&B2)
ASSEMBLY INSTRUCTIONS
ASSEMBLY TIPS:
1.Remove hardware from box and sort by size.
2.Please check to see that all hardware and parts are present prior to start of assembly.
3.Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
Warning!
1.Don't attempt to repair or modify parts that are broken of defective. Please contact the store
immediately.
2.This product is for home use only and not intended for commercial establishment.
PARTS IDENTIFICATION
B1 (BOX 1)
F BED RAIL 2PCS
A
A
HEADBOARD PANEL
1PC
1PC
B
B
RIGHT
HEADBOARD LEG
C
C
LEFT
HEADBOARD LEG
B2 (BOX 2)
D
E
BED SLAT
BED SLAT SUPPORT
WITH LEVELER
HARDWARE IDENTIFICATION
Z - B1 (BOX 1) - Hardware pack is located in 203501KE (B1)
1
BOLT
6PCS
1PC
1PC
1PC
1PC
4PCS
8PCS
G
H
HB
Z - B2 (BOX 2) - Hardware pack is located in 203501KE (B2)
5
FOOTBOARD LEG
FOOTBOARD PANEL
203501KE (B1)
*FROM BOX 1
HEADBOARD COMPLETE
SHORT FLAT HEAD SCREW
2PCS
1PC
1PC
8PCS
SMALL ALLEN WRENCH
FLAT WASHER
LOCK WASHER
1PC2
6PCS3
6PCS4
PAGE 2 OF 4
6
8 1PC
9
LONG FLAT HEAD SCREW
BOLT
SMALL ALLEN WRENCH
BIG ALLEN WRENCH
6PCS
8PCS7
1PC
www.coastercompany.com
ITEM : 203501KE (B1&B2)
203501KE (B1) - BOX 1
ASSEMBLY INSTRUCTIONS
STEP 1
Place headboard panel (A) facing downward on soft
surface,and install right (B) & left (C) headboard legs to
headboard panel (A) as per diagram shown.
STICKER LEFT
A
B
STICKER RIGHT
C
STEP 2
Align and fasten right (B) & left (C) headboard legs to
headboard panel (A) using bolt(1), lock washer (4) &flat
washer (3) ,then tighten with Allen wrench(2).
2
4
1
3
A
B
C
**BACK VIEW
**Please take note the marking on the leg **
IF PURCHASE HEADBOARD ONLY, SKIP BELOW STEPS
203501KE (B1 & B2) - BOX 1 & BOX 2
STEP 3
Align and fasten footboard leg (G) to footboard panel (H) using long flat head screw (6) and tighten with screw
driver (Not included).
H
6
PLEASE REMOVE THE
PROTECTIVE FILM
BEFORE ASSEMBLY
G
www.coastercompany.com
PAGE 3 OF 4
PAGE 4 OF 4
ASSEMBLY INSTRUCTIONS
STEP 4
STEP 5 STEP 6
H
F
HB
9
D
5
ITEM : 203501KE (B1&B2)
E
D
8
7
E
Loosen the bolt.
Align & hook bed rail (F) to headboard (HB) & footboard (H).
Align and fasten bed slat support with
leveler (E) to bed slat (D) using bolt (7) & tighten
with small Allen wrench (8).
6.1) Fully tighten all the bolts at step 4 with big Allen wrench (9).
6.2) Align & fasten bed slat (D) to bed rail (F) using short flat head
screw (5) & tighten with screw driver (NOT INCLUDED).
Then adjust leveler to touch the floor.
www.coastercompany.com
6.1
6.2
