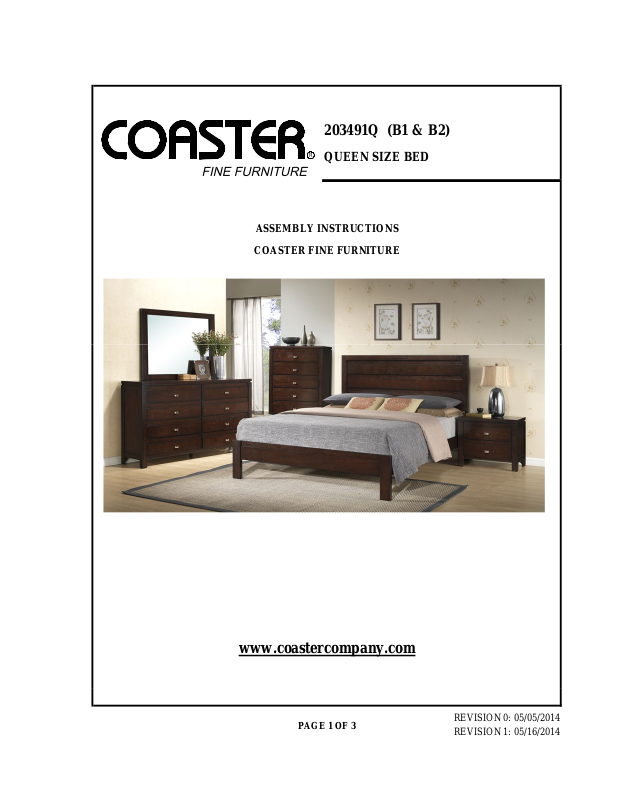

Page 1
203491Q (B1 & B2)
R
QUEEN SIZE BED
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
www.coastercompany.com
PAGE 1 OF 3
REVISION 0: 05/05/2014
REVISION 1: 05/16/2014
Page 2
ITEM : 203491Q (B1 & B2)
ASSEMBLY TIPS:
ASSEMBLY INSTRUCTIONS
1 . Remove hardware from box and sort by size.
2 . Please check to see that all hardware and parts are present prior to start of assembly.
3 . Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
Warning !
1 . Don't attempt to repair or modify parts that are broken or defective. Please contact the
store immediately.
2 . This product is for home use only and not intended for commercial establishment.
PARTS IDENTIFICATION
B1 (BOX 1) B2 (BOX 2)
A
B
C
D
E
F
Z - B1 (BOX 1) -
HEADBOARD
PANEL
LEFT HEADBOARD LEG
RIGHT HEADBOARD LEG
FOOTBOARD 1PC
BED SLAT 4PCS
BED SLAT
SUPPORT WITH
LEVELER
HARDWARE IDENTIFICATION
HARDWARE PACK IS
LOCATED IN 203491Q (B1)
1PC
1PC
1PC
4PCS
D
G
BED RAIL 2PCS
203491Q (B1)
HEADBOARD COMPLETE
*FROM BOX 1
203491Q (B1)
FOOTBOARD
*FROM BOX 1
1PCHB
1PC
1
2
3
BOLT 6PCS
ALLEN WRENCH 1PC
LOCK WASHER
6PCS
4
5
FLAT WASHER
FLAT HEAD SCREW
6PCS
8PCS
NOTE : PHILLIPS HEAD SCREW DRIVER IS REQUIRED IN THE ASSEMBLY
PROCESS.HOWEVER, MANUFACTURER DOES NOT PROVIDE THIS ITEM.
www.coastercompany.com
R
PAGE 2 OF 3
Page 3
ITEM : 203491Q (B1 & B2)
ASSEMBLY INSTRUCTIONS
203491Q (B1) - BOX 1
STEP 1
Align and fasten left (B) and right (C) headboard leg to
headboard panel (A) using bolt (1),lock washer (3) and
flat washer (4) and fully tighten with Allen wrench (2).
**Please take note the marking on the leg and headboard**
A
"L" Marking behind the
Headboard & Leg
4
B
3
203491Q (B1 & B2) - BOX 1 & BOX 2
STEP 2
Align and hook the bed rails (G) to headboard (HB) and
footboard (D).
HB
G
C
G
G
D
1
"R" Marking behind the
Headboard & Leg
IF PURCHASE HEADBOARD ONLY,SKIP BELOW STEPS
C
2
STEP 3
3.1 Align and fasten bed slat support with leveler (F) to bed slat (E) by turning bed slat support
with leveler (F) clockwise until tight.
3.2 Align and fasten bed slat (E) to bed rail (G) using flat head screw (5) and fully tighten with
Phillips head screw driver (NOT INCLUDED).
3.3 Adjust leveler to touch the floor.
STEP 3.2
G
E
E
E
5
G
F
F
STEP 3.1
www.coastercompany.com
R
PAGE 3 OF 3
