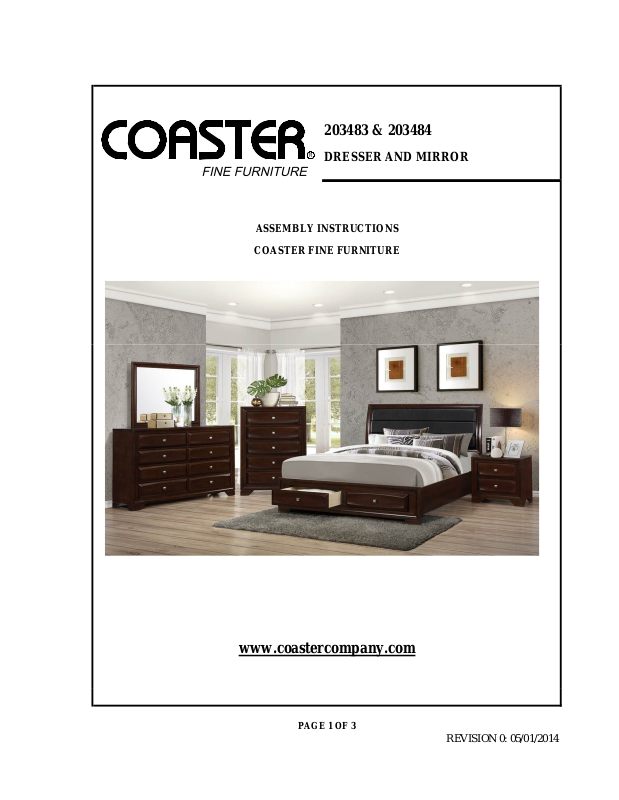

Page 1
203483 & 203484
R
DRESSER AND MIRROR
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
www.coastercompany.com
PAGE 1 OF 3
REVISION 0: 05/01/2014
Page 2
R
ITEM : 203483 & 203484
ASSEMBLY INSTRUCTIONS
ASSEMBLY TIPS:
1 . Remove hardware from box and sort by size.
2 . Please check to see that all hardware and parts are present prior to start of assembly.
3 . Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
Warning !
1 . Don't attempt to repair or modify parts that are broken or defective. Please contact the
store immediately.
2 . This product is for home use only and not intended for commercial establishment.
PARTS IDENTIFICATION
A
MIRROR
1PC
B
MIRROR SUPPORT
(PACKED WITH DRESSER)
2PCS
HARDWARE IDENTIFICATION
1
www.coastercompany.com
PAGE 2 OF 3
DRESSER
1PC
C
BOLT 6PCS
ALLEN WRENCH 1PC
LOCK WASHER
6PCS
FLAT WASHER
6PCS
2
3
4
Page 3
R
ASSEMBLY INSTRUCTIONS
www.coastercompany.com
PAGE 3 OF 3
STEP 1
Align and fasten mirror support (B) to mirror (A) and dresser (C) by using bolt (1),lock washer (3) and
flat washer (4) and fully tighten with Allen wrench (2).
**Loosen the bolt (1) and turn the mirror supports (B) upright
STEP 2
B
C
B
A
B
C
A
B
C
1
3
4
ITEM : 203483 & 203484
2
