203481KE (B1 ~ B3)
R
EASTERN KING SIZE BED
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
www.coastercompany.com
PAGE 1 OF 6
REVISION 0: 05/01/2014
REVISION 1: 05/15/2014
Page 2
ITEM : 203481KE (B1 ~ B3)
ASSEMBLY INSTRUCTIONS
ASSEMBLY TIPS:
1 . Remove hardware from box and sort by size.
2 . Please check to see that all hardware and parts are present prior to start of assembly.
3 . Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
Warning !
1 . Don't attempt to repair or modify parts that are broken or defective. Please contact the
store immediately.
2 . This product is for home use only and not intended for commercial establishment.
PARTS IDENTIFICATION
B1 (BOX 1)
H
ROLL SLAT (5PCS)
2SETS
A
B
C
D
E
B2 (BOX 2)
HEADBOARD PANEL
LEFT HEADBOARD LEG
RIGHT HEADBOARD LEG
FOOTBOARD
CONCEAL PANEL
1PC
1PC
1PC
1PC
1PC
I
J
K
L
M
N
HB
CENTER RAIL
DRAWER BOTTOM
TRESTLE BAR
BOTTOM CROSS BAR
BED SLAT SUPPORT
WITH LEVELER
DRAWER BOTTOM
TRESTLE BAR SUPPORT
WITH LEVELER
UPPER TRESTLE
SUPPORT BAR
203481KE (B1)
HEADBOARD COMPLETE
*FROM BOX 1
1PC
1PC
2PCS
3PCS
1PC
1PC
1PC
F
G
BED RAIL
BED SLAT WITH 3 HOLES
R
D
2PCS
B3 (BOX 3)
3PCS
PAGE 2 OF 6
O
203481KE (B1)
FOOTBOARD
*FROM BOX 1
FOOTBOARD
DRAWER BOX
1PC
2PCS
www.coastercompany.com
Page 3
ITEM : 203481KE (B1 ~ B3)

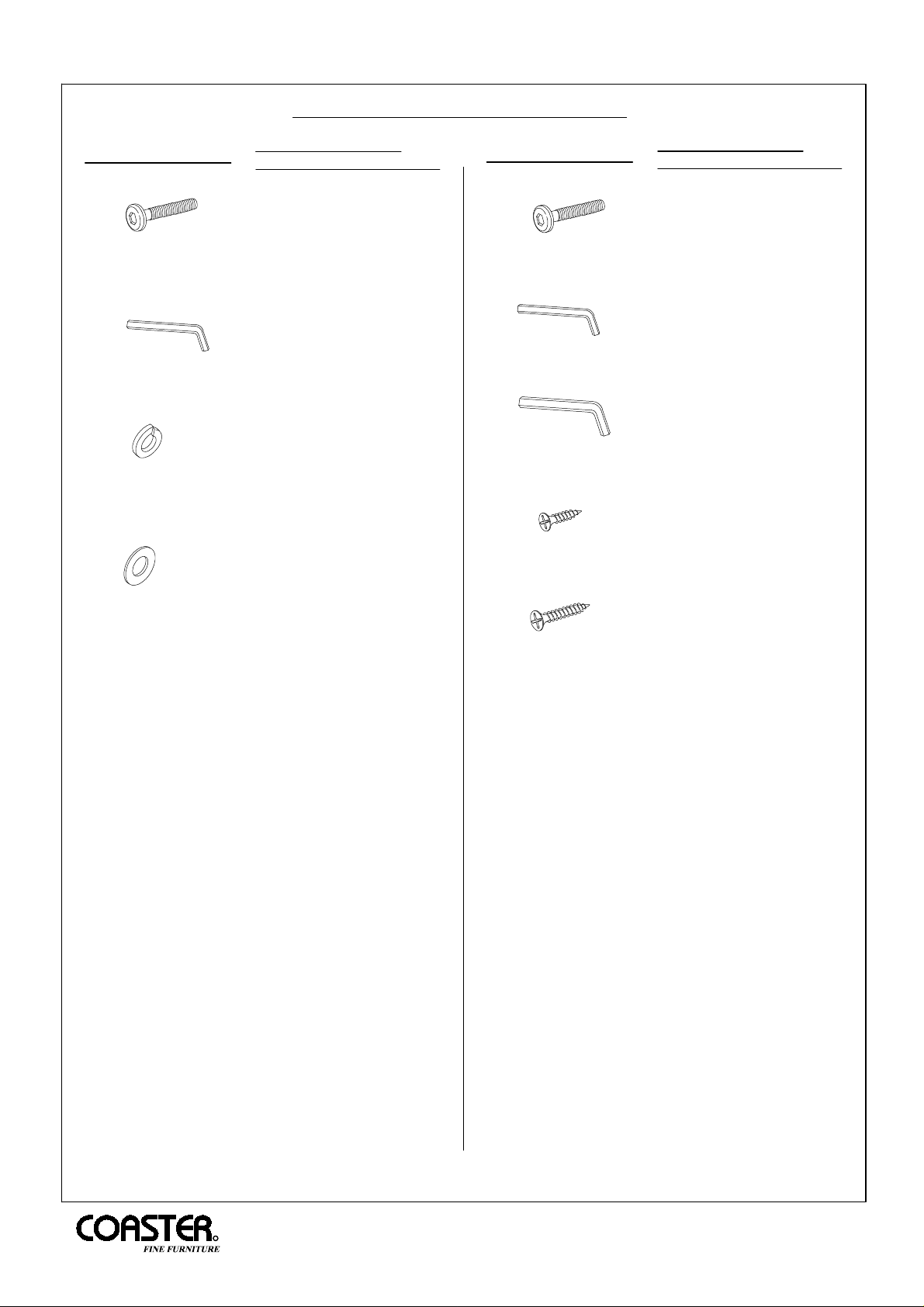

HARDWARE IDENTIFICATION
ASSEMBLY INSTRUCTIONS
Z - B1 (BOX 1)
1
HARDWARE PACK IS
-
LOCATED IN 203481KE (B1)
BOLT 6PCS
2 ALLEN WRENCH
3
4
LOCK WASHER
FLAT WASHER
1PC
6PCS
6PCS
Z - B2 (BOX 2)
5
6
7
8
HARDWARE PACK IS
-
LOCATED IN 203481KE (B2)
BOLT 4PCS
BIG ALLEN WRENCH
SHORT FLAT
HEAD SCREW
1PCSMALL ALLEN WRENCH
1PC
7PCS
9
LONG FLAT
HEAD SCREW
36PCS
NOTE : PHILLIPS HEAD SCREW DRIVER IS REQUIRED IN THE ASSEMBLY
PROCESS.HOWEVER, MANUFACTURER DOES NOT PROVIDE THIS ITEM.
www.coastercompany.com
R
PAGE 3 OF 6
Page 4
ITEM : 203481KE (B1 ~ B3)
ASSEMBLY INSTRUCTIONS
203481KE (B1) - BOX 1

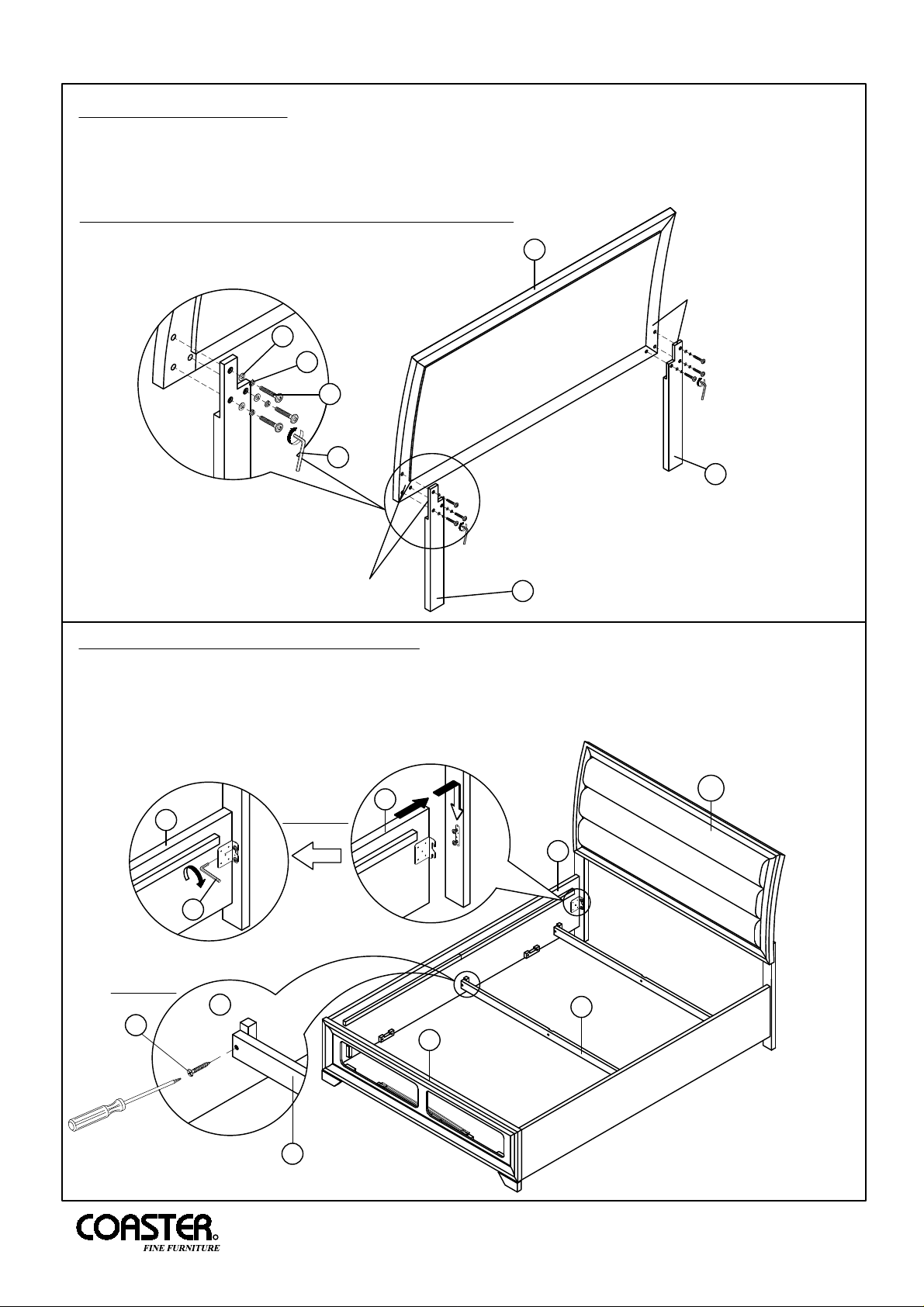

STEP 1
Align and fasten left (B) and right (C) headboard leg to headboard panel (A) using bolt (1),
lock washer (3) and flat washer (4) and fully tighten with Allen wrench (2).
**Please take note the marking on the leg and headboard**
A
"L" Marking behind the
Headboard & Leg
4
3
1
2
B
"R" Marking behind the
Headboard & Leg
C
203481KE (B1~B3) - BOX 1 TO BOX 3
STEP 2
2.1 Loosen the bolt and align and fasten bed rail (F) to headboard (HB) and footboard (D) using the bolt
and fully tighten with big Allen wrench (7).
2.2 Align and fasten bottom cross bar (K) to bed rail (F) using long flat head screw (9) and tighten with
Phillips head screw driver (NOT INCLUDED).
HB
F
STEP 2.2
9
STEP 2.1
F
7
F
F
K
D
K
www.coastercompany.com
R
PAGE 4 OF 6
Page 5
ITEM : 203481KE (B1 ~ B3)
ASSEMBLY INSTRUCTIONS

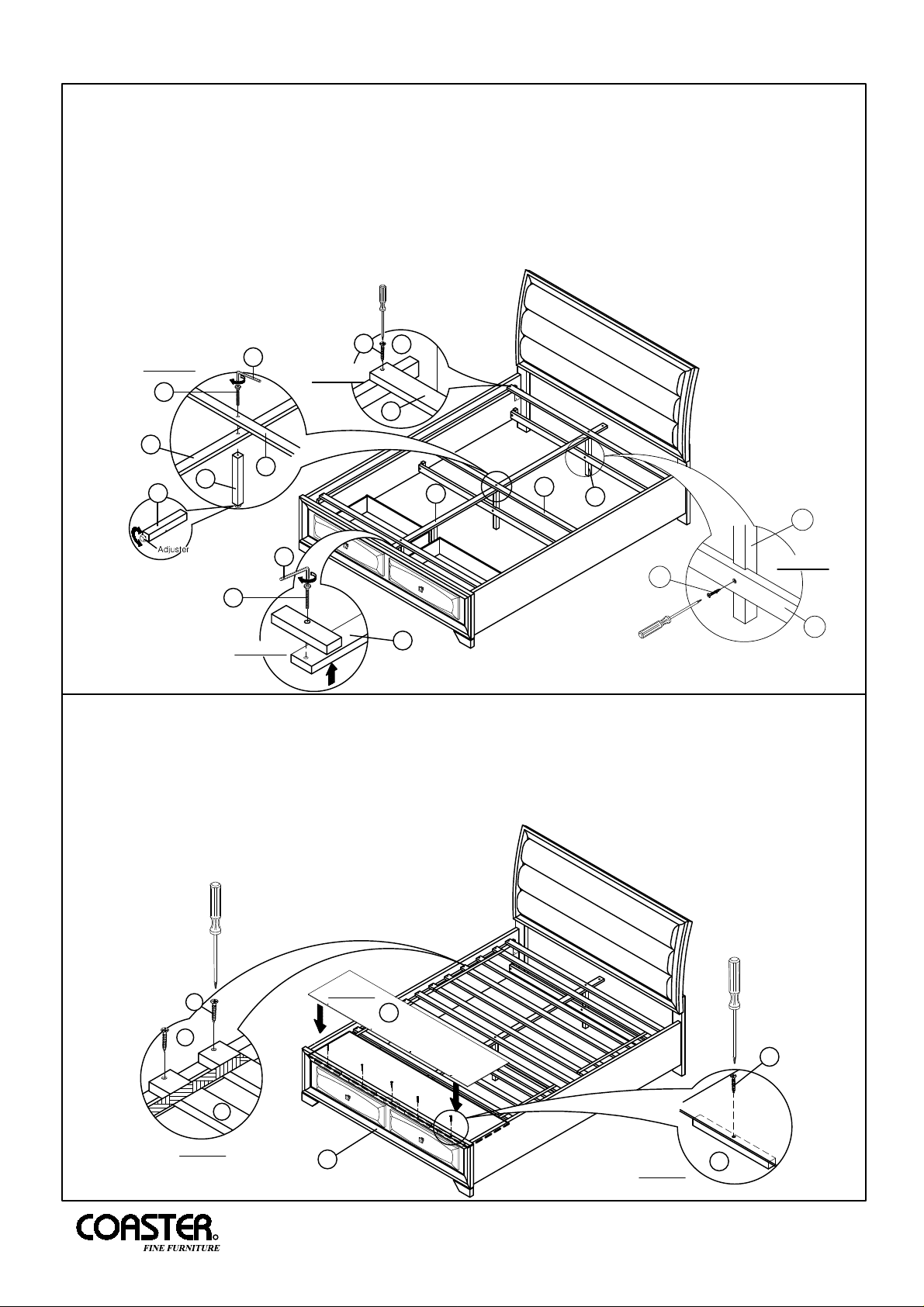

STEP 3
3.1 Align and fasten drawer bottom trestle bar support with leveler (M) to upper trestle support
bar (N) and drawer bottom trestle bar (J) by turning clockwise until tight.
3.2 Align and fasten drawer bottom trestle bar (J) to 'U' bracket at bed rail (F) using long flat head
screw (9) and tighten with Phillips head screw driver (NOT INCLUDED).
3.3 Turn the drawer glide (attached to footboard 'D') outward.
'T' Runner
STEP 3.3
J
N
'T' Runner
M
D
N
9
M
STEP 3.1
J
J
STEP 3.2

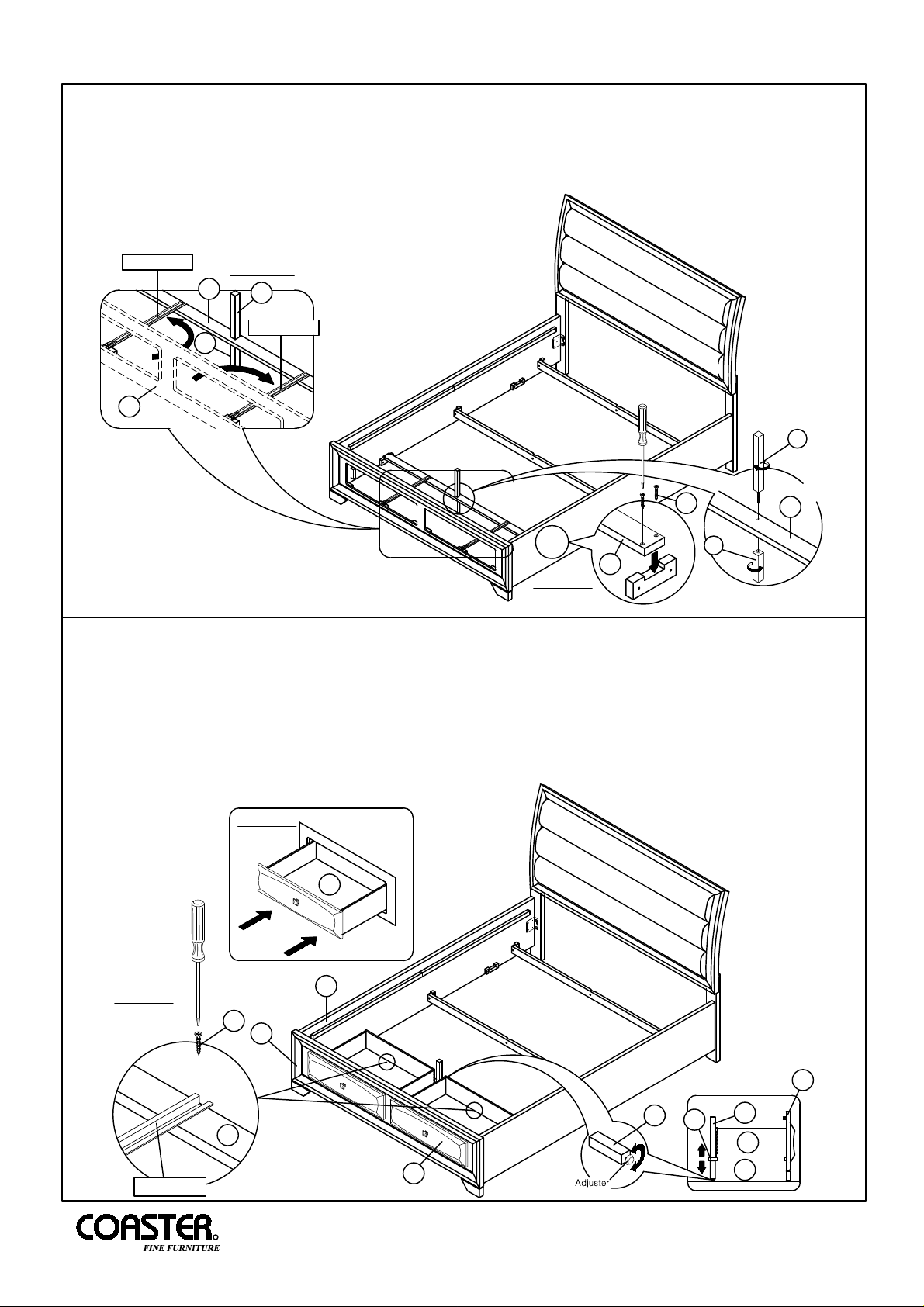

STEP 4
4.1 Slide and push the footboard drawer box (O) into place until it is fully and evenly closed.
4.2 Align and fasten the drawer glide to drawer bottom trestle bar (J) using short flat head screw (8)
and tighten with Phillips head screw driver (NOT INCLUDED).
NOTE : Pull the drawer box (O) out a little bit and make sure the drawer glide is center prior to
starting of assembly.
4.3 After completing the drawer alignment,adjust the leveler of the drawer bottom trestle bar support (M)
to touch the floor.
STEP 4.2
'T' Runner
8
J
R
STEP 4.1
D
O
F
D
M
STEP 4.3
J
N
O
O
M
www.coastercompany.com
PAGE 5 OF 6
Page 6
ITEM : 203481KE (B1 ~ B3)
ASSEMBLY INSTRUCTIONS
STEP 5
5.1 Align and fasten bed slat with 3 holes (G) to center rail (I) and bed slat support with leveler (L) using
bolt (5) and tighten with small Allen wrench (6).Adjust leveler to touch the floor.
5.2 Align and fasten center rail (I) to wood cleat at the footboard (D) using bolt (5) and tighten with small
Allen wrench (6).
5.3 Align and fasten bed slat with 3 holes (G) to bed rails (F) using long flat head screw (9) and tighten with
Phillips head screw driver (NOT INCLUDED).
5.4 Align and fasten bottom cross bar (K) to bed slat support with leveler (L) using long flat head screw (9)
and tighten with Phillips head screw driver (NOT INCLUDED).
9
F
G
I
G
L
L
STEP 5.1
5
I
L
6
STEP 5.3
G
L
6
9
5
STEP 5.2
I
STEP 6
6.1 Align and fasten roll slat (H) to bed rails (F) using long flat head screw (9) and tighten with Phillips
head screw driver (NOT INCLUDED).
6.2 Place conceal panel (E) on top of roll slat (H) and footboard (D).
6.3 Align and fasten conceal panel (E) to wood cleat at the footboard using short flat head screw (8)
and tighten with Phillips head screw driver (NOT INCLUDED).
9
F
STEP 6.2
E
8
STEP 5.4
K
STEP 6.1
H
D
STEP 6.3
D
www.coastercompany.com
R
PAGE 6 OF 6
