Coaster 201301KE Assembly Guide

201301KE (B1-B3)

EASTERN KING SIZE BED

ASSEMBLY INSTRUCTIONS

COASTER FINE FURNITURE

www.coastercompany.com

PAGE 1 OF 3

REVISION 0 : 07/04/2011
REVISION 1 : 09/27/2011

ITEM :

ASSEMBLY TIPS:

1. Remove hardware from box and sort by size

2. Please check to see that all hardware and parts are present prior start of assembly.

3. Please follow attached instruction in the same sequence as numbered to assure fast & easy assembly.

!

201301KE (B1-B3)

Warning!

1. Don't attempt to repair or modify parts that are broken or defective. Please contact the
store immediately.

2. This product is for home use only and not intended for commercial establishment

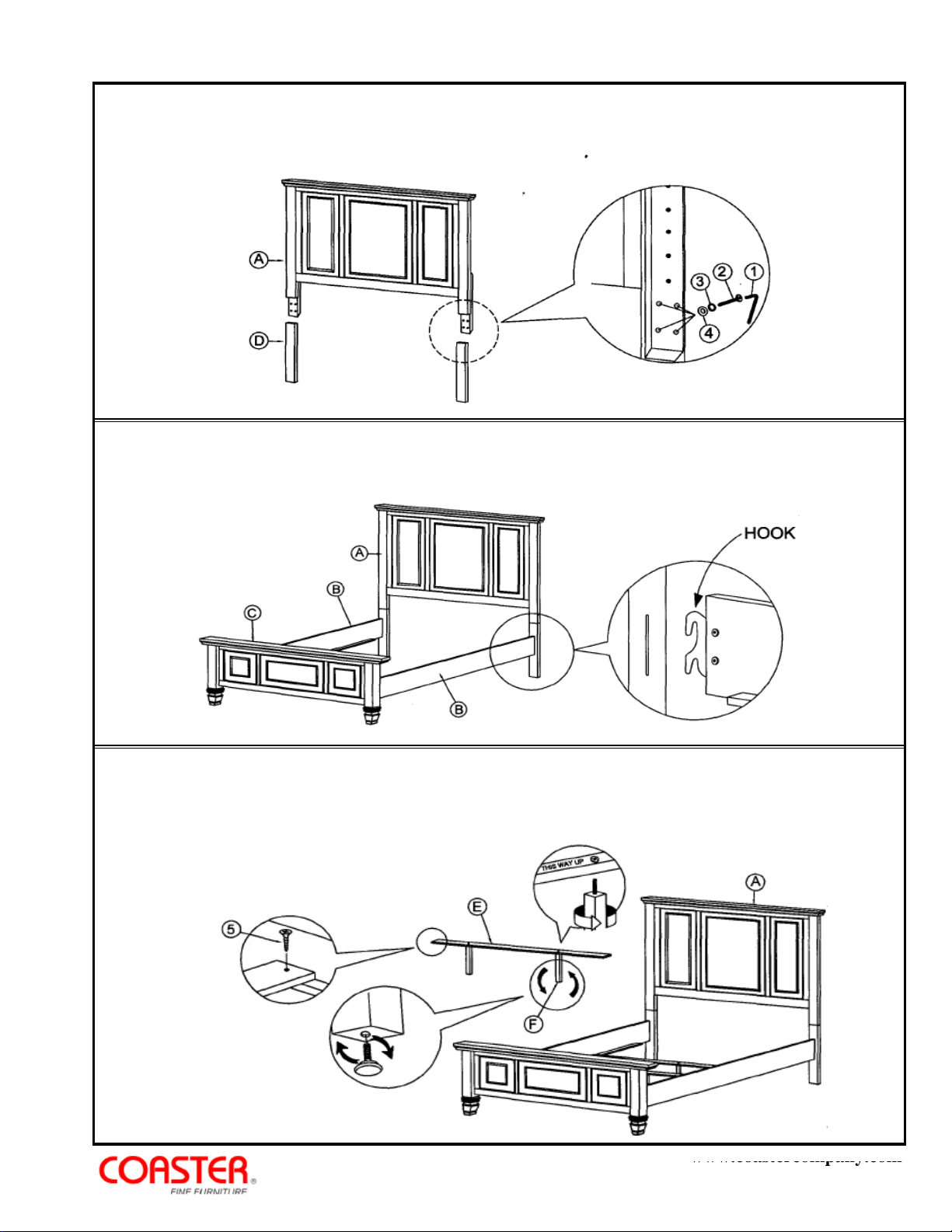

PARTS IDENTIFICATION

ASSEMBLY INSTRUCTIONS

A HEADBOARD PANEL

B BED RAIL

C FOOTBOARD

D

E BED SLAT

F BED SLAT SUPPORT WITH 8 PCS

LEFT & RIGHT

HEADBOARD LEG

LEVELER

1 PC

2 PCS

1 PC

2 PCS

4 PCS

HARDWARE IDENTIFICATION

1 ALLEN WRENCH

2 BOLT

3 LOCK WASHER

4 FLAT WASHER

5 FLAT HEAD SCREW

PAGE 2 OF 3

1 PC

8 PCS

8 PCS

8 PCS

8 PCS
