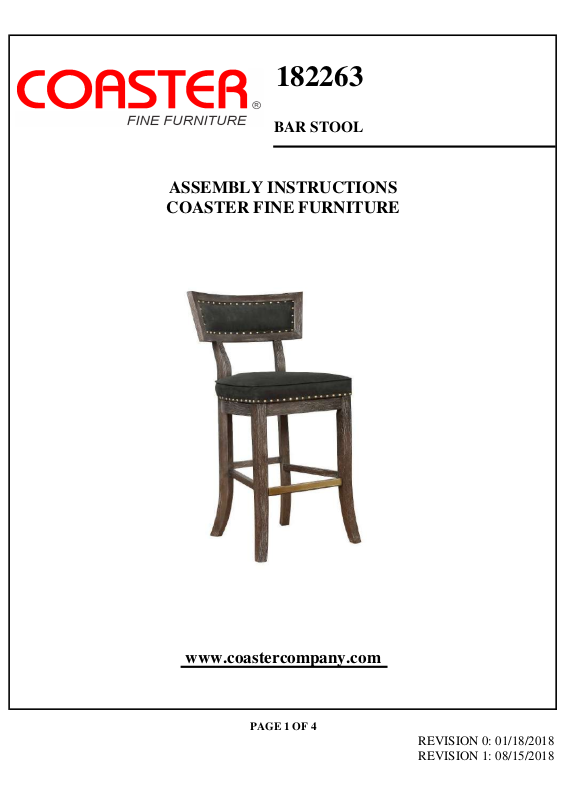

Coaster 182263 Assembly Guide

182263

BAR STOOL

ASSEMBLY INSTRUCTIONS

COASTER FINE FURNITURE

www.coastercompany.com

PAGE 1 OF 4

REVISION 0: 01/18/2018
REVISION 1: 08/15/2018

ITEM :

182263

PAGE 2 OF 4

!

ASSEMBLY TIPS:

1. Remove hardware from box and sort by size.

2. Please check to see that all hardware and parts are present prior to start of assembly.

3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.

Warning!

1. Don't attempt to repair or modify parts that are broken or defective. Please contact the
store immediately.

2. This product is for home use only and not intended for commercial establishments.

ASSEMBLY TIME 15 MINUTES

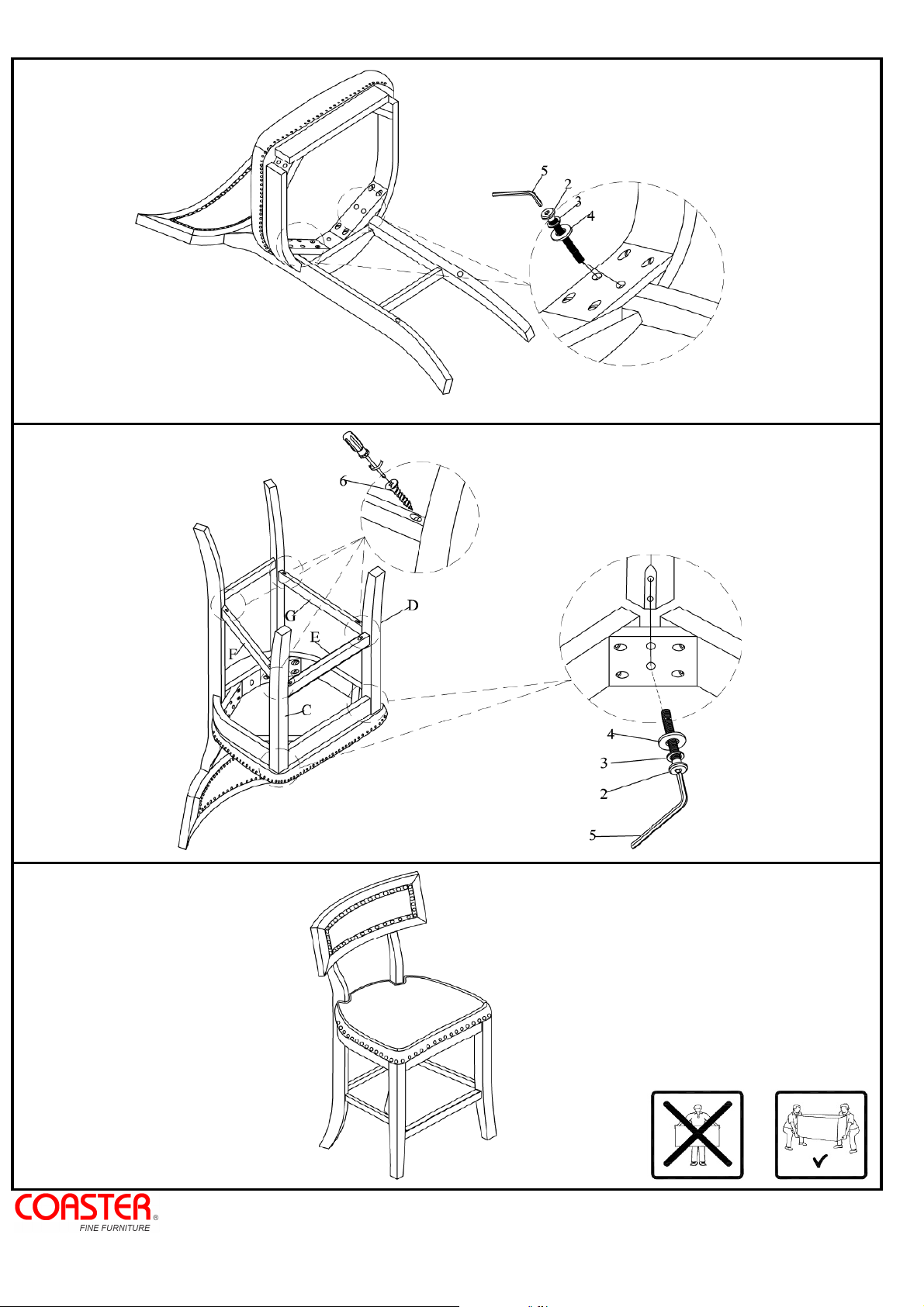

ASSEMBLY INSTRUCTIONS

PARTS IDENTIFICATION

PART NAME FIGURE QTY

A

BACK FRAME 1PC

B

C

D

E

F

G

SEAT CUSHION WITH FRAME

RIGHT FRONT LEG

LEFT FRONT LEG

FRONT STRETCHER

RIGHT SIDE STRETCHER

LEFT SIDE STRETCHER

1PC

1PC

1PC

1PC

1PC

1PC

NOTE : QUANTITIES SHOWN ARE FOR ONE STOOL.
