5 PCS DINING SET
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
www.coastercompany.com
PAGE 1 OF 4
REVISION 0 : 06/19/2011
REVISION 1 : 09/26/2011
Page 2
ITEM :
150157
ASSEMBLY INSTRUCTIONS
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size
2. Please check to see that all hardware and parts are present prior start of assembly.
3. Please follow attached instructions in the same sequence as numbered to assure fast & easy assembly.
!
1. Don't attempt to repair or modify parts that are broken or defective. Please contact the
store immediately.
2. This product is for home use only and not intended for commercial establishment
PARTS IDENTIFICATION
Warning!
A
B
C
D
E
TABLE TOP
TABLE LEG
BACK CHAIR
SEAT CUSHION
FRONT LEG
1 PC
4 PCS
4 PCS
PC
4
8 PCS
S
HARDWARE IDENTIFICATION
1
2
3
4
5
6
7
8
9
10
LONG NJCBC BOLT 5/16 X 80 MM 8 PCS
SPRING WASHER 5/16
FLAT WASHER 5/16
ALLEN KEY 5MM
LONG NJCBC BOLT 1/4 X 75 MM
LONG NJCBC BOLT 1/4 X 60 MM
NJCBC BOLT 1/4 X 35 MM
SPRING WASHER 1/4
FLAT WASHER 1/4
ALLEN KEY 4MM 1 PC
36 36 PCS
36 PCS
16 PCS
16 PCS
8 PCS
8 PCS
1 PC
4 PCS
www.coastercompany.com
PAGE 2 OF 4
Page 3
ASSEMBLY INSTRUCTIONS
STEP 1
STEP 2
www.coastercompany.com
Flip table over using two people to lift and flip this table.
PAGE 3 OF 4
150157
ITEM :
Place table top upside down on soft surface. Align and fasten table legs to table top using longest bolt, big lock
washer, big flat washer and tighten with allen wrench.
Page 4
ASSEMBLY INSTRUCTIONS
STEP 3
STEP 4
COMPLETE
www.coastercompany.com
Align and hand tighten front legs to seat frame using mediumbolt, small lock washer and smallflat washer. Tighten
allbolts with allen wrench.
PAGE 4 OF 4
150157
ITEM :

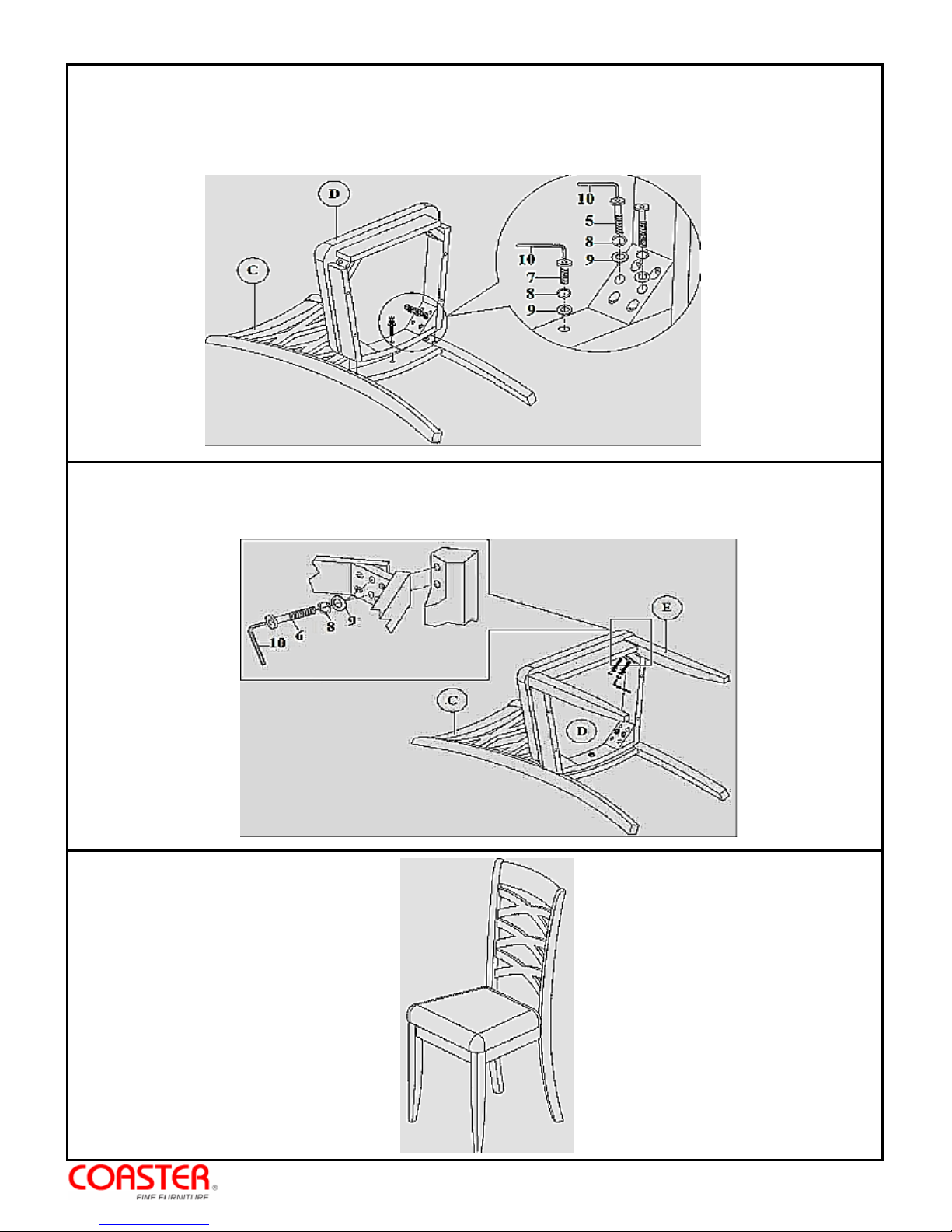

Lay down chair back on soft surface. Align and hand tighten seat frame to chair back bottom rail using short bolt,
small lock washer and small flat washer. Align and hand tighten seat frame to chair back leg using long bolt,small
lock washer and smallflat washer.
