Page 1
1 OF 6
2014/06/23
121607
COUNTER HEIGHT BENCH & CORNER STOOL
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
www.coastercompany.com
Page 2
2PCS
2PCS
A BENCH BACK
B LEFT LEG
2PCS
2PCS
C RIGHT LEG
2PCS
D STRETCHER
4PCS
E BOTTOM FRONT
STRETCHER
2PCS
F UPPER FRONT
STRETCHER
2PCS
2 OF 6
WWW.COASTERCOMPANY.COM
ITEM: 121607B1
ASSEMBLY INSTRUCTIONS
ASSEMBLY INSTRUCTION
PARTS IDENTIFICATION
G SUPPORT TUBE
H BENCH SEAT CUSHION
B1:BENCH
NOTE: QUANTITIES SHOWN ARE FOR TWO BENCHES.HARDWARE PACK IS LOCATED IN 121607B1
Page 3
1PC
1PC
1PC
3 OF 6
WWW.COASTERCOMPANY.COM
ITEM: 121607B2
ASSEMBLY INSTRUCTIONS

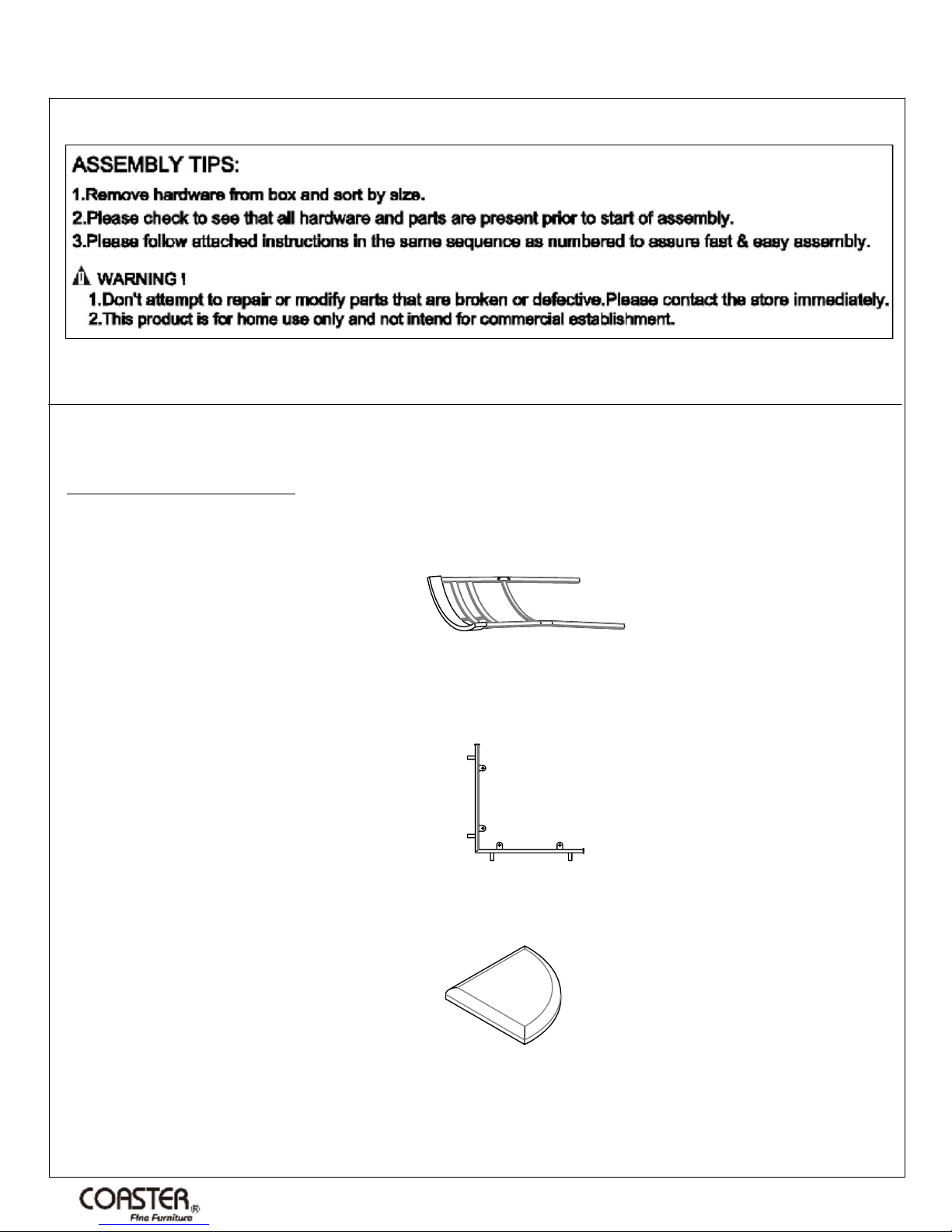

I STOOL BACK
J SEAT FRAME
K CORNER SEAT CUSHION
NOTE: QUANTITIES SHOWN ARE FOR ONE STOOL. HARDWARE PACK IS LOCATED IN 121607B2
B2:CORNER STOOL
PARTS IDENTIFICATION
ASSEMBLY INSTRUCTION
Page 4
4 OF 6
WWW.COASTERCOMPANY.COM
ITEM: 121607
ASSEMBLY INSTRUCTIONS
Z
HARDWARE PACKAGE
B1:BENCH
DESCRIPTION
FIGURE
Q`TY
1
ROUND HEAD BOLTS
1/4"*12MM
24PCS
2
FLAT HEAD BOLTS
1/4"*12MM
12PCS
3
SCREW M5*15
14PCS
4
SCREW M5*40
4PCS
5
ALLEN WRENCH 4MM
1PC
B2:CORNER STOOL
DESCRIPTION
FIGURE
Q`TY
6
ROUND HEAD BOLTS
1/4"*12MM
12PCS
7
FLAT HEAD BOLTS
1/4"*25MM
4PCS
8
SCREW M5*15
4PCS
9
METAL PLATE
2PCS
10
ALLEN WRENCH 4MM
1PC
Page 5
A
B(B1)
C(C1)
1
1
5
A
C(C1)
B(B1)
D
D
2
5
2
5
A
B(B1)
C(C1)
D
D
E
1
5
A
C(C1)
B(B1)
D
D
F
G
E
1
1
5
1
5
2
5
STEP 1 STEP 2
STEP 3 STEP 4
5 OF 6
ITEM: 121607
ASSEMBLY INSTRUCTIONS
lt needs two persons and takes about thirty-five minutes to assemble the item.
WWW.COASTERCOMPANY.COM

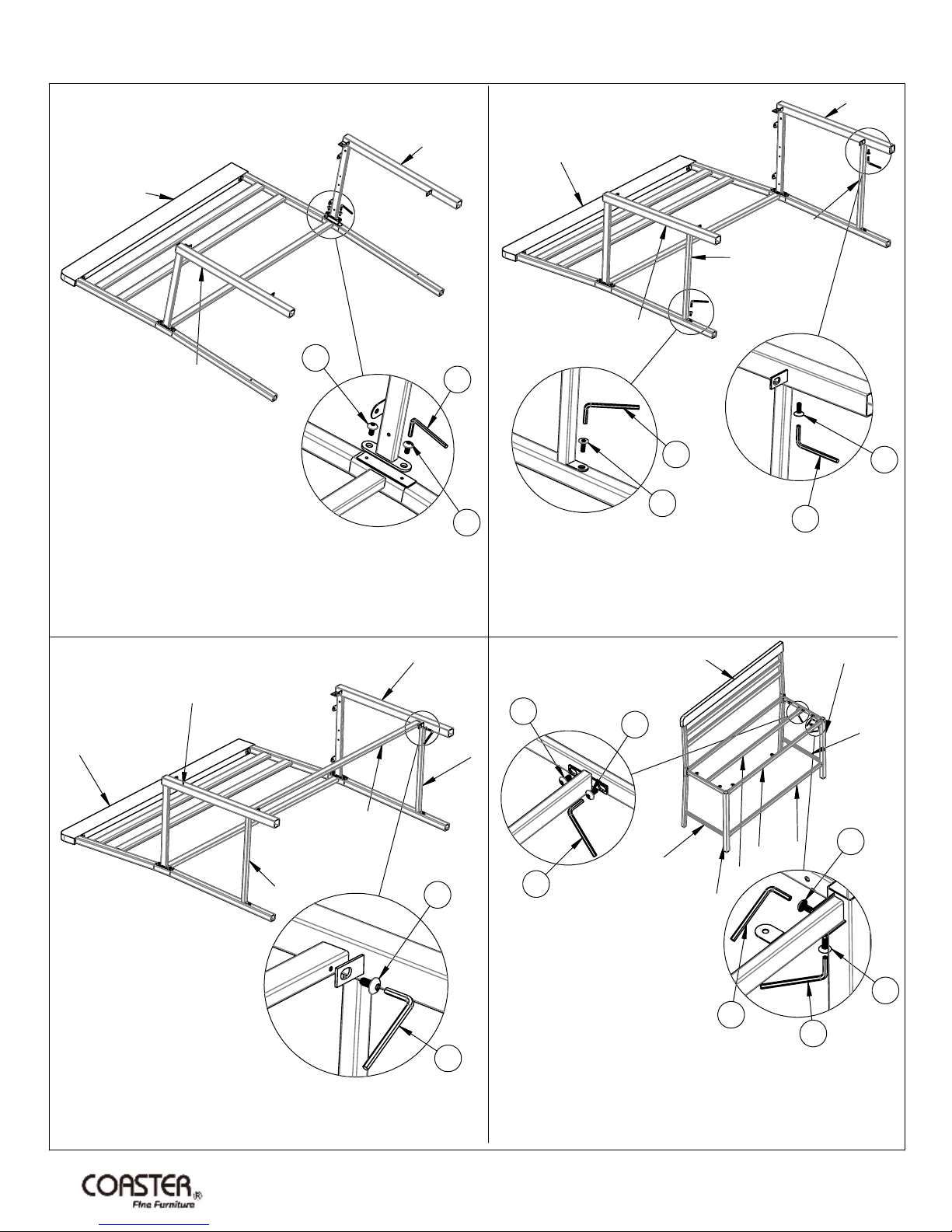

ATTACH LEFT LEG (B/B1) & RIGHT LEG (C/C1)
TO BENCH BACK (A). LOOSELY FASTEN BOLTS
(1) WITH ALLEN WRENCH (5).
ATTACH STRETCHER (D) TO LEFT
LEG (B/B1) & BENCH BACK (A); AND ATTACH
ANOTHER STRETCHER (D) TO RIGHT LEG (C/C1) &
BENCH BACK (A). LOOSELY FASTEN BOLTS (2)
WITH ALLEN WRENCH (5).
ATTACH BOTTOM FRONT STRETCHER(F) TO LEFT
LEG & RIGHT LEG (B&C;B1&C1). LOOSELY
FASTEN BOLTS (1) WITH ALLEN WRENCH (5).
ATTACH UPPER FRONT STRETCHER
(E) TO LEFT LEG & RIGHT LEG (B&C;B1&C1); AND
ATTACH THE SUPPORT TUBE (G) TO LEFT LEG&
RIGHTLEG(B&C;B1&C1). AND THEN PUT ALL BENCH
PARTS IN PLACES AND TIGHTEN ALL BOLTS
WITH ALLEN WRENCH (5).
Page 6
STEP 7
7
10
7
10
STEP 10
4
STEP 8
3
I
J
6
6
10
I
J
K
8 8 8 8
9
6
10
6
6
6
STEP 5 STEP 6
6 OF 6
ITEM: 121607
ASSEMBLY INSTRUCTIONS
WWW.COASTERCOMPANY.COM

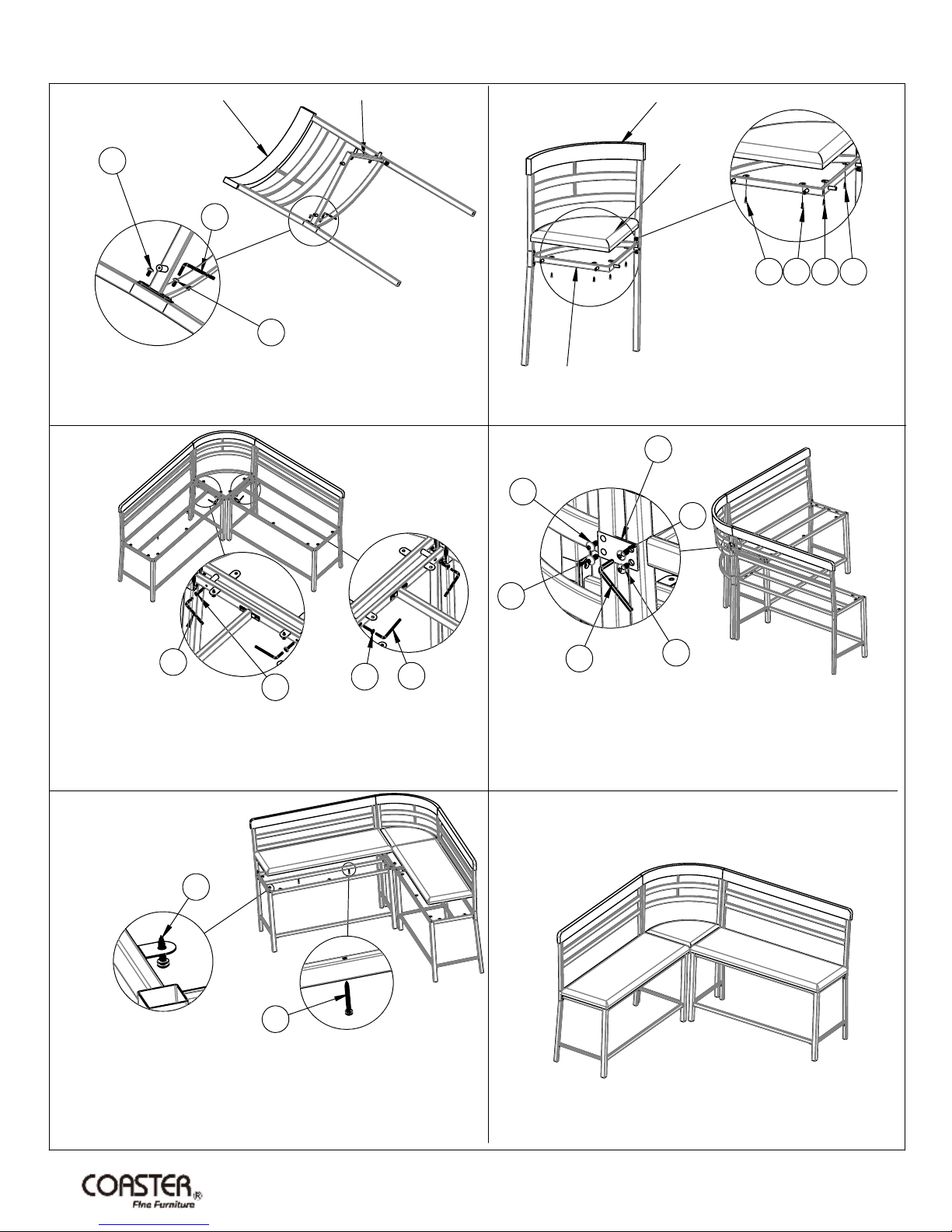

ATTACH THE CORNER STOOL
(121607B2) TO TWO BENCHES (121607B1).
LOOSELY FASTEN BOLTS (7) WITH ALLEN
WRENCH (10).
STEP 9
ATTACH SEAT FRAME (J) TO STOOL
BACK (I). TIGHTLY FASTEN BOLTS (6) WITH
ALLEN WRENCH (10).
ATTACH SEAT CUSHION (K) TO SEAT
FRAME. TIGHTLY FASTEN SCREWS(8).
USE METAL PLATE(9) TO FIX CORNER
STOOL (121607B2) TO TWO BENCHES
(121607B1) ON BACK SIDE. LOOSELY FASTEN
BOLTS (6) WITH ALLEN WRENCH (10).
PUT ALL BENCH PARTS AND CORNER
STOOL PARTS IN PLACES AND TIGHTEN ALL
BOLTS WITH ALLEN WRENCH (10). AND THEN
ATTACH BENCH SEAT CUSHION TO SEAT
FRAME. TIGHTLY FASTEN SCREWS(3&4).
