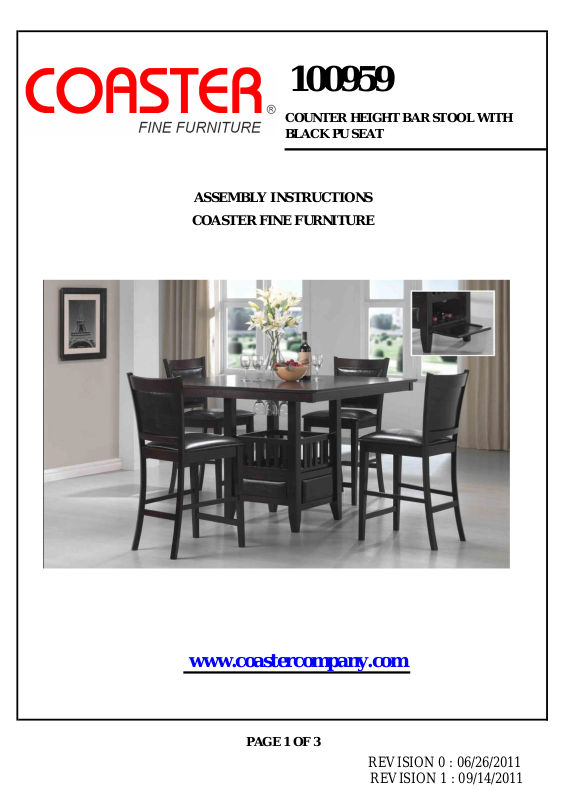

Page 1
100959
COUNTER HEIGHT BAR STOOL WITH
BLACK PU SEAT
ASSEMBLY INSTRUCTIONS
COASTER FINE FURNITURE
www.coastercompany.com
PAGE 1 OF 3
REVISION 0 : 06/26/2011
REVISION 1 : 09/14/2011
Page 2
ITEM : ASSEMBLY INSTRUCTIONS
www.coastercompany.com
PAGE 2 OF 3
100959
HARDWARE IDENTIFICATION
ASSEMBLY TIPS:
1. Remove hardware from box and sort by size
2. Please check to see that all hardware and parts are present prior start of assembly.
3. Please follow attached instruction in the same sequence as numbered to assure fast & easy assembly.
Warning!
1. Don't attempt to repair or modify parts that are broken or defective. Please contact the store
immediately.
2. This product is for home use only and not intended for commercial establishment
PARTS IDENTIFICATION
A CHAIR BACK 2PCS
B FRONT LEG FRAME 2PCS
C SIDE RAIL 4PCS
D CUSHION SEAT 2PCS
E LEFT SIDE STRETCHER 2PCS
F RIGHT SIDE STRETCHER 2PCS
1 ALLEN WRENCH 1PC
2 BOLT 12PCS
3 LOCK WASHER 12PCS
4 SHORT PAN HEAD SCREW 6PCS
5 LONG PAN HEAD SCREW 8PCS
NOTE : QUANTITIES SHOWN ARE FOR TWO CHAIRS
Page 3
ITEM :
100959
ASSEMBLY INSTRUCTIONS
STEP 1
Align and fasten side rail to front leg frame using bolt and
lock washer and tighten with Allen wrench. Insert left and
right stretchers into the correct legs.
3
2
1
C
C
STEP 2
Insert left and right stretchers into back legs. Align and
fasten side stretchers to chair back using bolt and lock
washer and tighen with Allen wrench.
3
2
1
A
E
B
F
STEP 3
Fasten left and right stretchers to front and back leg using
screws and tighten with screw driver (Not included).
5
BOTTOM
VIEW
STEP 4
Align and fasten cushion seat to side rails using screws and
tighten with screw driver (Not included).
4
D
BOTTOM
VIEW
PAGE 3 OF 3
www.coastercompany.com
