Coast TX3 User Manual

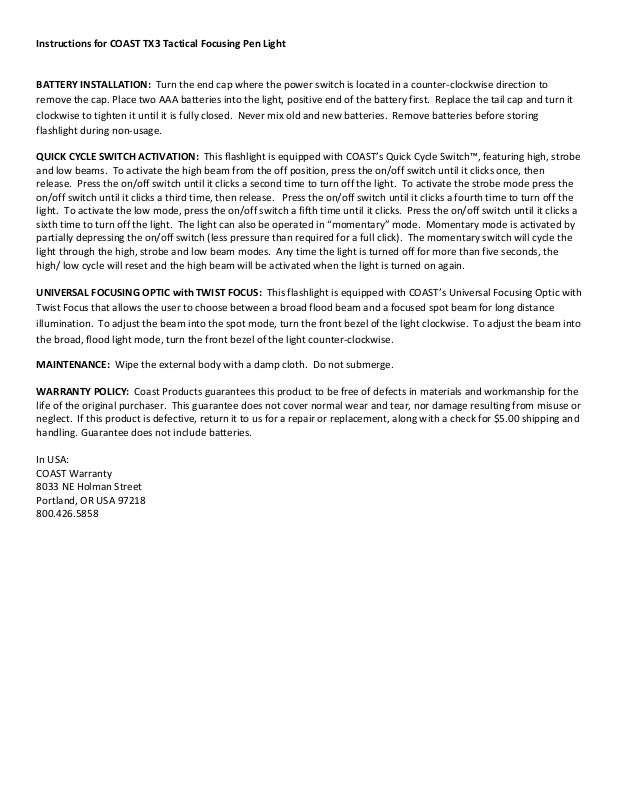

Instructions for COAST TX3 Tactical Focusing Pen Light

BATTERY INSTALLATION: Turn the end cap where the power switch is located in a counter-clockwise direction to

remove the cap. Place two AAA batteries into the light, positive end of the battery first. Replace the tail cap and turn it
clockwise to tighten it until it is fully closed. Never mix old and new batteries. Remove batteries before storing
flashlight during non-usage.

QUICK CYCLE SWITCH ACTIVATION: This flashlight is equipped with COAST’s Quick Cycle Switch™, featuring high, strobe

and low beams. To activate the high beam from the off position, press the on/off switch until it clicks once, then
release. Press the on/off switch until it clicks a second time to turn off the light. To activate the strobe mode press the
on/off switch until it clicks a third time, then release. Press the on/off switch until it clicks a fourth time to turn off the
light. To activate the low mode, press the on/off switch a fifth time until it clicks. Press the on/off switch until it clicks a

sixth time to turn off the light. The light can also be operated in “momentary” mode. Momentary mode is activated by

partially depressing the on/off switch (less pressure than required for a full click). The momentary switch will cycle the
light through the high, strobe and low beam modes. Any time the light is turned off for more than five seconds, the
high/ low cycle will reset and the high beam will be activated when the light is turned on again.

UNIVERSAL FOCUSING OPTIC with TWIST FOCUS: This flashlight is equipped with COAST’s Universal Focusing Optic with
Twist Focus that allows the user to choose between a broad flood beam and a focused spot beam for long distance
illumination. To adjust the beam into the spot mode, turn the front bezel of the light clockwise. To adjust the beam into
the broad, flood light mode, turn the front bezel of the light counter-clockwise.

MAINTENANCE: Wipe the external body with a damp cloth. Do not submerge.

WARRANTY POLICY: Coast Products guarantees this product to be free of defects in materials and workmanship for the

life of the original purchaser. This guarantee does not cover normal wear and tear, nor damage resulting from misuse or
neglect. If this product is defective, return it to us for a repair or replacement, along with a check for $5.00 shipping and
handling. Guarantee does not include batteries.

In USA:
COAST Warranty
8033 NE Holman Street
Portland, OR USA 97218

800.426.5858
