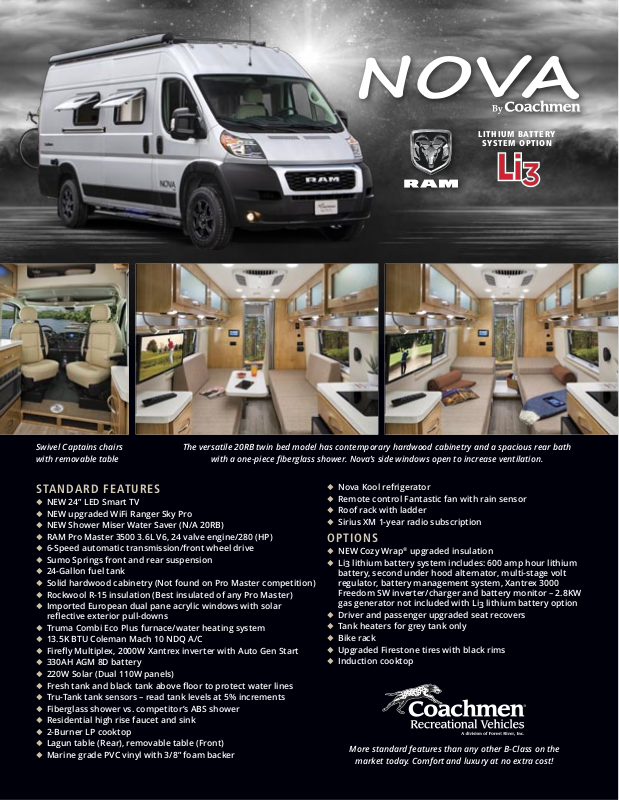

STANDARD FEATURES

u NEW 24” LED Smart TV
u NEW upgraded WiFi Ranger Sky Pro
u NEW Shower Miser Water Saver (N/A 20RB)
u RAM Pro Master 3500 3.6L V6, 24 valve engine/280 (HP)
u 6-Speed automatic transmission/front wheel drive
u Sumo Springs front and rear suspension
u 24-Gallon fuel tank
u Solid hardwood cabinetry (Not found on Pro Master competition)
u Rockwool R-15 insulation (Best insulated of any Pro Master)
u Imported European dual pane acrylic windows with solar

reflective exterior pull-downs

u Truma Combi Eco Plus furnace/water heating system
u 13.5K BTU Coleman Mach 10 NDQ A/C
u Firefly Multiplex, 2000W Xantrex inverter with Auto Gen Start
u 330AH AGM 8D battery
u 220W Solar (Dual 110W panels)
u Fresh tank and black tank above floor to protect water lines
u Tru-Tank tank sensors – read tank levels at 5% increments
u Fiberglass shower vs. competitor’s ABS shower
u Residential high rise faucet and sink
u 2-Burner LP cooktop
u Lagun table (Rear), removable table (Front)
u Marine grade PVC vinyl with 3/8” foam backer

LITHIUM BATTERY

SYSTEM OPTION

More standard features than any other B-Class on the

market today. Comfort and luxury at no extra cost!

u Nova Kool refrigerator
u Remote control Fantastic fan with rain sensor
u Roof rack with ladder
u Sirius XM 1-year radio subscription

OPTIONS

u NEW Cozy Wrap® upgraded insulation
u Li3 lithium battery system includes: 600 amp hour lithium

battery, second under hood alternator, multi-stage volt
regulator, battery management system, Xantrex 3000
Freedom SW inverter/charger and battery monitor – 2.8KW
gas generator not included with Li3 lithium battery option

u Driver and passenger upgraded seat recovers
u Tank heaters for grey tank only
u Bike rack
u Upgraded Firestone tires with black rims
u Induction cooktop

The versatile 20RB twin bed model has contemporary hardwood cabinetry and a spacious rear bath

with a one-piece fiberglass shower. Nova’s side windows open to increase ventilation.

Swivel Captains chairs
with removable table

GVWR (Gross Vehicle Weight Rating) - is the maximum permissible weight of the
unit when fully loaded. It includes all weights, inclusive of all fluids, occupants, cargo,
optional equipment and accessories. For safety and product performance do NOT
exceed the GVWR.

GCWR (Gross Combined Weight Rating) - Is the maximum permissible loaded weight
of your motor home and any towed trailer or towed vehicle. Actual GCWR of this
vehicle may be limited by the sum of the GVWR and the installed hitch receiver
maximum capacity rating; see hitch rating label for detail.

GAWR (Gross Axle Weight Rating) - is the maximum permissible weight, including
cargo, fluids, optional equipment and accessories that can be safely supported by
each axle.

UVW (Unloaded Vehicle Weight)* - is the typical weight of the unit as manufactured
at the factory. It includes all weight at the unit’s axle(s), including full fuel, all fluids
and LP Gas. The UVW does not include cargo, fresh potable water, additional optional
equipment or dealer installed accessories.

*Estimated Average based on standard build optional equipment.
CCC (Cargo Carrying Capacity)** - is the amount of weight available for fresh potable

water, cargo, passengers, additional optional equipment and accessories. CCC is equal
to GVWR minus UVW. Available CCC should accommodate fresh potable water (8.3 lbs
per gallon). Before filling the fresh water tank, empty the black and gray tanks to
provide for more cargo capacity.

**Estimated average based on standard build optional equipment.
Each Forest River RV is weighed at the manufacturing facility prior to shipping. A

label identifying the unloaded vehicle weight of the actual unit and the cargo carrying
capacity is applied to every Forest River RV prior to leaving our facilities. The load
capacity of your unit is designated by weight, not by volume, so you cannot
necessarily use all available space when loading your unit. Actual towing capacity
is dependent upon your particular loading and towing circumstances, which includes
the GVWR, GAWR and GCWR as well as adequate trailer brakes. Please refer to the
Operator’s Manual of your vehicle for further towing information. All information
contained in this brochure is believed to be accurate at the time of publication.
However, during the model year, it may be necessary to make revisions and
Forest River, Inc., reserves the right to make all such changes without notice,
including prices, colors, materials, equipment and specifications as well as the
addition of new models and the discontinuance of models shown in this brochure.
Therefore, please consult with your Forest River dealer and confirm the existence of
any materials, design or specifications that are material to your purchase decision.
©2020 Galleria by Coachmen, a Division of Forest River, Inc., a Berkshire Hathaway
company. All Rights Reserved. Rev.01/21

TWIN BED 28 X 72

TWIN BED 28 X 76

OHC OHC

OHC OHC

WET BATH

FLIP-UP

SINK

WARDROBE

ENTRY

GALLEY

STORAGE

REFER/MICRO

LP COOKTOP

REMOVABLE

TABLE

LAGUN
TABLE

20RB – Rear
Bath with Double
Captains Chairs

64 X 76 LAY FLAT POWER SOFA

OHC

7.3 CU FT
REFER/

MICRO

OHC

WET BATH

SHIRT

LOCKER

PULL-OUT

PANTRY

ENTRY

GALLEY

JUMP SEAT

JUMP

SEAT

STORAGE

STORAGE

DRAWERS

LP COOKTOP

REMOVABLE

TABLE

LAGUN

TABLE

20C – Power
Sofa with Double
Captains Chairs

MODEL 20C 20RB

Chassis: RAM Pro Master Pro Master

Engine: Gas 3.6L Pentastar V6 V6
Horsepower 280 280
Torque 260 260
Wheelbase 159” 159”
GVWR (Lb.) 9,350 9,350
GCWR (Lb.) 11,500 11,500
UVW (Lb.) TBD 7,725
CCC (Lb.) TBD 1,625
Interior Height 74.5” 74.5”
Exterior Width 86” 86”
Exterior Height (w/AC) 9’ 4” 9’ 4”
Exterior Length 20’ 11” 20’ 11”
Hitch Weight (Lb.) 5,100 5,100
Fuel Capacity (Gal.) 24 24
LP Capacity (Gal./Lb.) 7.9/33 7.9/33
Fresh Water (Gal.) 27 27
Grey Water (Gal.) 20 23
Black Water (Gal.) 19 10
Awning 13’ 1” 13’ 1”

Easy to access rear bath

and storage

Optional bike rack

423 N. Main Street u P.O. Box 30
Middlebury, IN 46540 u [phone]
www.coachmenrv.com/nova
fb.me/coachmenrv

To learn more about Coachmen RV and our products, and see how Coachmen is making the easy life easier, contact us today.

High Gloss White

High Gloss Maple

Cashmere Fog

CABINETS

DECOR
