tempest fx
User Manual
21 pgs2.28 Mb0

CoachComm tempest fx User Manual

®
®
TFX UM_D0000097_2014_RevB
Tempest FX Wireless System
CoachComm, LLC
Table of Contents
Equipment Setup .......................................................................................................... 10

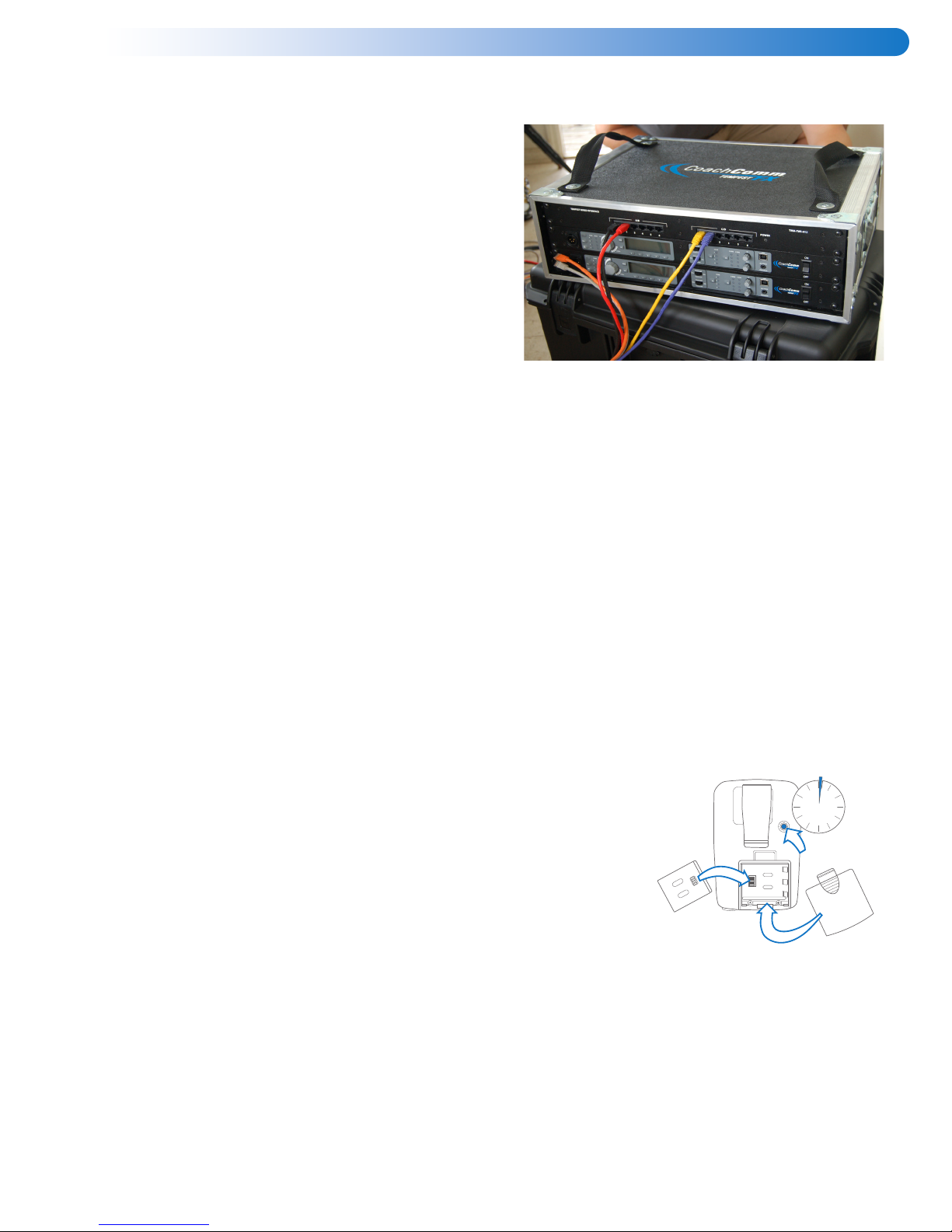

Press Box Main Unit ............................................................................................................10

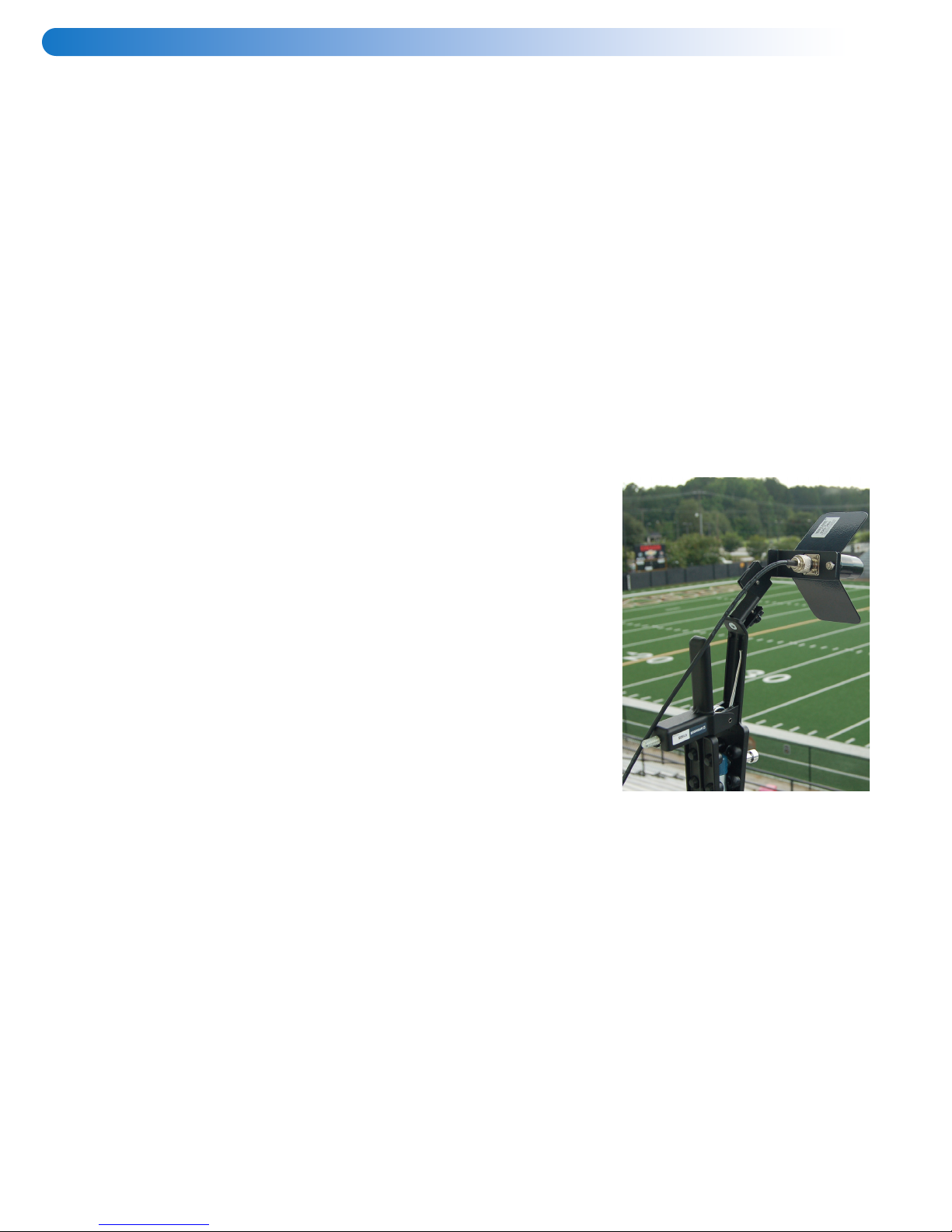

Antenna System ................................................................................................................ 10
Tempest Wired Interface & Wired BeltPacks ............................................................................... 11
Wireless BeltPacks (on the Field) ............................................................................................11
System Operation .........................................................................................................12
Tempest Wired Interface ...................................................................................................... 12
Tempest FX BaseStation .......................................................................................................12
Remote Transceiver ............................................................................................................13
Wired BeltPacks ................................................................................................................13

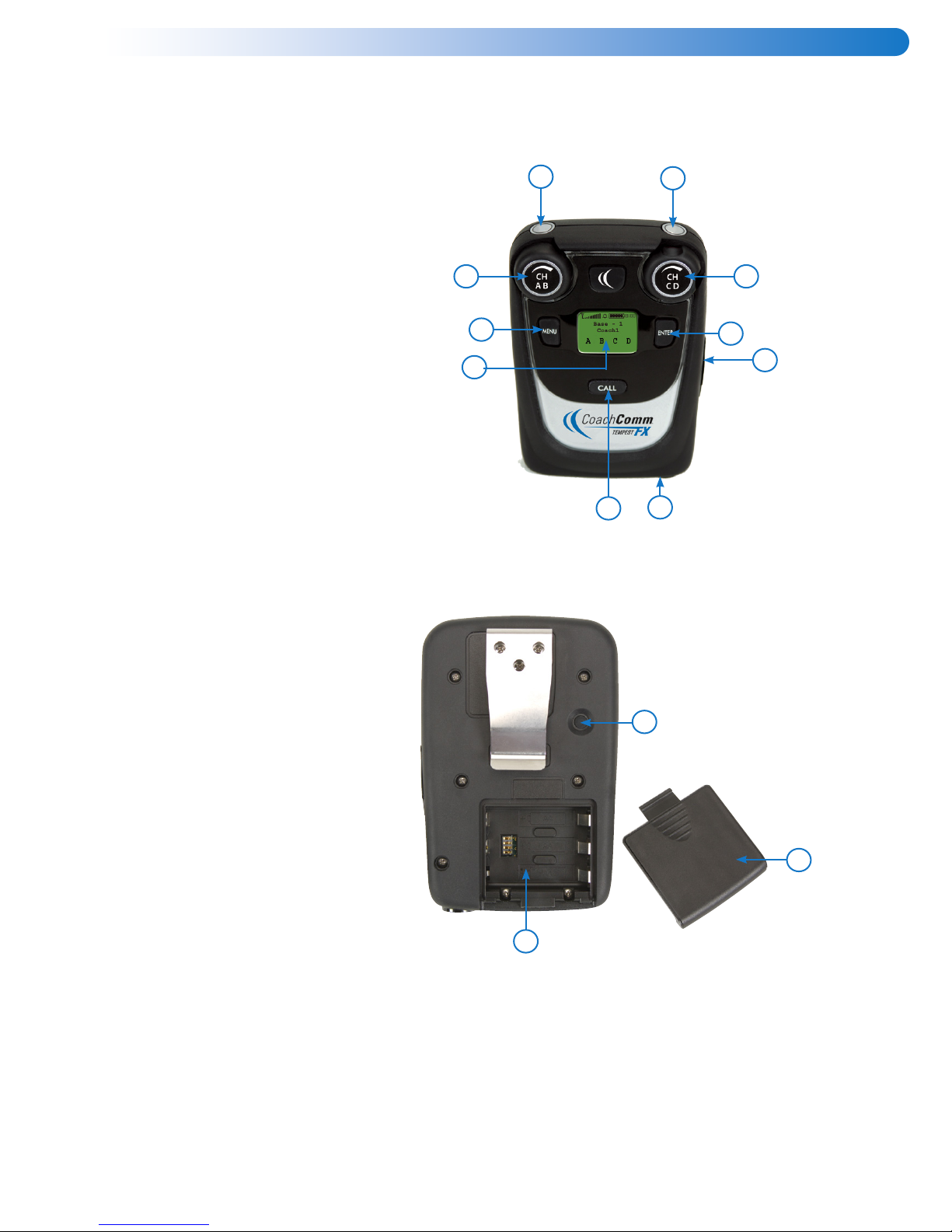

Wireless BeltPacks .............................................................................................................13
Game Day QuickStart ...................................................................................................15
Game Day Tips .............................................................................................................16
Battery Statement ........................................................................................................ 16
Troubleshooting ........................................................................................................... 17
Specications ............................................................................................................... 18
System Specications .......................................................................................................... 18
BaseStation Specications ....................................................................................................18
Wireless BeltPack Specications .............................................................................................18
Customer Support ........................................................................................................19
Returning Equipment for Repair or Maintenance .......................................................................... 19
Warranty......................................................................................................................19
FCC Statement .............................................................................................................20
Important FCC and Safety Information ......................................................................... 20
About CoachComm, LLC ................................................................................................ 21
1.800.749.2761 www.coachcomm.com
CoachComm, LLC © 2014
2
Tempest FX Wireless SystemCoachComm, LLC
Introduction
Congratulations and thank you for choosing the CoachComm Tempest® FX wireless headset system. CoachComm is the undisputed leader in coaches’ communications with more than 97% of D1-A college football programs using our systems. Now CoachComm brings our experience, expertise, and commitment to quality to a broad range of football programs on every level with Tempest FX. Using unrivaled technology, Tempest FX offers the same powerful technology that our D1-A customers rely on each game day. In order to get the most out of your new Tempest FX system, please take a few moments to read this manual completely so that you better understand the operation of this product. For questions not addressed in this manual, feel free to contact CoachComm directly. CoachComm support and service personnel are ready to assist you.
General Description
The CoachComm Tempest FX wireless headset system is a secure and reliable sideline-to-press-box full duplex communication system. The same Tempest wireless technology is used by more than 100 D1-A programs each game day. The system is comprised of a main press box unit, Wired and Wireless BeltPacks, and multiple antenna options. The Tempest FX remote antenna system provides flexibility in challenging stadiums where optimal line-of-sight is difficult to achieve. The Tempest FX wireless system uses noise-suppression technology, which allows every member of your coaching staff to communicate clearly even in high noise situations. As many as 12 coaches in the press box and an unlimited number of wireless field coaches can talk on up to four different channels of communication (conversations). Each Wireless BeltPack is highly customizable for each coach’s preferred settings.
System Features
• No FCC license or frequency coordination required. Advanced digital FHSS technology does all the work for you.
• Full duplex communication with hands-free operation. Full duplex means that multiple coaches can be speaking at the same
time, and everyone will be heard.
• Up to 12 coaches in the press box and up to 10 wireless coaches on the field in full duplex (5 per FX BaseStation.) An unlimited number of wireless coaches can be added to the system in a limited push-to-talk/listen capacity.
• Wireless BeltPacks are highly customizable, and settings can be set to each coach’s preference.
• The LCD display on the Wireless BeltPacks provide real-time status of the BeltPack’s signal strength, link quality, battery life,
channel options, and more.
• Capable of up to four separate channels (conversations).
• All coaches, whether on the field or in the press box, can have access to any channel.
• Wireless BeltPacks are powered by rechargeable/removable Lithium batteries.
• Batteries take 2–3 hours to fully charge and have an operating time of 8–9 hours; batteries charge via a 5-bay charger.
• BeltPacks also accept (3) AA batteries as a backup to the rechargeable Lithium batteries.
• The Remote Transceiver and antenna system can be remotely located up to 1500 feet from the main press box unit.
3
1.800.749.2761www.coachcomm.com
Tempest FX Wireless System
CoachComm, LLC
System Overview
Number of Users — The Tempest FX system supports up to 12 coaches in the press box and an unlimited number of Wireless
BeltPacks. Each Tempest FX BaseStation can support up to 5 Wireless BeltPacks operating in normal, full duplex communication. However, Tempest FX can also support an unlimited number of Wireless BeltPacks on a single BaseStation when operating in “Split” mode. When in this mode, some Wireless BeltPacks are put into a “Shared” mode and operate as listen/push-to-talk and on a single channel. This can be a useful approach for single BaseStation systems where more than 5 Wireless BeltPacks are needed. For more information on “Split/Shared” mode operation, contact CoachComm.
Tempest FX on Both Sidelines — Every Tempest FX system is uniquely configured at CoachComm. This uniqueness is created by a
series of key codes called Network Numbers and Lockout Keys. These numbers will never match from system to system. Even systems consisting of two BaseStations will have varying (but coordinated) Network Numbers and Lockout Keys. The Network Number (0-63) determines each BaseStations’ hopping patterns within the frequency band. The Lockout Key (0-255) is an added security code to ensure no two BaseStations or systems match.
System Range — The Tempest FX system has an operating range of greater than 1000 feet under ideal conditions. Under normal
operating conditions in typical high school and college stadiums, system range should be more than adequate to support both home and away sideline operation. To maximize range and avoid noise or drop-outs, a clear line of sight should exist between the system’s antenna and the BeltPacks on the field.
Unpacking
Your new CoachComm Tempest FX wireless headset system comes complete with everything you need to get started. Please take a few moments to unpack your system and check the accuracy of its contents. Below is the list of items that you should have received.
(Please note that the exact items and the quantity of what you receive will vary depending on the number of wired and wireless coaches in your system.)
Press Box Case
• Press Box Main Unit (3RU), which houses the Tempest FX BaseStation(s) and Tempest Wired Interface
• Tempest Wired BeltPack(s)
• Tempest FX Remote Transceiver(s)
• Omni-Directional (Whip) Antenna(s)
Accessory Case (Press Box accessories)
• Multi-colored Cat 5 Cable Bundle for Wired BeltPacks
• Directional Antenna Kit(s)
• Headsets
Sideline Case
• Wireless BeltPack(s)
• 5-Bay Charger(s) with power supply
• Additional Batteries
• Headsets
1.800.749.2761 www.coachcomm.com
4
Tempest FX BaseStation
Tempest FX Wireless SystemCoachComm, LLC
1213
1514
1011
9 7
Front
1 - ON/OFF Switch
2 - USB Programming Port (firmware updates)
3 - BeltPack Program Port
4 - Wired Intercom Interface (A–D)
5 - Intercom Select Switches
6 - LCD Display
7 - BeltPack Settings Access Buttons (1–5)
8 - MENU Button
9 - ENT (Enter) Button
68
12
345
10 - Base Local Volume/Channel Button and Scroll knob (This multi-purpose knob serves several purposes. It is the volume control for
the Local Headset port and can be pressed to change the channels of the Local Headset port. It also acts as a Scroll knob during menu navigation.)
11 - Local Headset Channel LEDs
12 - Local Headset Talk Button
13 - Local Headset Port
14 - CALL Button
15 - MIC KILL Button
5
1.800.749.2761www.coachcomm.com
Tempest FX Wireless System
CoachComm, LLC
1
3 4 5 6 8
2
Back
1 - AC Power In
2 - DC Power In
3 - Antenna Port
4 - Wired Intercom Connections (A–D)
5 - Stage Announce (SA)
6 - Aux In
7 - Aux Out
8 - Base Sync In
9 - Base Sync Out
10 - LAN Port
10
97
11 12
3
11 - Relay Connector
12 - Transceiver Port
1.800.749.2761 www.coachcomm.com
6
Tempest Wired Interface (TWI)
2 3
Front

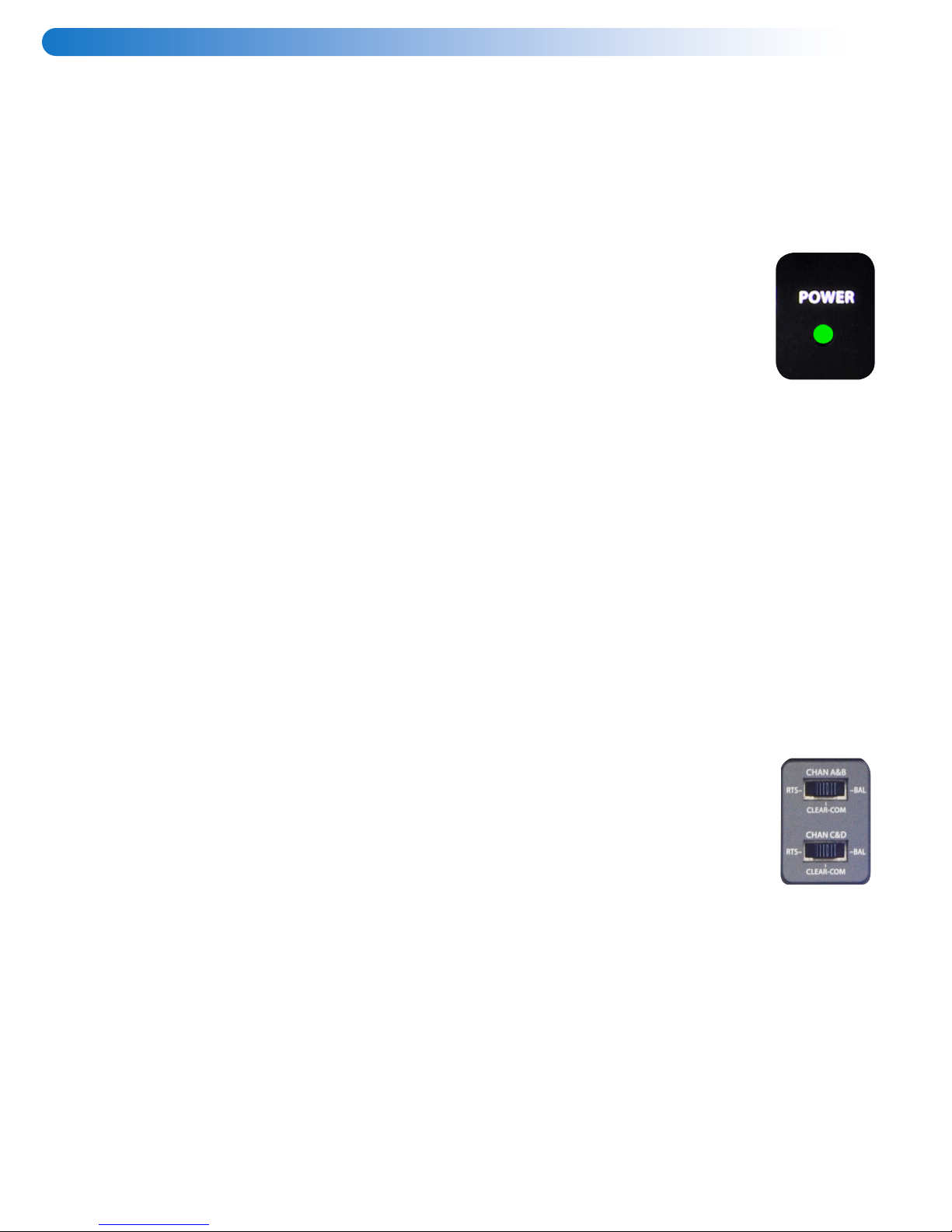

1 - Power LED
2 - Channel A/B Ports (1–6)
3 - Channel C/D Ports (1–6)
2 31 4 5 6
Tempest FX Wireless SystemCoachComm, LLC
1
Back
1 - DC Power Out
2 - DC Power In
3 - Channel A XLRs
4 - Channel B XLRs
5 - Channel C XLRs
6 - Channel D XLRs
7
1.800.749.2761www.coachcomm.com
