CNet CWR-635M User Manual

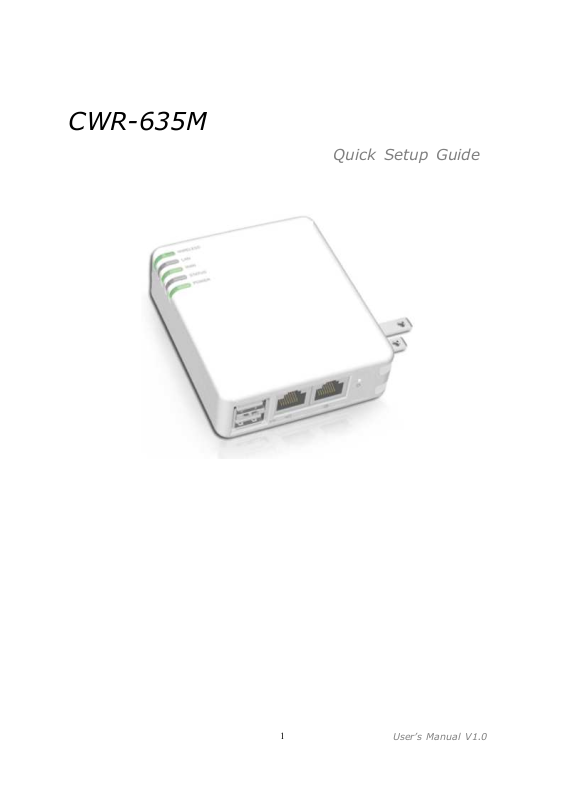

CWR-635M
Quick Setup Guide
1
User’s Manual V1.0
Table of Contents
CHAPTER 1 HARDWARE CONNECTION............................................................... 4
1.1 Router Mode Hardware connection and application ...................... 4
1.2 AP Mode Hardware connection and application ............................. 4
1.3 Client Mode Hardware connection and application ........................ 4
CHAPTER 2 ROUTER MODE QUICK SETUP .......................................................... 5
2.1 R
OUTER MODE QUICK SETUP INSTRUCTION
2.1.1 WAN Setup .................................................................................... 7
2.1.1.1 WAN Type – Static IP ................................................................. 7
2.1.1.2 WAN Type – Dynamic IP ............................................................ 8
2.1.1.3 WAN Type – PPPoE .................................................................... 8
2.1.1.4 WAN Type – PPTP ...................................................................... 9
2.1.2 LAN Setup ................................................................................... 10
2.1.3 Wireless Setup ............................................................................ 10
2.1.4 Time Server Setup ....................................................................... 11
........................................................ 5
2.1.5 Password Setup .......................................................................... 12
2.1.6 USB Disk Management Setup ...................................................... 13
2.1.7 User Account Management Setup ................................................ 13
2.1.8 Firewall Setup ............................................................................. 14
2.1.9 QoS Configuration Setup ............................................................. 15
2.1.10 FTP Server Setup......................................................................... 16
2.1.11 Web Camera Server Setup........................................................... 17
2.1.12 Printer Server Setup.................................................................... 17
2.1.13 Samba Server Setup .................................................................... 18
2.1.14 Audio Server Setup ..................................................................... 18
2.1.15 Quick Setup Finish....................................................................... 19
CHAPTER 3 AP MODE QUICK SETUP................................................................. 19
3.1 AP M
3.1.1 LAN Setup ................................................................................... 21
3.1.2 Wireless Setup ........................................................................... 22
3.1.3 Time Server Setup ....................................................................... 22
ODE QUICK SETUP INSTRUCTION
........................................................ 19
3.1.4 Password Setup .......................................................................... 23
3.1.5 USB Disk Management Setup ...................................................... 24
3.1.6 User Account Management Setup ................................................ 24
3.1.7 FTP Server Setup......................................................................... 25
3.1.8 Web Camera Server Setup........................................................... 26
2
User’s Manual V1.0
3.1.9 Printer Server Setup.................................................................... 26
3.1.10 Samba Server Setup .................................................................... 27
3.1.11 Audio Server Setup ..................................................................... 27
3.1.12 Quick Setup Finish....................................................................... 27
CHAPTER 4 CLIENT MODE QUICK SETUP ......................................................... 28
4.1 C
4.1.1 Site Survey Setup ........................................................................ 30
4.1.2 Wireless Setup ............................................................................ 31
4.1.3 Time Server Setup ....................................................................... 32
4.1.4 Password Setup .......................................................................... 32
4.1.5 USB Disk Management Setup ...................................................... 33
4.1.6 User Account Management Setup ................................................ 34
4.1.7 FTP Server Setup......................................................................... 34
4.1.8 Web Camera Server Setup........................................................... 35
4.1.9 MFP Server Setup ........................................................................ 35
4.1.10 Samba Server Setup .................................................................... 36
4.1.11 Audio Server Setup ..................................................................... 37
4.1.12 Quick Setup Finish....................................................................... 37
LIENT MODE QUICK SETUP INSTRUCTION
.................................................. 28
3
User’s Manual V1.0
Chapter 1 Hardware Connection
1.1 Router Mode Hardware connection and application
When Mini Router switches to Router Mode, there will be each WAN and LAN port
exist.
1.2 AP Mode Hardware connection and application
When Mini Router switches to AP Mode, it supports 2 LAN ports as Bridge.
1.3 Client Mode Hardware connection and application
When Mini Router switches to Client Mode, Mini Router will be a Wireless Adapter,
and users can plug cable to each 2 LAN ports and then connect Internet via
Wireless.
4
User’s Manual V1.0
Chapter 2 Router Mode Quick Setup
2.1 Router Mode Quick Setup Instruction

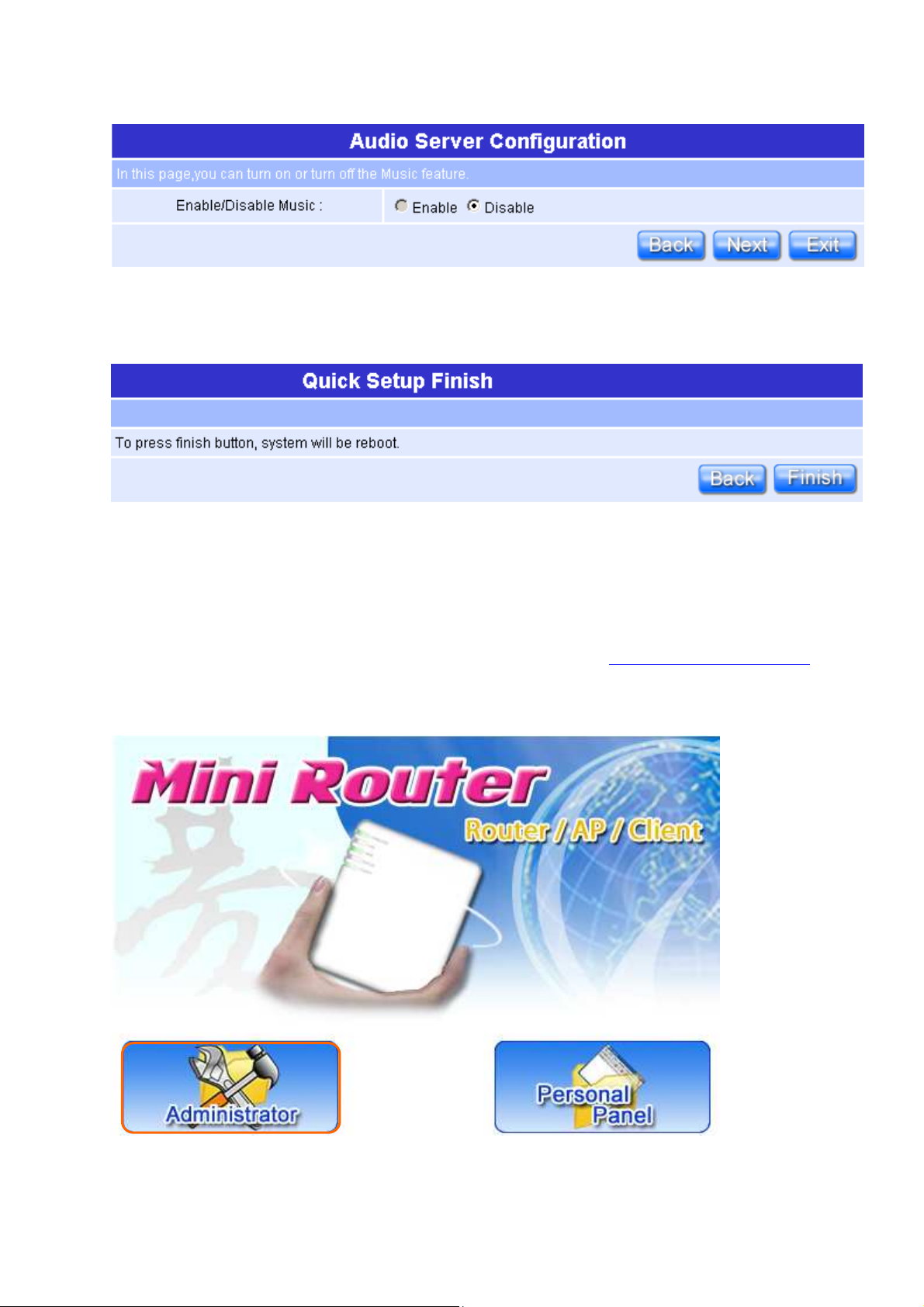

Please open a Microsoft Internet Explorer, and enter
Gateway) into browser’s blank, then you will see the configuration page below.
http：//192.168.1.1 (Default
Please click on Administrator button to login.
5
User’s Manual V1.0
Please input in the blanks, the factory default values for User Name and Password
are “admin” and “admin” (all in lowercase letters); after inputting, please click on
“Login” to enter the homepage as below.
Typical Configuration Manager Page consists of two separate frames. The left
frame contains all the means available for device configuration and the right site
map is shown as the icons form.
Click on Quick Setup in the left screen of the main menu. It includes both “Basic”
and “Application”.
6
User’s Manual V1.0
Click on “Basic” including WAN Setup、LAN Setup、Wireless Setup、Time Server
Default setting and has to be set.
Default setting and has to be se
t.
S
ee Setup
2.1
.1.2
S
ee Setup
2.1
.1.3
Setup and Password Setup.
Default setting and has to be set.
Default setting and has to be set.
Please click on “Next” right side below, and go to the next page.
2.1.1 WAN Setup
Navi R122g supports 4 connection types to WAN.
See Setup 2.1.1.1
See Setup 2.1.1.4
2.1.1.1 WAN Type – Static IP
Choose Static IP Address if all WAN IP information is provided to you by your ISP.
R122g will not accept the IP address if it is not in this format, and the blanks of “IP
Address”, “Subnet Mask” and “Default Gateway” must be input.
7
User’s Manual V1.0
MAC
Address
Input the data provided
by ISP
Please click on “Next” button to connect to next step.
2.1.1.2 WAN Type – Dynamic IP
Choose Dynamic IP to obtain IP address information automatically form your ISP.
Select this option if your ISP does not give you any IP numbers to use.
Input it if requested by your ISP
Please click on “Next” button to connect to next step.
2.1.1.3 WAN Type – PPPoE
If your ISP uses PPPoE connection, your ISP will provide you with a username and
password.
8
User’s Manual V1.0
Please click on “Next” button to connect to next step.
Input it by your ISP provided.
2.1.1.4 WAN Type – PPTP
Some DSL service providers supply a special DSL modem in Europe or Big Pond
Cable in Australia. This kind of modem only supports the PPTP tunnel to access the
Internet; Please enter the account’s information of Account and Password which
provided by your ISP.
Input as necessary.
Please click on “Next” button to connect to next step.
9
Input as necessary.
User’s Manual V1.0
2.1.2 LAN Setup
Requested to be as complied as LAN IP
.
If you are using the Mini Router with multiple PCs on your LAN, please set up this
function for multiple users to connect it. The default LAN IP for Mini Router is
192.168.1.1.
Please click on “Next” button to connect to next step.
2.1.3 Wireless Setup
The first step of setting up the “Wireless Setup” is to give a name for SSID,
herewith the default name of SSID is NAVIR122g, it’s suggested to use.
10
User’s Manual V1.0
Please click on “Next” button to connect to next step.
Select the
suitable
item for you to use.
It’
s suggested to use.
2.1.4 Time Server Setup
The section provides to change the Time. However, change the router’s date and
time does not affect the date and time on your PCs.
Please select your time
zone.
11
User’s Manual V1.0
Please click on “Next” button to connect to next step.

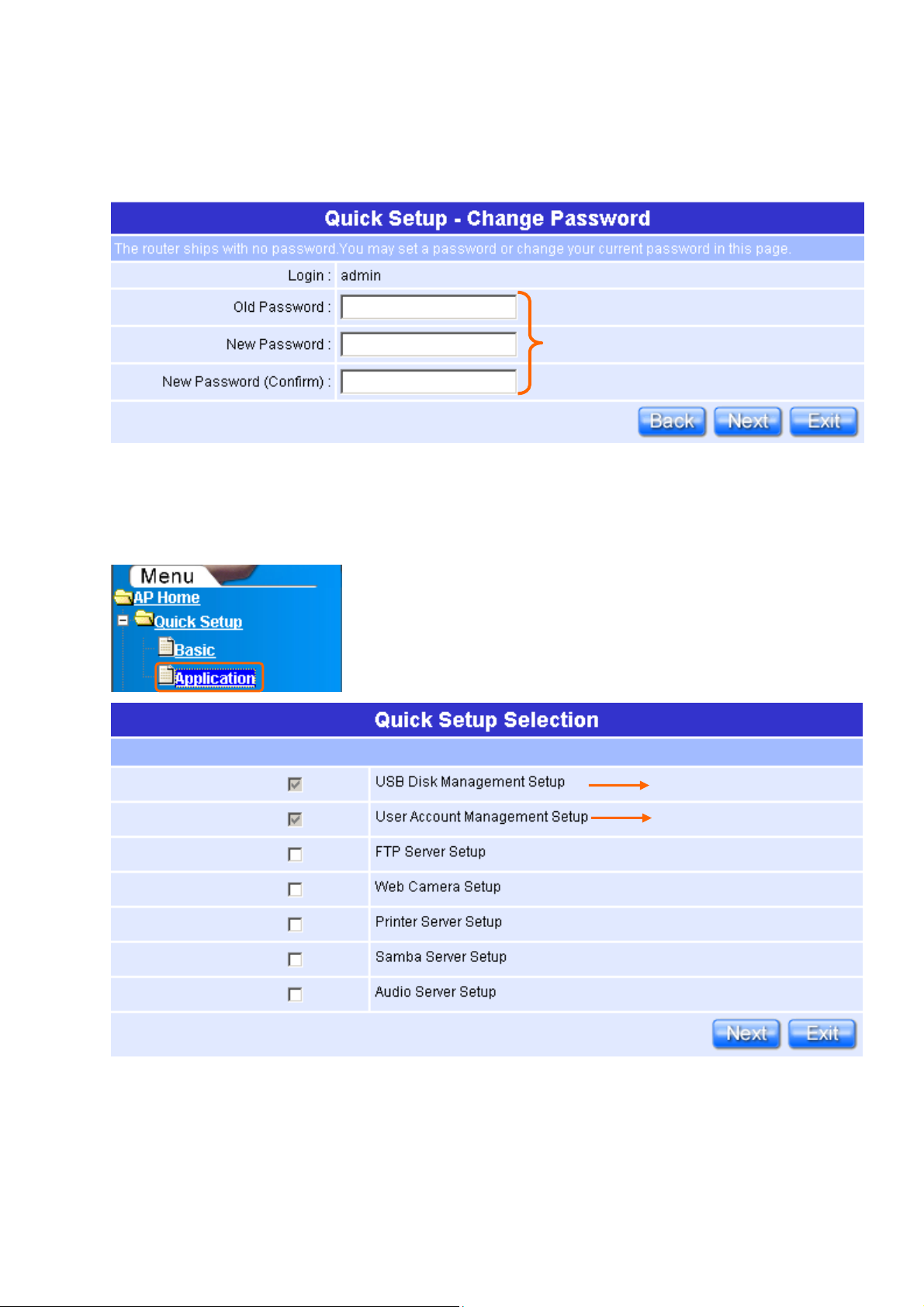

2.1.5 Password Setup
Here suggest changing the password for logging into the configuration manager
under security reason.
The password may consist of A-Z, a-z, 0-9,
underscores, and a single dot (.)
Please click on “Next” button to connect to next step.

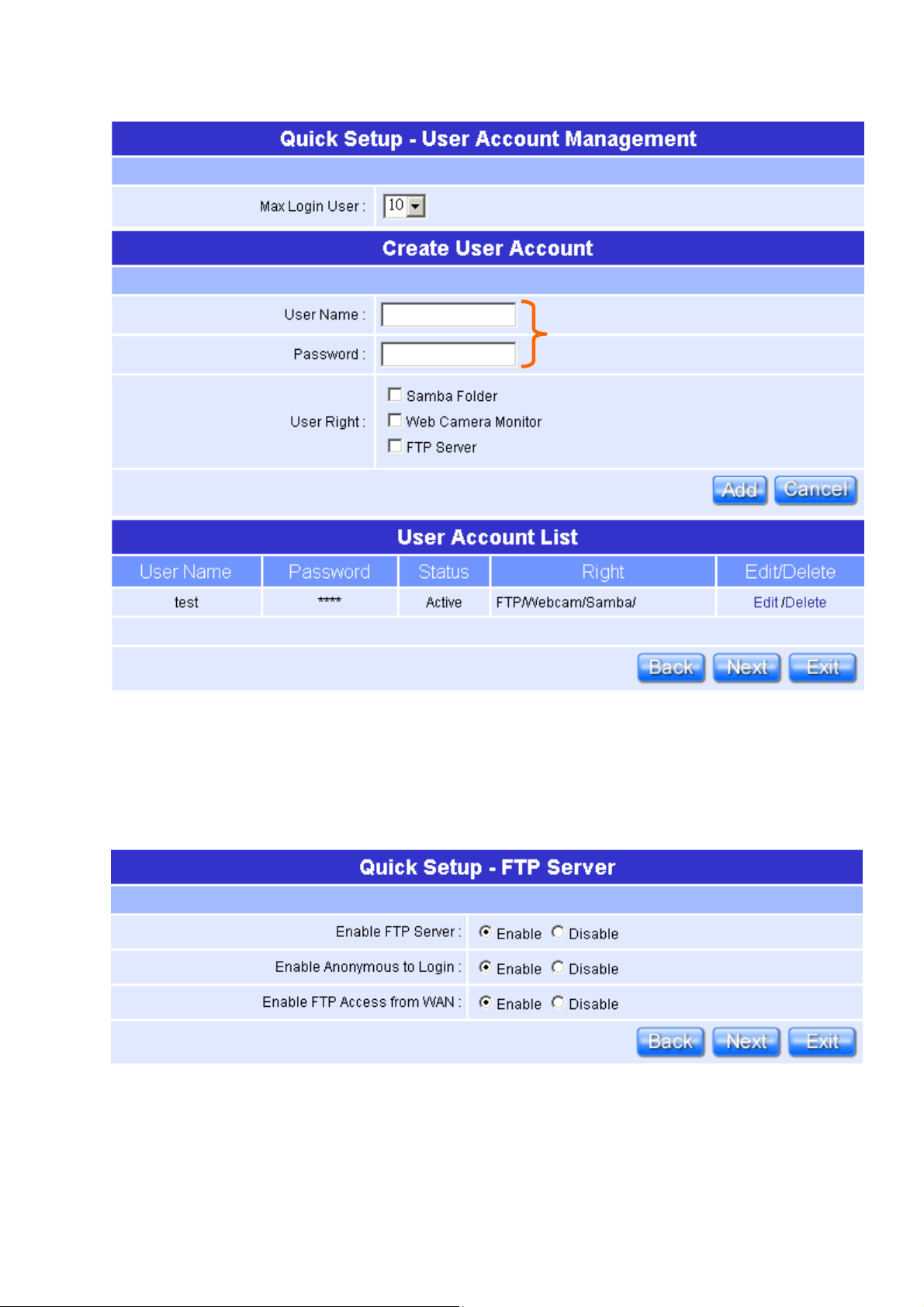

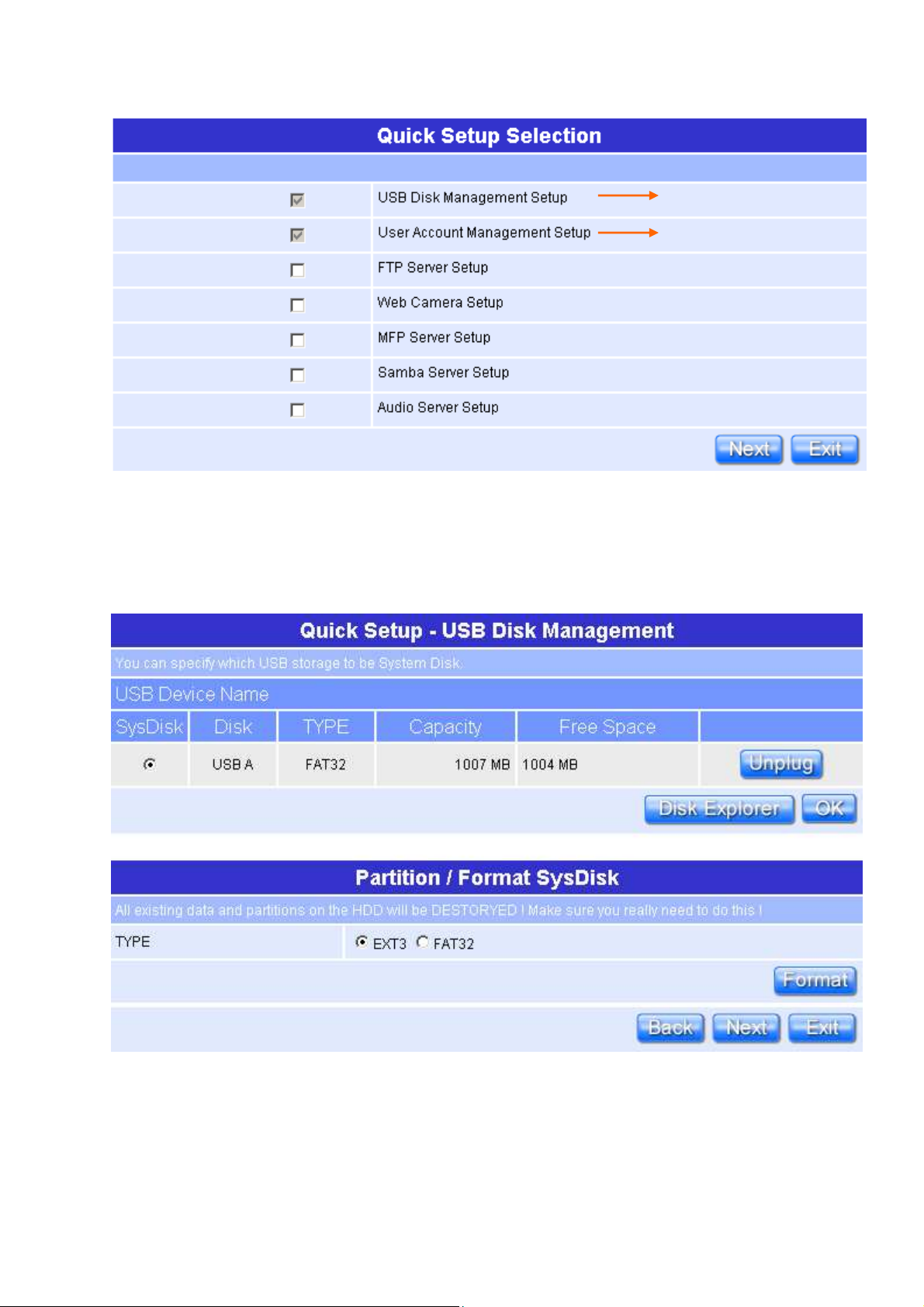

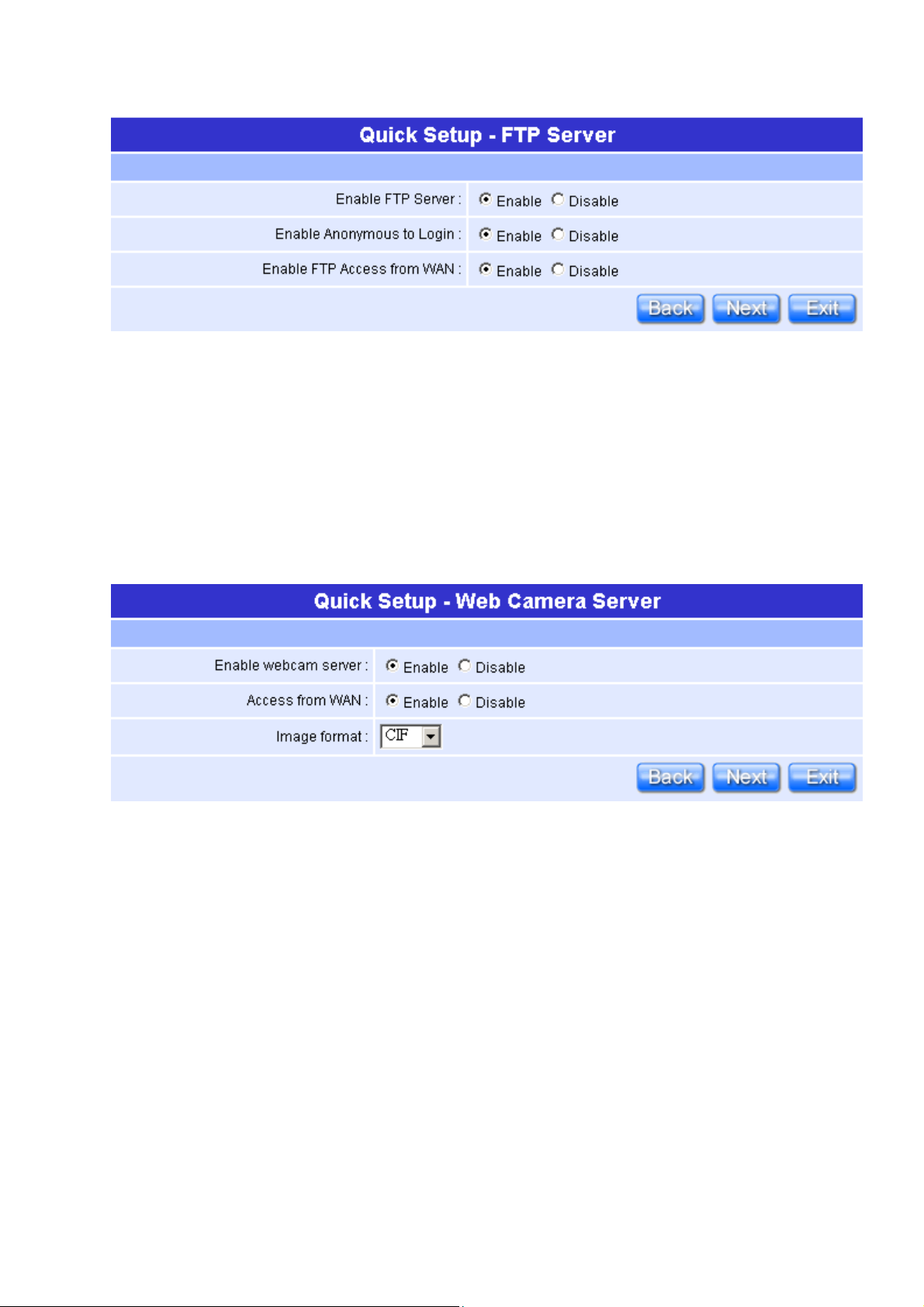

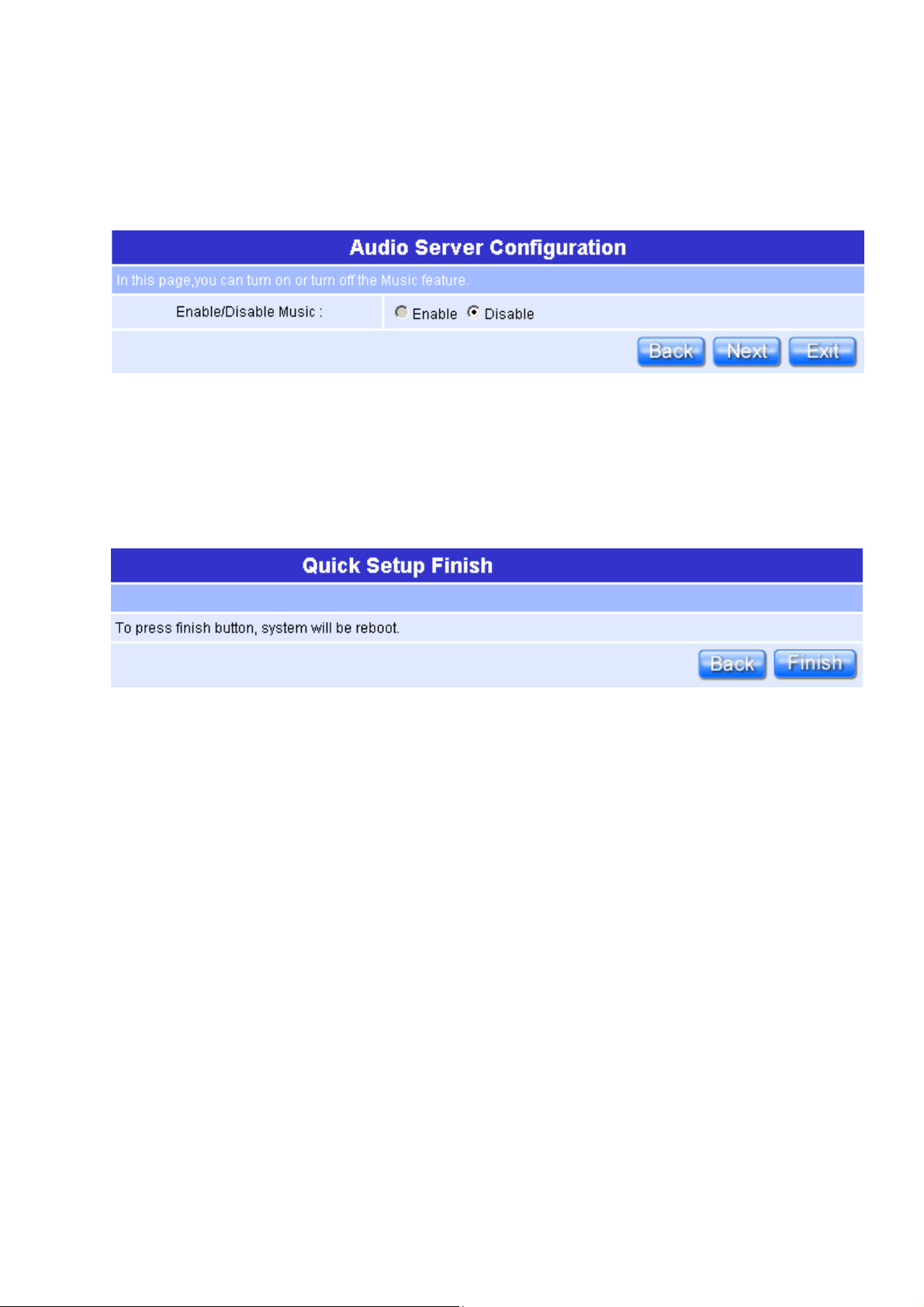

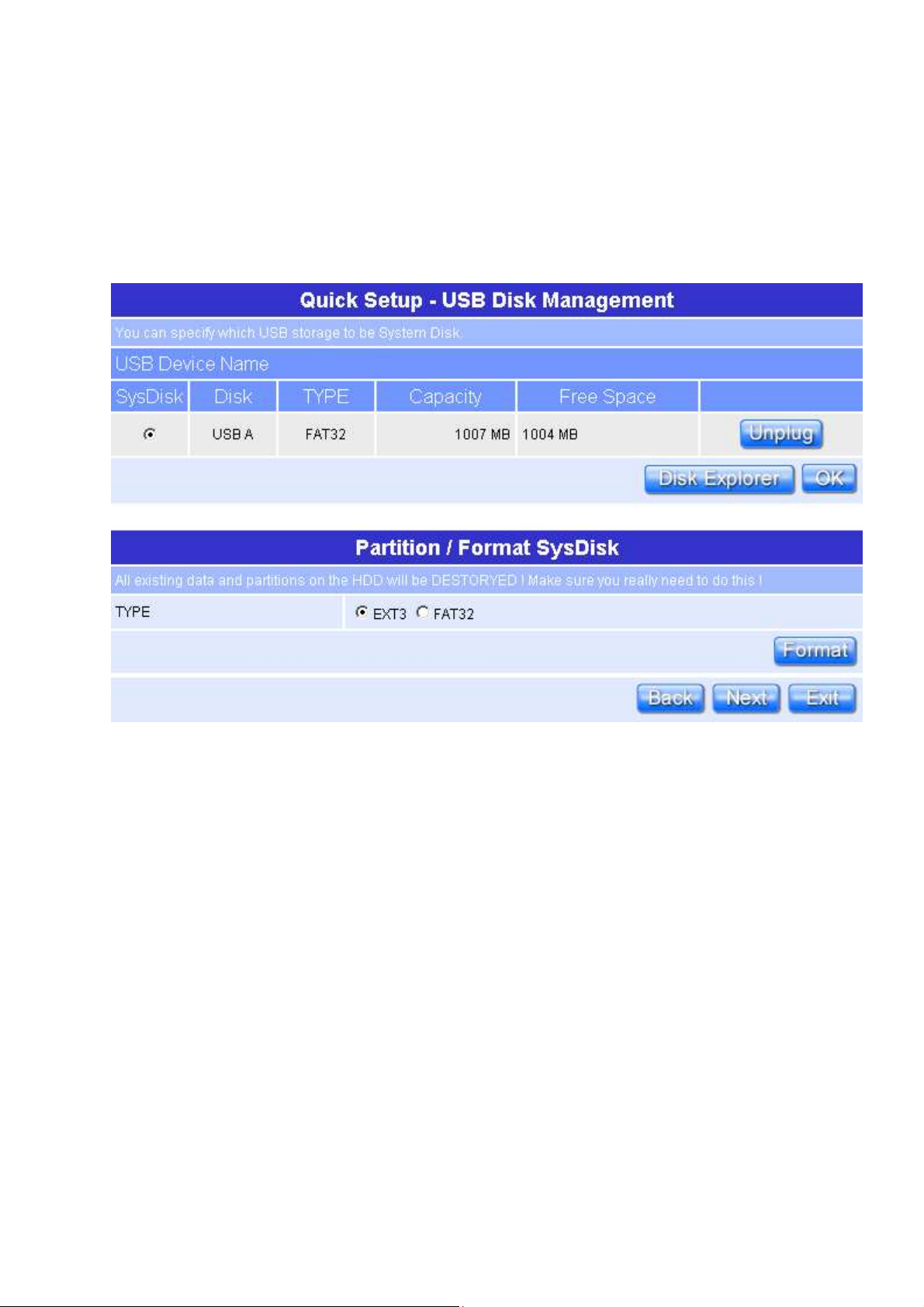

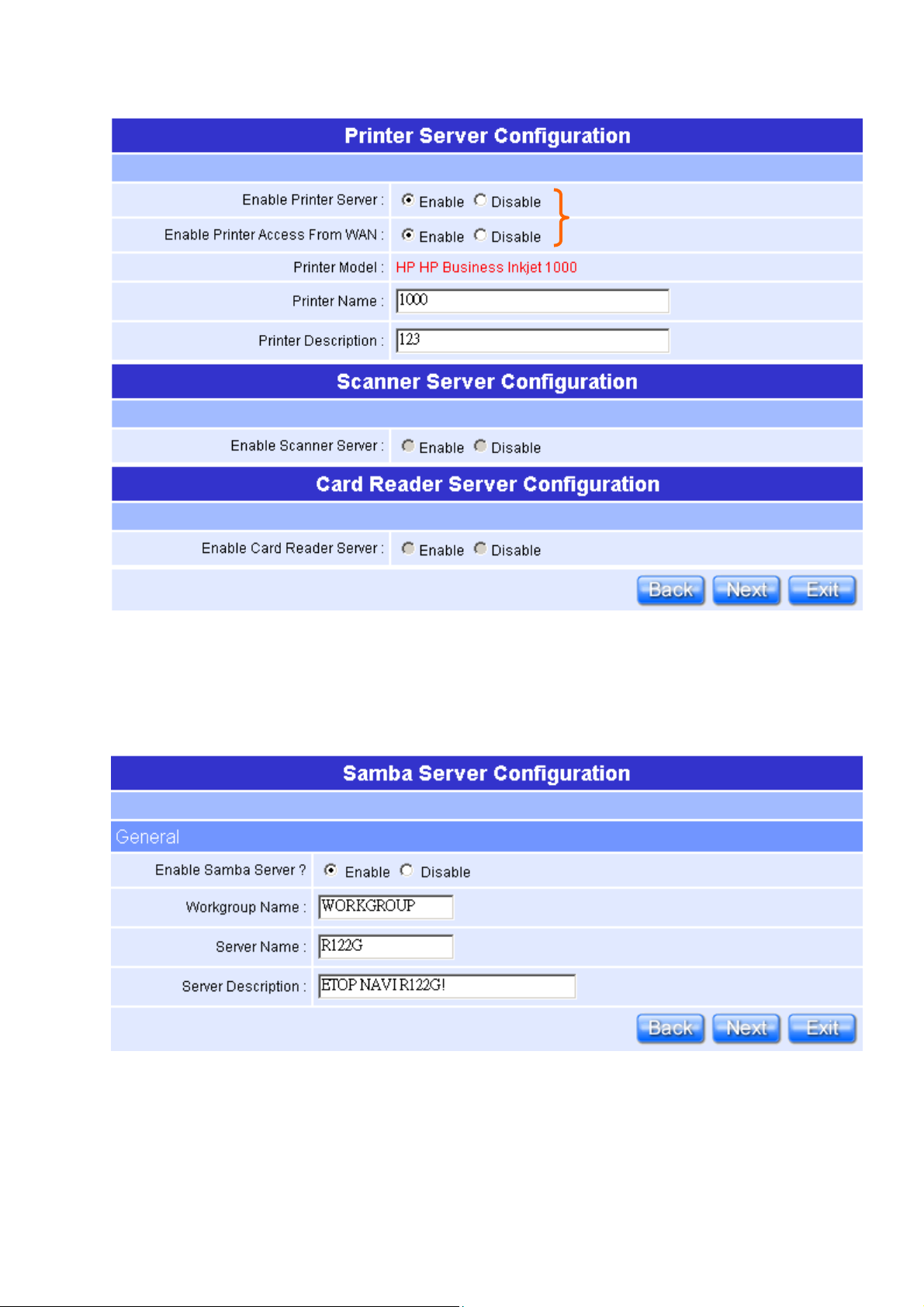

Click on “Application” including USB Disk Management Setup、User Account
Management Setup、Firewall Setup、QoS Setup、FTP Server Setup、Web Camera
Setup、Printer Server Setup、Samba Server Setup and Audio Server Setup.
Default setting and has to be set.
Default setting and has to be set.
12
User’s Manual V1.0
