CNet Technology Corporation.
www.CNetusa.com
User Manual
Wireless PCI Express Adapter 300Mbps
& 150Mbps
Model: CWP-905E &CWP-906E
CNet Technology Corporation.
www.CNetusa.com
Table of Contents
1. Introduction .................................................................................................................................... 3
1.1 Welcome .......................................................................................................................... 3
1.2 Contents of Package ....................................................................................................... 3
2. Designing Your PCI express Adapter .......................................................................................... 3
3. Installation ...................................................................................................................................... 3
3.1 Install Your PCI Express Adapter................................................................................. 3
3.2 Install Driver and Utility................................................................................................ 4
4. Windows Wireless Utility .............................................................................................................. 8
4.1 Windows AutoConfig Service for Win 7 ....................................................................... 8
4.1.1 Ralink Wireless Utility and Windows AutoConfig Service ................................. 8
4.1.2 Windows AutoConfig Service ................................................................................ 9
5. Ralink Wireless Utility (RaUI) .................................................................................................... 17
5.1 Start................................................................................................................................ 17
5.1.1 Start RaUI ............................................................................................................. 17
5.2 Profile............................................................................................................................. 20
5.2.1 Profile..................................................................................................................... 20
5.2.2 Add/Edit Profile .................................................................................................... 21
5.3 Network ......................................................................................................................... 24
5.3.1 Network ................................................................................................................. 24
5.4 Advanced ....................................................................................................................... 26
5.4.1 Advanced ............................................................................................................... 26
5.4.2 Certificate Management ...................................................................................... 27
5.5 Link Information .......................................................................................................... 27
5.5.1 Link Status ............................................................................................................ 27
5.5.2 Throughput ........................................................................................................... 28
5.5.3 Statistics ................................................................................................................. 29
5.6 About ............................................................................................................................. 30
5.6.1 About ..................................................................................................................... 30
5.7 WPS ............................................................................................................................... 30
5.7.1 WPS ....................................................................................................................... 30
6. Security .......................................................................................................................................... 32
6.1 Auth.\ Encry. Setting – WEP/TKIP/AES ................................................................... 32
6.2 802.1x Setting ................................................................................................................ 33
7. Trouble Shooting .......................................................................................................................... 36
CNet Technology Corporation.
www.CNetusa.com
1. Introduction
1.1 Welcome
PCI express Adapter connects you with IEEE802.11n networks at receiving rate up to an incredible 300Mbps for
CWP-905E! or 150Mbps for CWP-906E.
By using the reflection signal, 802.11n technology increases the range and reduces "dead spots” in the wireless coverage
area.
Unlike ordinary wireless networking of 802.11b/g standards that are confused by wireless reflections,
802.11n can actually use these reflections to increase four times transmission range of 802.11g products.
Besides, when both ends of the wireless link are 802.11n products, The PCI express adapter can utilize twice radio band to
increase three times transmission speed of ordinary 802.11g standard products, and can comply with backwards
802.11b/802.11g standards.
Soft AP supported by PCI Express Adapter can help you establish wireless LAN networking with lowest cost.
Besides, WPS (PBC and PIN) encryption method can free you from remembering the long passwords.
Complete WMM function makes your voice and video more smooth.
1.2 Contents of Package
One PCI Express Card CWP-905E or CWP-906E
One Installation CD
Detachable 2 dBi antenna for CWP-905E or 1 dBi antenna for CWP-906E
Contact your local authorized reseller or the store purchased from for any items damaged and/or missing.
2. Designing Your PCI express Adapter
The status LED indicators of PCI Card are described in the following.
Lnk/Act ON (Green): Indicates a valid connection.
Lnk/Act Flashing: Indicates the Adapter is transmitting or receiving data.
3. Installation
3.1 Install Your PCI Express Adapter
Open your PC case and locate an available PCI Express Adapter CWP-905E or CWP-906E on the motherboard.
Slide PCI express Adapter into the PCI slot. Make sure that all of its pins are touching the slot's contacts. You may have to
apply a bit of pressure to slide PCI Adapter all the way in. after it is firmly in place, secure its fastening tab to your PC's
chassis with a mounting screw. Then shut down your PC.
Attach the external antennas to PCI express Adapter's SMA connector.
Power on the PC.
Note: Select Cancel when “Found New Hardware” window appears.
CNet Technology Corporation.
www.CNetusa.com
3.2 Install Driver and Utility
NOTE: Snap-shot screens of the following installation procedure are based on Windows 7 Installation procedures will be
similar for other windows operating systems.
1. Insert Installation CD to your CD-ROM drive. And click Driver Installation. The wizard will run and install all necessary files to your computer automatically.
2. Click Next to accept the Agreement. Or click Cancel to cancel the installation
3. Click Next
CNet Technology Corporation.
www.CNetusa.com
CNet Technology Corporation.
www.CNetusa.com
4. Select Ralink Configuration Tool or Microsoft Zero Configuration Tool then click Next.
a. It’s recommended to select Ralink Configuration Tool, which provides fully access to all function of PCI Adapter.
b. If you prefer to use the wireless configuration tool provided by Windows 7, please select Microsoft Zero Configuration
Tool
5. Click Finish to complete the software installation.
CNet Technology Corporation.
www.CNetusa.com
CNet Technology Corporation.
www.CNetusa.com
4. Windows Wireless Utility
4.1 Windows AutoConfig Service for Win 7
4.1.1 Ralink Wireless Utility and Windows AutoConfig Service
Notes: The following installation was operated under Windows 7. ( Procedures are similar for Windows XP
/vista)
In Windows 7, the AutoConfig service provides basic wireless configuration functions for the Ralink
Wireless Network Interface Controller. In order to perform these functions, the AutoConfig service
should first be enabled (Refer to Section 1-2-2).
Once the Ralink wireless utility is minimized, click the Ralink icon as shown in Figure 1-1. This will
bring up the option menu shown as Figure 1-2 for the user to restore the utility window or terminate
the utility.
Figure 1-1
Figure 1-2
The Ralink wireless utility as shown in Figure 1-3, provides profile management, the available networks listing, a statistical counter display, Wi-Fi multimedia (WMM), protected Wi-Fi setup, Cisco
compatible extensions (CCX), call admission control (CAC), radio controls, Ralink driver/utility information, and help functions.
Figure 1-3 Ralink Utility
The Ralink wireless utility starts in compact mode as shown in Figure 1-3. Clicking the expanding
icon at the bottom-right corner can change to the full mode as shown in Figure 1-4.
CNet Technology Corporation.
www.CNetusa.com
Figure 1-4 Ralink Utility in full mode

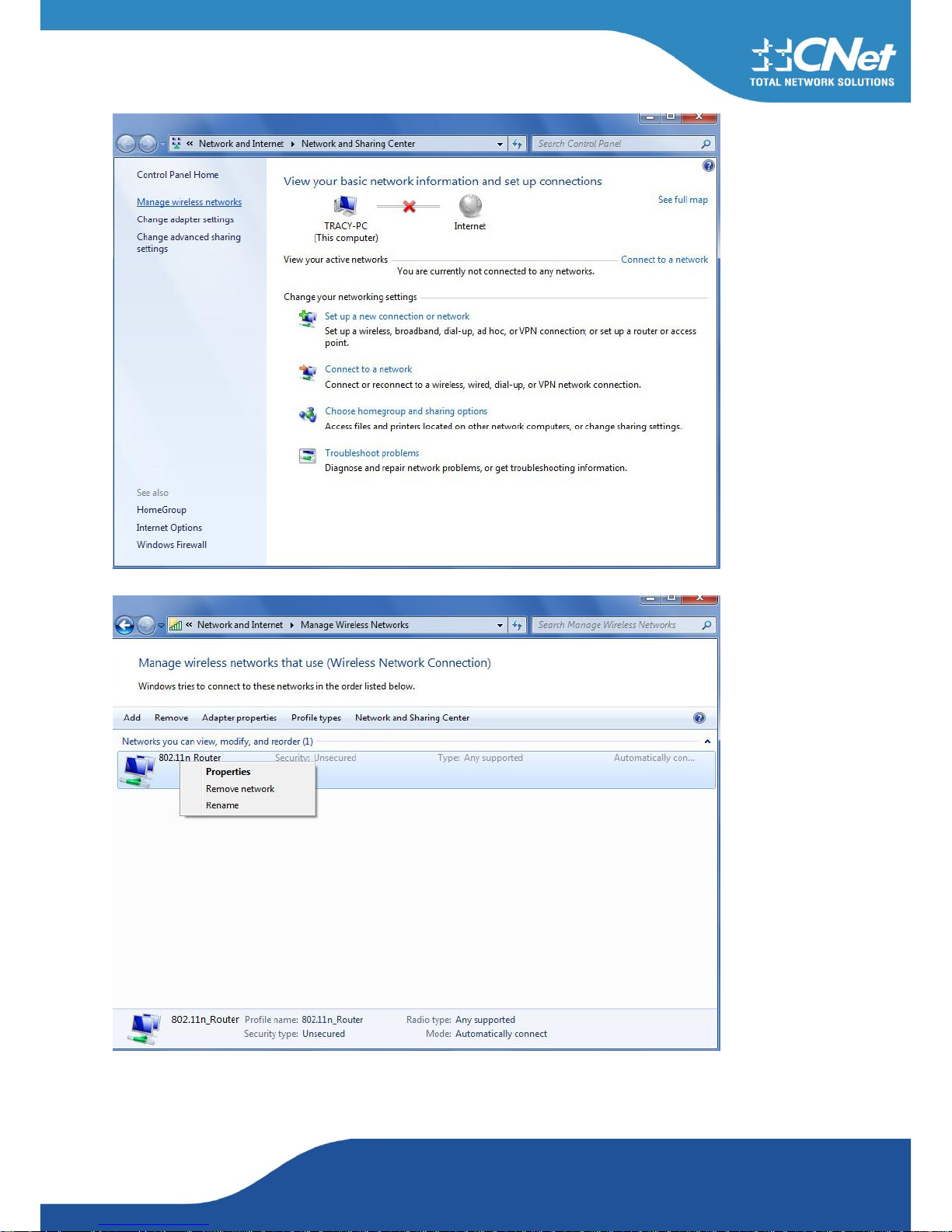

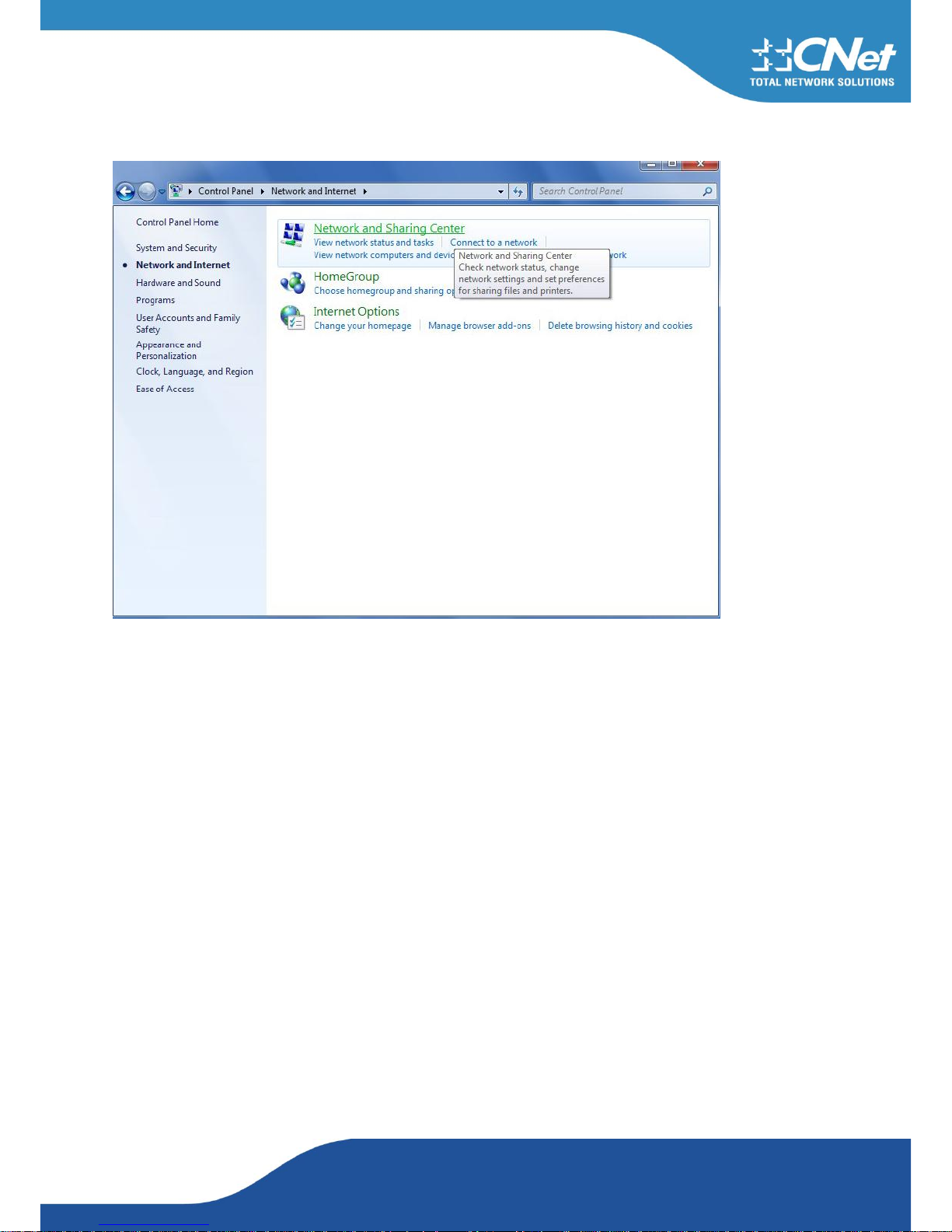

4.1.2 Windows AutoConfig Service
The following steps outline the procedure for starting/stopping the Windows AutoConfig service.

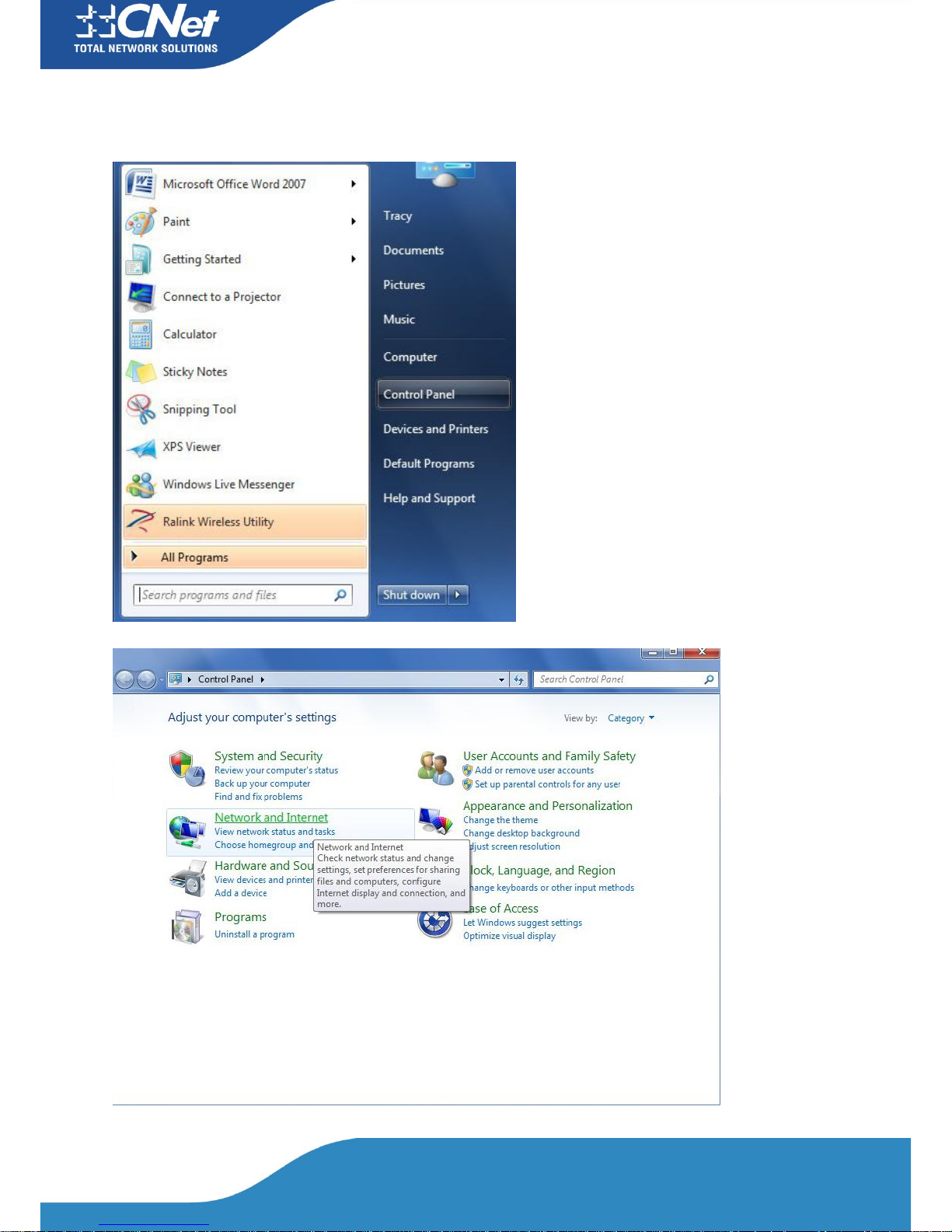

Select "Control Panel" in the start menu
Double-click the "System and Security" icon
CNet Technology Corporation.
www.CNetusa.com
Double-click the "Administrative Tools" icon
Double-click "Services"
CNet Technology Corporation.
www.CNetusa.com
Double-click "WLAN AutoConfig"

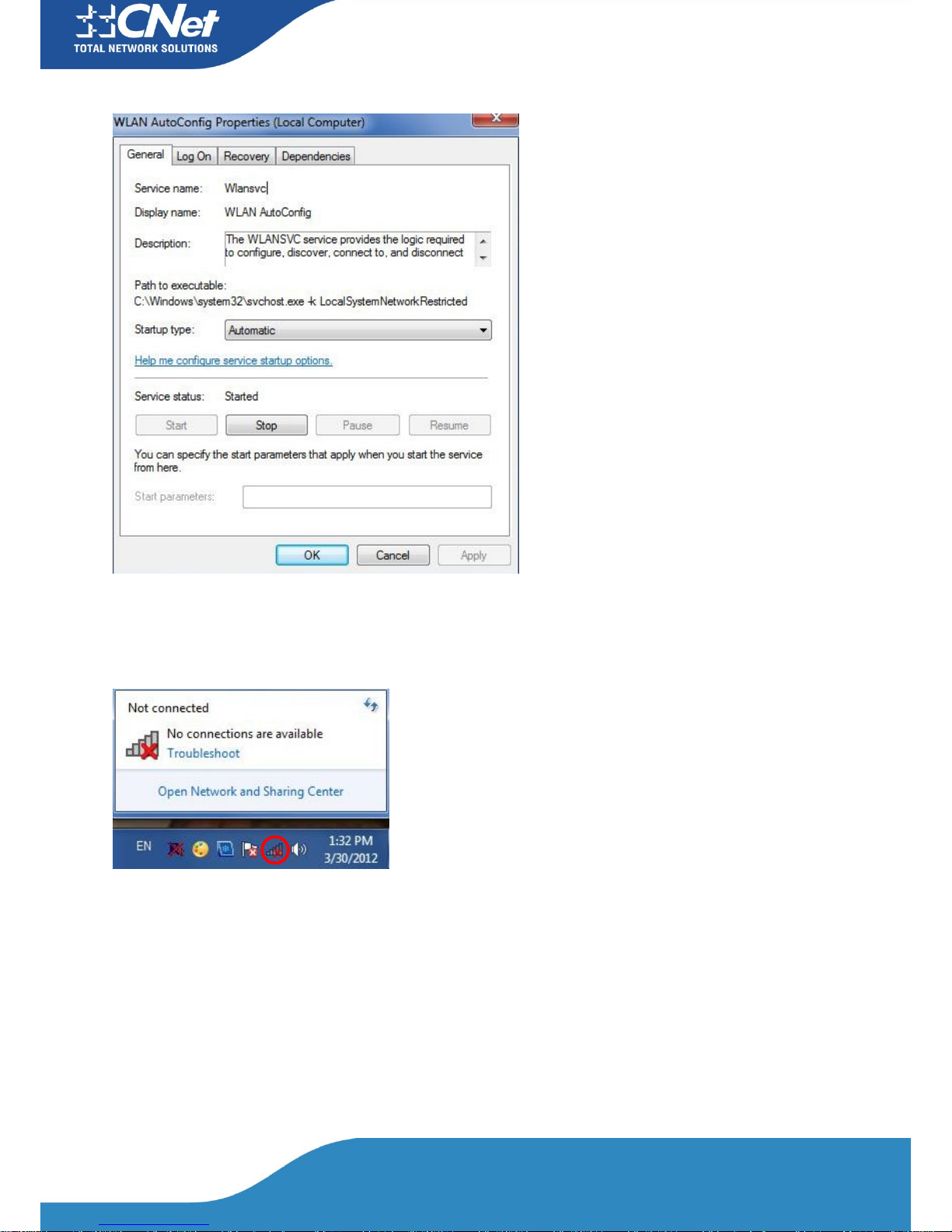

Manage the AutoConfig properties in the dialog box
