CNet CUA-854 User Manual
CUA-854/854L
Wireless-G Long Range USB
Adapter with Antenna
User’s Guide
Table of Contents
Chapter 1. Introduction....................................................................................5
1.1.
1.2.
1.3.
About CUA-854..................................................................................................5
Key Features......................................................................................................5
Package Included...............................................................................................5
Chapter 2. Connect your antenna...................................................................6
Chapter 3. Installing Driver, Configuration Utility and Hardware.................7
3.1.
3.2.
Driver Installation for Windows 98SE/ME/2000/2003/XP.....................................7
Driver Installation for Windows Vista.................................................................10
Chapter 4. Using the Configuration Utility for 98SE/ME/2000/2003/XP .....14
4.1.
4.2.
4.3.
4.3.1.
4.3.2.
4.3.3.
4.3.4.
4.3.5.
4.3.6.
Overview..........................................................................................................14
Access the Configuration Utility........................................................................14
Getting to Know the Utility ................................................................................16
Profile..............................................................................................................16
Link Status......................................................................................................27
Site Survey .....................................................................................................28
Statistics.........................................................................................................30
Advanced........................................................................................................31
About ..............................................................................................................32
Chapter 5. Troubleshooting ..........................................................................33
2
List of Figures
Figure 2-1 connect antenna with SMA connector....................................................................6
Figure 3-1 AutoPlay Menu.........................................................................................................7
Figure 3-2 Setup: License Agreement ......................................................................................7
Figure 3-3 Setup: Choose Configuration ...................... 錯誤
Figure 3-4 Setup: Setup Status.................................................................................................8
Figure 3-5 Setup: plug-in message...........................................................................................8
Figure 3-6 Setup: Click Finish to Complete (for WIN2000 / 2003 / XP) ....................................8
Figure 3-7 Setup: Click Finish to Complete (for WIN98 / ME)..................................................9
Figure 3-8 AutoPlay Confirm Window (Vista).........................................................................10
Figure 3-9 AutoPlay Menu (Vista) ...........................................................................................10
Figure 3-10 Setup: License Agreement (Vista).......................................................................10
Figure 3-11 Setup: Setup Status (Vista)..................................................................................11
Figure 3-12 Setup: plug-in message (Vista)...........................................................................11
Figure 3-13 Setup: Found New Hardware (Vista)...................................................................12
Figure 3-14 Setup: Click Finish to Complete (Vista)..............................................................12

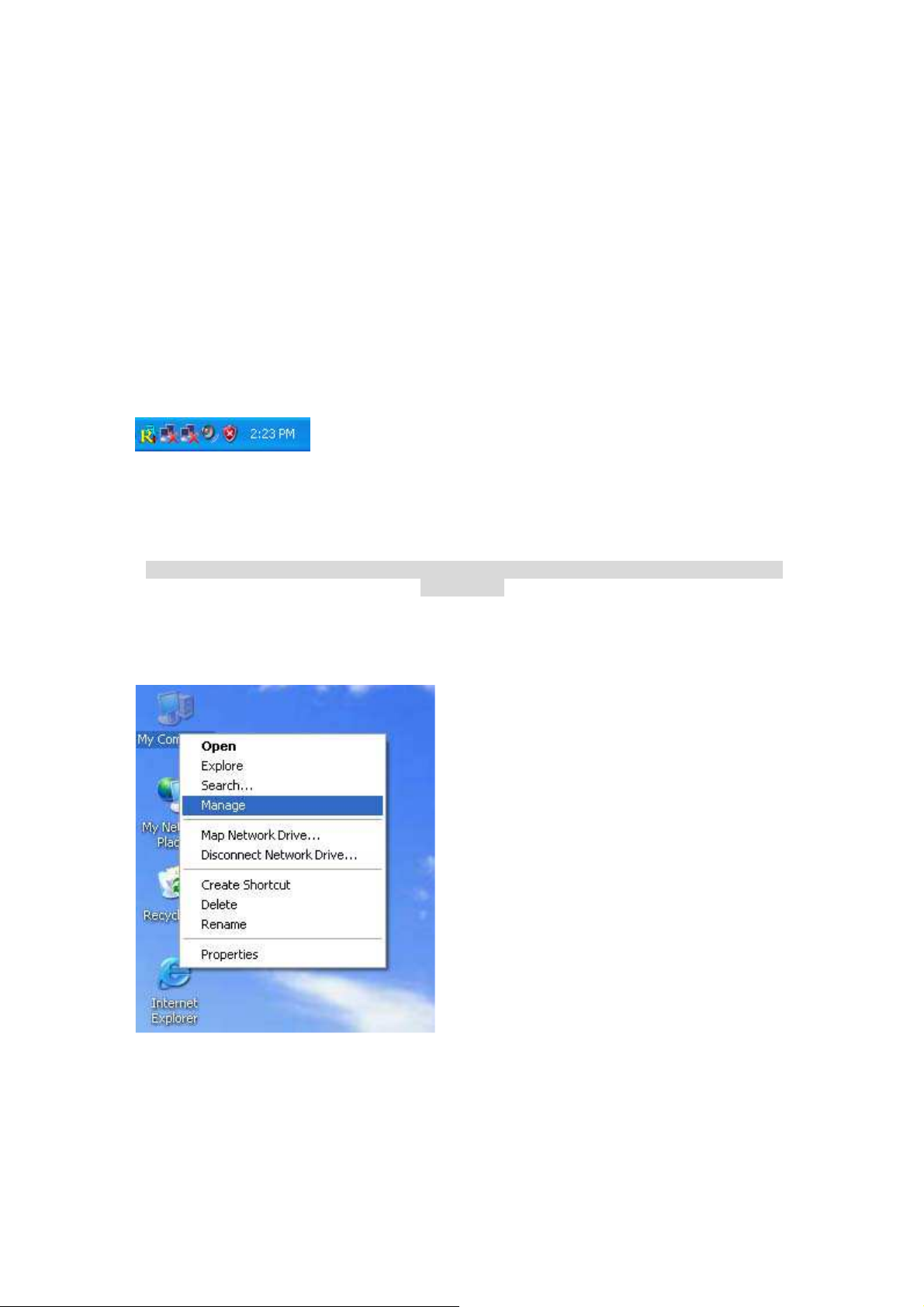

Figure 4-1 Utility Icon..............................................................................................................14
Figure 4-2 Wireless Zero Configuration: Select Manage.......................................................14
Figure 4-3 Wireless Zero Configuration: Select Wireless Zero Configuration......................15
Figure 4-4 Wireless Zero Configuration: Select Disable........................................................15
Figure 4-5 Utility – Profile .......................................................................................................16

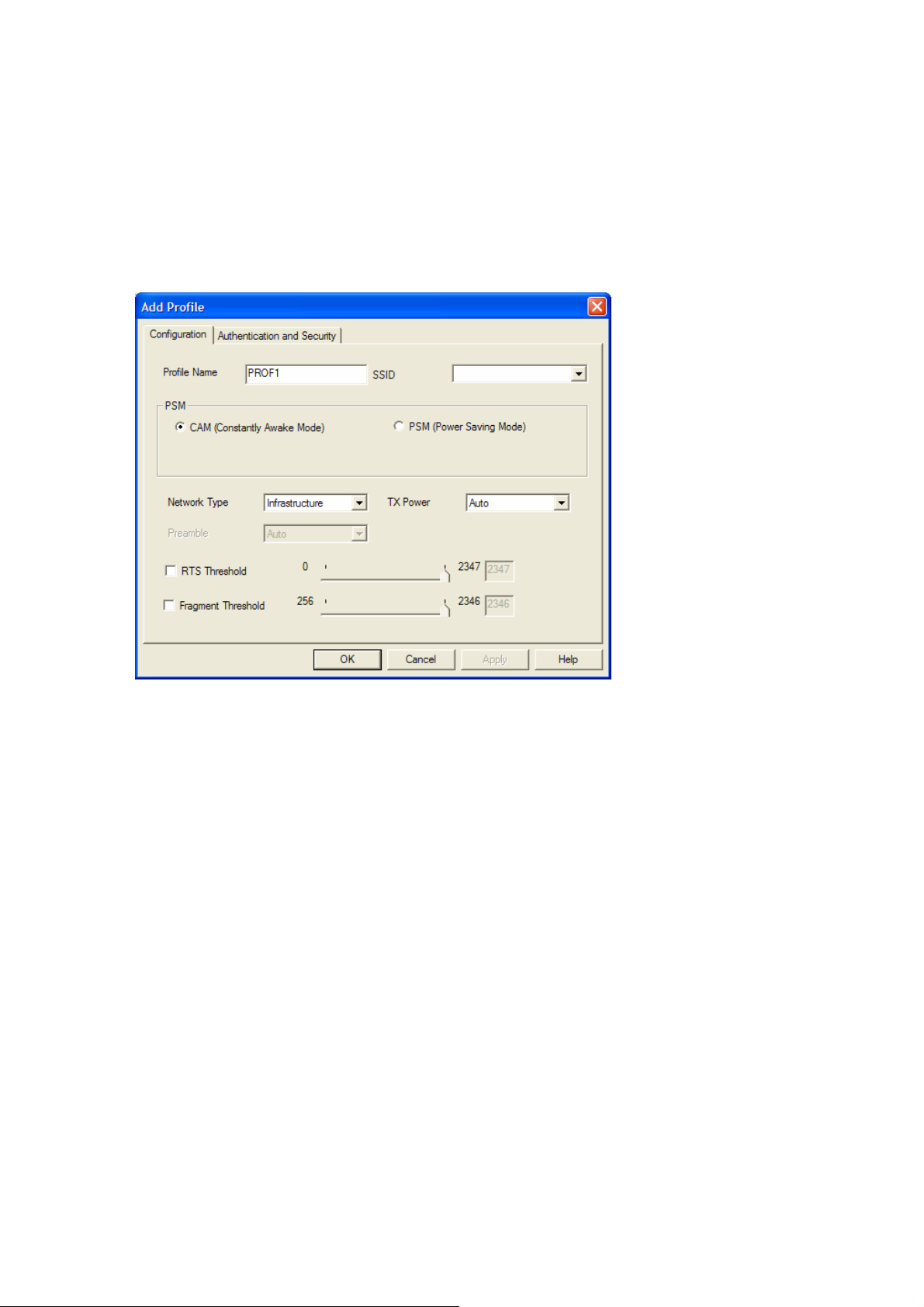

Figure 4-6 Add Profile: Configuration ....................................................................................18
Figure 4-7 Add Profile: Authentication and Security: Open or Shared Key..........................20
Figure 4-8 Add Profile: Authentication and Security: LEAP..................................................22
Figure 4-9 Add Profile: Authentication and Security: WPA/ WPA-PSK/ WPA2/ WPA-PSK ...23

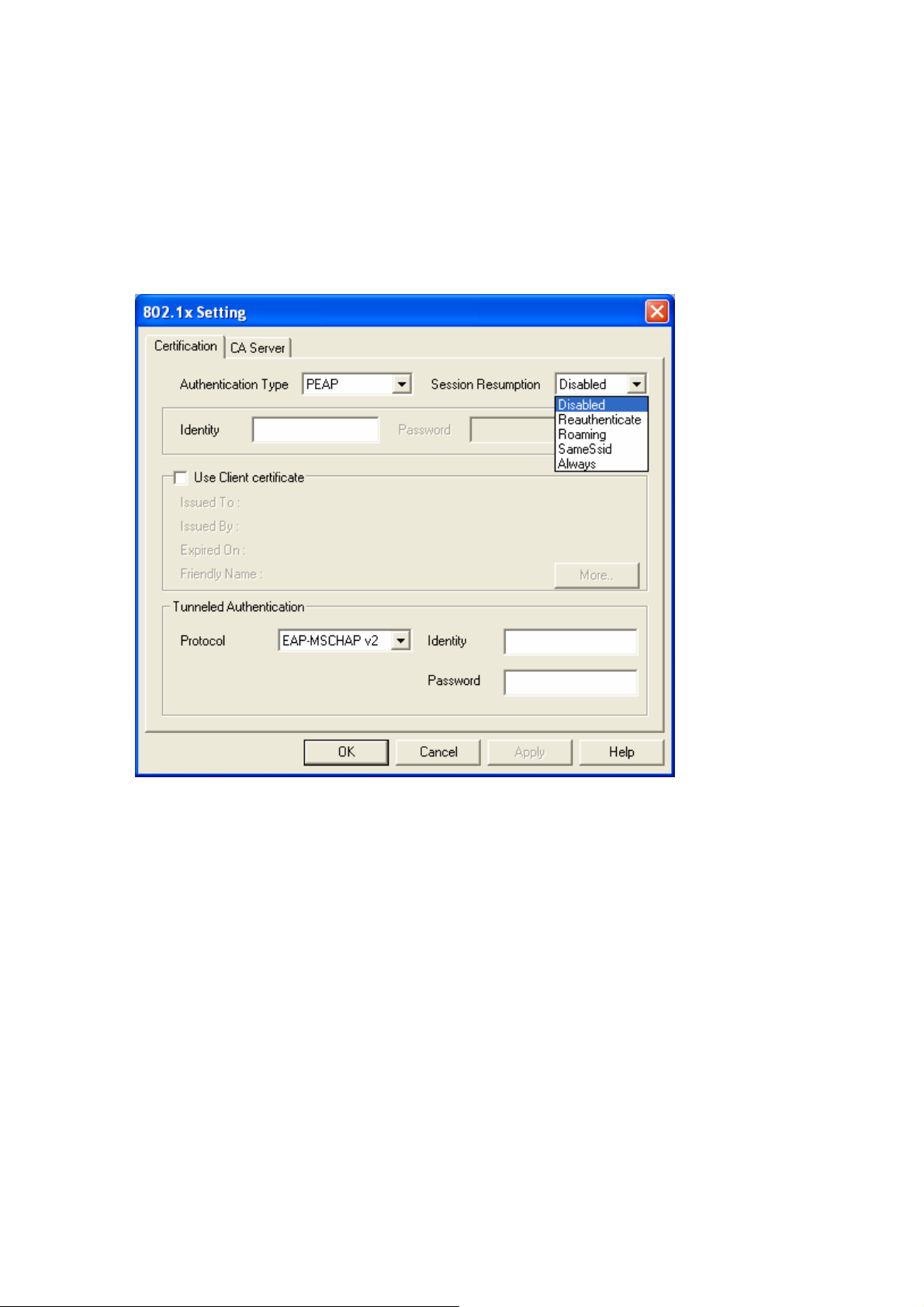

Figure 4-10 Add Profile: Authentication and Security: 802.1x Setting: Certification ...........24
Figure 4-11 Add Profile: Authentication and Security: 802.1x Setting: CA Server ...............26
Figure 4-12 Utility - Link Status...............................................................................................27

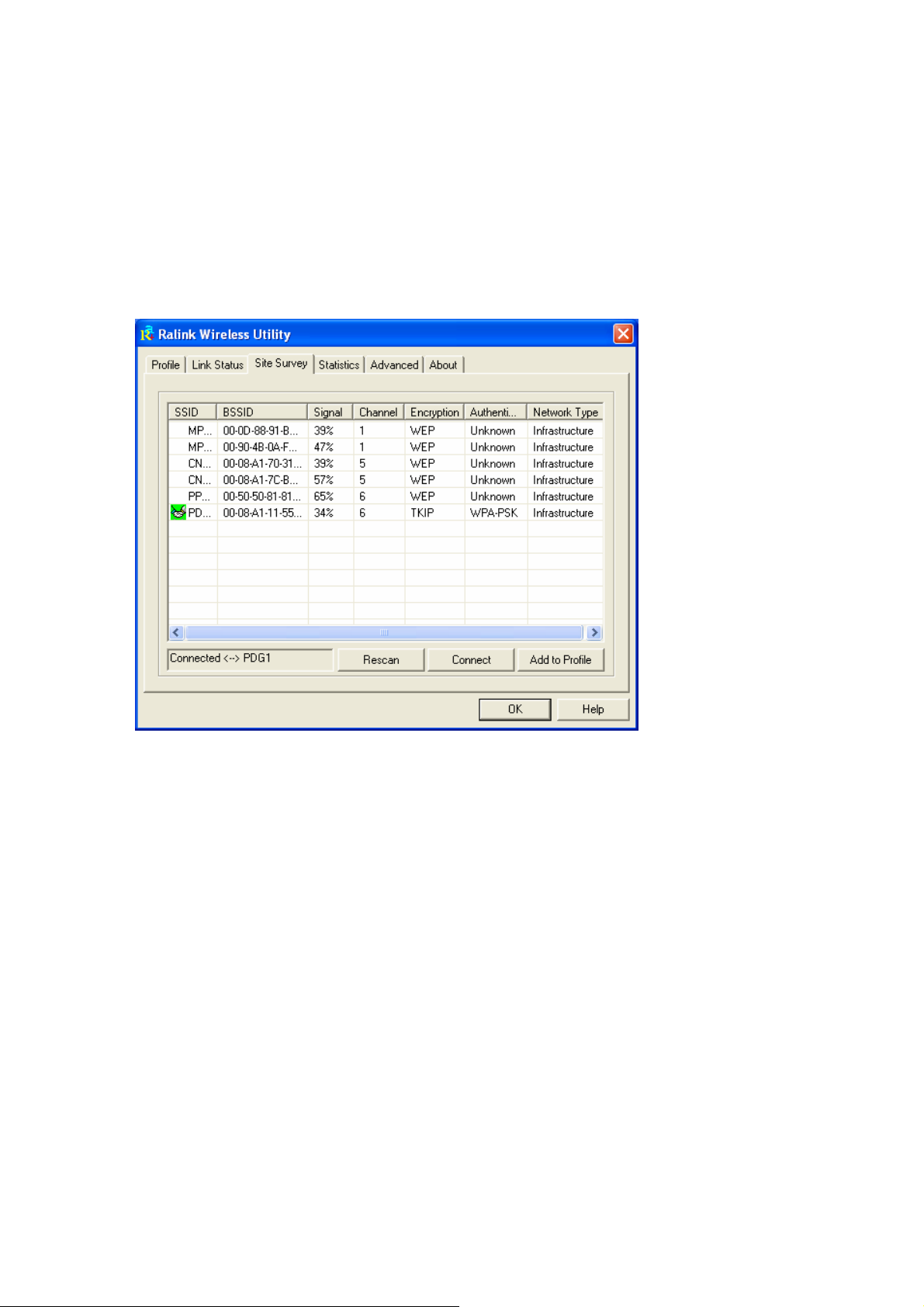

Figure 4-13 Utility – Site Survey .............................................................................................28
Figure 4-14 Utility – Statistics.................................................................................................30
Figure 4-15 Utility – Advanced................................................................. 錯誤
Figure 4-16 Utility - Link About ...............................................................................................32
錯誤! 尚未定義書籤
尚未定義書籤。
錯誤錯誤
尚未定義書籤尚未定義書籤
錯誤! 尚未定義書籤
錯誤錯誤
。
。。
尚未定義書籤。
尚未定義書籤尚未定義書籤
。
。。
3
List of Figures
Table 4-1 Profile.......................................................................................................................17
Table 4-2 Configuration...........................................................................................................19
Table 4-3 Authentication: Open or Shared.............................................................................21
Table 4-4 Authentication: LEAP..............................................................................................22
Table 4-5 Authentication: WPA/ WPA-PSK/ WPA2/ WPA-PSK................................................23
Table 4-6 Authentication: 802.1x Setting: Ceritication...........................................................25
Table 4-7 Authentication: 802.1x Setting: CA Server.............................................................26
Table 4-8 Link Status...............................................................................................................27
Table 4-9 Site Survey...............................................................................................................29
Table 4-10 Statistics ................................................................................................................30
Table 4-11 Advanced ...............................................................................................................31
4
Chapter 1. Introduction
1.1. About CUA-854
Once installed and connected, you can keep in touch with friends and work through e-mail,
instant messaging and chat rooms as well as sharing files and other network resources such as
printers and network storage with other computers.
The CUA-854 follows IEEE 802.11g wireless standard works at the speed of 54Mbps and for
added versatility; it also interoperates with all Wireless-B (IEEE 802.11b) products found at
homes, businesses, and public wireless hotspots around the country.
1.2. Key Features
The following lists the main features of the Wireless-G USB Adapter.
•
5 Times Faster and seamless operation with existing Wireless-B networks.
•
64/128-bit WEP and WPA/WPA2 (Wi-Fi Protected Access) Encryption Provides Maximum
Wireless Security.
•
Compatible with Windows 98SE/ME/2000/2003/XP/Vista.
•
The CUA-854 is with a magnet base which can be stick.
1.3. Package Included
•
CUA-854 with 5 dBi or 7 dBi antenna
•
CD with driver, utility and User’s Guide
•
The QIG
5
Chapter 2. Connect your antenna
Figure 2-1 connect antenna with SMA connector
6
Chapter 3. Installing Driver, Configuration Utility and Hardware
, you will get
3.1. Driver Installation for Windows 98SE/ME/2000/2003/XP
Before installing your long range Wireless-G USB Adapter, insert the Auto-Install CD into your
CD-ROM drive. Unless you have disabled the auto-run feature of Windows, the AutoPlay Menu
should appear automatically. If not, you can manually access the installation by clicking the Start
button and choosing Run. In the drop-down box type D:\ AUTORUN.EXE (where D: is the drive
letter for your CD-ROM drive).
Alternately, double-click My Computer and double-click on the CD drive icon.
- Click on CUA-854 to install driver/utility for your Long Range Wireless-G USB Adapter.
Figure 3-1 AutoPlay Menu
- After reading through the License Agreement, please click Yes to continue.
Figure 3-2 Setup: License Agreement
- Choose the Optimize for performance mode and click Next
7
- The driver will be installed to your computer. The Setup Status screen will be displayed.
Figure 3-3 Setup: Setup Status
- During the installation, there will pops up a plug-in message screen. Please insert the
Wireless-G USB Adapter into the USB port at this moment.
Figure 3-4 Setup: plug-in message
- In Windows XP and 2000, click Finish to complete the installation.
Figure 3-5 Setup: Click Finish to Complete (for WIN2000 / 2003 / XP)
8
- In Windows 98SE and ME, please select Yes, I want to restart my computer now and
click Finish to complete the installation. The system will restart automatically.
Figure 3-6 Setup: Click Finish to Complete (for WIN98 / ME)
Note: In Windows ME and 98SE, after the installation is completed, Windows will ask to restart
the computer, just click Yes to restart.
9
3.2. Driver Installation for Windows Vista
Before installing your Long Range Wireless-G USB Adapter, insert the Auto-Install CD into your
CD-ROM drive.
- There will be a Vista AutoPlay Confirm Window. Click Run AUTORUN.EXE icon.
Figure 3-7 AutoPlay Confirm Window (Vista)
- Click on CUA-854 to install driver/utility for your Wireless-G USB Adapter.
Figure 3-8 AutoPlay Menu (Vista)
- After reading through the License Agreement, please click Yes to continue.
Figure 3-9 Setup: License Agreement (Vista)
10
- The driver will be installed to your computer. The Setup Status screen will be displayed.
Figure 3-10 Setup: Setup Status (Vista)

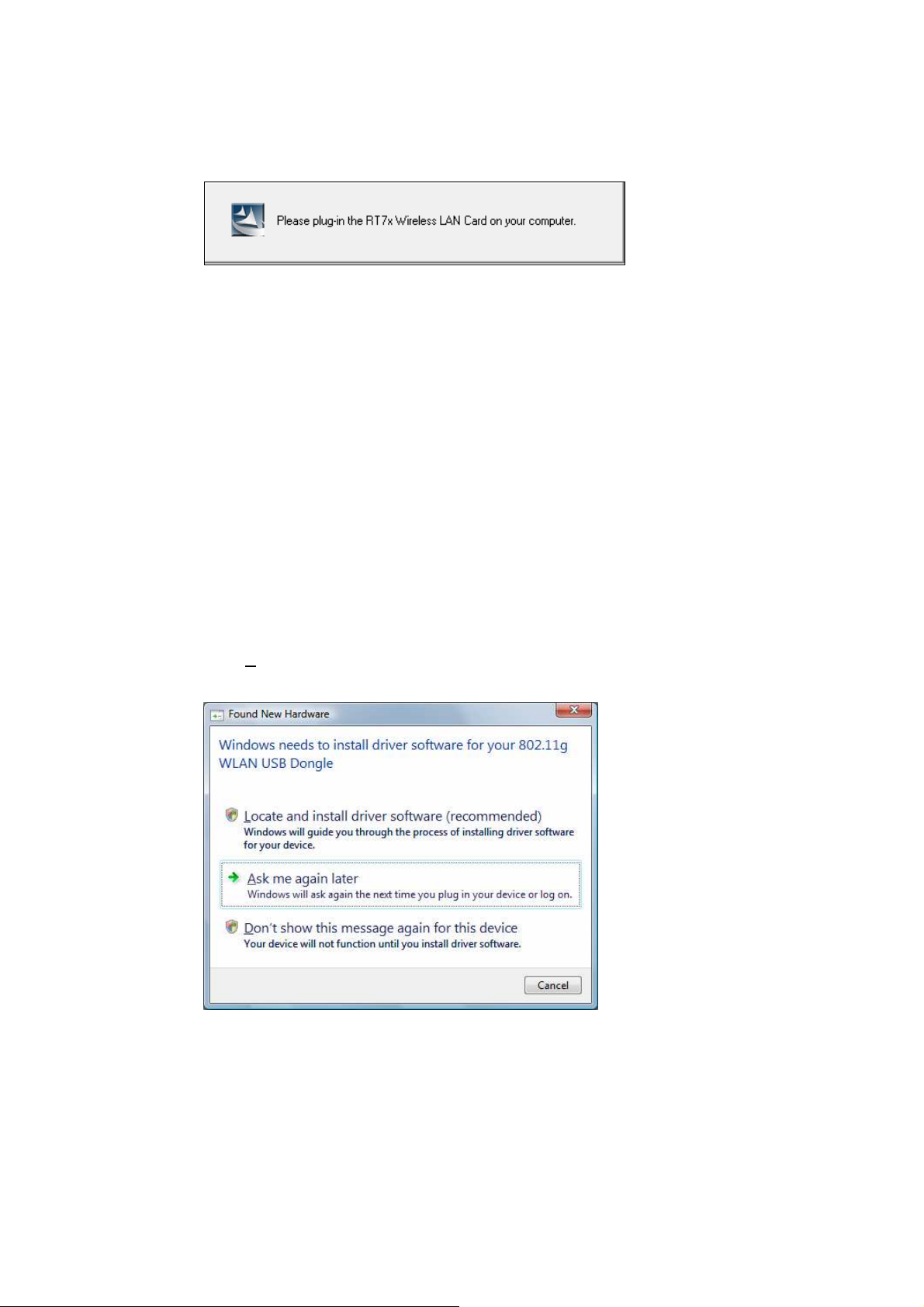

- There will be a plug-in message screen. Please insert the Wireless-G USB Adapter
into the USB port now.
Figure 3-11 Setup: plug-in message (Vista)
11
