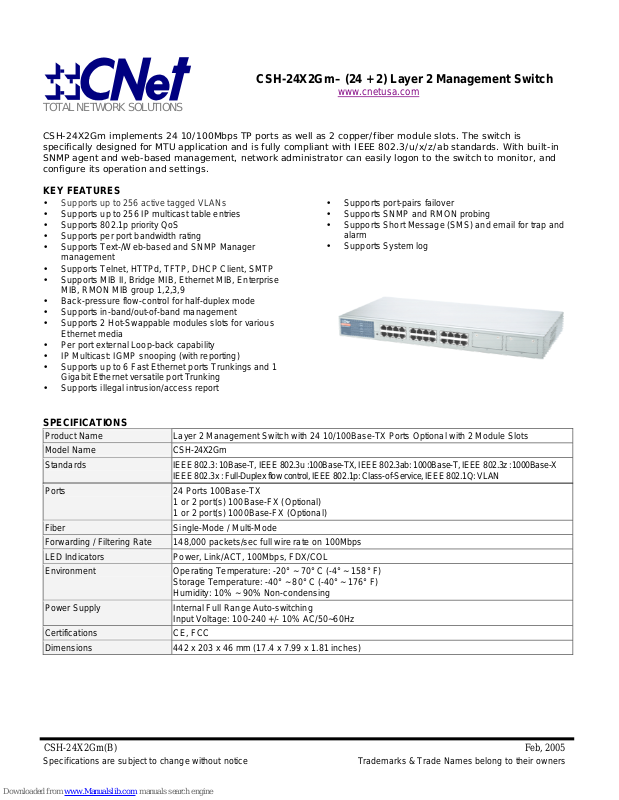

CSH-24X2Gm– (24 + 2) Layer 2 Management Switch
www.cnetusa.com
TOTAL NETWORK SOLUTIONS
CSH-24X2Gm implements 24 10/100Mbps TP ports as well as 2 copper/fiber module slots. T he switch is
specifically designed for MTU application and is fully compliant with IEEE 802.3/u/x/z/ab standards. With built-in
SNMP agent and web-based management, network administrator can easily logon to the switch to monitor, and
configure its operation and settings.
KEY FEATURES
•= Supports up to 256 active tagged VLANs
•= Supports up to 256 IP multicast table entries
•= Supports 802.1p priority QoS
•= Supports per port bandwidth rating
•= Supports Text-/Web-based and SNMP Manager
management
•= Supports Telnet, HTTPd, TFTP, DHCP Client, SMTP
•= Supports MIB II, Bridge MIB, Ethernet MIB, Enterprise
MIB, RMON MIB group 1,2,3,9
•= Back-pressure flow-control for half-duplex mode
•= Supports in-band/out-of-band management
•= Supports 2 Hot-Swappable modules slots for various
Ethernet media
•= Per port external Loop-back capability
•= IP Multicast: IGMP snooping (with reporting)
•= Supports up to 6 Fast Ethernet ports Trunkings and 1
Gigabit Ethernet versatile port Trunking
•= Supports illegal intrusion/access report
•= Supports port-pairs failover
•= Supports SNMP and RMON probing
•= Supports Short Message (SMS) and email for trap and
alarm
•= Supports System log
SPECIFICATIONS
Product Name Layer 2 Management Switch with 24 10/100Base-TX Ports Optional with 2 Module Slots
Model Name CSH-24X2Gm
Standards IEEE 802.3: 10Base-T, IEEE 802.3u :100Base-TX, IEEE 802.3ab: 1000Base-T, IEEE 802.3z :1000Base-X
IEEE 802.3x : Full-Duplex flow control, IEEE 802.1p: Class-of-Service, IEEE 802.1Q : VLAN
Ports 24 Ports 100Base-TX
1 or 2 port(s) 100Base-FX (Optional)
1 or 2 port(s) 1000Base-FX (Optional)
Fiber Single-Mode / Multi-Mode
Forwarding / Filtering Rate 148,000 packets/sec full wire rate on 100Mbps
LED Indicators Power, Link/ACT, 100Mbps, FDX/COL
Environment Operating Temperature: -20° ~ 70° C (-4° ~ 158° F)
Storage Temperature: -40° ~ 80° C (-40° ~ 176° F)
Humidity: 10% ~ 90% Non-condensing
Power Supply Internal Full Range Auto-switching
Input Voltage: 100-240 +/- 10% AC/50~60Hz
Certifications CE, FCC
Dimensions 442 x 203 x 46 mm (17.4 x 7.99 x 1.81 inches)
CSH-24X2Gm(B) Feb, 2005
Specifications are subject to change without notice Trademarks & Trade Names belong to their owners
ORDERING INFORMATION
Model Description
CSH-24X2Gm Layer 2 Management Switch with 24 10/100Base-TX Ports Optional with 2 Module Slots
FA-TM 1-Port 100BASE-FX Fiber Module, ST type, Multi-Mode, 2KM (Optional)
FA-CM 1-Port 100BASE-FX Fiber Module, SC type, Multi-Mode, 2KM (Optional)
FA-2CS 1-Port 100BASE-FX Fiber Module, SC type, Single-Mode, 20KM (Optional)
FA-6CS 1-Port 100BASE-FX Fiber Module, SC type, Single-Mode, 60KM (Optional)
GA-C 1-Port 1000BASE-X Copper Module (Optional)
GA-CM 1-Port 1000BASE-SX Fiber Module, SC type, Multi-Mode (Optional)
GA-CS 1-Port 1000BASE-LX Fiber Module, SC type, Single-Mode (Optional)
CSH-24X2Gm(B) Feb, 2005
Specifications are subject to change without notice Trademarks & Trade Names belong to their owners
