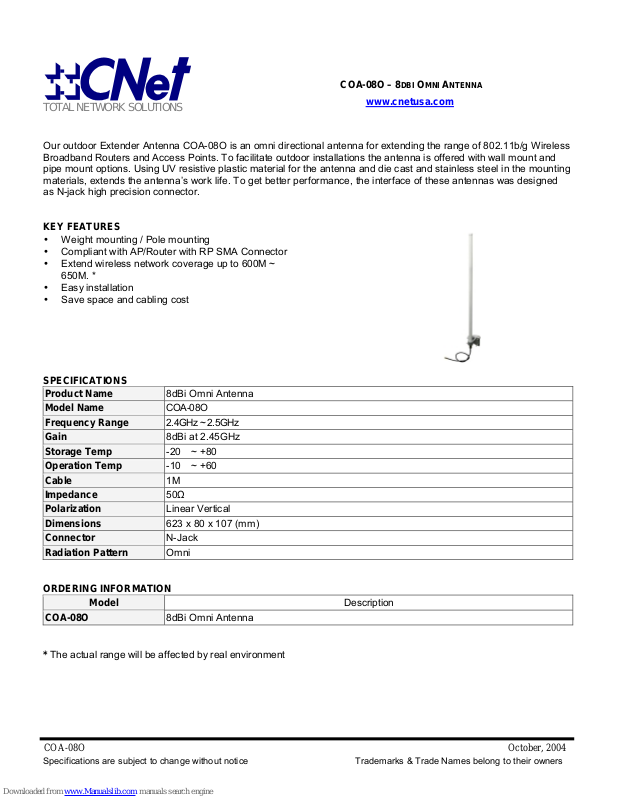

COA-08O – 8DBI OMNI ANTENNA
TOTAL NETWORK SOLUTIONS
www.cnetusa.com
Our outdoor Extender Antenna COA-08O is an omni directional antenna for extending the range of 802.11b/g W ireless
Broadband Routers and Access Points. To facilitate outdoor installations the antenna is offered with wall mount and
pipe mount options. Using UV resistive plastic material for the antenna and die cast and stainless steel in the mounting
materials, extends the antenna’s work life. To get better performance, the interface of these antennas was designed
as N-jack high precision connector.
KEY FEATURES
•= Weight mounting / Pole mounting
•= Compliant with AP/Router with RP SMA Connector
•= Extend wireless network coverage up to 600M ~
650M. *
•= Easy installation
•= Save space and cabling cost
SPECIFICATIONS
Product Name 8dBi Omni Antenna
Model Name COA-08O
Frequency Range 2.4GHz ~ 2.5GHz
Gain 8dBi at 2.45GHz
Storage Temp -20 ~ +80
Operation Temp -10 ~ +60
Cable 1M
Impedance 50Ω
Polarization Linear Vertical
Dimensions 623 x 80 x 107 (mm)
Connector N-Jack
Radiation Pattern Omni
ORDERING INFORMATION
COA-08O
Model
8dBi Omni Antenna
Description
* The actual range will be affected by real environment
COA-08O October, 2004
Specifications are subject to change without notice Trademarks & Trade Names belong to their owners
