TOTAL NETWORK SOLUTIONS
Our outdoor Extender Antenna COA-05O extends the wireless range of 802.11b/g Wireless Broadband Routers and
Access Points to up to 450 meters. To enhance outdoor installations, the antenna offers wall mount or pipe mount
options. Using UV resistive plastic material plus die cast and stainless steel mounting materials adds to durability and
reliability of this antenna. COA-05O is designed with an N jack high precision connector to get the best performance.
KEY FEATURES
•= Weight mounting / Pole mounting
•= Compliant with AP/Router with RP SMA Connector
•= Extended wireless network coverage up to 400M ~
450M *
•= Easy installation
•= Save space and cabling cost
www.cnetusa.com

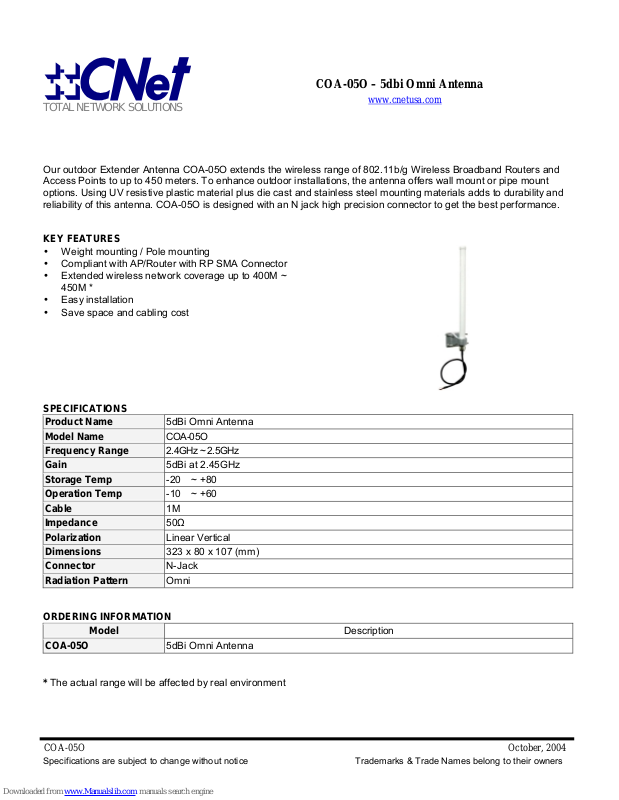

COA-05O – 5dbi Omni Antenna
SPECIFICATIONS
Product Name 5dBi Omni Antenna
Model Name COA-05O
Frequency Range 2.4GHz ~ 2.5GHz
Gain 5dBi at 2.45GHz
Storage Temp -20 ~ +80
Operation Temp -10 ~ +60
Cable 1M
Impedance 50Ω
Polarization Linear Vertical
Dimensions 323 x 80 x 107 (mm)
Connector N-Jack
Radiation Pattern Omni
ORDERING INFORMATION
Model
COA-05O
* The actual range will be affected by real environment
5dBi Omni Antenna
Description
COA-05O October, 2004
Specifications are subject to change without notice Trademarks & Trade Names belong to their owners
