1-Port USB Print Server

Quick Installation Guide

Rev. 01 (October, 2002)

Q20021102

Printed In Taiwan

Table of Content

Quick Installation Guide 1

Introduction 1
Unpacking 1

Port and LED Descriptions 2
Installing the Print Server 4

Installing and starting the PS Admin program 5

Installing PS Admin Program 5
Starting PS Admin Program 6

Configure Your Print Server 7

Choosing a Name for Your Print Server 7
Setting a Password for Your Print Server 8
Changing Print Server Port Settings 9

Setting up Workstation Printing 10

Windows 95/98/Me Client Workstation printing 10
Windows 2000/XP Client Workstation printing 11

Windows NT 4.0 Client Workstations Printing 12
Windows NT 3.51 Client Workstation Printing 13

Web Configuration of the Print Server 14

Appendix 15

Quick Installation Guide

Introduction

This Quick Installation Guide gives step-by-step instru ctions for setting up the
print servers. The model you have purchased may appear slightly different from
those shown in the illustrations. Examples in this manual are based on print

servers. For more detailed information about the print server, its components,
making network connections and technical specifications, please refer to the
User’s Guide included with your print server.

Unpacking

Carefully remove all items from the package. In addition to this Quick
Installation Guide, be certain that you have:

? ? One 1-Port USB Print Server
? ? One AC Power adapter suitable for your country’s electric power

service

? ? One 1-Port USB Print Server Installation CD-ROM
? ? This Quick Installation Guide

If any item is missing, or if you find any damage or mismatch, promptly
contact your dealer for assistance.

Port and LED Descriptions

This section describes the visible parts of the print server.

Front Panel

There are three green LED indicators on the front panel:

LEDs Description

Power Steady light confirms that the Print Server is

powered on.

LAN

Steady light confirms that the print server has a
good connection to your network.

When it blinks (briefly dark), the print server is
receiving/ transmitting data from/to the network.

USB Steady blinking (briefly dark) is initiated when the

printer is printing, otherwise, it remains dark.

Back Panel

Component

Description

DC Power
Input

The DC power input connector is located on the
Print Server’s rear panel and is labeled DC 5V.

Please note that the power supply included in the
package is correct for this 1-Port USB Print
Server; substitution of other equipment may void

warranty.

Reset
Button

1.) Press and release this button to reset the print
server.

2.) Press and hold this button for three seconds
(the USB LED on the front panel lights up)

and then release it, the print server will
resume the factory default settings.

USB Port

The USB port allows you connecting the print
server to a printer with USB connector.

LAN
Connector

This LAN connector (RJ-45) provides the printer
server with connection to the network through

10Base-T Ethernet cabling.

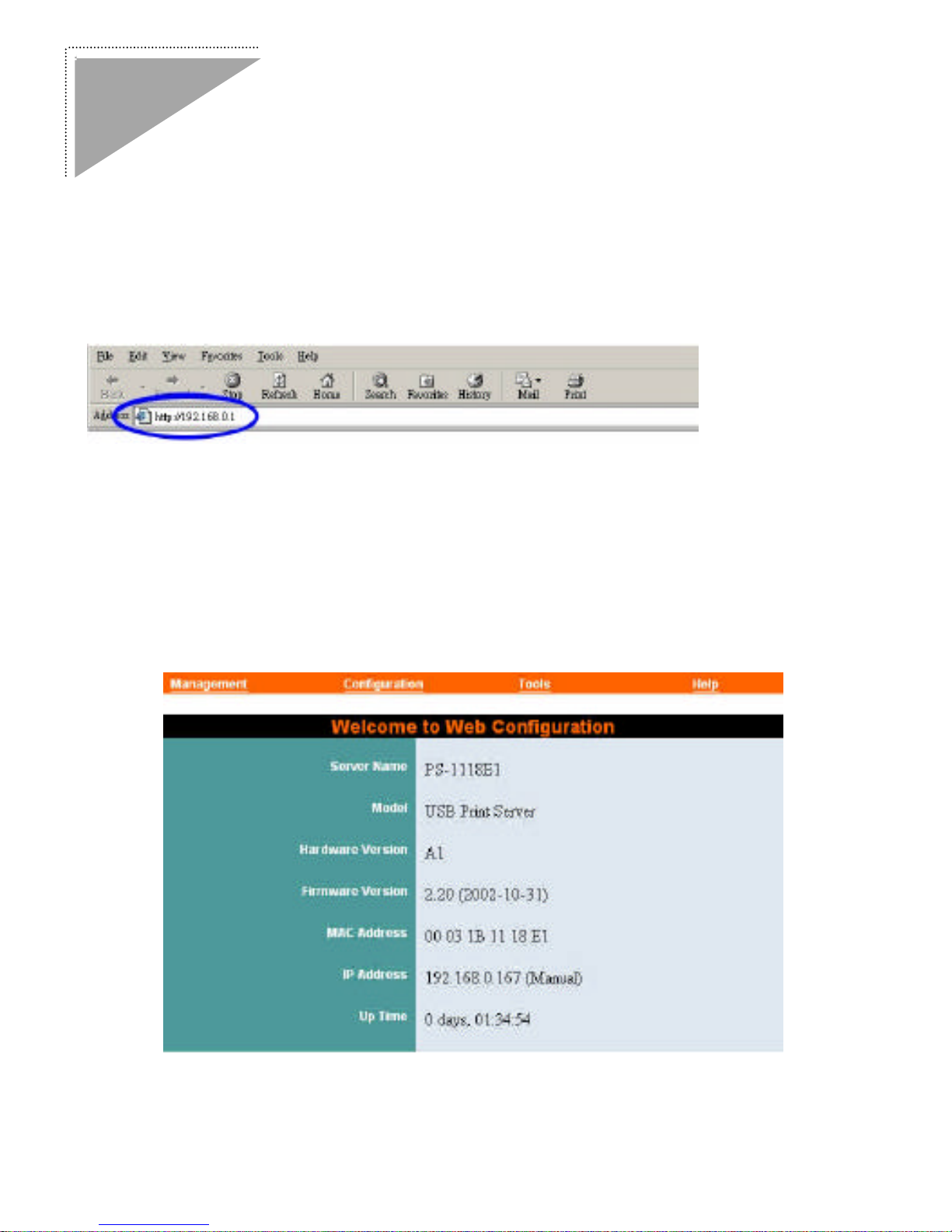

The print server also supports web configuration permitting the users to
configure settings through the web browser. Print Server’s default IP address
as follows:

? ? Default IP address – 192.168.0.1
? ? Subnet Mask – 255.255.255.0

Note: The PC’s IP address must correspond with the print server’s IP address
in the same segment for the two devices to communicate.

Installing the Print Server

Follow these steps for a trouble-free start of print server operations with your 1­Port USB Print Server. Please take particular notice of the warning in step 4:

the network connection should be made before supplying power to the print
server.

1. Confirm proper operation of the printer to be connected to the print

server.

2. When you have confirmed proper operation of the prin ter, turn off the

power.

3. Confirm that your network is operating normally.

4. Connect the print server to the network (through the RJ -45 connector of

the print server).

WARNING: Configuration problems may result if the print server is powered up
without first establishing its network connection. Please follow this procedure to

avoid complications at the configuration stage.

5. While the printer is powered off, connect the print server through the

cable to the printer’s USB port.

6. Turn on the printer’s power.

7. Connect the DC end of the AC Power adapter to the DC power input

socket of the print server and the AC end to the wall outlet. This will
supply power to the print server, and the POST routines will proceed
automatically.

Note: This print server is built with a default IP setting. To prevent from
any conflict in your network, it is recommended to use the PS Admin

program to change the IP setting when there is some other device’s IP
address is the same as the print server’s default IP.
