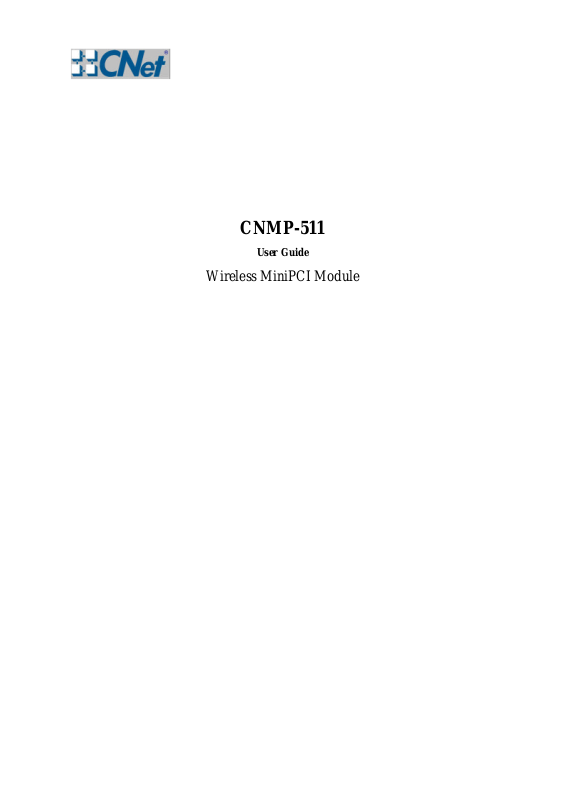

CNet CNMP-511 User Manual

CNMP-511

User Guide

Wireless MiniPCI Module

1. Introduction

The CNMP-511 is designed to provide Wireless LAN function on a MiniPCI Type
IIIB form factor which is for built-in notebook PCs. The function is based on SiS 160
chipset, which implements the full IEEE802.11b standard data rates up to 11 Mbps.

2. Features

- IEEE802.11 Direct Sequency Spread Spectrum (DSSS)

- IEEE802.11 Standard Data Rates: 1, 2, 5.5 and 11Mbps.

3. Specification

3.1 Interface

- IEEE 802.11b compliant

- PCI bus interface specification 2.2

- MiniPCI specification 1.0

3.2 Mechanical

Dimension: 59 x 44 x 1 mm (L x W x H)

4. Environmental Operating Ranges

- Operating Temperature: 0~55 ℃, Humidity 10 ~ 90%

- Storage Temperature: -20 ~ 90℃, Humidity 10 ~ 90%

5. Power Consumption

DC3.3 V/ 200mA

6. Driver support

Microsoft Windows 98SE, Window ME/2000/XP

7. Driver installation

The following installation operates under Windows 2000. Procedures will be the same
for Windows 98SE/ ME/XP.

l Install the Driver and Utility

A. Insert the CD into the CD-ROM device and execute the “setup.exe” program.

The InstallShield Wizard box will appear, click “Next” to continue.

B. Select an installation component, then choose a preferable destination location

and program folder name, and then click ”Next” to continue.

C. Follow the instruction of the installation program. The program will install the
