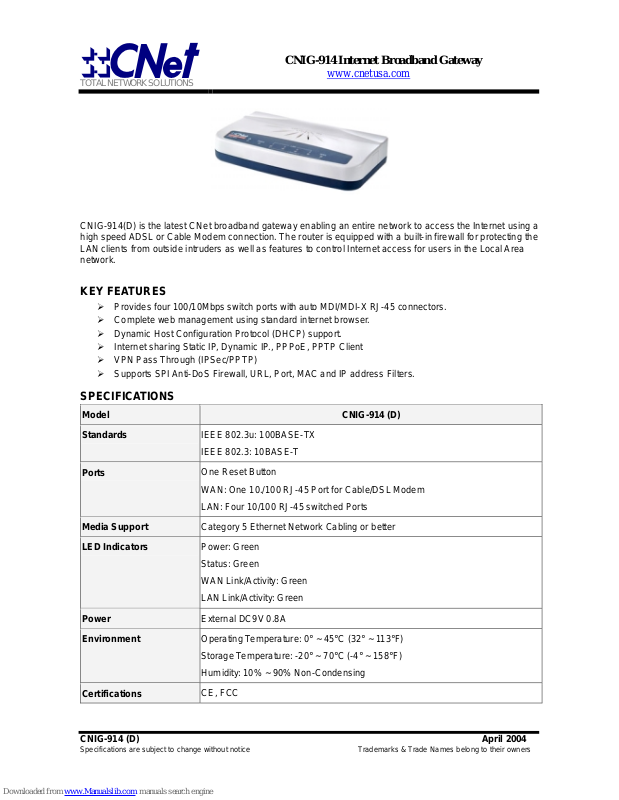

CNET CNIG-914, CNIG-914D Specifications

TOTAL NETWORK SOLUTIONS

CNIG-914 Internet Broadband Gateway

www.cnetusa.com

CNIG-914 (D) April 2004

Specifications are subject to change without notice Trademarks & Trade Names belong to their owners

CNIG-914(D) is the latest CNet broadband gateway enabling an entire network to access the Internet using a
high speed ADSL or Cable Modem connection. The router is equipped with a built-in firewall for protecting the
LAN clients from outside intruders as well as features to control Internet access for users in the Local Area
network.

KEY FEATURES

Provides four 100/10Mbps switch ports with auto MDI/MDI-X RJ-45 connectors.
Complete web management using standard internet browser.
Dynamic Host Configuration Protocol (DHCP) support.
Internet sharing Static IP, Dynamic IP., PPPoE, PPTP Client
VPN Pass Through (IPSec/PPTP)
Supports SPI Anti-DoS Firewall, URL, Port, MAC and IP address Filters.

SPECIFICATIONS

Model CNIG-914 (D)
Standards

IEEE 802.3u: 100BASE-TX
IEEE 802.3: 10BASE-T

Ports

One Reset Button
WAN: One 10./100 RJ-45 Port for Cable/DSL Modem
LAN: Four 10/100 RJ-45 switched Ports

Media Support

Category 5 Ethernet Network Cabling or better

LED Indicators

Power: Green
Status: Green
WAN Link/Activity: Green
LAN Link/Activity: Green

Power

External DC9V 0.8A

Environment

Operating T emperature: 0° ~ 45°C (32° ~ 113°F)
Storage Temperature: -20° ~ 70°C (-4° ~ 158°F)
Humidity: 10% ~ 90% Non-Condensing

Certifications

CE, FCC

TOTAL NETWORK SOLUTIONS

CNIG-914 Internet Broadband Gateway

www.cnetusa.com

CNIG-914 (D) April 2004

Specifications are subject to change without notice Trademarks & Trade Names belong to their owners

ORDERING INFORMATION

Model Description

CNIG-914 (D) Internet Broadband Gateway with four (4) 100/10Mbps N-Way Switch ports
