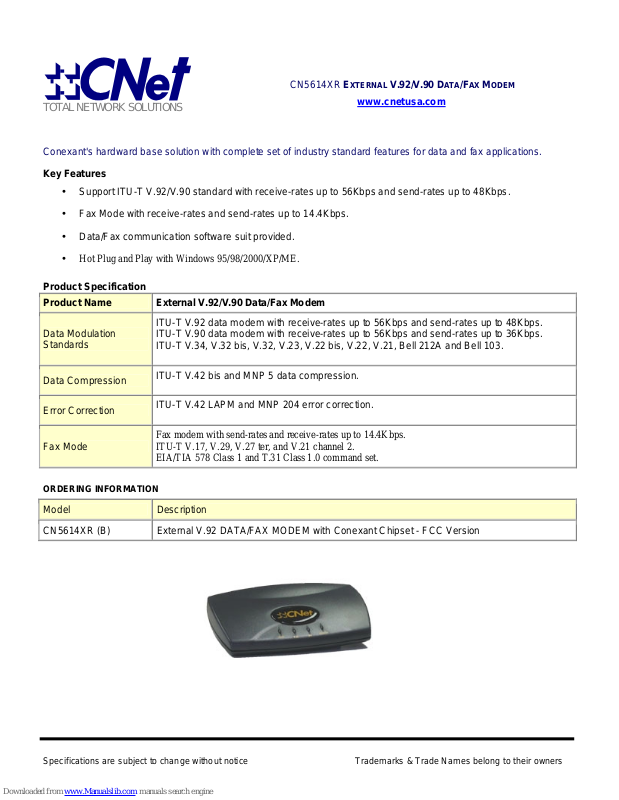

CNET CN5614XR Specifications

CN5614XR EXTERNAL V.92/V.90 DATA/FAX MODEM

TOTAL NETWORK SOLUTIONS

www.cnetusa.com

Conexant's hardward base solution with complete set of industry standard features for data and fax applications.

Key Features

•= Support ITU-T V.92/V.90 standard with receive-rates up to 56Kbps and send-rates up to 48Kbps.

•= Fax Mode with receive-rates and send-rates up to 14.4Kbps.

•= Data/Fax communication software suit provided.

•= Hot Plug and Play with Windows 95/98/2000/XP/ME.

Product Specification
Product Name External V.92/V.90 Data/Fax Modem

ITU-T V.92 data modem with receive-rates up to 56Kbps and send-rates up to 48Kbps.

Data Modulation
Standards

Data Compression

ITU-T V.90 data modem with receive-rates up to 56Kbps and send-rates up to 36Kbps.
ITU-T V.34, V.32 bis, V.32, V.23, V.22 bis, V.22, V.21, Bell 212A and Bell 103.

ITU-T V.42 bis and MNP 5 data compression.

Error Correction

ITU-T V.42 LAPM and MNP 204 error correction.

Fax modem with send-rates and receive-rates up to 14.4Kbps.

Fax Mode

ITU-T V.17, V.29, V.27 ter, and V.21 channel 2.
EIA/TIA 578 Class 1 and T.31 Class 1.0 command set.

ORDERING INFORMATION

Model Description
CN5614XR (B) External V.92 DATA/FAX MODEM with Conexant Chipset - FCC Version

Specifications are subject to change without notice Trademarks & Trade Names belong to their owners
