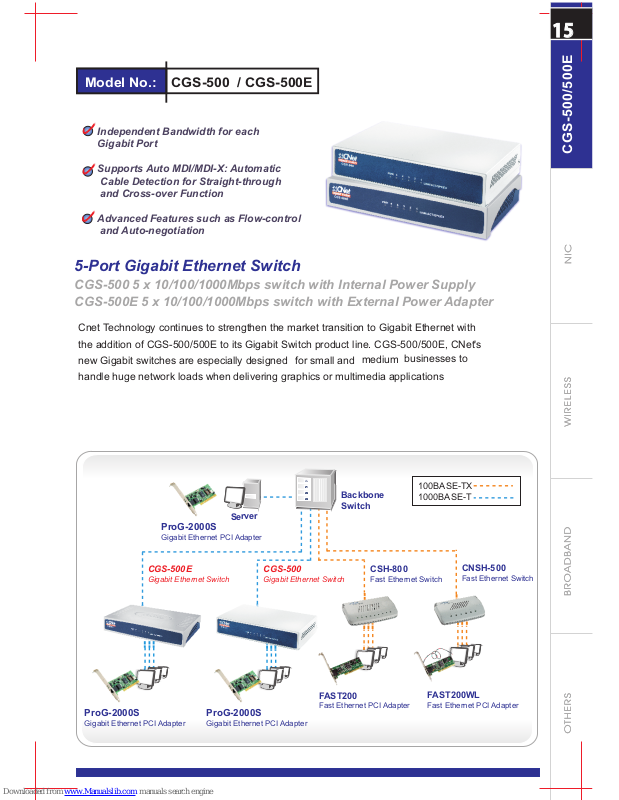

5-Port Gigabit Ethernet Switch
CGS-500 5 x 10/100/1000Mbps switch with Internal Power Supply
CGS-500E 5 x 10/100/1000Mbps switch with External Power Adapter
Model No.:
CGS- / CGS-500E500
Independent Bandwidth for each
Gigabit Port
Supports Auto MDI/MDI-X: Automatic
Cable Detection for Straight-through
and Cross-over Function
Advanced Features such as Flow-control
and Auto-negotiation
S
erver
CGS-500
Gigabit Ethernet Switch
CSH-800
Fast Ethernet Switch
CNSH-500
Fast Ethernet Switch
FAST200
Fast Ethernet PCI Adapter
Backbone
Switch
FAST200WL
Fast Ethernet PCI Adapter
100BASE-TX
1000BASE-T
ProG-2000S
Gigabit Ethernet PCI Adapter
ProG-2000S
Gigabit Ethernet PCI Adapter
CGS-500E
Gigabit Ethernet Switch
ProG-2000S
Gigabit Ethernet PCI Adapter
Cnet Technology continues to strengthen the market transition to Gigabit Ethernet with
the addition of CGS-500/500E to its Gigabit Switch product line. CGS-500/500E, CNet's
new Gigabit switches are especially designed for small and
medium
businesses to
handle huge network loads when delivering graphics or multimedia applications
15
CGS-500/500E
5-Port Gigabit Ethernet Switch
Model
Standards
．
．
．
IEEE 802.3: 10 BASE-T
IEEE 802.3u: 100 BASE-TX
IEEE 802.3ab: 1000 BASE-T
．IEEE 802.3x: Flow-control
CGS-500
Ports
Media Support
Five 10/100/1000 TP Copper Ports．
10 BASE-T: Category 3, 4 or 5 TP
100 BASE-TX/1000 BASE-T: Category 5 TP or better
．
．
Bandwidth
．14881 packets/second per port @ 10 Mbps maximum
148810 packets/second per port @ 100 Mbps maximum
．1488100 packets/second per port @ 1000 Mbps maximum
．
10/20/100/200/1000/2000 Mbps．
Forwarding/
Filtering Rate
LED Indicators
Power Supply
Dimensions ( L x W x H )
One Green LED displays Power status
One Green/Yellow LED per port displays 1000/(10/100)Mbps Link status
．
．
External DC3.3V, 2.5A Power Adapter
175 x 110 x 36 mm
( 6.89 x 4.33 x 1.42 inches )
Duplex Modes
Support Auto-MDI/MDI-X and Auto-negotiation functions．All ports
Features
Specifications
Ordering Information
Model
CGS-500
5-Port Gigabit Switch with Internal Power Supply
Description
CE, FCC
Environment
Certifications
Operating Temperature: 0° ~ 45°C 32° 113°F)( ~
Storage Temperature: -20° ~ 70°C (-4 )°~ 158°F
Humidity: 10% ~ 90% Non-condensing
．
．
．
Model No.:
CGS-500E
CGS-500E
5-Port Gigabit Ethernet Switch with External Power Adapter
CGS-500 / CGS-500E
Auto MDI/MDI-X support on all ports for simple setup and troubleshooting
Supports jumbo frames up to 9.6k bytes
Flow-control reduces re-transmissions in the networks
Auto-negotiation function for Bridging capability among 10/100/1000Mbps
Non-blocking performance improves access to network resources
．
．
．
Internal Full Range Auto-Switching
Input voltage:
100 ~ 240 +/-10% VAC/ 50 ~ 60 Hz
178.5 x 110.6 x 32.5 mm
( 7.02 x 4.35 x 1.28 inches )
15
CGS-500/500E
