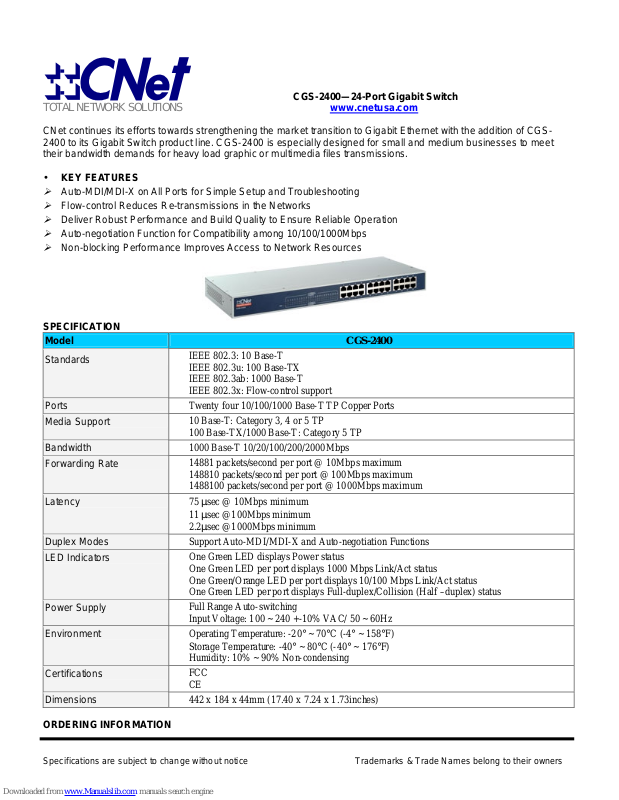

CNET CGS-2400 Specification Sheet
CGS-2400—24-Port Gigabit Switch
TOTAL NETWORK SOLUTIONS
CNet continues its efforts towards strengthening the market transition to Gigabit Ethernet with the addition of CGS2400 to its Gigabit Switch product line. CGS-2400 is especially designed for small and medium businesses to meet
their bandwidth demands for heavy load graphic or multimedia files transmissions.
•= KEY FEATURES
Auto-MDI/MDI-X on All Ports for Simple Setup and Troubleshooting
Flow-control Reduces Re-transmissions in the Networks
Deliver Robust Performance and Build Quality to Ensure Reliable Operation
Auto-negotiation Function for Compatibility among 10/100/1000Mbps
Non-blocking Performance Improves Access to Network Resources
www.cnetusa.com
SPECIFICATION
Model
Standards
Ports
Media Support
Bandwidth
Forwarding Rate
Latency
Duplex Modes
LED Indicators
Power Supply
Environment
Certifications
Dimensions
ORDERING INFORMATION
CGS-2400
IEEE 802.3: 10 Base-T
IEEE 802.3u: 100 Base-TX
IEEE 802.3ab: 1000 Base-T
IEEE 802.3x: Flow-control support
Twenty four 10/100/1000 Base-T TP Copper Ports
10 Base-T: Category 3, 4 or 5 TP
100 Base-TX/1000 Base-T: Category 5 TP
1000 Base-T 10/20/100/200/2000Mbps
14881 packets/second per port @ 10Mbps maximum
148810 packets/second per port @ 100Mbps maximum
1488100 packets/second per port @ 1000Mbps maximum
75 µsec @ 10Mbps minimum
11 µsec @100Mbps minimum
2.2µsec @1000Mbps minimum
Support Auto-MDI/MDI-X and Auto-negotiation Functions
One Green LED displays Power status
One Green LED per port displays 1000 Mbps Link/Act status
One Green/Orange LED per port displays 10/100 Mbps Link/Act status
One Green LED per port displays Full-duplex/Collision (Half –duplex) status
Full Range Auto-switching
Input Voltage: 100 ~ 240 +-10% VAC/ 50 ~ 60Hz
Operating Temperature: -20° ~ 70°C (-4° ~ 158°F)
Storage Temperature: -40° ~ 80°C (-40° ~ 176°F)
Humidity: 10% ~ 90% Non-condensing
FCC
CE
442 x 184 x 44mm (17.40 x 7.24 x 1.73inches)
Specifications are subject to change without notice Trademarks & Trade Names belong to their owners
Model Description
CGS-2400 (B) 24-Port Gigabit Switch
Specifications are subject to change without notice Trademarks & Trade Names belong to their owners
