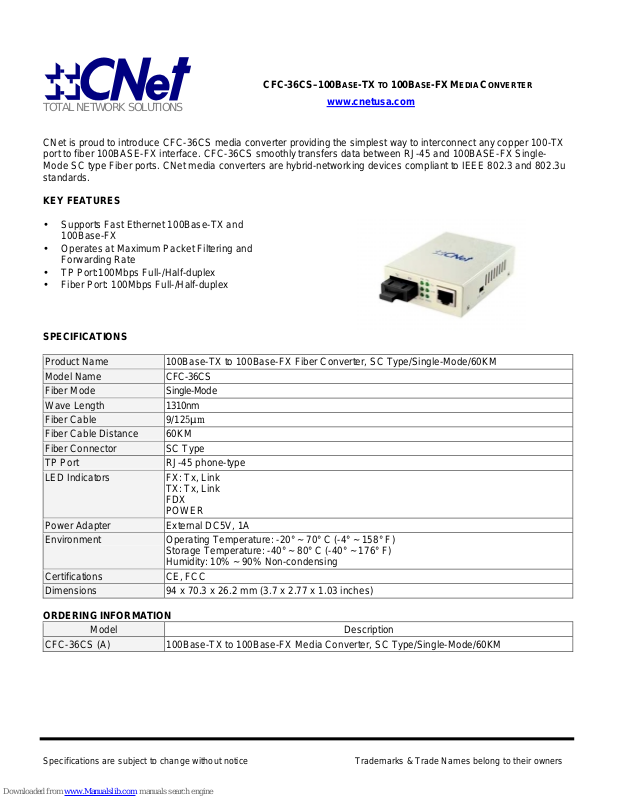

CFC-36CS–100BASE-TX TO 100BASE-FX MEDIA CONVERTER
TOTAL NETWORK SOLUTIONS
www.cnetusa.com
CNet is proud to introduce CFC-36CS media converter providing the simplest way to interconnect any copper 100-TX
port to fiber 100BASE-FX interface. CFC-36CS smoothly transfers data between RJ-45 and 100BASE-FX SingleMode SC type Fiber ports. CNet media converters are hybrid-networking devices compliant to IEEE 802.3 and 802.3u
standards.
KEY FEATURES
•= Supports Fast Ethernet 100Base-TX and
100Base-FX
•= Operates at Maximum Packet Filtering and
Forwarding Rate
•= TP Port:100Mbps Full-/Half-duplex
•= Fiber Port: 100Mbps Full-/Half-duplex
SPECIFICATIONS
Product Name 100Base-TX to 100Base-FX Fiber Converter, SC Type/Single-Mode/60KM
Model Name CFC-36CS
Fiber Mode Single-Mode
Wave Length 1310nm
Fiber Cable 9/125µm
Fiber Cable Distance 60KM
Fiber Connector SC Type
TP Port RJ-45 phone-type
LED Indicators FX: Tx, Link
TX: Tx, Link
FDX
POWER
Power Adapter External DC5V, 1A
Environment Operating Temperature: -20° ~ 70° C (-4° ~ 158° F)
Storage Temperature: -40° ~ 80° C (-40° ~ 176° F)
Humidity: 10% ~ 90% Non-condensing
Certifications CE, FCC
Dimensions 94 x 70.3 x 26.2 mm (3.7 x 2.77 x 1.03 inches)
ORDERING INFORMATION
Model Description
CFC-36CS (A) 100Base-TX to 100Base-FX Media Converter, SC Type/Single-Mode/60KM
Specifications are subject to change without notice Trademarks & Trade Names belong to their owners
