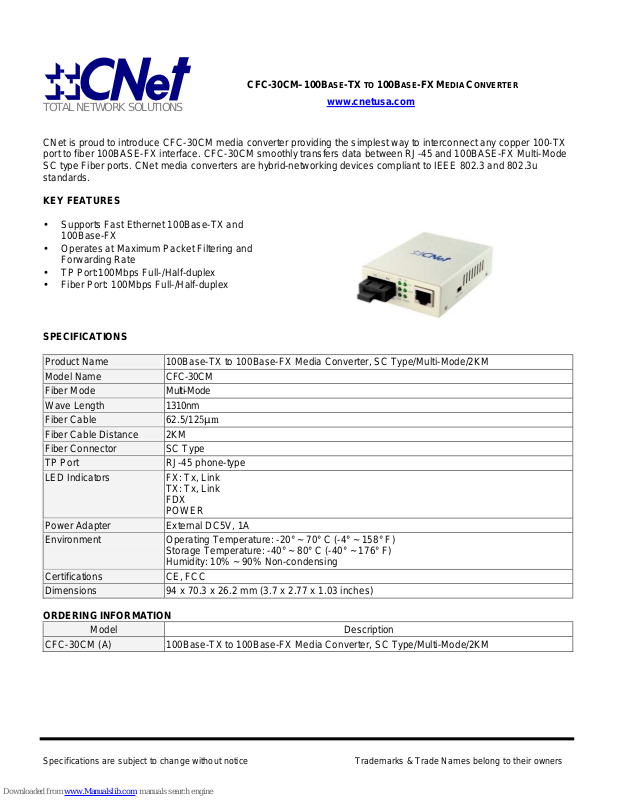

CNET CFC-30CM Specifications

CFC-30CM–100BASE-TX TO 100BASE-FX MEDIA CONVERTER

TOTAL NETWORK SOLUTIONS

www.cnetusa.com

CNet is proud to introduce CFC-30CM media converter providing the simplest way to interconnect any copper 100-TX
port to fiber 100BASE-FX interface. CFC-30CM smoothly transfers data between RJ-45 and 100BASE-FX Multi-Mode
SC type Fiber ports. CNet media converters are hybrid-networking devices compliant to IEEE 802.3 and 802.3u
standards.

KEY FEATURES

•= Supports Fast Ethernet 100Base-TX and
100Base-FX

•= Operates at Maximum Packet Filtering and
Forwarding Rate

•= TP Port:100Mbps Full-/Half-duplex

•= Fiber Port: 100Mbps Full-/Half-duplex

SPECIFICATIONS

Product Name 100Base-TX to 100Base-FX Media Converter, SC Type/Multi-Mode/2KM
Model Name CFC-30CM
Fiber Mode Multi-Mode
Wave Length 1310nm
Fiber Cable 62.5/125µm
Fiber Cable Distance 2KM
Fiber Connector SC Type
TP Port RJ-45 phone-type
LED Indicators FX: Tx, Link

TX: Tx, Link
FDX

POWER
Power Adapter External DC5V, 1A
Environment Operating Temperature: -20° ~ 70° C (-4° ~ 158° F)

Storage Temperature: -40° ~ 80° C (-40° ~ 176° F)

Humidity: 10% ~ 90% Non-condensing
Certifications CE, FCC
Dimensions 94 x 70.3 x 26.2 mm (3.7 x 2.77 x 1.03 inches)

ORDERING INFORMATION

Model Description

CFC-30CM (A) 100Base-TX to 100Base-FX Media Converter, SC Type/Multi-Mode/2KM

Specifications are subject to change without notice Trademarks & Trade Names belong to their owners
