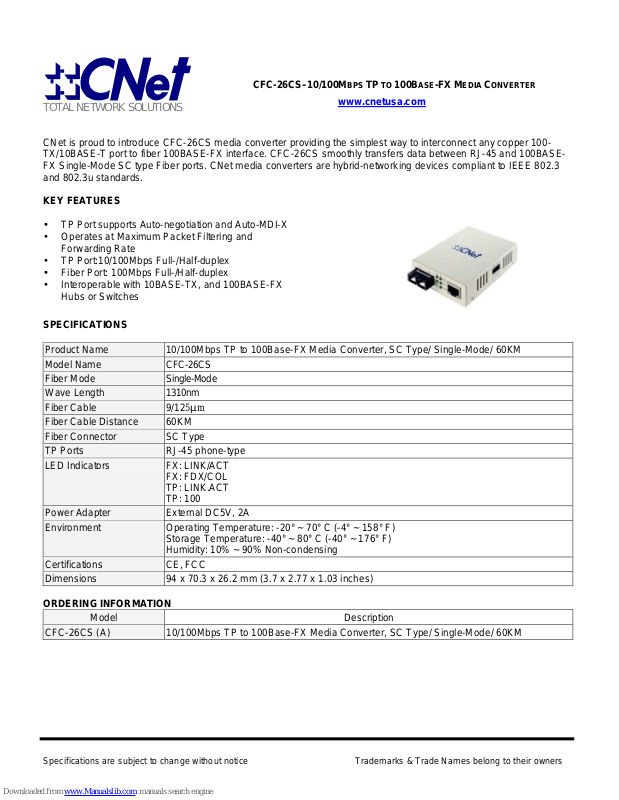

CNET CFC-26CS Specifications

CFC-26CS–10/100MBPS TP TO 100BASE-FX MEDIA CONVERTER

TOTAL NETWORK SOLUTIONS

www.cnetusa.com

CNet is proud to introduce CFC-26CS media converter providing the simplest way to interconnect any copper 100­TX/10BASE-T port to fiber 100BASE-FX interface. CFC-26CS smoothly transfers data between RJ-45 and 100BASE­FX Single-Mode SC type Fiber ports. CNet media converters are hybrid-networking devices compliant to IEEE 802.3
and 802.3u standards.

KEY FEATURES

•= TP Port supports Auto-negotiation and Auto-MDI-X

•= Operates at Maximum Packet Filtering and

Forwarding Rate

•= TP Port:10/100Mbps Full-/Half-duplex

•= Fiber Port: 100Mbps Full-/Half-duplex

•= Interoperable with 10BASE-TX, and 100BASE-FX

Hubs or Switches

SPECIFICATIONS

Product Name 10/100Mbps TP to 100Base-FX Media Converter, SC Type/ Single-Mode/ 60KM
Model Name CFC-26CS
Fiber Mode Single-Mode
Wave Length 1310nm
Fiber Cable 9/125µm
Fiber Cable Distance 60KM
Fiber Connector SC Type
TP Ports RJ-45 phone-type
LED Indicators FX: LINK/ACT

FX: FDX/COL
TP: LINK.ACT

TP: 100
Power Adapter External DC5V, 2A
Environment Operating Temperature: -20° ~ 70° C (-4° ~ 158° F)

Storage Temperature: -40° ~ 80° C (-40° ~ 176° F)

Humidity: 10% ~ 90% Non-condensing
Certifications CE, FCC
Dimensions 94 x 70.3 x 26.2 mm (3.7 x 2.77 x 1.03 inches)

ORDERING INFORMATION

Model Description

CFC-26CS (A) 10/100Mbps TP to 100Base-FX Media Converter, SC Type/ Single-Mode/ 60KM

Specifications are subject to change without notice Trademarks & Trade Names belong to their owners
