CNet CDR-905 User Manual

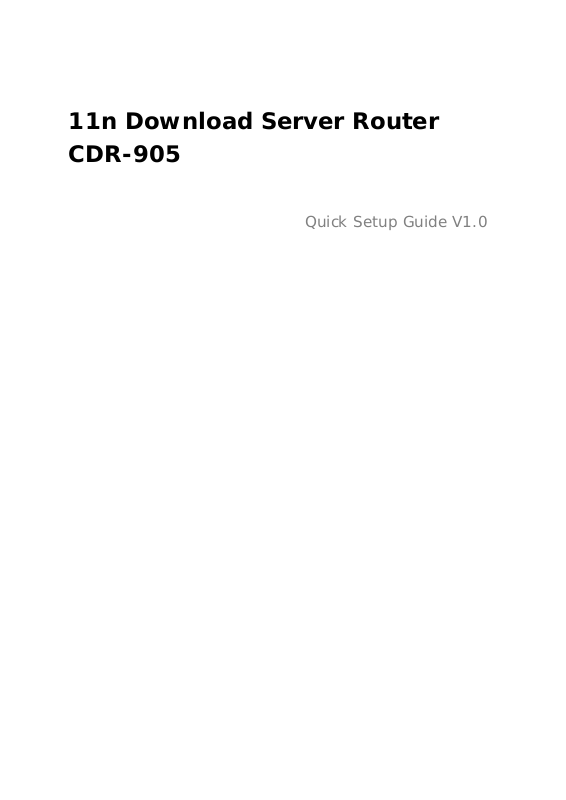

11n Download Server Router
CDR-905

Quick Setup Guide V1.0

Table of Contents

TABLE OF CONTENTS................................................................................................................................2

WARRANTY.....................................................................................................................................................4

FCC CAUTION ................................................................................................................................................ 5

SAFE SEATING GESTURES:.................................................................................................................... 6

CE STATEMENT OF CONFORMITY....................................................................................................... 6

CHAPTER 1 BROADBAND ROUTER’S QUICK SETUP.................................................................7

1.1 ROUTER MODE’S QUICK SETUP INSTRUCTION ....................................................................... 7

1.2 THE INTRODUCTION OF ROUTER MODE’S QUICK SETUP ...................................................... 8

1.2.1 Time Zone Setting........................................................................................................10

1.2.2 LAN Interface Setup....................................................................................................11

1.2.3 WAN Interface Setup................................................................................................. 12

1.2.3.1 WAN Interface Setup–Static IP...................................................................................... 13

1.2.3.2 WAN Interface Setup– DHCP Client..............................................................................14

1.2.3.3 WAN Interface Setup– PPPoE..........................................................................................15

1.2.3.4 WAN Interface Setup– PPTP............................................................................................. 16

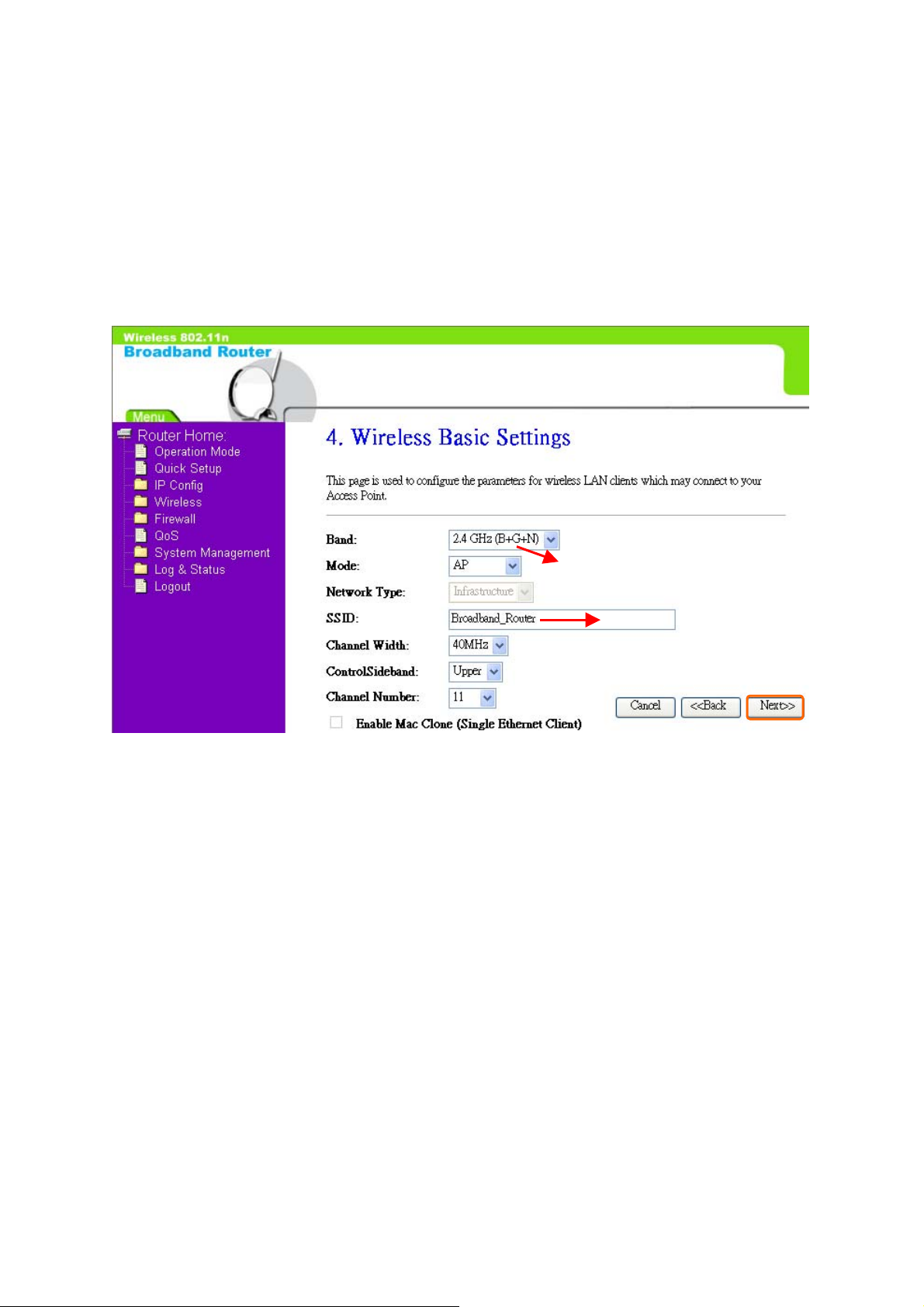

1.2.4 Wireless Basic Settings ............................................................................................ 17

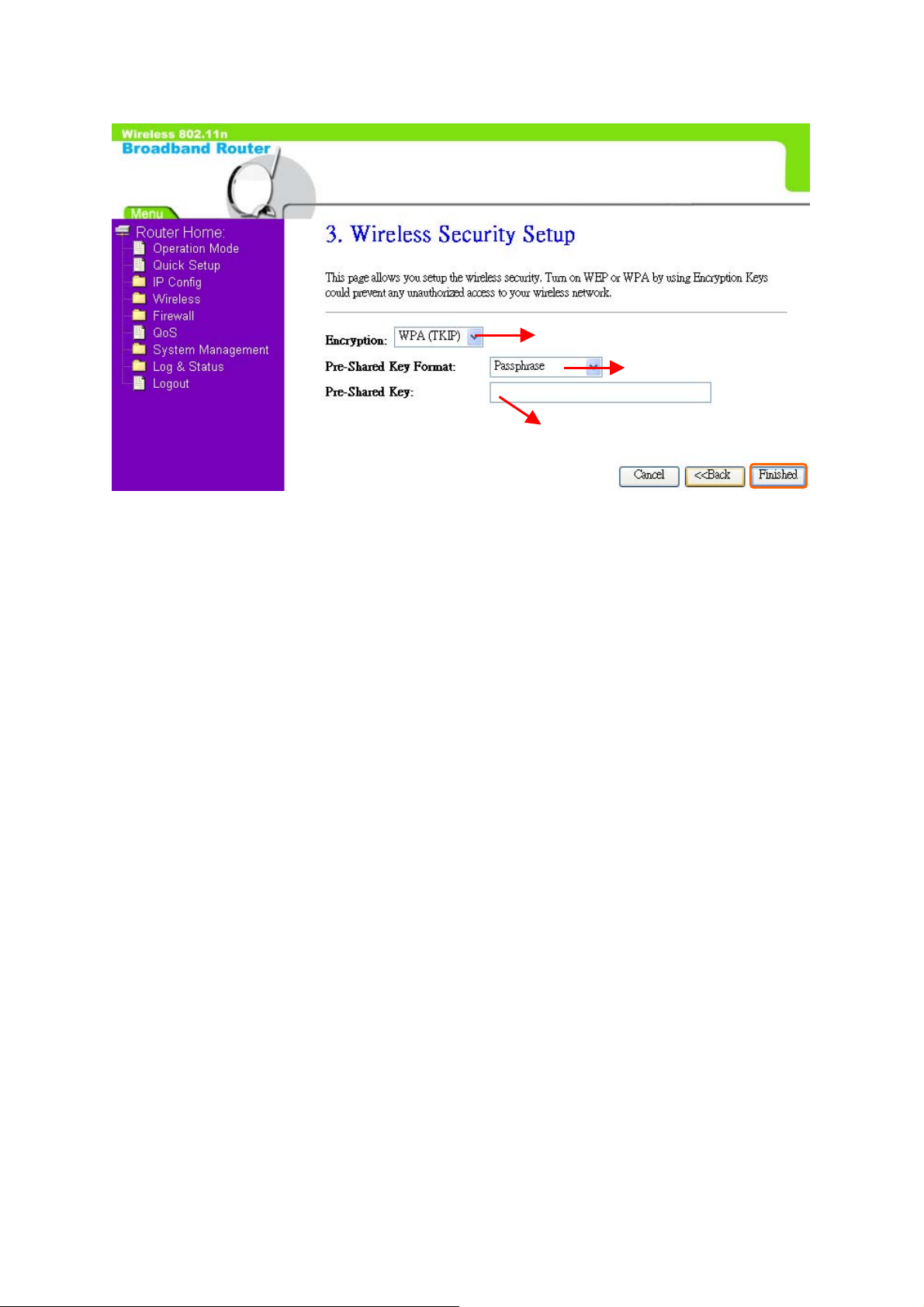

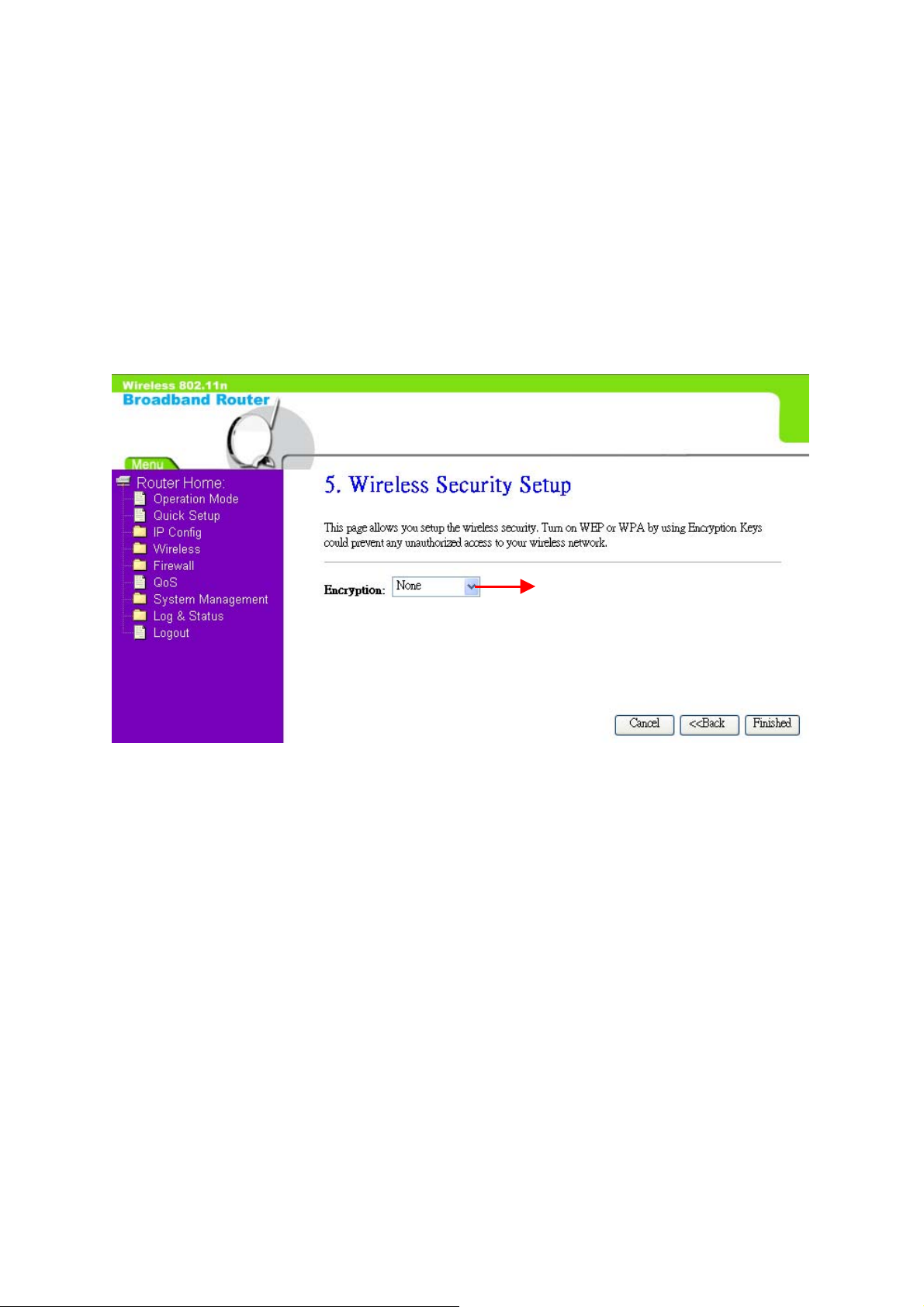

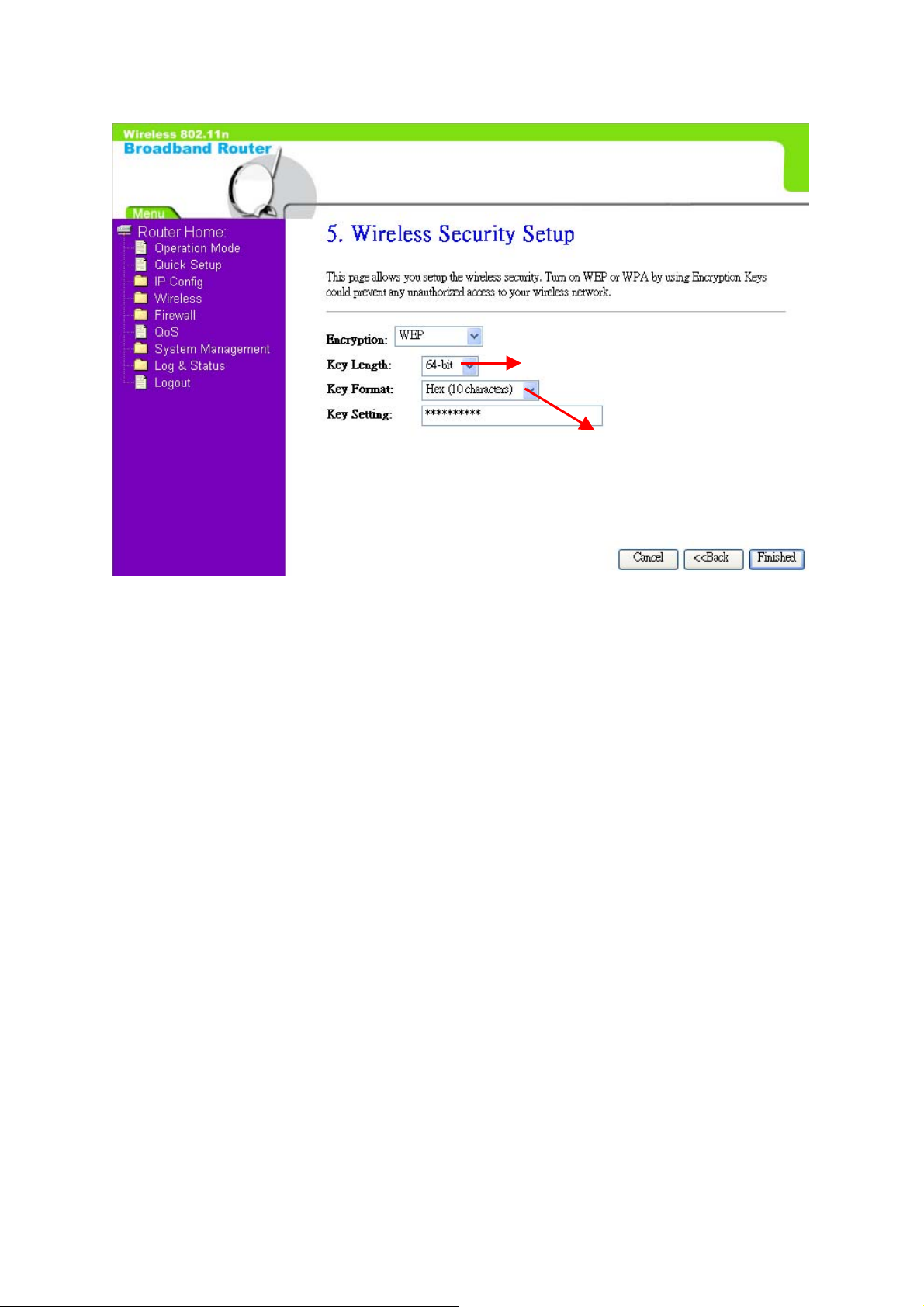

1.2.5 Wireless Security Setup........................................................................................... 18

1.2.6 Quick Setup Finish....................................................................................................... 21

CHAPTER 2 AP MODE’S QUICK SETUP.......................................................................................... 22

2.1 AP MODE’S CONFIGURATION.................................................................................................... 22

2.2 THE INTRODUCTION OF AP MODE’S QUICK SETUP ............................................................. 23

2.2.1 LAN Interface Setup................................................................................................... 24

2.2.3 Wireless Security Setup........................................................................................... 26

2.2.4 Quick Setup Finish....................................................................................................... 29

CHAPTER 3 WIFI ISP MODE’S QUICK SETUP............................................................................ 31

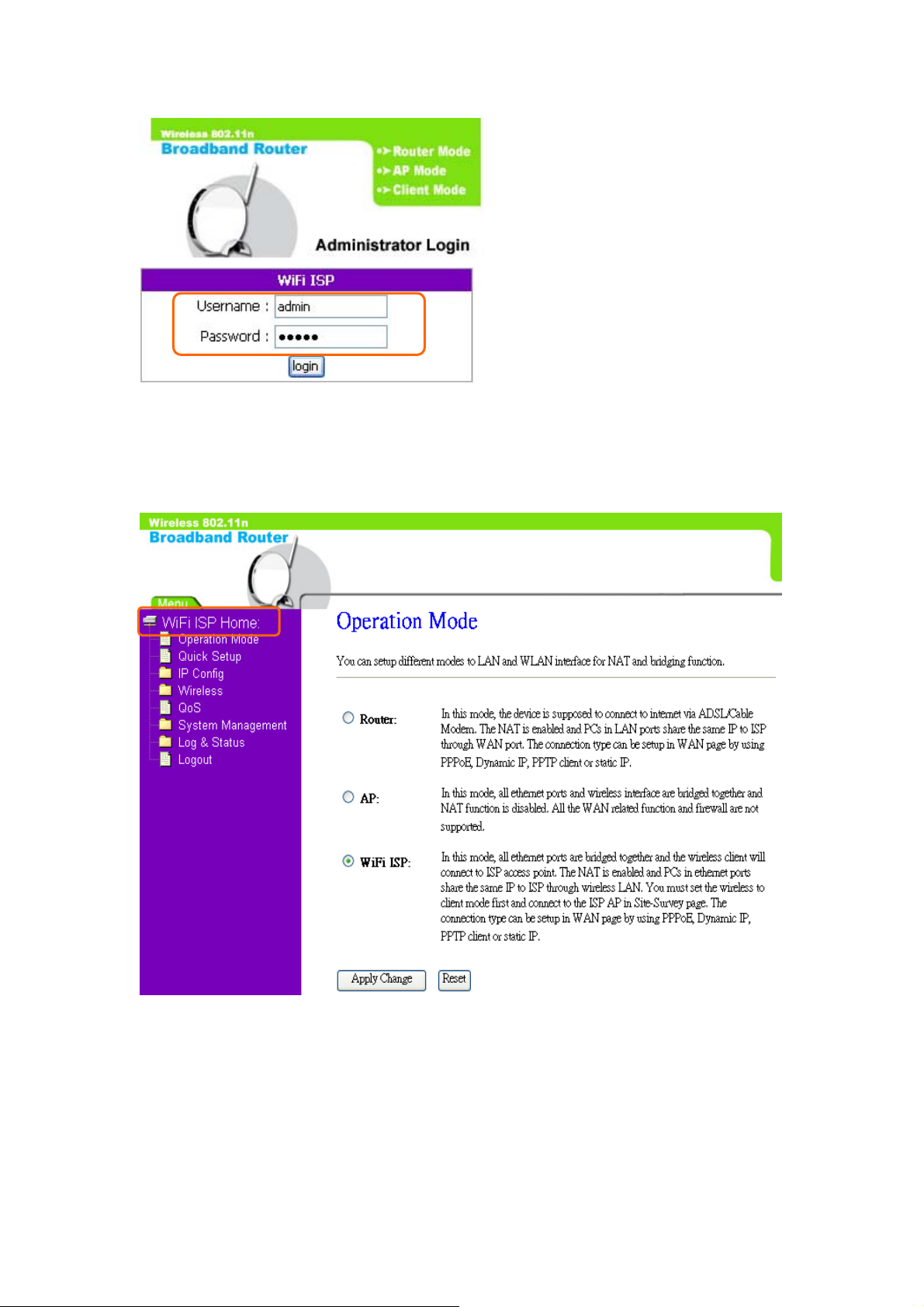

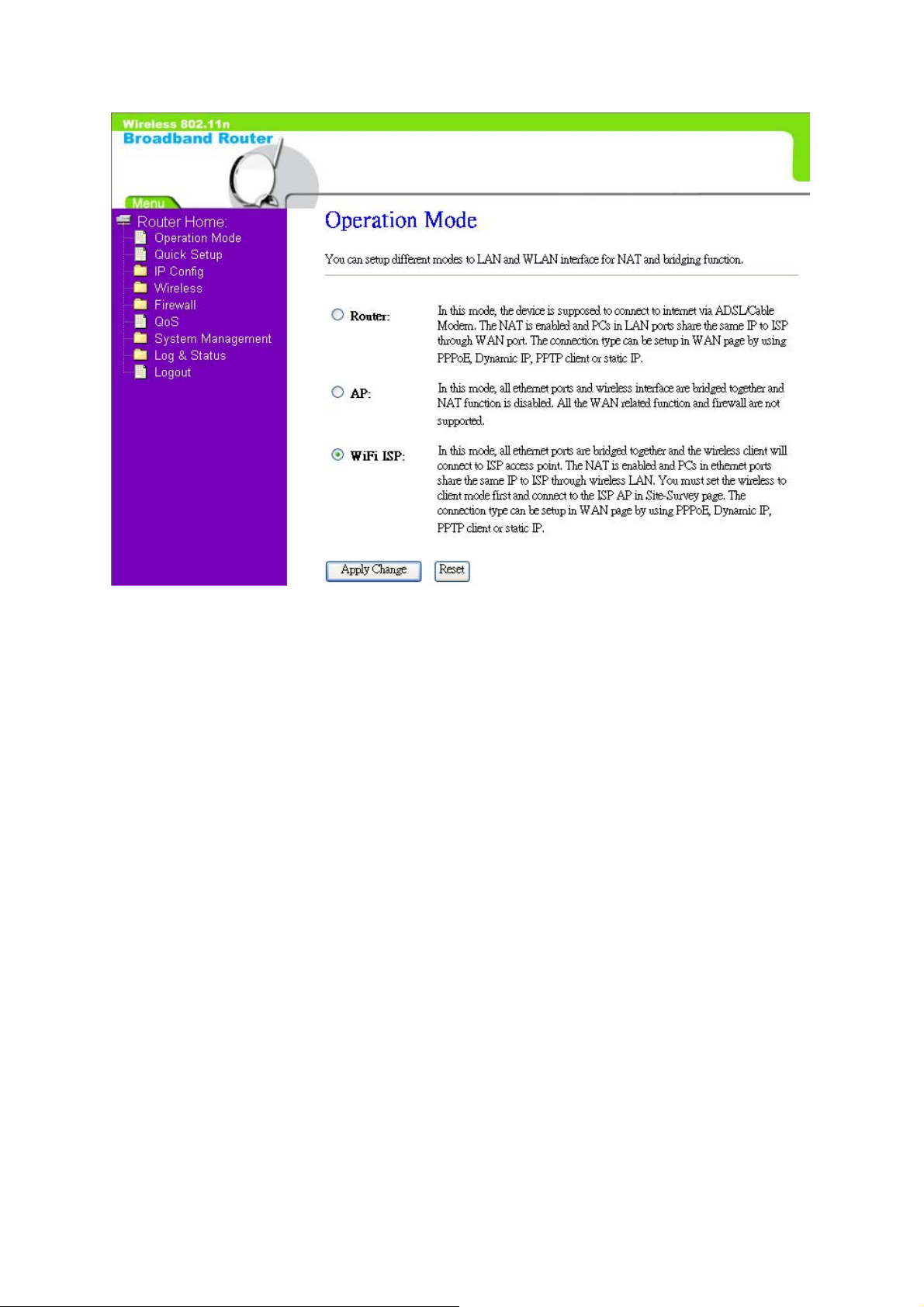

3.1 WIFI ISP MODE’S QUICK SETUP INSTRUCTION................................................................. 31

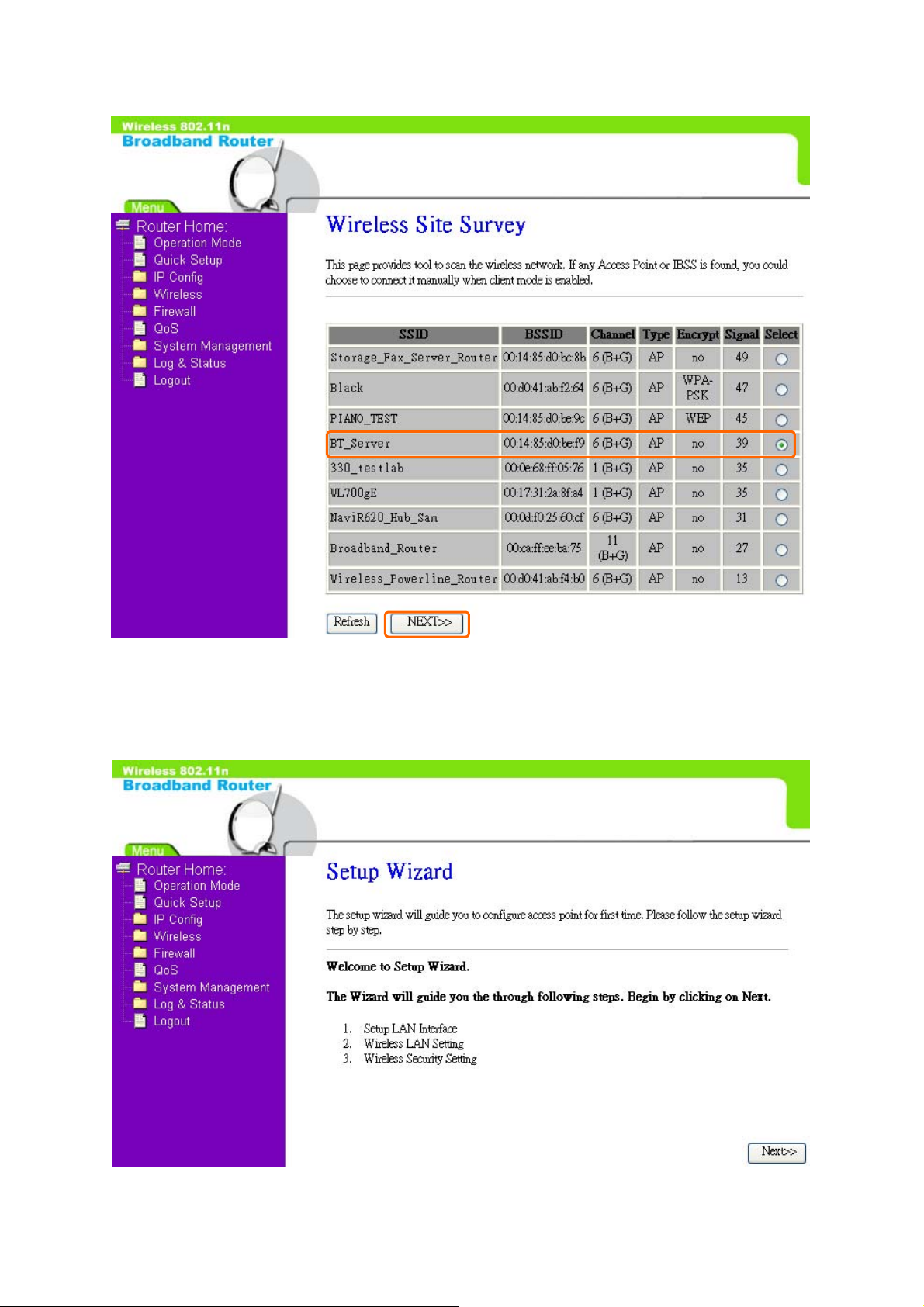

3.2 THE INTRODUCTION OF WIFI ISP MODE’S QUICK SETUP................................................34

3.2.1 LAN Interface Setup................................................................................................... 35

3.2.2 Wireless Basic Settings ............................................................................................ 36

3.2.3 Wireless Security Setup........................................................................................... 37

3.2.4 Quick Setup Finish....................................................................................................... 40

Copyright Statement

This user’s manual, includes the products and software may be reproduced,

transcribed, transmitted and stored. That totally depends on the legal authorized

copyright. Furthermore, it can be translated into any language in any form or by

any means, except some documents or public software without the copy

permission of our company.

ACCORDING TO THE AMERICA COPYRIGHT RULES IN 1976, PEOPLE CANNOT

PUBLISH ANY UNAUTHORIZED CREATION IN ANY FORM OR BY ANY MEANS. IN

DETAIL, WHOLE CREATION, EVEN PART OF CREATION CANNOT BE PUBLISHTED

VIA THE MENTIONED METHODS BY OTHERS. FOR INSTANCE, DOCUMENTATION

OF TRANSLATION OR MODIFICATION IS PROHIBITED.

All trademarks and trade names are the properties of their respective owners.

COPYRIGHT © 2005 ALL RIGHTS RESERVED.

Warranty

One- Year W arr anty is provided for consumer products. This warranty is subject to
the conditions and limitations set forth herein.
("We") warrants and tests the Product to be free from defects in material and
workmanship and to conform to published specifications. During the warranty
period, should the Product fail under normal use in the recommended environment
due to improper workmanship or materials, we will repair the Product or replace it
with a comparable one.
This warranty is for a specific period of time from the date of purchase. Proof of
date of purchase is required. We will inspect the Product and make the decision
regarding repair or replacement. We reserve the right to provide a functionally
equivalent refurbished replacement Product.
This warranty does not apply to Product failure due to accident, abuse, mishandling,
improper installation, alteration, improper usage, or problems with electrical power .
The Product must be used with devices that conform to the recommended industry
standards. We will not be liable for damages resulting from a third party device that
causes the Product to fail. We shall in no event be liable for any consequential,
indirect, or incidental damages, lost profits, lost business investments lost goodwill,
or interference with business relationships as a result of lost data. We are also not
responsible for damage or failure of any third party equipment, even if we have
been advised of the possibility . This limitation does not apply to the extent that it is
illegal or unenforceable under applicable law.
The limited warranty is exclusive, with no other warranties, implied or statutory,
including, but not limited to any implied warranty of merchantability or fitness for
a particular purpose. The technical supports or advices we provided do not affect
this warranty in any part.

FCC Caution

The device complies with Part 15 of the FCC rules. Operation is subject to the
following two conditions:

(1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that
may cause undesired operation.

Safe Seating Gestures:

You should follow the manufacturer’s instructions for adjusting the backrest to fit
your body properly.

λ An adjustable chair that provides firm, comfortable support is best.
λ Adjust the height of the chair so your thighs are horizontal and your feet flat

on the floor.

λ The back of the chair should support your lower back (lumbar region).

CE Statement of Conformity

Our product has been tested in typical configuration by Ecam Sertech Corp an d
was found to comply with the essential requirement of “Council Directive on the
Approximation of the Laws of the Member States relating to Electromagnetic
Compatibility.” (89/336/EEC; 92/31/EEC; 93/68/EEC)

Chapter 1 Broadband Router’s Quick Setup

1.1 Router Mode’s Quick Setup Instruction

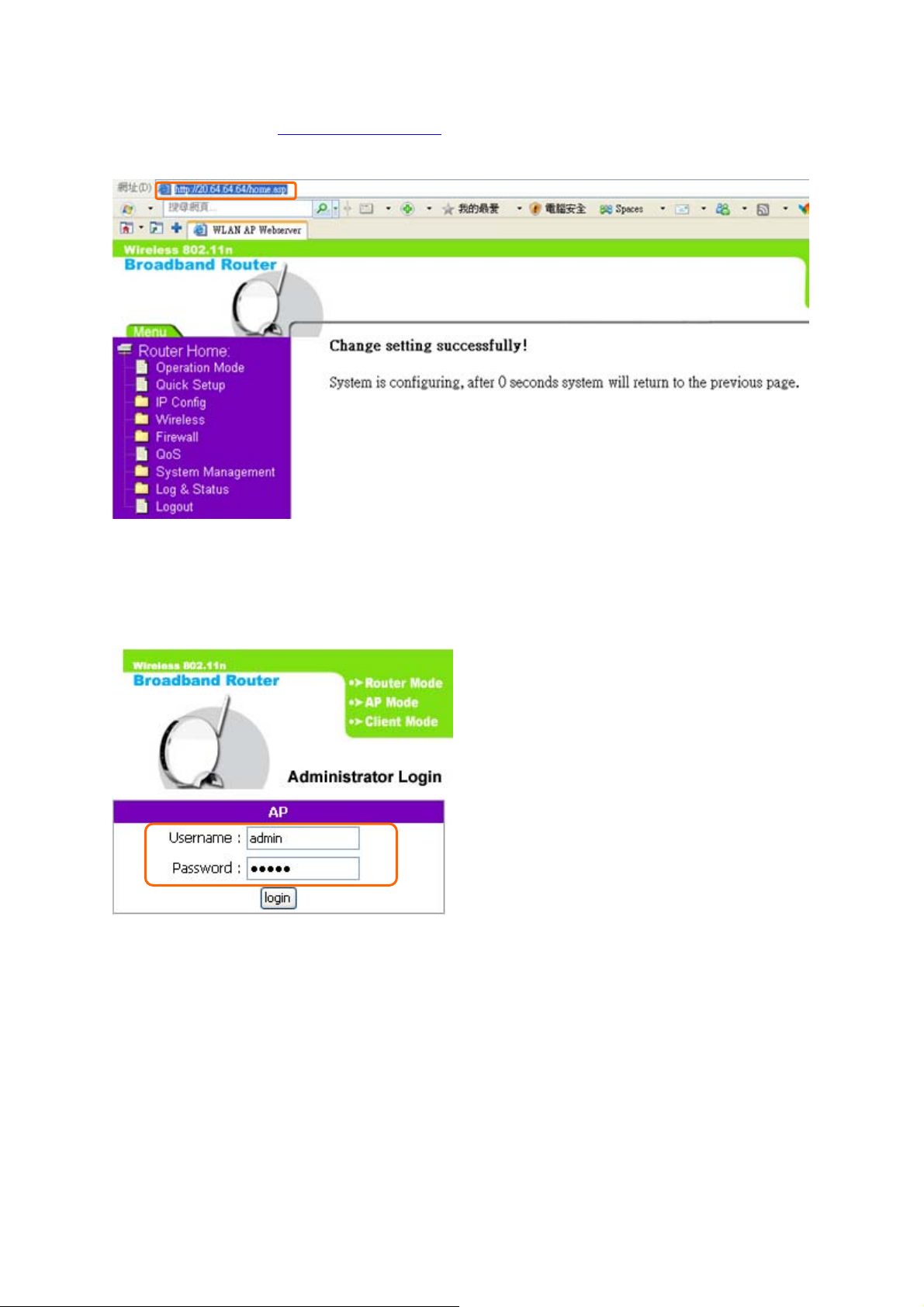

Please open a Microsoft Internet Ex plorer, and enter http://192.168.1.1
Gateway) into browser’s blank, then you will see the configuration page below:

(Default

Please input in the blanks, the factory default values for User Name and Password
are “admin” and “admin” (all in lowercase letters); after inputting, please click on
“OK” to enter the homepage as below:

Please click on “Router” and “Apply Change”, then you will see the main page of
“Router Home”, which means you already enter the page of Router mode’s Quick
Setup.

1.2 The Introduction of Router mode’s Quick Setup

After you go to the main page of “Router Quick Setup”, please click on “Next”
right side below, and go to the next page to do each setting step by step:

1.2.1 Time Zone Setting

The section provides to change the Time. However, change the router’s date and
time does not affect the date and time on your PCs.

Please select your
time Zone

Please click on “Next” button to connect to next step.

1.2.2 LAN Interface Setup

If you are using Broadband Router with multiple PCs on your LAN, please set up
this function for multiple users to connect it. The default LAN IP for Broadband
Router is 192.168.1.1.

Please click on “Next” button to connect to next step.

1.2.3 WAN Interface Setup

Broadband Router supports 4 connection types to WAN, select one of the WAN
connection modes required by your ISP in below “WAN Access Ty pe” page, the
WAN setting pages will differ depending on what kind of WAN Type you select.

1.2.3.1 WAN Interface Setup–Static IP

Choose Static IP Address if all WAN IP information is provided to you by your ISP.
Broadband Router wil l not accept the IP address if it is not in this format, and the
blanks of “IP Address”, “Subnet Mask” and “Default Gateway” must be input.

Input the data provided

DNS also needs to be inputted，otherwise you can’t use the
domain name.

Please click on “Next” button to connect to next step.

by ISP
