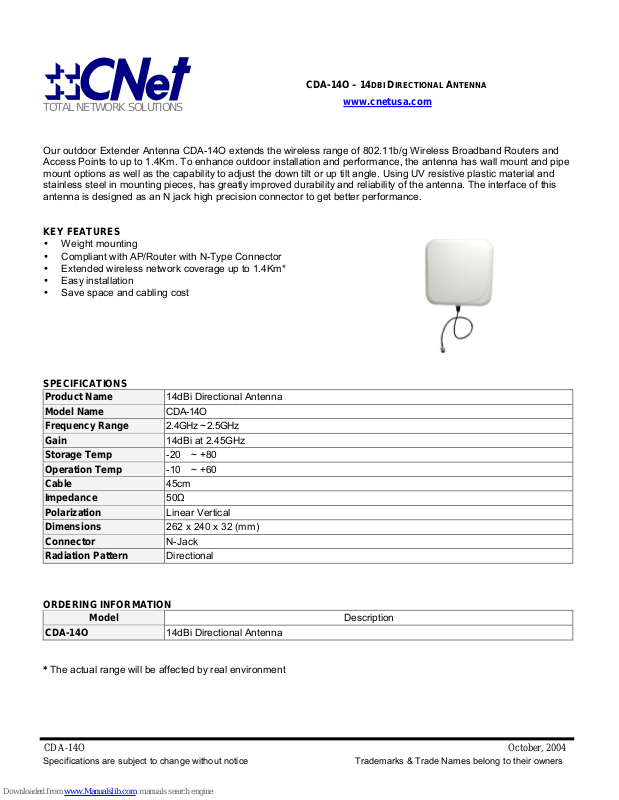

CDA-14O – 14DBI DIRECTIONAL ANTENNA
TOTAL NETWORK SOLUTIONS
www.cnetusa.com
Our outdoor Extender Antenna CDA-14O extends the wireless range of 802.11b/g Wireless Broadband Routers and
Access Points to up to 1.4Km. To enhance outdoor installation and performance, the antenna has wall mount and pipe
mount options as well as the capability to adjust the down tilt or up tilt angle. Using UV resistive plastic material and
stainless steel in mounting pieces, has greatly improved durability and reliability of the antenna. The interface of this
antenna is designed as an N jack high precision connector to get better performance.
KEY FEATURES
•= Weight mounting
•= Compliant with AP/Router with N-Type Connector
•= Extended wireless network coverage up to 1.4Km*
•= Easy installation
•= Save space and cabling cost
SPECIFICATIONS
Product Name 14dBi Directional Antenna
Model Name CDA-14O
Frequency Range 2.4GHz ~ 2.5GHz
Gain 14dBi at 2.45GHz
Storage Temp -20 ~ +80
Operation Temp -10 ~ +60
Cable 45cm
Impedance 50Ω
Polarization Linear Vertical
Dimensions 262 x 240 x 32 (mm)
Connector N-Jack
Radiation Pattern Directional
ORDERING INFORMATION
CDA-14O
Model
14dBi Directional Antenna
Description
* The actual range will be affected by real environment
CDA-14O October, 2004
Specifications are subject to change without notice Trademarks & Trade Names belong to their owners
