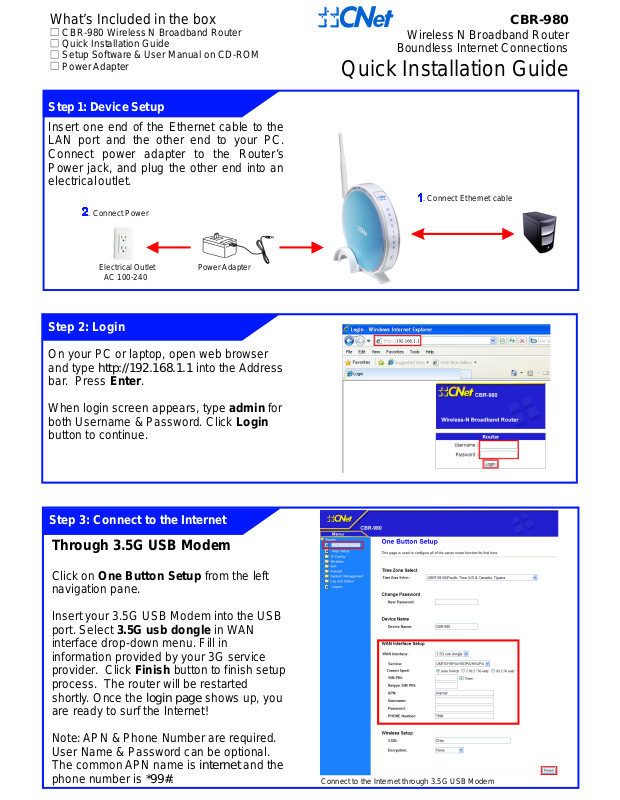

CNET CBR-980 User Manual
What’s Included in the box
CBR-980 Wireless N Broadband Router
Quick Installation Guide
Setup Software & User Manual on CD-ROM
Power Adapter
Step 1: Device Setup
Insert one end of the Ethernet cable to the
LAN port and the other end to your PC.
Connect power adapter to the Router’s
Power jack, and plug the other end into an
electrical outlet.
. Connect Power
CBR-980
Wireless N Broadband Router
Boundless Internet Connections
Quick Installation Guide
. Connect Ethernet cable
Electrical Outlet
AC 100-240
Power Adapter
Step 2: Login
On your PC or laptop, open web browser
and type into the Address
bar. Press .
When login screen appears, type for
both Username & Password. Click
http://192.168.1.1
Enter
admin
Login
button to continue.
Step 3: Connect to the Internet
Through 3.5G USB Modem
Click on from the left
One Button Setup
navigation pane.
Insert your 3.5G USB Modem into the USB
port. Select in WAN
3.5G usb dongle
interface drop-down menu. Fill in
information provided by your 3G service
provider. Click button to finish setup
Finish
process. The router will be restarted
shortly. Once the shows up, you
login page
are ready to surf the Internet!
Note: APN & Phone Number are required.
User Name & Password can be optional.
The common APN name is and the
phone number is
*99#.
internet
Connect to the Internet through 3.5G USB Modem
Through xDSL Modem - PPPoE
Click on from the left
One Button Setup
navigation pane.
Connect one end of the Ethernet cable to
the WAN port of CBR-980, and another end
to the Ethernet port of xDSL modem.
Select in
Ethernet Port
drop-down menu and in
Access Type
drop-down menu. Fill in the
WAN interface
PPPoE
WAN
user name and password provided by your
xDSL service provider. Click button
Finsih
to finish setup process. The router will be
restarted shortly. Once the
login page
Connect to the Internet through xDSL Modem
shows up, you are ready to surf the Internet!
USB Modem Does Not Work With the Router
If your USB modem is not working with the router. Check the support list to ensure you are using a supported device.
CNet’s supported device list changes regularly. We update our supported device list after a device is approved. If the
device you have is not on the list, that means we do not support it at this time. The supported device list can be found
at: http://www.cnet.com.tw
If you are still unable to access the Internet after following above instructions. Please consult the User Manual or
contact CNet Technical Support for further assistance.
How to Restore the Default Password and Configuration Settings
1. Use a sharp object such as a pen or a paper clip to press and hold the Reset button, located on the rear panel of
the router next to the power jack, for about 10 seconds, until the STATUS light goes off.
2. Release the Reset button, and wait for the router to restart, and for the Power light to stop blinking and become
solid green.
The factory default settings will be restored and the router’s IP address will be reset to 192.168.1.1, user name to
admin admin.
, and password to
Technical Information
LED Status Lights
Power
Status
updates is in progress.
WIRELESS/WPS
router is “On”. Blinking indicates traffic.
light indicates the router goes into “WiFi Protected Setup”
mode.
WAN
Blinking indicates traffic
LAN
Blinking indicates traffic.
How to Set up Broadband Internet Service & Other Functions
In the User Manual on product CD, You can find detail steps of:
For additional information, please visit the product website: http://www.cnet.com.tw
Signifies the router has power
Blinking Green light indicates Reset or Firmware
Signifies that the WiFi radio of the
Blinking Orange
Signifies that connection is made on WAN port.
Signifies that connection is made on LAN port.
Setting up Broadband Internet Service such as 3G, Cable modem, WiFi ISP
Advanced settings such as DDNS, Virtual Server, DMZ
Power
Status
WIRELESS/WPS
WAN
LAN
WPS button
http://www.cnet.com.tw
CNet Technology Inc.
