User’s Manual Page i

USER’S

MANUAL VER.2

C35S- QUICK SETUP BREAKOUT

BOARD Rev. 2

MARCH 2018

User’s Manual Page ii

USER'S MANUAL

TABLE OF CONTENTS

Contents Page #

1.0 OVERVIEW ..................................................................................................................... 1

2.0 FEATURES ..................................................................................................................... 1

3.0 SPECIFICATIONS .......................................................................................................... 2

4.0 BOARD DESCRIPTION .................................................................................................. 2

5.0 SPECIFICATIONS .......................................................................................................... 3

5.1 Power Requirements ................................................................................................. 3

6.0 SELECTION JUMPER .................................................................................................... 3

6.1 Input (PULL-UP or PULL-DOWN) .............................................................................. 3

6.2 Pin_11. ........................................................................................................................ 4

7.0 ESPECIAL FUNCTIONS ................................................................................................. 5

7.1 Safety Charge Pump "SCP". (Pin 17) ....................................................................... 5

7.2 Enable Pin. ................................................................................................................. 6

8.0 FUNCTIONAL BLOCK DIAGRAMS ............................................................................... 7

8.1 Pins 2-9 simplified block diagram ............................................................................ 7

8.2 Pins 1,14,16 and 17 simplified block diagram ......................................................... 7

8.3 Inputs simplified block diagram ............................................................................... 8

9.0 PINOUT ........................................................................................................................... 8

10.0 WIRING DIAGRAMS ....................................................................................................... 9

10.1 Connecting Switches or push button. ...................................................................... 9

10.2 Connecting NPN sensors. ....................................................................................... 10

10.3 Connecting PNP sensors. ....................................................................................... 12

11.0 DIMENSIONS ................................................................................................................ 13

User’s Manual Page 1

1.0 OVERVIEW

This card uses the popular circuits found in the C35 with high power buffers that provide very stable signals but in an industrial format to make it easy to implement control boxes, it provides terminals and RJ45 for connections. This version of the C35can be easily mounted on control boxes using DIN rails and can also accommodate ribbon cables or DB25 connectors.

2.0 FEATURES

• IEEE 1284 Standard compatible.

• Easy connections with CNC4PC relay boards and speed control

boards.

• Microcontroller based SCHP.

• Works directly with popular CNC hardware and software.

• Easy way to connect to 4 stepper motor drivers by using Networks

cables. (Pins 2-9).

• All TTL 5VDC signals.

• Buffered inputs and outputs.

• Pluggable Screw-On Terminals. *NEW*.

• Output pins 1, 2, 3, 4, 5, 6, 7, 8, 9, 14, 16, 17.

• Input pins 10, 11, 12, 13, 15.

• Status LEDs on all inputs and output connections.

• External Enable Pin (EN).

• DIN Rail mountable. *NEW*.

User’s Manual Page 2

3.0 SPECIFICATIONS

DIGITAL INPUT SPECIFICATIONS

On-state voltage range

2 to 5V DC

Maximum off-state voltage

0.8V

Maximum operation frequency

4 MHz

Typical signal delay

10nS

DIGITAL OUTPUT SPECIFICATIONS

Maximum output voltage

5VDC

Typical output current

50mA

Maximum off-state voltage

0.44 V

Maximum operation frequency

4 MHz

Typical signal delay

10 nS

Time of transition to high impedance state

120 mS*

*Time passed since a low in the ENABLE input is detected and the outputs are disabled.

4.0 BOARD DESCRIPTION

User’s Manual Page 3

5.0 SPECIFICATIONS

5.1 Power Requirements

It requires a 5VDC @ 500 milliamps power supply to operate. This power can be taken from the computer’s power supply or USB port. Consider using the A3 – USB Power Cable found under Accessories in the website.

WARNING

Check the polarity and voltage of the external power source and connect the 5VDC and GND. Overvoltage or reverse-polarity power applied to these terminals can cause damage to the board, and/or the power source.

6.0 SELECTION JUMPER

6.1 Input (PULL-UP or PULL-DOWN)

Pins 10,11,12,13 and 15 can be set to pull-up or pull-down by selecting the jumper in the appropriate position.

a. If a pin is pulled down, then it needs a high to make it change states. b. If a pin is pulled up, then it is a ground what will make it change states.

1-2: PULL-DOWN 2-3: PULL-UP

User’s Manual Page 4

6.2 Pin_11.

If you connect sensors (A32 or A62), set jumper as sample in the image

If you connect board (C3 or C48), set jumper as sample in the image

User’s Manual Page 5

7.0 ESPECIAL FUNCTIONS

7.1 Safety Charge Pump "SCP". (Pin 17)

This board takes advantage of Mach ability to send a specific frequency through one of the pins of the parallel port when the program is in control of the system. CNC machinery can be very dangerous, and you could have a risk of the machine doing something different that what you intend the machine to do if the program loses control

of your system. Mach be can be programmed in a way, so when it is “in control”, it

delivers a 12.5 KHz signal through one of the pins. This card lets you use this signal to work as an On/Off switch for your system, enabling a powerful safety system for your equipment. If you ever had windows crash on you, then this card is for you. The port can also do weird things while the system is coming up, or down.

For Configuring the Charge Pump in Mach X: Use the dialog Config / Ports and pins / Output Signals. Enable the Charge Pump output and configures it as is shown in the Fig. 8 Next, press the apply button.

Fig. 1. Charge Pump configuration

User’s Manual Page 6

Selecting the SCHP operation mode

The Safety Charge Pump can be activated or deactivated depending on the jumper position.

1-2: ON 2-3: OFF

Note: When the Safety Charge Pump is activated, the EN terminal is active and a valid

SCHP signal is present, pin 17 will go high. This high signal can be used to enable other external devices, such as enabling other Breakout Boards, or relays that would enable

servos, VFDs, contactors, etc.

7.2 Enable Pin.

The card must be provided with a 5VDC signal to enable operation. This feature has been added to externally control the status of the outputs. When the enable signal is not present, output signals sent high impedance state. If this function is not required, a jumper can be placed between +5vdc and the EN terminal. It has an internal 4.7kOhm pulldown resistor.

Wiring:

The Parallel Port Interface Card has a very basic design that provides the flexibility you look for on CNC projects.

WARNING: This card must have the power supplied while it is connected to the PC. If power is removed to the card while it is connected to the PC, noise can be introduced to the output lines. This can create a dangerous situation as relays or other devices that might be connected to this card could get activated.

User’s Manual Page 7

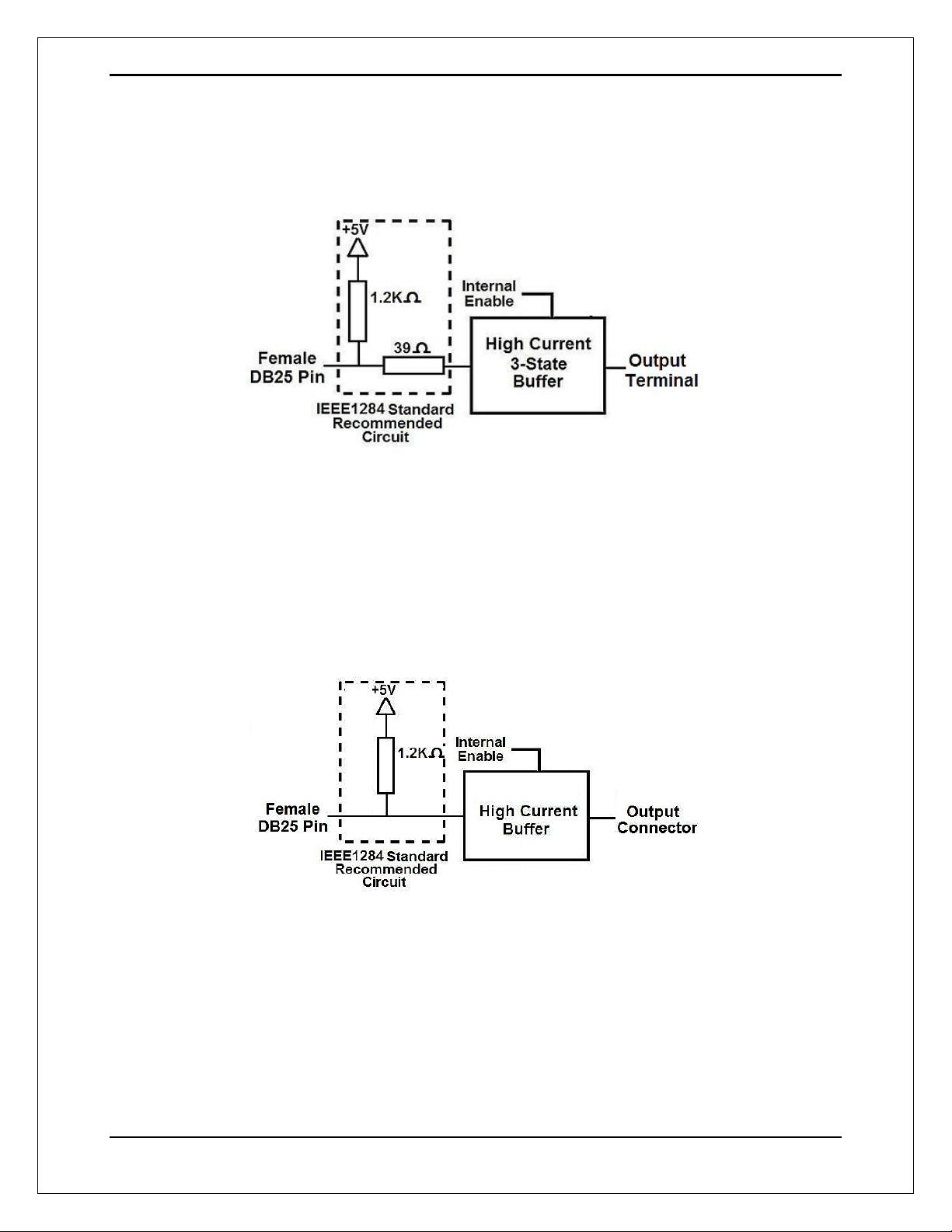

8.0 FUNCTIONAL BLOCK DIAGRAMS

8.1 Pins 2-9 simplified block diagram

Fig. 2 Simplified functional block diagram for pins 2-9.

8.2 Pins 1,14,16 and 17 simplified block diagram

Fig. 3 Simplified functional block diagram for outputs 1, 14, 16 and 17.

Note: “Internal Enable” = “External Enable Pin” AND (“SCHP” OR “Bypassed SCHP”)

The “Internal Enable” is the result of an AND Operation between the “External Enable Pin” and the SCHP operation mode selected by the user.

Note: The outputs will be deactivated if the board is not connected to the PC parallel port.

User’s Manual Page 8

8.3 Inputs simplified block diagram

Fig. 4 Simplified functional block diagram for inputs.

9.0 PINOUT

User’s Manual Page 9

PINS USED ON EACH RJ45 CONNECTOR.

10.0 WIRING DIAGRAMS

While this board supports only TTL +5VDC signals, different kind of sensors, switches using different voltages can be connected using the diagrams that follow:

Note: The wiring below diagrams are an example, any input can be used for the connections.

10.1 Connecting Switches or push button.

Fig. 5 Wiring diagram to connect switches.

RJ45_1

Function

RJ45_2

Function

RJ45_3

Function

RJ45_4

Function

RJ45_5

Function

RJ45_6

Function

RJ45_7

Function

RJ45_8

Function

RJ45 PIN 1

Not Used

GND

RJ45 PIN 2

P.P. Pin 2

P.P. Pin 4

P.P. Pin 6

P.P. Pin 8

P.P. Pin 17

Not Used

P.P. Pin 13

RJ45 PIN 3

Not Used

P.P. Pin 16

Not Used

P.P. Pin 10

P.P. Pin 12

RJ45 PIN 4

GND

P.P. Pin 1

P.P. Pin 16

P.P. Pin 11

RJ45 PIN 5

EN (5V)

P.P. Pin 14

P.P. Pin 17

P.P. Pin 15

Not Used

RJ45 PIN 6

P.P. Pin 3

P.P. Pin 5

P.P. Pin 7

P.P. Pin 9

Not Used

ENABLE

Not Used

RJ45 PIN 7

Not Used

RJ45 PIN 8

Not Used

User’s Manual Page 10

10.2 Connecting NPN sensors.

Fig. 6 Wiring diagram to connect NPN open collector proximity sensors.

Fig. 7 Wiring diagram to connect in parallel NPN open collector proximity sensors.

Connecting NPN open collector proximity sensor with the C35S

R1 Value (12V)

R1 Value (24V)

Approx. 10KΩ

Approx. 25KΩ

User’s Manual Page 11

Fig. 8 Wiring diagram to connect NPN proximity sensors with internal pull up resistor.

Some NPN proximity sensor has a pull-up resistor (R1) internally. It is necessary to know its value in order to connect safely the sensor with the BOB. Follow this recommendation:

Connecting NPN open collector proximity sensor with the C35S

(R1+R2) Value (12V)

(R1+R2) Value (24V)

Approx. 10KΩ

Approx. 25KΩ

CALCULATING THE R1 VALUE

Note: Rx is the unknown resistor value.

Where:

is the external power supply voltage

is the voltage across the R resistor

RX = VEX.(R/V) - R (1)

A voltmeter is required to calculate the internal resistor value (Rx). Do the connections as are shown in the figure above and do the calculations using the equation (1).

Note. R value has to be known to do this operation. A 4.7KOhm@1/2W is recommended.

User’s Manual Page 12

10.3 Connecting PNP sensors.

Fig. 10 Wiring diagram to connect PNP proximity sensors

Connecting PNP proximity sensor with the C35S

R Value (12V)

R Value (24V)

Approx. 10KΩ

Approx. 25KΩ

User’s Manual Page 13

11.0 DIMENSIONS

All dimensions are in Millimeters.

Fixing holes (3.8mm).

DISCLAIMER

Use caution. CNC machines can be dangerous machines. Neither DUNCAN USA, LLC nor Arturo Duncan are liable for any accidents resulting from the improper use of these devices. This board is not a fail-safe device and it should not be used in life support systems or in other devices where its failure or possible erratic operation could cause property damage, bodily injury or loss of life.
