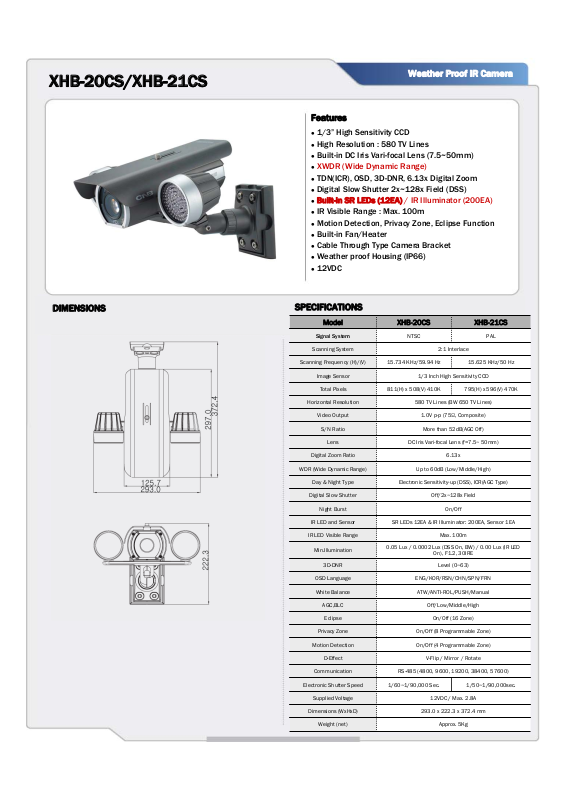

CNB XHB-20CS Specsheet

XHB-20CS/XHB-21CS

Weather Proof IR Camera

Features



1/3”

High Sensitivity CCD



High Resolution : 580 TV Lines



Built-in DC Iris Vari-focal Lens (7.5~50mm)



XWDR (Wide Dynamic Range)



TDN(ICR), OSD, 3D-DNR, 6.13x Digital Zoom



Digital Slow Shutter 2x~128x Field (DSS)



Built-in SR LEDs



IR Visible Range : Max. 100m



Motion Detection, Privacy Zone, Eclipse Function



Built-in Fan/Heater



Cable Through Type Camera Bracket



Weather proof Housing (IP66)



12VDC

(12EA) /

IR Illuminator (200EA)

DIMENSIONS

www.cnbtec.com

SPECIFICATIONS

Model XHB-20CS XHB-21CS

Signal System NTSC PAL

Scanning System 2:1 Interlace

Scanning Frequency (H)/(V) 15.734 KHz/59.94 Hz 15.625 KHz/50 Hz

Image Sensor 1/3 Inch High Sensitivity CCD

Total Pixels 811(H) x 508(V) 410K 795(H) x 596(V) 470K

Horizontal Resolution 580 TV Lines (BW 650 TV Lines)

Video Output 1.0V p-p (75Ω, Composite)

S/N Ratio More than 52dB(AGC Off)

Lens DC Iris Vari-focal Lens (f=7.5~ 50mm)

Digital Zoom Ratio 6.13x

WDR (Wide Dynamic Range) Up to 60dB (Low/Middle/High)

Day & Night Type Electronic Sensitivity-up (DSS), ICR(AGC Type)

Digital Slow Shutter Off/2x~128x Field

Night Burst On/Off

IR LED and Sensor SR LEDs

IR LED Visible Range Max. 100m

Min.Illumination

3D-DNR Level (0~63)

OSD Language ENG/KOR/RSN/CHN/SPN/FRN

White Balance ATW/ANTI-ROL/PUSH/Manual

AGC,BLC Off/Low/Middle/High

Eclipse On/Off (16 Zone)

Privacy Zone On/Off (8 Programmable Zone)

Motion Detection On/Off (4 Programmable Zone)

D-Effect V-Flip / Mirror / Rotate

Communication RS-485 (4800, 9600, 19200, 38400, 57600)

Electronic Shutter Speed 1/60~1/90,000 Sec. 1/50~1/90,000sec.

Supplied Voltage 12VDC / Max. 2.8A

Dimensions (WxHxD) 293.0 x 222.3 x 372.4 mm

Weight (net) Approx. 5Kg

12EA & IR Illuminator: 200EA, Sensor 1EA

0.05 Lux

/ 0.0002 Lux

(DSS On, BW) / 0.00 Lux

On), F1.2, 30IRE

(IR LED
