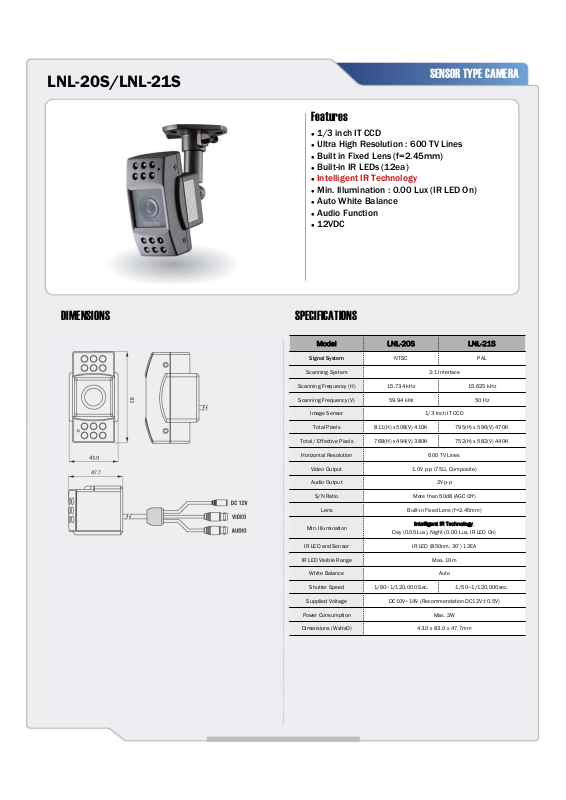

CNB LNL-20S Specsheet

LNL-20S/LNL-21S

SENSOR TYPE CAMERA

Features



1/3 inch IT CCD



Ultra High Resolution : 600 TV Lines



Built in Fixed Lens (f=2.45mm)



Built-in IR LEDs



Intelligent IR Technology



Min. Illumination : 0.00 Lux



Auto White Balance



Audio Function



12VDC

(12ea)

(IR LED On)

SPECIFICATIONSDIMENSIONS

Model LNL-20S LNL-21S

Signal System NTSC PAL

Scanning System 2:1 Interlace

Scanning Frequency (H) 15.734 kHz 15.625 kHz

Scanning Frequency (V) 59.94 kHz 50 Hz

Image Sensor 1/3 Inch IT CCD

Total Pixels 811(H) x 508(V) 410K 795(H) x 596(V) 470K

Total / Effective Pixels 768(H) x 494(V) 380K 752(H) x 582(V) 440K

Horizontal Resolution 600 TV Lines

Video Output 1.0V p-p

Audio Output 2V p-p

S/N Ratio More than 50dB (AGC Off)

Lens Built-in Fixed Lens (f=2.45mm)

Min. Illumination

IR LED and Sensor IR LED (850nm, 30˚) 12EA

IR LED Visible Range Max. 10m

White Balance Auto

Shutter Speed 1/60~1/120,000 Sec. 1/50~1/120,000sec.

Supplied Voltage DC10V~14V (Recommendation DC12V±0.5V)

Power Consumption Max. 2W

Dimensions (WxHxD) 43.0 x 83.0 x 47.7mm

Day (0.05 Lux), Night (0.00 Lux, IR LED On)

(75Ω, Composite)

Intelligent IR Technology,
