XNET Network Dome Camera
(IDC4050IR/IDC4050F/IDC4050VR/IDC4050VF)
Installation Manual
Ver. 1.3
2 / 17
XXNNEETT NNeettwwoorrkk DDoommee CCaammeerraa IInnssttaallllaattiioonn MMaannuuaall
About this Manual
A compatibility and durability test ensured this product’s high performance.
This manual is for XNET IP Dome Camera users only, and it describes operations related
to XNET IP Dome Camera.
Please read this manual thoroughly paying attention to cautions and warnings before
using the product even if you have used similar products before.
Important Notices
It is illegal to copy and distribute this manual without permission.
Damages caused by use of parts not recommended and by misuse will not be applicable for support.
Contact the store or the manufacturer immediately if (you think) there is any problem with the
product.
Contact the store or the manufacturer before disassembling the product for alteration or repair.
This product complies for CE (Europe) and FCC (USA) regulations for industrial/home use electrical
device.
INFORMATION
This equipment has been tested and found to comply with the limits for a Class A digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the
user will be required to correct the interference at his own expense.
3 / 17
XXNNEETT NNeettwwoorrkk DDoommee CCaammeerraa IInnssttaallllaattiioonn MMaannuuaall
Index
1. About XNET .................................................................................................................. 4
1.1. About XNET .................................................................................................................. 4
1.2. Features of XNET ........................................................................................................... 4
1.3. Applications .................................................................................................................. 4
2. About the Product ........................................................................................................ 5
2.1. Contents ....................................................................................................................... 5
2.2. Product Information ....................................................................................................... 5
2.2.1 Product Composition ............................................................................................ 5
2.3. Hardware Designation .................................................................................................... 6
2.3.1. Switch and Controls ............................................................................................ 6
2.3.2 Connecting Cables ............................................................................................... 7
2.3.3 Connecting to Alarm Devices ................................................................................ 9
3. Software Installation ................................................................................................. 10
3.1. Installing XNET ............................................................................................................ 10
3.1.1. Installation....................................................................................................... 10
3.1.2. Cable Connection ............................................................................................. 11
3.2. Installing IP-Installer Software and Configuring IP address ............................................. 12
3.2.1. About IP-Installer ............................................................................................. 12
3.2.2. Configuring IP Address ..................................................................................... 12
4. Using Web Viewer ...................................................................................................... 14
4.1. Logging In .................................................................................................................. 14
4.2. Web Viewer Page ......................................................................................................... 15
5. Specification ............................................................................................................... 16
4 / 17
XXNNEETT NNeettwwoorrkk DDoommee CCaammeerraa IInnssttaallllaattiioonn MMaannuuaall
11..11.. AAbboouutt XXNNEETT
11..22.. FFeeaattuurreess ooff XXNNEETT
11..33.. AApppplliiccaattiioonnss
1. About XNET
XNET is an internet based security and surveillance system that is compatible with various network conditions
through easy installation and user interface as well as multi-functional compressor Codec such as H.264,
MJPEG. XNET provides stable real-time surveillance by real time video/ audio at 1080P level, local storage for
any network problems, and hybrid IP technology that can be used with existing analog CCTV devices.
Most advanced Video compression technology (H.264/MJPEG)
Progressive technology - Progressive scan makes the image sharp and clear without ghost effect.
Hybrid IP Technology - CCTV analog video output can be used for existing analog CCTV devices.
Transmission of Multi-Codec stream - Live video signal can be compressed to H.264 or MJPEG and
sent to meet various applications of network or user.
2-way Audio Communication (Bi-directional voice communication between Client’s PC and XNET)
Smart Event feature - On the top of motion detection and sensor/alarm feature, pre- and post- alarm
feature allows automated surveillance without an attendant’s monitoring.
Install/ Operation Wizard - Install/ Operation Wizard not only makes it easy for installers and users,
but also offers a unified installation setup for massive scale installations.
Up to 3 motion detection areas and Video data transmission to FTP site or e-mail upon detecting a
motion.
Supports Various resolutions - 1080P(1920x1080), SXGA(1280x1024), 720P(1280x720),
D1(720x480), VGA(640x480), CIF(320x240)
Remote Control over the network for software upgrade
Surveillance (Building, store, factory, parking lot, financial institutions, government buildings, military
facilities, etc.)
Remote video monitoring (Hospital, kindergarten, traffic monitoring, remote branch office, weather,
environment preservation, and illegal disposal of trash, etc.)
Real time broadcasting over the internet (Resort facility, parties, festivals, etc), remote business
meetings, and educational trainings, etc.
5 / 17
XXNNEETT NNeettwwoorrkk DDoommee CCaammeerraa IInnssttaallllaattiioonn MMaannuuaall
22..11.. CCoonntteennttss
Contents
Description
Additional info.
XNET
XNET IP Dome Camera
AC Power Cable
2Jack Cable
POWER ADAPTOR
INPUT : 100~240VAC 50-60Hz
OUTPUT : 12VDC 2A
GUIDE PATTERN
Guide Pattern
CD
Software and User’s manual
Accessory
Terminal (8P) 1EA, SCREW 3EA, Wall Anchors 3EA
22..22.. PPrroodduucctt IInnffoorrmmaattiioonn
XNET
(IDC4050IR, IDC4050F,
IDC4050VR, IDC4050VF)
Install CD
IP-Installer
Viewer Program
(XNET-CMS)
IP Dome Camera
(IDC4050VR)
A software that assigns an IP
address to the product
A software that monitors and records
Audio and Video signal from the device
22..22..11 PPrroodduucctt CCoommppoossiittiioonn
XNET Product
LENS
IR LED
DC FAN
IDC4050IR
FIXED LENS
O O IDC4050F
FIXED LENS
X X IDC4050VR
VARIFOCAL LENS
O
O
IDC4050VF
VARIFOCAL LENS
X
X
2. About the Product
Please make sure the following contents are included when you open the package.
6 / 17
XXNNEETT NNeettwwoorrkk DDoommee CCaammeerraa IInnssttaallllaattiioonn MMaannuuaall
22..33.. HHaarrddwwaarree DDeessiiggnnaattiioonn
22..33..11.. SSwwiittcchh aanndd CCoonnttrroollss
Power Terminal
Network Terminal
Factory Reset button
Recalls factory default
configurations
IR LED
Analog Video Output
Alarm Input/Output
CDS Sensor
Mic/Audio Input
PWR,CPU,EVENT LED
Network
DC FAN
Megafixel
fixed lens
This shows Camera module inside the dome cover.
Press and hold for more than 3 seconds while power is on to recall factory default settings
Focus Adjust: Adjust the Focus using a knob.
Factory Reset
Adjusting Lens
7 / 17
XXNNEETT NNeettwwoorrkk DDoommee CCaammeerraa IInnssttaallllaattiioonn MMaannuuaall
22..33..22 CCoonnnneeccttiinngg CCaabblleess
- Alarm Sensor Input (+)
- Alarm Sensor Input (-)
- Alarm Output
- Alarm Output (COMMON)
- MIC/ Line Input
- GND
- Line Output
- GND
Alarm Terminal
Audio Connection Terminal
Connect to a
Monitor
Connect to an
Adaptor
Do not use this connector when powering up the product through LAN cable. (PoE)
The product is not covered under warranty when it is damaged by connecting both
Ethernet power and 12V DC power to this terminal.
Analog Video Output
Use this output to monitor the analog video signal while installing.
(Select Video Out at menu screen to enable this output)
Power
Supplies Power to the Xnet product. Use 12V DC Adapter in the package.
8 / 17
XXNNEETT NNeettwwoorrkk DDoommee CCaammeerraa IInnssttaallllaattiioonn MMaannuuaall
Act LED
Link LED
Audio Connection
MIC/Line Input (Mono)
Connects to auxiliary Audio Device or microphone.
Line Output (Mono)
Audio signal output to a Power Amplified device or Speaker. This can be used to listen to the audio
signal sent from a remote PC for Bi-directional Audio communication.
ALARM Input/Output
Connect to Alarm Input and Output
Sensor Input : Wires from various sensor type (IR, heat, and magnetic) can be connected.
Relay Output : Connect to an external Alarm device that operates by a relay such as Siren
Lamp or Alarm Light.
Please refer to “2.3.3 Connecting to Alarm devices” for Sensor and Relay connection.
This Ethernet terminal connects to 100Mbps LAN through an RJ-45 connector. When optional PoE is used,
the power will be supplied from the Network Cable.
Link LED
Yellow light indicates that the network is properly connected.
Act LED
Green light indicates that the XNET system connected to 100Mbps LAN. This green lamp will blink if
the system receives data.
9 / 17
XXNNEETT NNeettwwoorrkk DDoommee CCaammeerraa IInnssttaallllaattiioonn MMaannuuaall
22..33..33 CCoonnnneeccttiinngg ttoo AAllaarrmm DDeevviicceess
Alarm in(+)
Alarm in(-)
Photo Coupler
Sensor
Device
Signal(+5 ~ 30VDC)
GND
Adaptor
+
-
ALARM
DEVICE
POWER
Alarm out
Alarm out
+
+
-
-
Alarm Input
Wires from various sensor type (IR, heat, and magnetic) can be connected to Alarm in(+)/(-) terminal as
shown in figure 2.5. (NC or NO of sensor input can be selected at Menu screen.)
Alarm Sensor device requires a separate power source.
Internal Circuitry External Circuitry
Alarm Output
This terminal can only be connected up to DC 30V/400mA. An additional relay device has to be used to
control higher voltage or current.
Internal Circuitry External Circuitry
10 / 17
XXNNEETT NNeettwwoorrkk DDoommee CCaammeerraa IInnssttaallllaattiioonn MMaannuuaall
33..11.. IInnssttaalllliinngg XXNNEETT
33..11..11.. IInnssttaallllaattiioonn
3. Software Installation
This section provides brief guidelines to install the XNET quickly and to monitor XNET’s Video and Audio
signals easily. If you have questions about details not explained in this section or if the product is not
functioning as described, please refer to FAQ before contacting the store.
Mount the Camera to a ceiling or a wall. Make sure the base is firm enough to hold the Camera.
IDC4050IR Model
11 / 17
XXNNEETT NNeettwwoorrkk DDoommee CCaammeerraa IInnssttaallllaattiioonn MMaannuuaall
33..11..22.. CCaabbllee CCoonnnneeccttiioonn
TILT : 90˚
Horizontal
Rotation : 360˚
PAN : 360˚
FOCUS
ZOOM
COMPUTER
Direct Network
Cable
NETWORK HUB
COMPUTER
Crossover
Network Cable
Cable
Adjust the position, zoom, and focus as shown below:
1. A PC or a laptop computer is required to set up an IP address.
Compatible operating system: Windows 2000/ Windows XP/ Windows Vista
Since the default IP address of the device is 192.168.123.100, set up the IP address of the
computer like the following:
IP Address : 192.168.123.101 Subnet Mask : 255.255.255.0
2. Connect LAN cable to the Network Terminal of the product. (Use a crossover cable when connecting it
directly to a PC, and use a direct cable when connecting it to a HUB)
3. Connect the camera to the power.
4. Use the Alarm Sensor/ output and audio terminal if necessary.
12 / 17
XXNNEETT NNeettwwoorrkk DDoommee CCaammeerraa IInnssttaallllaattiioonn MMaannuuaall
33..22.. IInnssttaalllliinngg IIPP--IInnssttaalllleerr SSooffttwwaarree aanndd CCoonnffiigguurriinngg IIPP aaddddrreessss
33..22..11.. AAbboouutt IIPP--IInnssttaalllleerr
33..22..22.. CCoonnffiigguurriinngg IIPP AAddddrreessss
A unique IP address has to be configured in order to connect IP camera and monitoring PC to a network. IP-
Installer software provided in the Installation CD (included in the package) will configure IP address easily. If
your network have a DHCP server that automatically assigns IP addresses to IP cameras. If your network
does not have a DHCP server, the default IP address of the device is 192.168.123.100. Refer to IP Installer
user’s manual for detail.

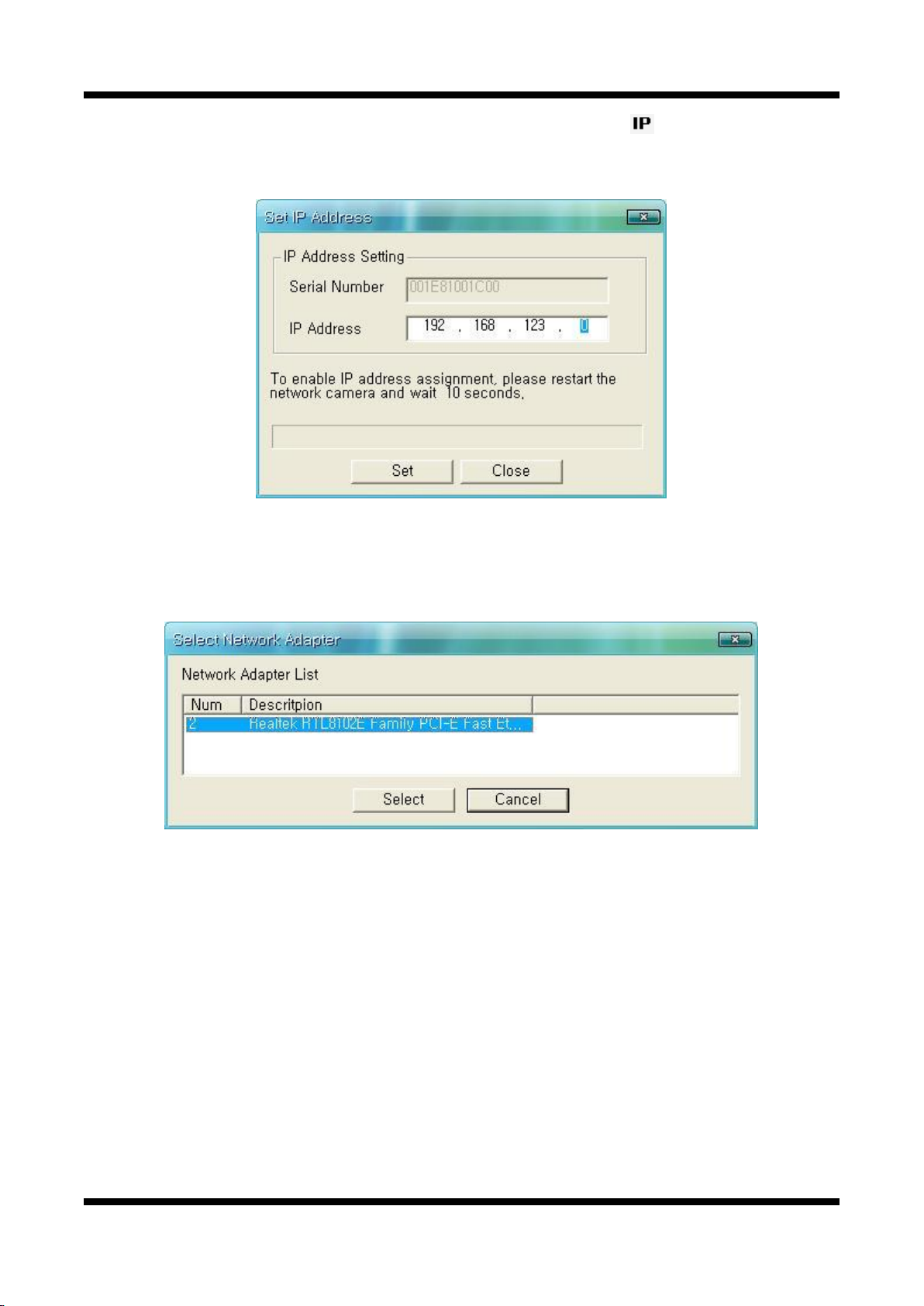

1. The following box will appear when you start the IP-installer software.
Figure 3-2. IP Installer Start box
13 / 17
XXNNEETT NNeettwwoorrkk DDoommee CCaammeerraa IInnssttaallllaattiioonn MMaannuuaall
2. Select the camera of which you wish to change the IP address and click (Set IP Address)
button to bring up the following box in Figure 3-3.
Figure 3-3. IP Address box
3. When you enter the IP address and click Set button, the box shown in Figure 3-4 will appear.
Figure 3-4. Select Network Adapter Box
4. Select the adapter and click select button to change the IP address of the camera.
14 / 17
XXNNEETT NNeettwwoorrkk DDoommee CCaammeerraa IInnssttaallllaattiioonn MMaannuuaall
44..11.. LLooggggiinngg IInn
If you forget the administrator’s password, “Factory Reset” is the only way to regain
access. However, since this will retrieve all default settings, you need to configure
the network settings using IP installer software again.
For security purpose, it is recommended to change the administrator’s id and
password from their default values. Please be careful not to forget them or expose
them to others. Please refer to [Web Viewer Manual] for detail.
4. Using Web Viewer
Connecting to network devices can be done using internet web browser or “XNET-CMS” software. This guide
explains about using internet web browser only. For instructions on how to configure network connection
using XNET-CMS software, please refer to XNET-CMS Manual, which can be found in the installation CD.
Enter the IP address of the device on the address bar of your web browser and press enter key. Then the
following webpage will appear:
Enter the user name and password to bring up the web viewer page. The default id and password is
Figure 4-1 Log-in Box
“root”, “admin” respectively. If you want to use a different HTTP port number from the default value,
simply put a colon and port number at the end of the IP address. (For example, enter the following
address when changing the port to 8080: http://192.168.123.100:8080)
<Address format for accessing as an administrator>
(When using default IP address and port number)
(When IP address and port number changed) http://IP
http://192.168.123.100
address: new port number
15 / 17
XXNNEETT NNeettwwoorrkk DDoommee CCaammeerraa IInnssttaallllaattiioonn MMaannuuaall
44..22.. WWeebb VViieewweerr PPaaggee
Item
Sub Item
Description
Capture
-
Captures and saves the current image as a still picture.
The image is saved as jpeg file in the following folder: C:\xNetCapture
Setting
-
Brings up Menu screen.
Setup page for each XNET feature can be opened from this Menu screen.
Please refer to [XNET Owner’s Manual] for detail.
Live View
Main Stream
When this box is checked, Main Stream Video is displayed.
Sub Stream
When this box is checked, Sub Stream Video is displayed.
Dual-Codec needs to be enabled in Video Setup Page in order for Sub
Stream to be displayed.
Please refer to [XNET Owner’s Manual] for detail.
Web viewer page consists of Video monitor screen and menu option buttons.
Figure 4-2 Web Viewer Page
16 / 17
XXNNEETT NNeettwwoorrkk DDoommee CCaammeerraa IInnssttaallllaattiioonn MMaannuuaall
IDC4050F/IDC4050IR/IDCP4050VF/IDC4050VR
Specifications
Camera
Signal System
Progressive image processing
Scanning System
16:9 Progressive
Pixel Clock
80MHz
Image Sensor
1/3" Progressive CMOS Sensor
Sync. System
Internal
Effective Pixels Number
1920 (H) x 1080(V) 2.0 Mega
Horizontal Resolution
1100 TV Lines
Video Output Level
Select NTSC/PAL 1.0Vp-p (BNC 75Ω, composite)
Lens
Built-in Fixed Mega pixel Lens, f=4.0mm, F 1.8 *IDC4050F / IDC4050IR
Built-in DC Iris Vari-focal Lens, f=3 ~ 10mm, F 1.3 *IDC4050VF / IDC4050VR
Min. Illumination
1Lux (Color, DSS On), 0.05Lux (B/W, DSS On) *IDC4050F
1Lux (Color, DSS On), 0.00Lux (IR LED On) *IDC4050IR
0.8Lux (Color, DSS On), 0.1Lux(B/W), 0.05Lux (B/W, DSS On) *IDC4050VF
0.8Lux (Color, DSS On), 0.1Lux(B/W), 0.00 Lux (IR LED On) *IDC4050VR
IR LED and Sensor
850nm / 45˚ IR LED 18EA, Sensor 1EA
*IDC4050IR / IDC4050VR (IR model Only)
IR LED Lighting Distance
Max. 15m
Day & Night System
ICR(CDS Type)
Back Light Compensation
On/Off
Flickerless
On/Off
White Balance
Auto/Manual
Exposure
Auto/Manual
Functions
B/W
Electronic Shutter Speed
NTSC : 1/7.5 ~ 1/8000 (21 Step)
PAL : 1/7.5 ~ 1/8000 (21 Step)
Video / Audio
Compression
H.264 / MJPEG
Frame rate
Single Mode : Main(H.264@30fps) *1080p Mode : Main(H.264@30fps)
Second(H.264@30fps/MJPEG) *Main(720p)/Second(D1)
Resolution
Full HD(1920 x 1080), SXGA(1280 x 1024, 1280 x 960) 720P(1280x720),
D1(720 x 480 / 720 x 576), VGA(640x480), CIF(352 x 240 / 352 x 288)
Audio
Two-way (Full duplex / G.711)
Network
Protocol
IPv4, HTTP, HTTPs, UDP, TCP, RTSP, RTP, SMTP, FTP, ICMP, DHCP, UPnP, Bonjour,
ARP, DNS, DynDNS, NTP, IGMP(Multicast) , QoS, SNMP *) OnVif
Supported DDNS
1. DDNS 2. DynDNS.org
3. Reference code with SDK
LAN Interface
Ethernet 10/100 Base-T (RJ-45 Type)
Support PoE
Standard IEEE 802.3af supported
Security
Access level setup
Multiple user access levels with password protection
Network Security
IP Filtering
Alarm and Event
Management
Image detection
Motion detection (Select 3 Regions - each area)
Sensor detection
Sensor In, Scheduling, Alarm out
After Event process
JPEG Image upload over FTP server / SMTP (E-mail server)
Applications
Browser
Internet Explorer 6.0 or later
Monitoring Application
NVR, CMS and Utility (IP-Installer, etc)
Maintenance
System Upgrade
Firmware upgrade over HTTP
Mechanical
Operating Temperature
0℃ ~ 40℃
Power
DC 12V Max. 7 W
Dimensions / Weight (Net)
92(Ø ) mm
5. Specification
17 / 17
XXNNEETT NNeettwwoorrkk DDoommee CCaammeerraa IInnssttaallllaattiioonn MMaannuuaall
Loading...
