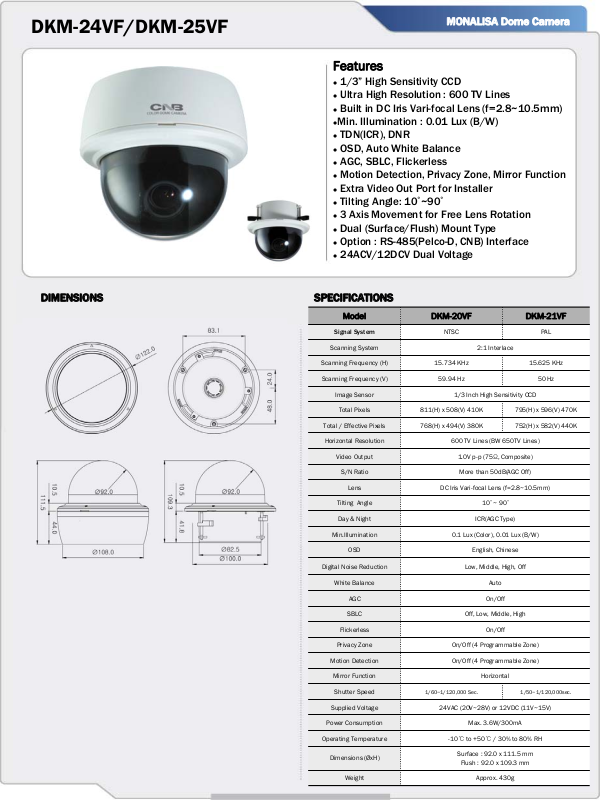

CNB DKM-24VF Specsheet

DKM-24VF/DKM-25VF

www.cnbtec.com

MONALISA Dome Camera

Features



1/3”

High Sensitivity CCD



Ultra High Resolution : 600 TV Lines



Built in DC Iris Vari-focal Lens (f=2.8~10.5mm)



Min. Illumination : 0.01 Lux



TDN(ICR), DNR



OSD, Auto White Balance



AGC, SBLC, Flickerless



Motion Detection, Privacy Zone, Mirror Function



Extra Video Out Port for Installer



Tilting Angle: 10˚~90˚



3 Axis Movement for Free Lens Rotation



Dual (Surface/Flush) Mount Type



Option : RS-485(Pelco-D, CNB) Interface



24ACV/12DCV Dual Voltage

SPECIFICATIONSDIMENSIONS

Model DKM-20VF DKM-21VF

Signal System NTSC PAL

Scanning System 2:1 Interlace

Scanning Frequency (H) 15.734 KHz 15.625 KHz

Scanning Frequency (V) 59.94 Hz 50 Hz

Image Sensor 1/3 Inch High Sensitivity CCD

Total Pixels 811(H) x 508(V) 410K 795(H) x 596(V) 470K

Total / Effective Pixels 768(H) x 494(V) 380K 752(H) x 582(V) 440K

Horizontal Resolution 600 TV Lines (BW 650TV Lines)

Video Output 1.0V p-p

S/N Ratio More than 50dB(AGC Off)

Lens DC Iris Vari-focal Lens (f=2.8~10.5mm)

Tilting Angle 10˚

Day & Night ICR(AGC Type)

Min.Illumination 0.1 Lux

OSD English, Chinese

Digital Noise Reduction Low, Middle, High, Off

White Balance Auto

AGC On/Off

SBLC Off, Low, Middle, High

Flickerless On/Off

Privacy Zone On/Off (4 Programmable Zone)

Motion Detection On/Off (4 Programmable Zone)

Mirror Function Horizontal

Shutter Speed

Supplied Voltage 24VAC (20V~28V) or 12VDC (11V~15V)

Power Consumption Max. 3.6W/300mA

Operating Temperature -10℃ to +50℃ / 30% to 80% RH

Dimensions (ØxH)

Weight Approx. 430g

1/60~1/120,000 Sec. 1/50~1/120,000sec.

(B/W)

(75Ω, Composite)

~ 90˚

(Color), 0.01 Lux

Surface : 92.0 x 111.5 mm

Flush : 92.0 x 109.3 mm

(B/W)
